SKU: MCCA155BLK
McCallum Wide Throw Interfold Hinge Aluminum 110mm Black A155BLK
RRP: $12.69
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

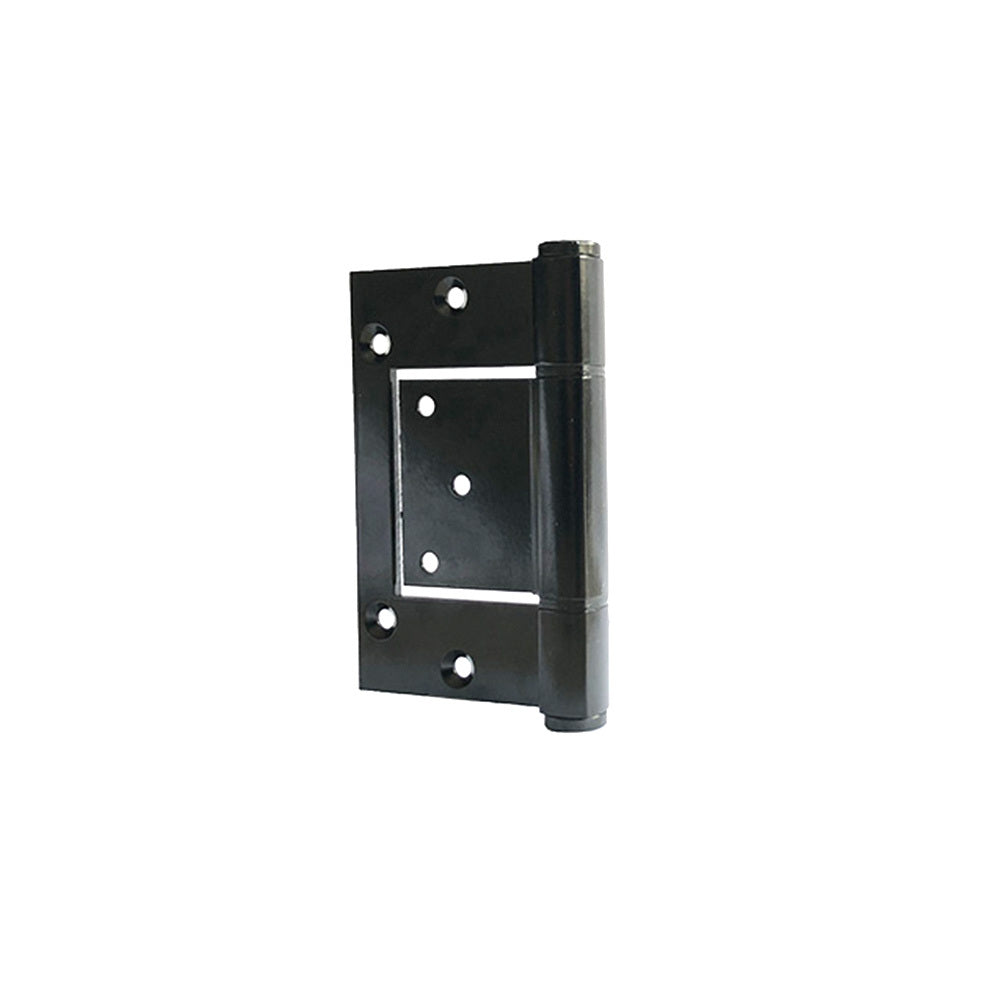

McCallum Wide Throw Interfold Hinge
A155BLK
Interfold Hinge used for concealed, interior, and partial doors, as well as providing sufficient closing force for wood and lightweight metal doors.
Interfold Hinge Function - suitable for either centre pocket or front edged glazing systems.
Features:
- Wide Throw allows for an extra 15mm throw past Architraves, Wall reveals, etc
- Suitable for Commercial Aluminium & some Timber doors
- Suitable for either Centre Pocket or Front Edged Glazing systems
- Fixing Screws Supplied
- Door weight up to 40kg
Specifications:
- Material: High Strength Aluminium Alloy

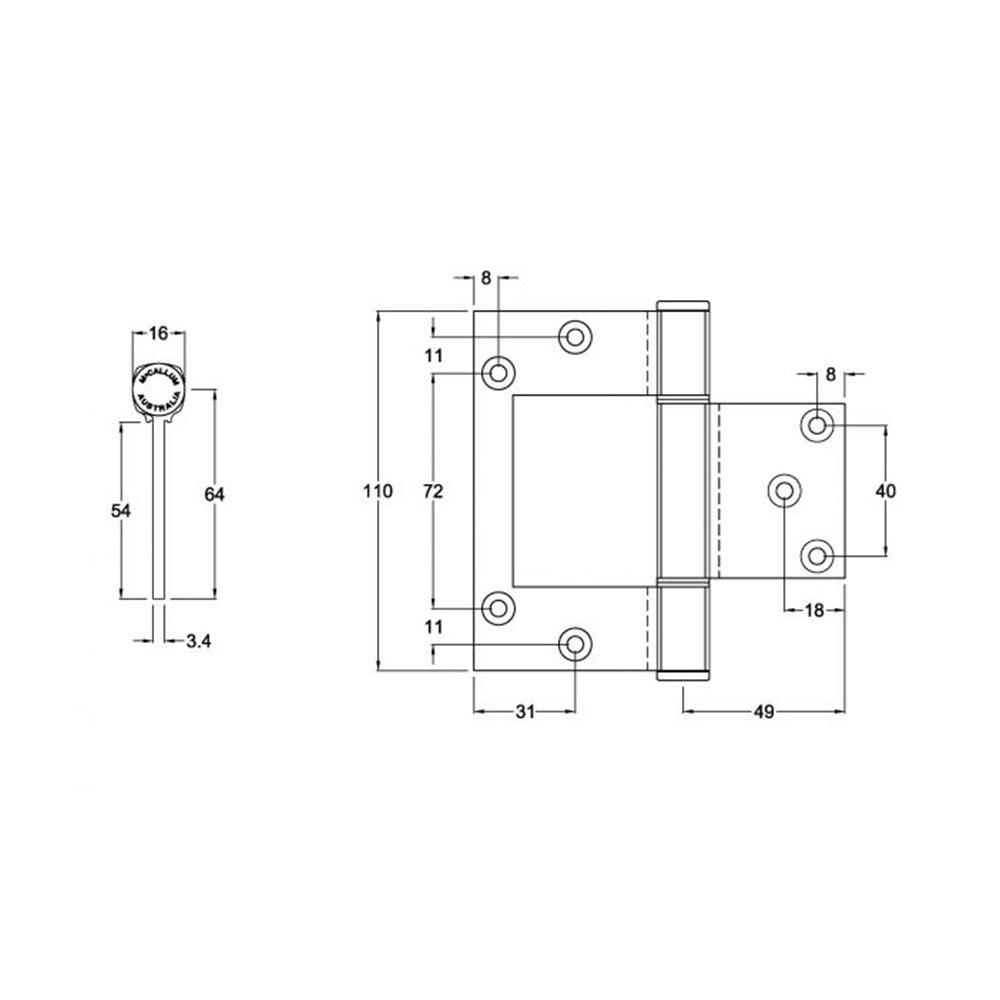

- Dimension: 110mm x 54mm x 3.4mm
- Knuckle: Squareline Centre Knuckle
- Bearings: Flanged Nylon Bushes
- Door Type: Aluminium and Timber
- Minimum Door Thickness: 40mm
- Finish: Black Powder Coat
