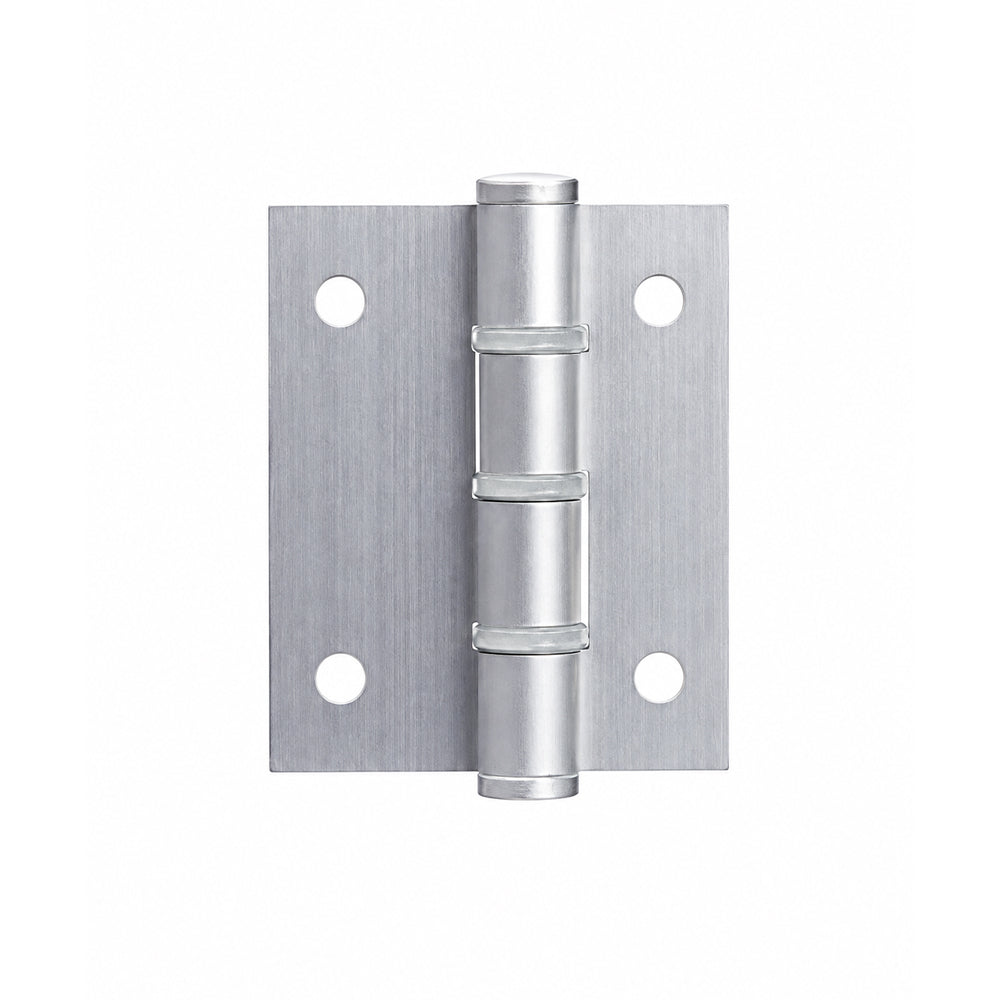

McCallum Window & Shower Screen Door Aluminum Butt Hinge Satin Natural Anodised A170

McCallum Window & Shower Screen Door Aluminum Butt Hinge
A170

Butt Hinge used to mount and operate doors on commercial properties and residential homes.

Butt Hinge Function - Also known as a morticed hinge, a butt hinge is a type of hinge with a pair of identical leafs. They typically feature a larger knuckle than other types of hinges. With their wide knuckle, the two leafs will sit flush with each other when the butt hinge is closed.

Features:

• Fixed-pin aluminum butt hinge
• Suitable for doors, windows and selected shower screens
• High-strength T6 aluminum construction
• 304-grade stainless-steel hinge pin
• Flanged nylon bushes for smooth operation
• Round knuckle
• Aluminum pressed endcaps

Specifications:

• Dimensions: 76mm x 48mm x 2.2mm
• Hinge Type: Fixed-pin butt hinge
• Material: T6 aluminum alloy
• Minimum Tensile Strength: 254MPa
• Hinge Pin: 4mm-diameter 304 stainless steel
• Knuckle: Round
• Minimum Door Thickness: 32mm
• Maximum Capacity: 20kg using three hinges
• Recommended Door Size: Up to 2040 × 820mm
• Applications: Aluminum windows and frames, doors and selected shower screens
• Fastening Screws: Not supplied
• Finish: Satin Natural Anodised
