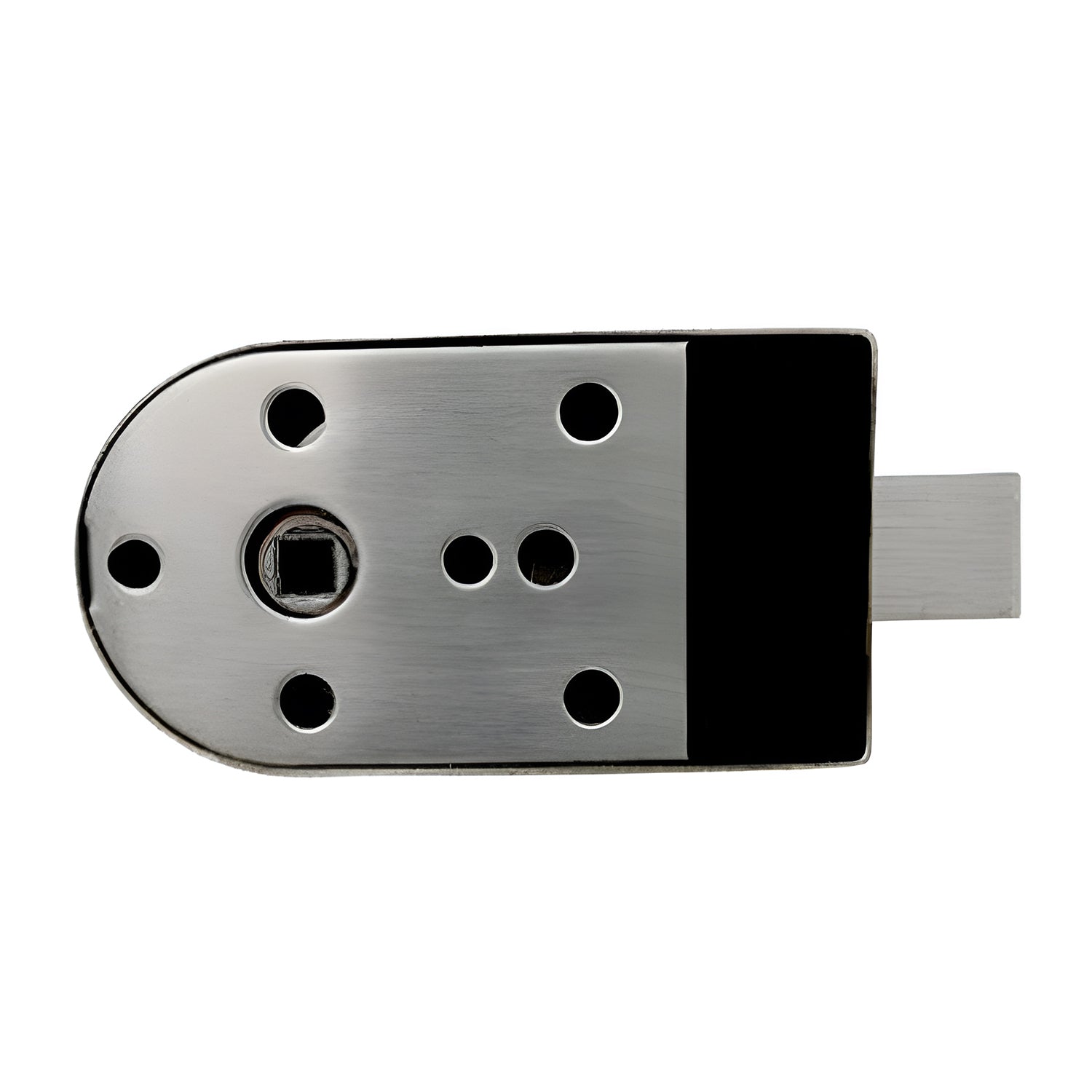

Metlam Ambulant Lock and Indicator with Bumper Stainless Steel 700AMB_LOCK_SS

Metlam Ambulant Lock and Indicator with Bumper
700AMB_LOCK_SS

Ambulant Lock and Indicator is a specialized hardware set commonly used in public restrooms or facilities to provide privacy for users with mobility challenges.

Ambulant Lock and Indicator Function - Users can lock and unlock the door from the inside using a turn bolt or button without the need for a key.

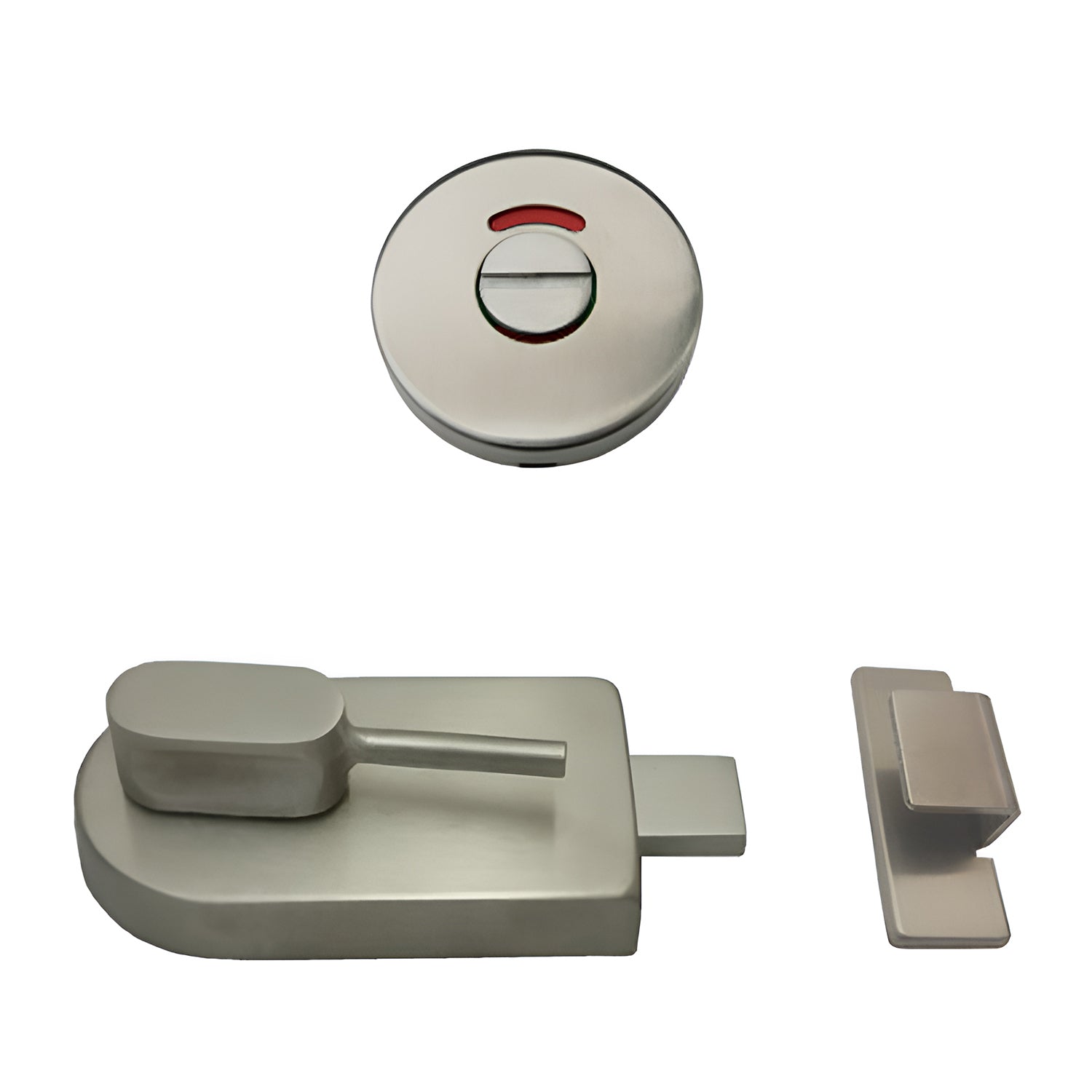

Includes:

• 1 x Indicator
• 1 x Integrated Lock and Bumper
• 1 x Lift Off Staple

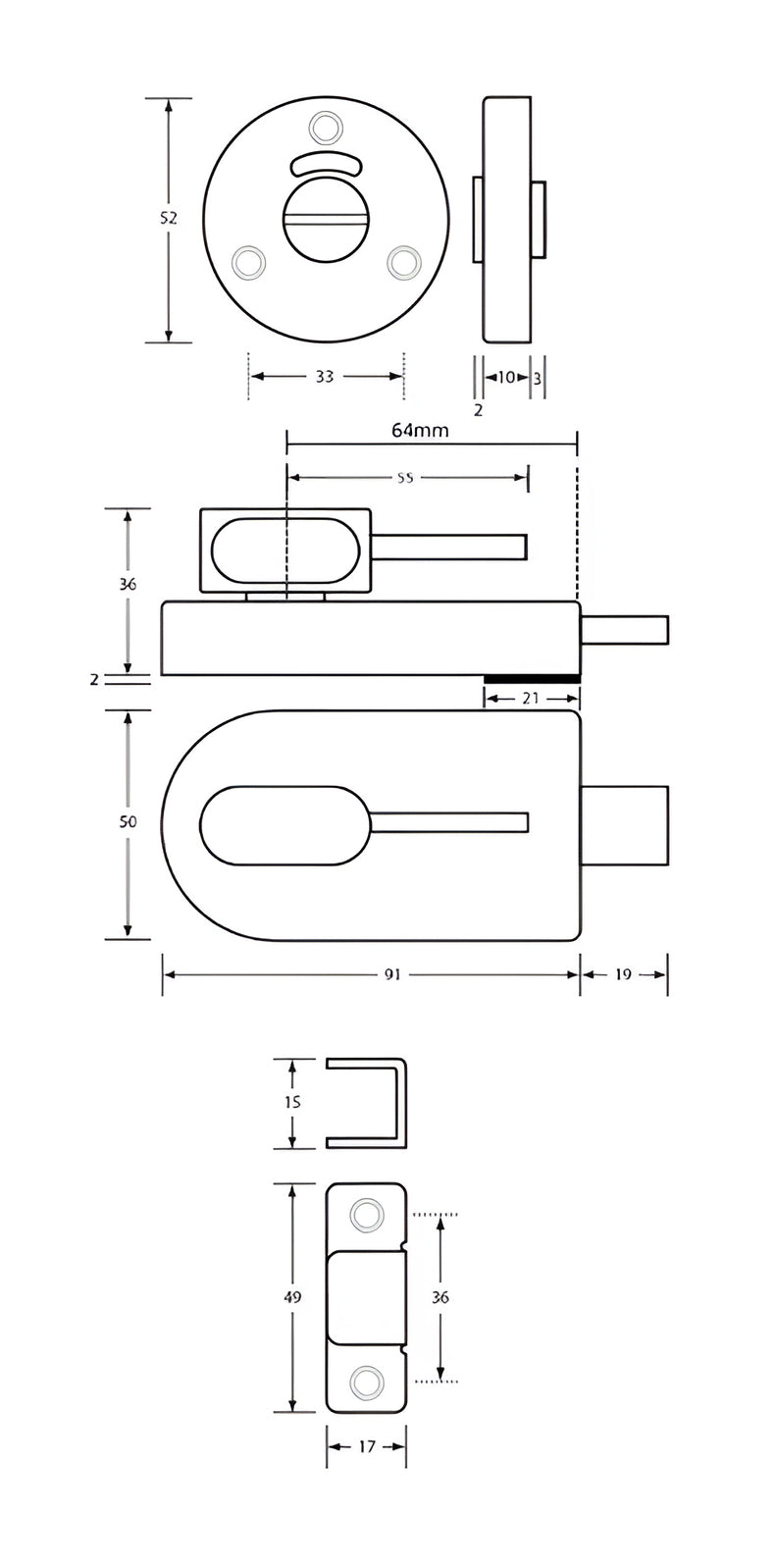

Specifications:

• Indicator Material: 304 Stainless Steel
• Indicator Diameter: 52mm
• Indicator Center to Center: 33mm
• Indicator Projection: 12mm
• Integrated Lock Material: 304 Stainless Steel
• Integrated Lock Height: 50mm
• Integrated Lock Width: 91mm
• Integrated Lock Projection: 36mm
• Integrated Lock Ambulant Length: 64mm
• Integrated Lock Bolt Throw: 19mm
• Integrated Lock Bumper Width: 21mm
• Integrated Lock Bumper Depth: 2mm
• Staple Material: 304 Stainless Steel
• Staple Height: 49mm
• Staple Width: 17mm
• Staple Projection: 15mm
• Satple Centre to Centre: 36mm
• Fixing: Concealed Screw Fix
• Finish: Satin Stainless Steel
