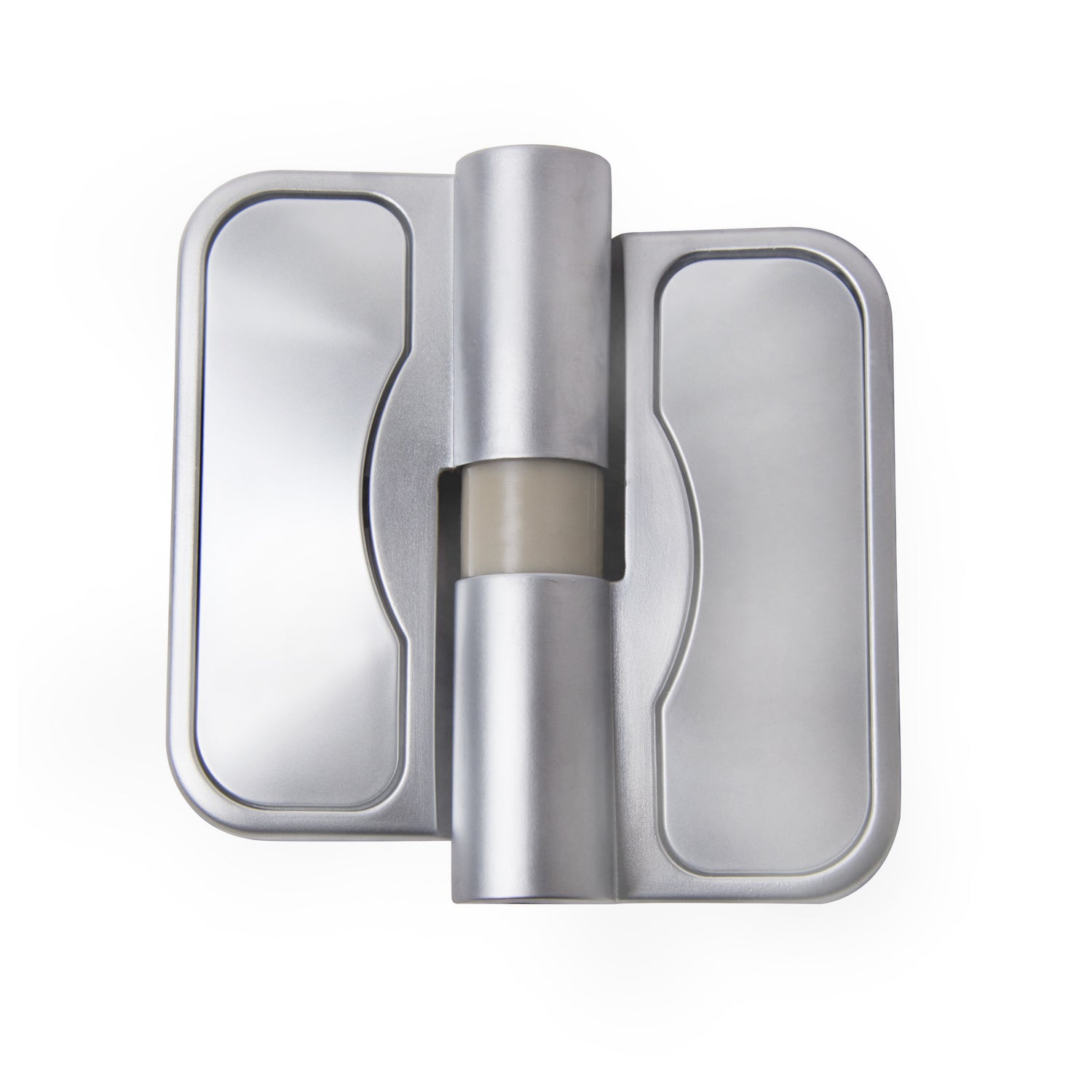

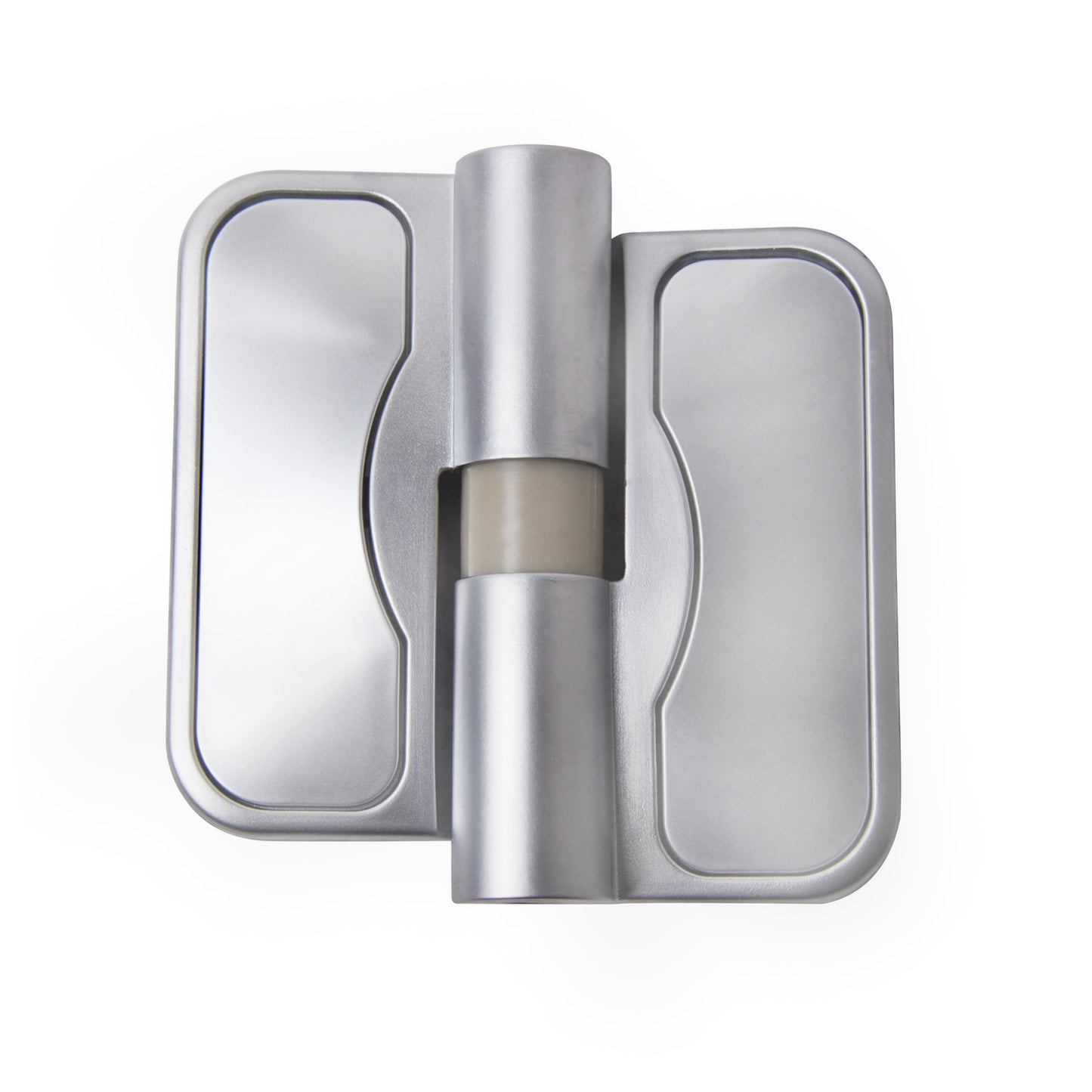

Metlam Gravity Hinge 77x81mm Antimicrobial MODA_GRAVITY_ANMB

Metlam Gravity Hinge
MODA_GRAVITY_ANMB

Gravity Hinge is a type of hinge that operates based on the weight of the door itself.

Gravity Hinge Function - can be set to automatically open or close by utilizing the door’s weight as a constant force. Particularly useful for doors that need to swing smoothly without manual effort

Features

• Step on the back of the hinge plus an increased vertical nylon drop allows for better movement from the gravity function
• Nylons are set so the door can move past 90° whilst still functioning correctly
• Nylon cover on the barrel keeps foreign substances from penetrating the pins and nylons allowing for a smoother opening and closing
• Interchangeable hinge covers including Moda Spring Hinge
• The fixing holes correlate with the bolt-through faceplates making installation a breeze.
• Reversible Hold Open or Hold Closed
• Lift off capability

Specfications:

• Material: Diecast Zinc Alloy, ZP3
  Load Ratings: 15kg per hinge

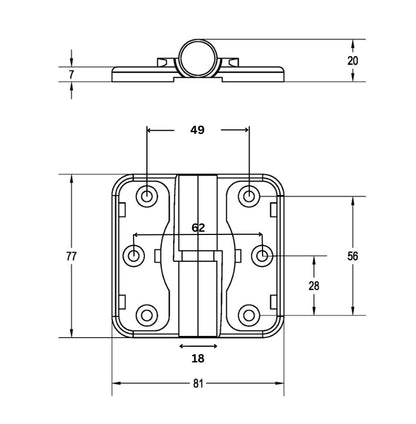

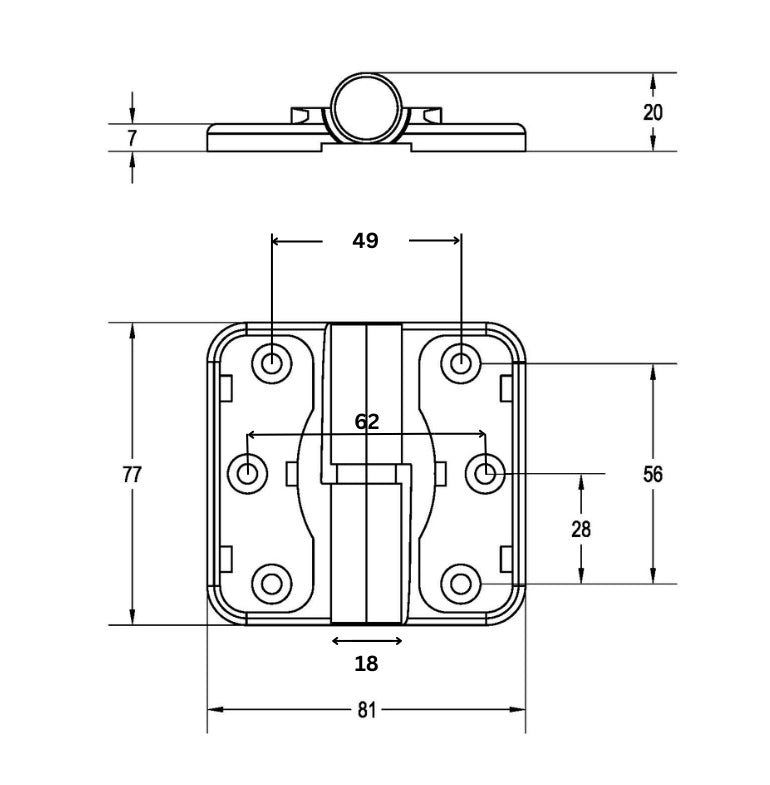

• Center to Center: 49mm
• Height: 77mm
• Length: 81mm
• Thickness: 7mm
• Projection: 20mm
• Mounting: Concealed Screw Fix or Bolt Through
• Finish: Antimicrobial Coating

For optimum performance:

• 2 hinges per door up to 30Kgs.
• For doors over 30Kg allow for 15Kg per hinge.

Note:

• 3 Hinges per door is recommended to prevent door bowing.
