Metlam Gravity Hinge Visible Fix - Available in Screw Fix and No Fixings

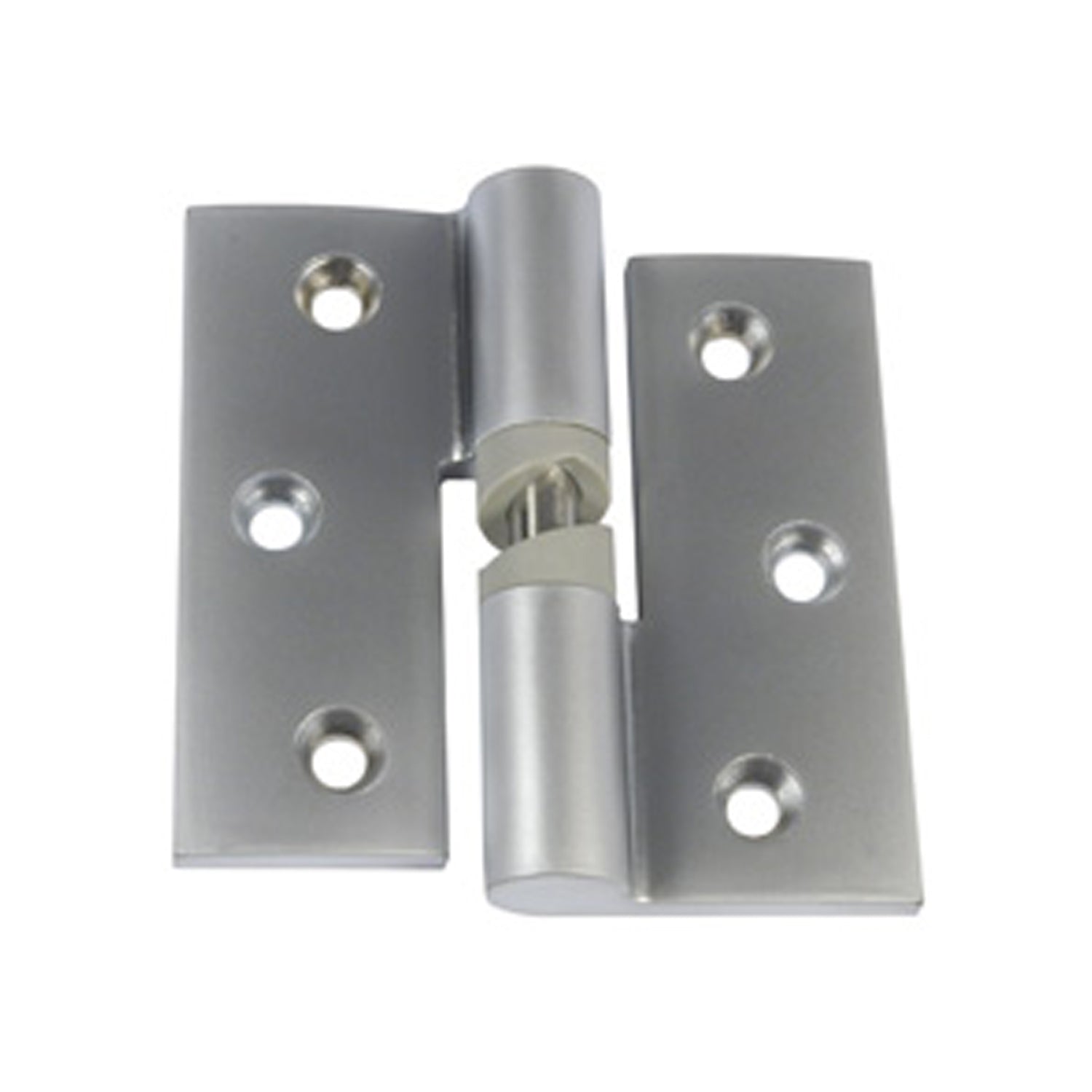

Metlam Gravity Hinge Visible Fix

Gravity Hinge is a type of hinge that operates based on the weight of the door itself.

Gravity Hinge Function - can be set to automatically open or close by utilizing the door’s weight as a constant force. Particularly useful for doors that need to swing smoothly without manual effort

Features:

• Gravity-assisted door opening/door closing with lift-off capability

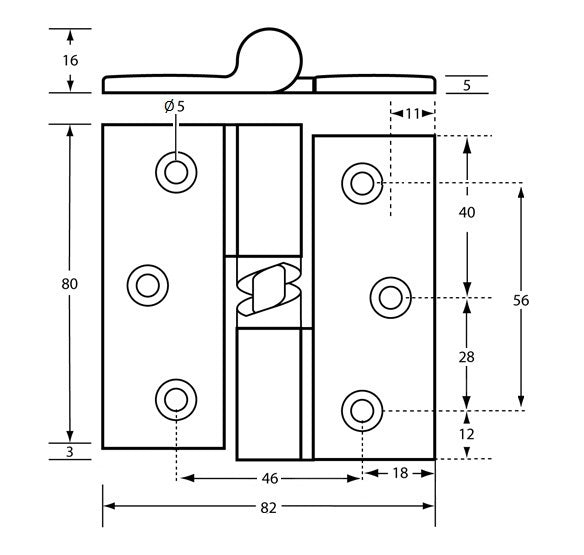

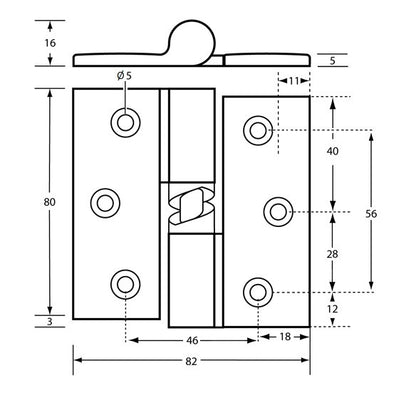

Specifications:

• Material: Diecast Zinc, Alloy ZP3
• Load Rating: 15Kg per hinge
• Minimum Hinge Clearance For Lift-Off Hinges: 30mm
• Height: 80mm
• Length: 82mm
• Screw Hole Diameter: 5mm
• Projection: 16mm
• Thickness: 5mm
• Center to Center: 56mm
• Available Fixing:
  • No Fixing
  • Visible Screw Fix
• Finish: Satin Chrome Plate

For optimum performance:

• 2 hinges per door up to 30Kgs
• For doors over 30Kg allow for 15Kg per hinge

Note:

• 3 Hinges per door is recommended to prevent door bowing
• All Hinges Are Available With Or Without Fixings. Please Nominate Your Requirements At The Time Of Ordering.
