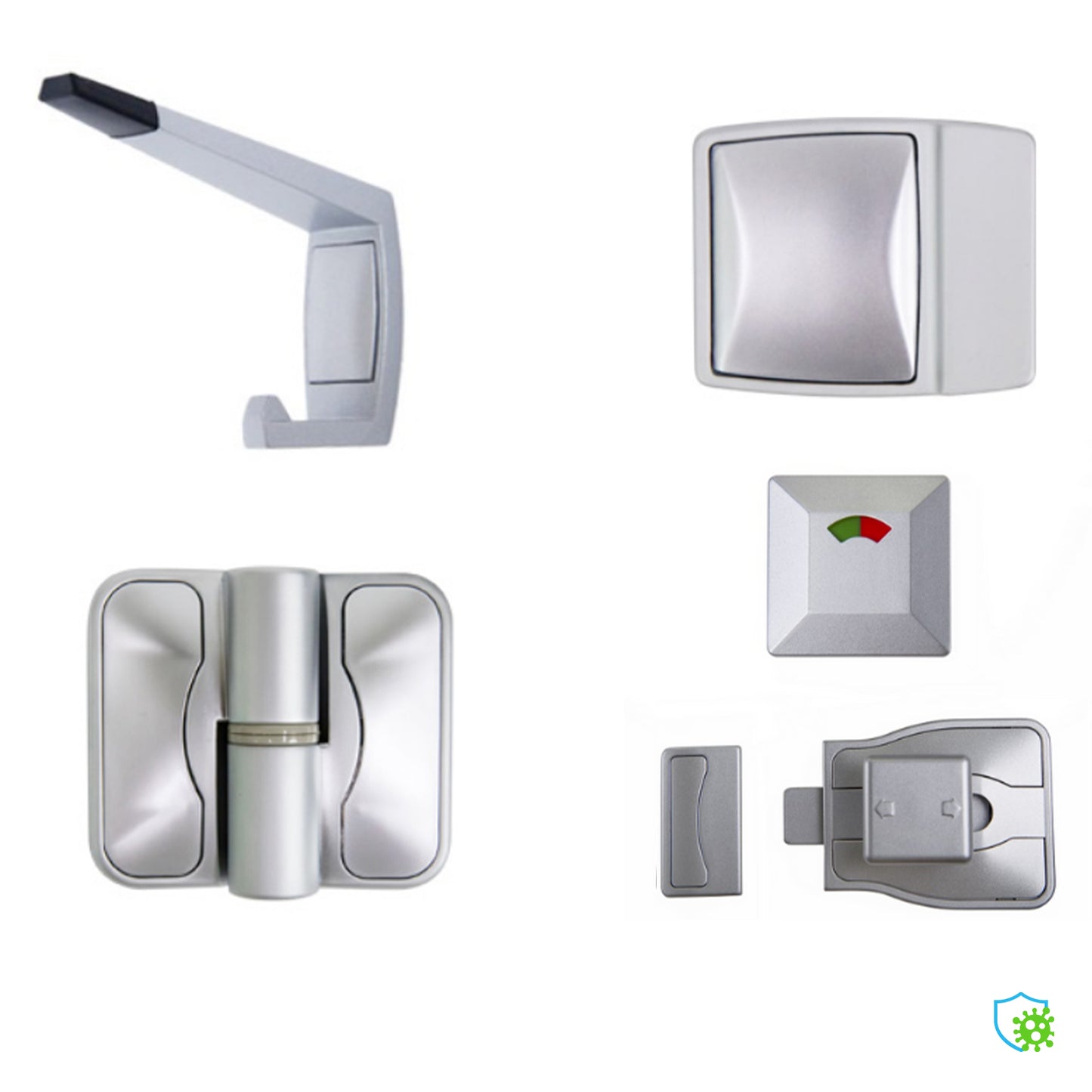

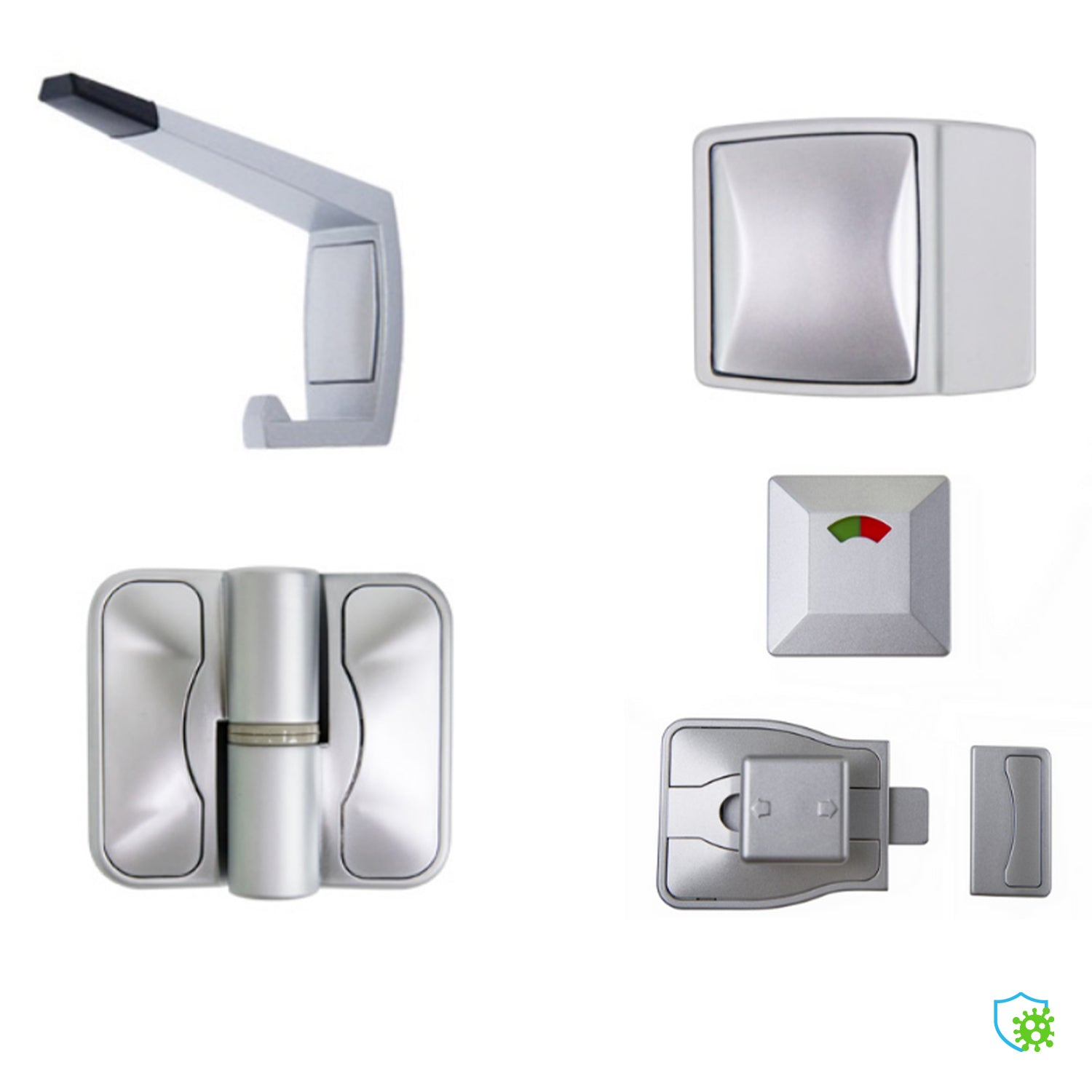

Metlam Moda Advantage Kit - Available in Left and Right Hand

Metlam Moda Advantage Kit

Privacy Indicator Bolt ideally used restrooms, especially public toilets. They offer more security compared to regular locks.

Privacy Indicator Bolt Function - is used to indicate whether a single-occupant room is occupied or not. These bolts also serve as the room's main lock or additional security.

Includes:

• 1 x Lock and Indicator Set (XCEL_SLIDELOCK_ANMB)
• 3 x Spring Hinge (MODAHINGE_ANMB)
• 1 x Bumper (MODA_BUMP_ANMB)
• 1 x Coat Hook (MODA_HOOK_ANMB)

Specifications:

• Material: Diecast Zinc, Alloy ZP3 ABS Snap-On Cover
• Indicator Diameter: 50mm
• Indicator Projection: 10mm
• Indicator Depth: 8mm
• Indicator Centre to Centre: 38mm
• Slide Lock Height: 50mm
• Slide Lock Center to Center: 43mm
• Bolt Throw: 24mm
• Staple Center to Center: 8mm
• Staple Width: 28mm
• Staple Height: 36mm
• Staple Projection: 15mm
• Mounting: Concealed Screw Fix
• Hinge Load Rating: 15kg (per hinge)
• Hinge Mounting: Concealed Fix
• Minimum Hinge Clearance For Lift Off Hinges: 35mm
• Bumper Material: Diecast Zinc and Alloy ZP3
• Bumper Mounting: Concealed Fix
• Bumper Length: 55mm
• Bumper Width: 45mm
• Bumper Projection: 9.4mm
• Bumper Centre to Centre: 31mm
• Bumper Thickness: 7mm
• Hook Material: Diecast Zinc, Alloy ZP3 Rubber Bumper
• Hook Mounting: Concealed Screw Fix
• Hook Height: 60mm
• Hook Width: 25mm
• Hook Projection: 90mm
• Handing:
  • Left Hand
  • Right Hand
• Finish: Antimicrobial Coated

Compliance:

• Deemed to satisfy Disability Standard AS1428.1 for ambulant cubicle specification only.
