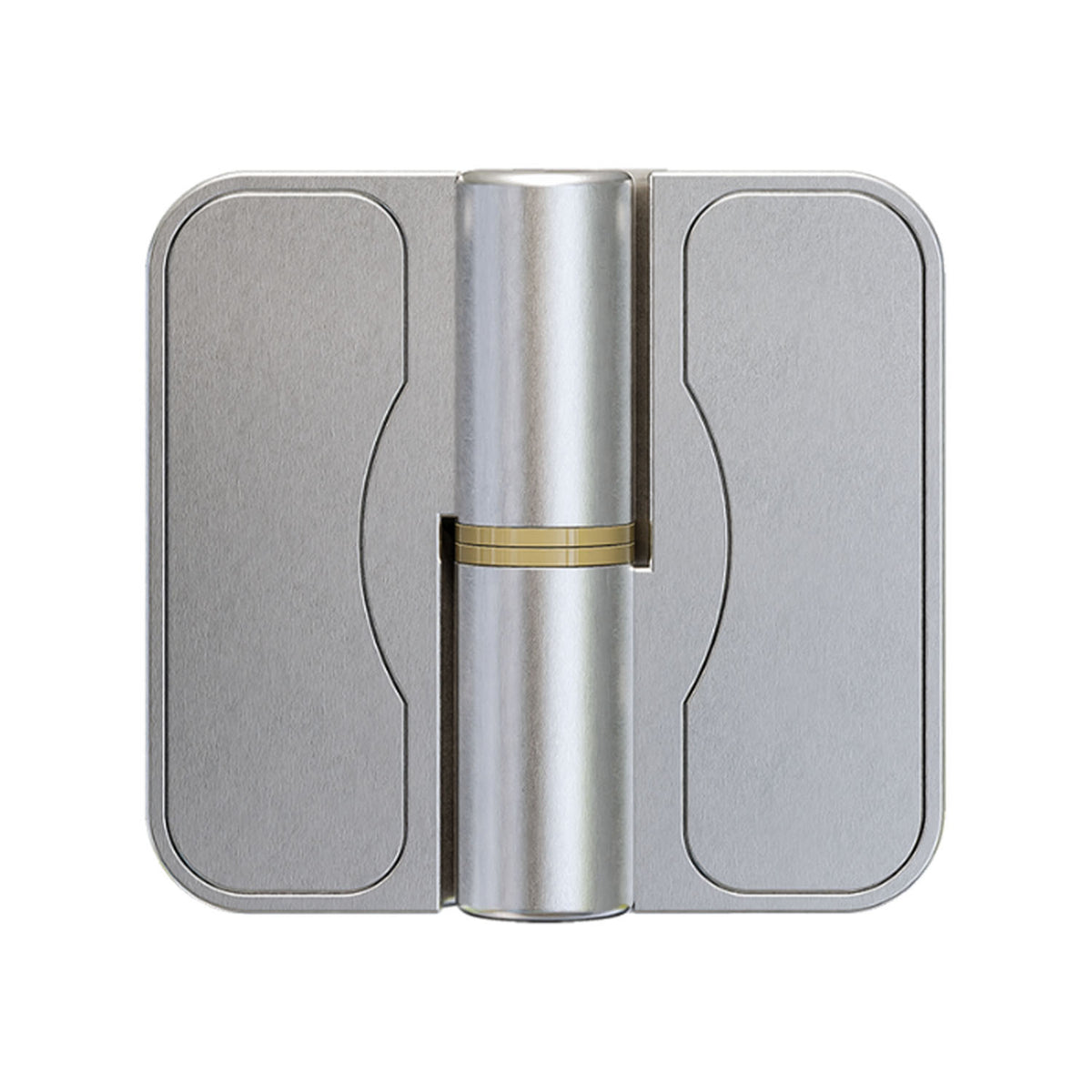

Metlam Moda Spring Hinge Concealed Screw Fix Anti Microbial MODA_SPRING_ANMB

Metlam Moda Spring Hinge
MODA_SPRING_ANMB

Spring Hinge used in both residential and commercial applications, spring hinge doors also work as double-acting swing hinges. These are called saloon doors or swing door hinges, which are popular in hospitals, restaurants, schools, and many other institutions.

Spring Hinges Function - are self-closing hinges. A spring mechanism in the barrel allows the hinges to automatically close a door which enables these hinges to serve as an alternative to overhead mounted door closer. The closing power of the hinges can be adjusted whilst still on the door or gate.

Features:

• Spring-assisted door opening/door closing
• Fully Adjustable Spring to suit door - No Tension to Full Tension Spring
• Reversible Hold Open / Hold Closed
• Liftoff capability

Specifications:

• Materials:
  • Diecast Zinc, Alloy ZP3
  • Brass Shaft
  • Nylon Inserts
  • ABS Snap-On Covers
• Mounting: Concealed Screw Fix
• Minimum Hinge Clearance For Lift-Off Hinges: 35mm
• Load Rating: 15Kg per hinge

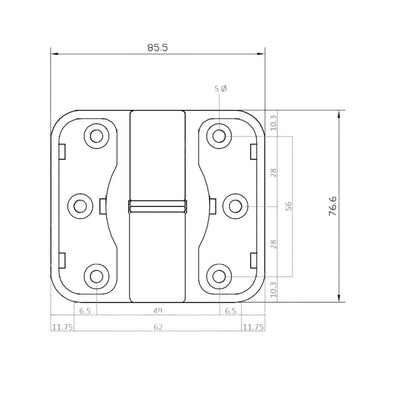

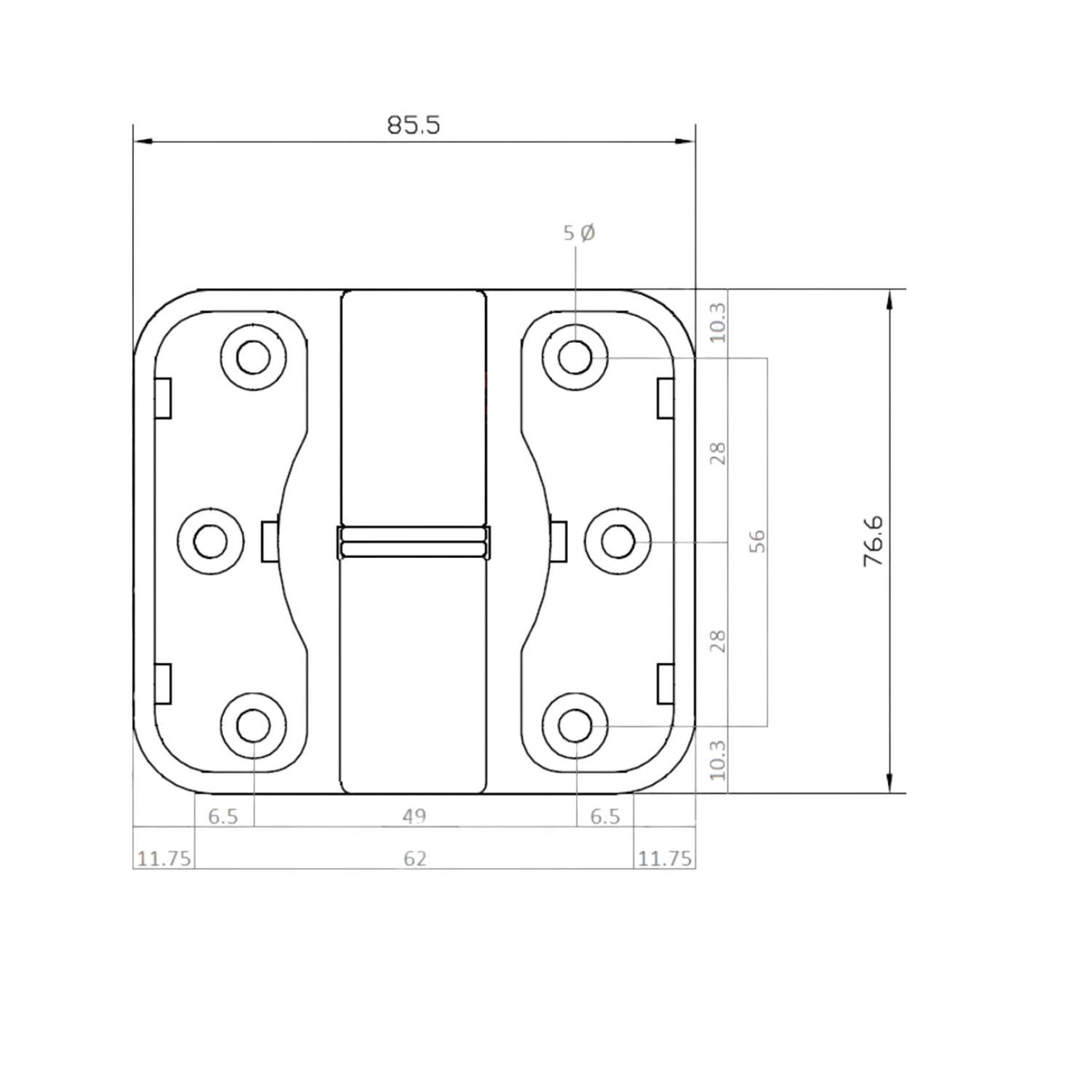

• Length: 85.5mm
• Height: 76.6mm
• Finish: Antimicrobial Coated

Note:

• 2 hinges per door up to 30Kgs
• For doors over 30Kg allow for 15Kg per hinge
