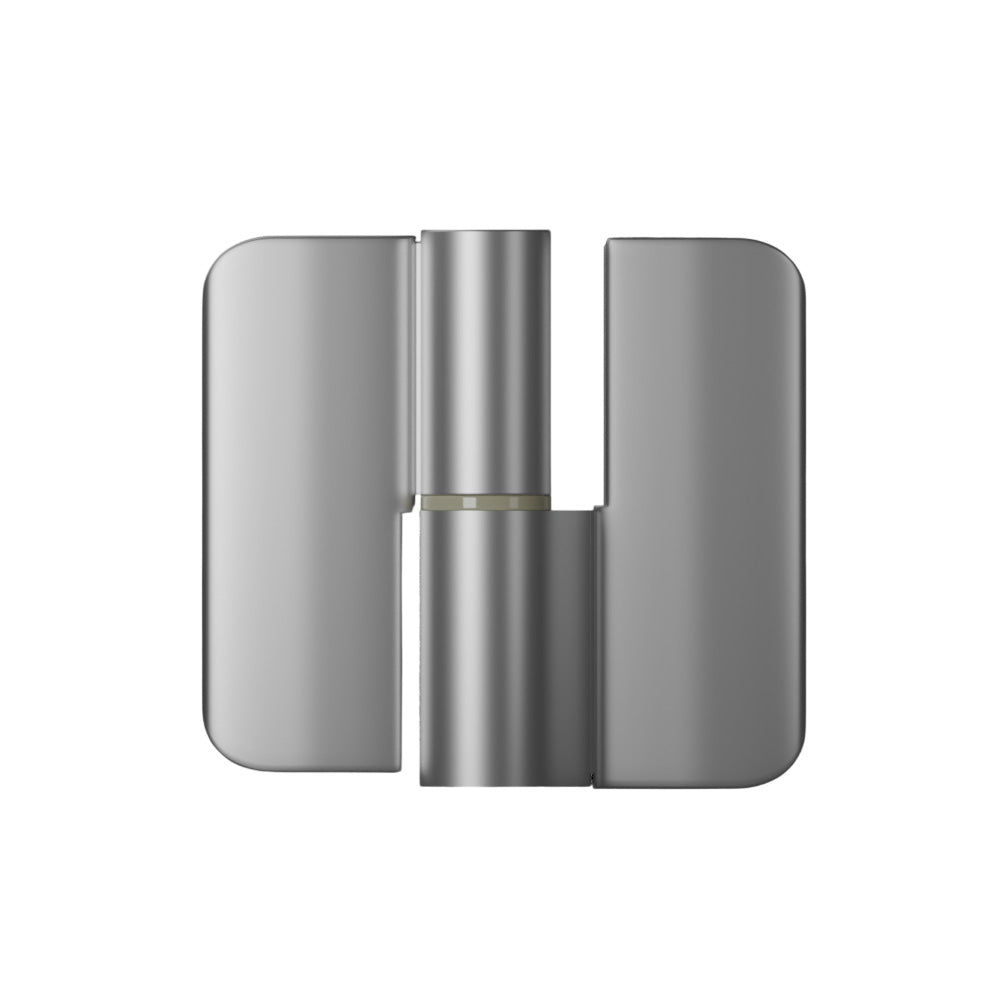

Metlam Overlap Spring Hinge Right Hand Hold Open Satin Chrome Plate OL105_13RHHO

Metlam Overlap Spring Hinge
OL105_13RHHO

Spring Hinge eliminate the need for individuals to manually close doors, making them convenient for high-traffic areas or situations where hands-free operation is desirable.

Spring Hinge Function - is a type of hinge equipped with a built-in spring mechanism. This mechanism allows the door to close automatically after it has been opened, without the need for manual assistance.

Features:

• Right Hand, Hold Open configuration
• Spring-assisted action helps the door move towards a hold-open position
• Overlapping lift-off spring hinge design
• Suitable for 13mm board as standard
• Can accommodate 18mm or 33mm board with the appropriate OL105 spacer
• Suitable for screw-fix or bolt-through mounting

Specifications:

• Dimensions: 86 x 93 x 35mm
• Material: Diecast Zinc, Brass Shaft, Nylon Inserts, ABS Snap-On Covers
• Mounting Screw: Fix or Bolt Through
• Board Thickness: 13mm
• Minimum Hinge Clearance: 40mm
• Load Rating: 15kg per hinge
• Recommended Configuration: 2 hinges per door up to 30 kg
• Fixings: 13mm screw fixings supplied
• Function Assists: door movement towards a Hold Open Position
• Spring Action: Hold Open
• Handing: Right Hand
• Finish: Satin Chrome Plate

Note:

• 3 Hinges per door is recommended to prevent door bowing
