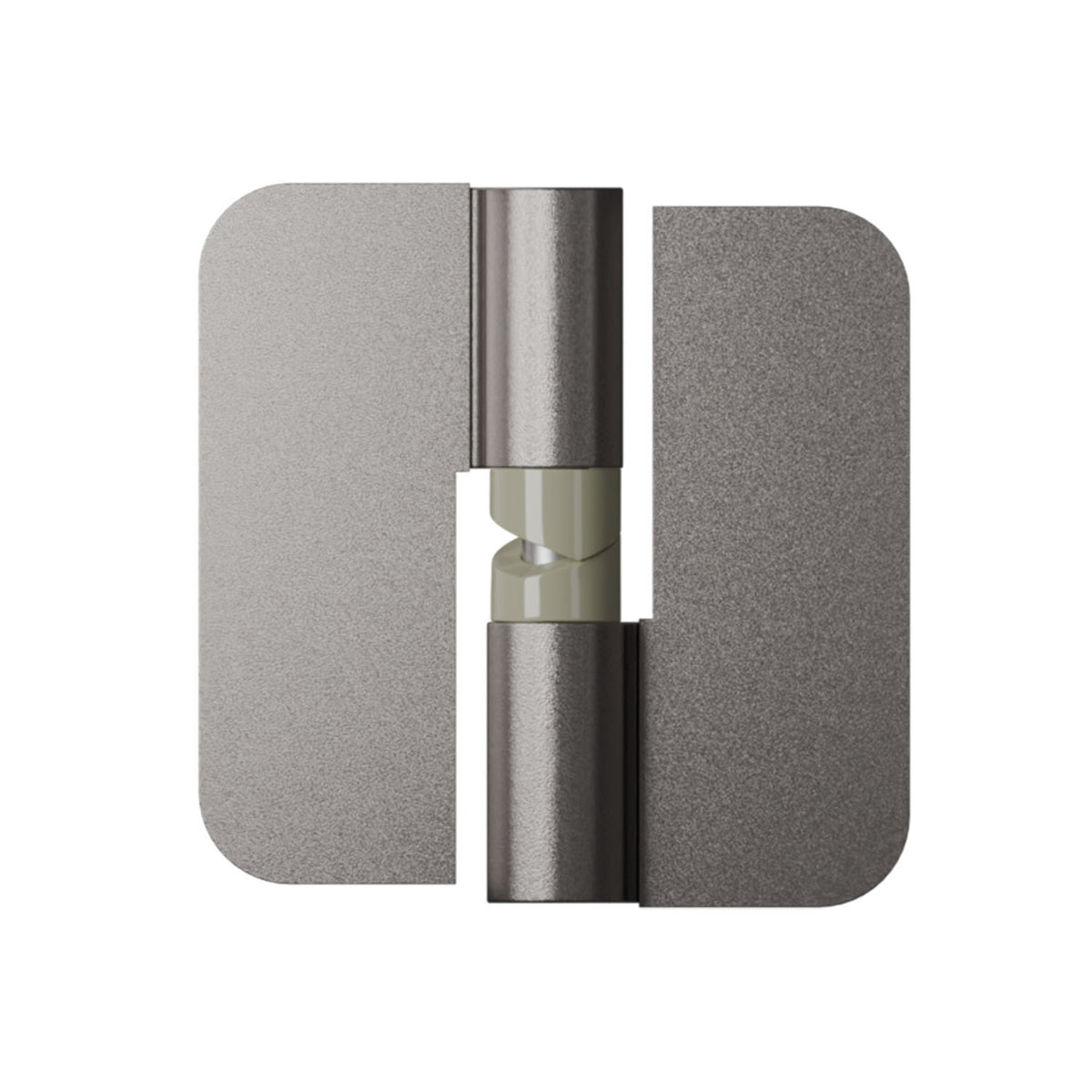

Metlam Sentinel Gravity Hinge Each 87x81x16mm Stainless Steel SENTINEL_HINGE

Metlam Sentinel Gravity Hinge
SENTINEL_HINGE

Gravity Hinge is a type of hinge that operates based on the weight of the door itself.

Gravity Hinge Function - can be set to automatically open or close by utilizing the door’s weight as a constant force. Particularly useful for doors that need to swing smoothly without manual effort

Features:

• Gravity-assisted door opening/door closing with Lift-Off Capability

Specifications:

• Material:
  • 304 Grade Stainless Steel
  • Nylon Inserts
  • Stainless Steel Snap On Covers

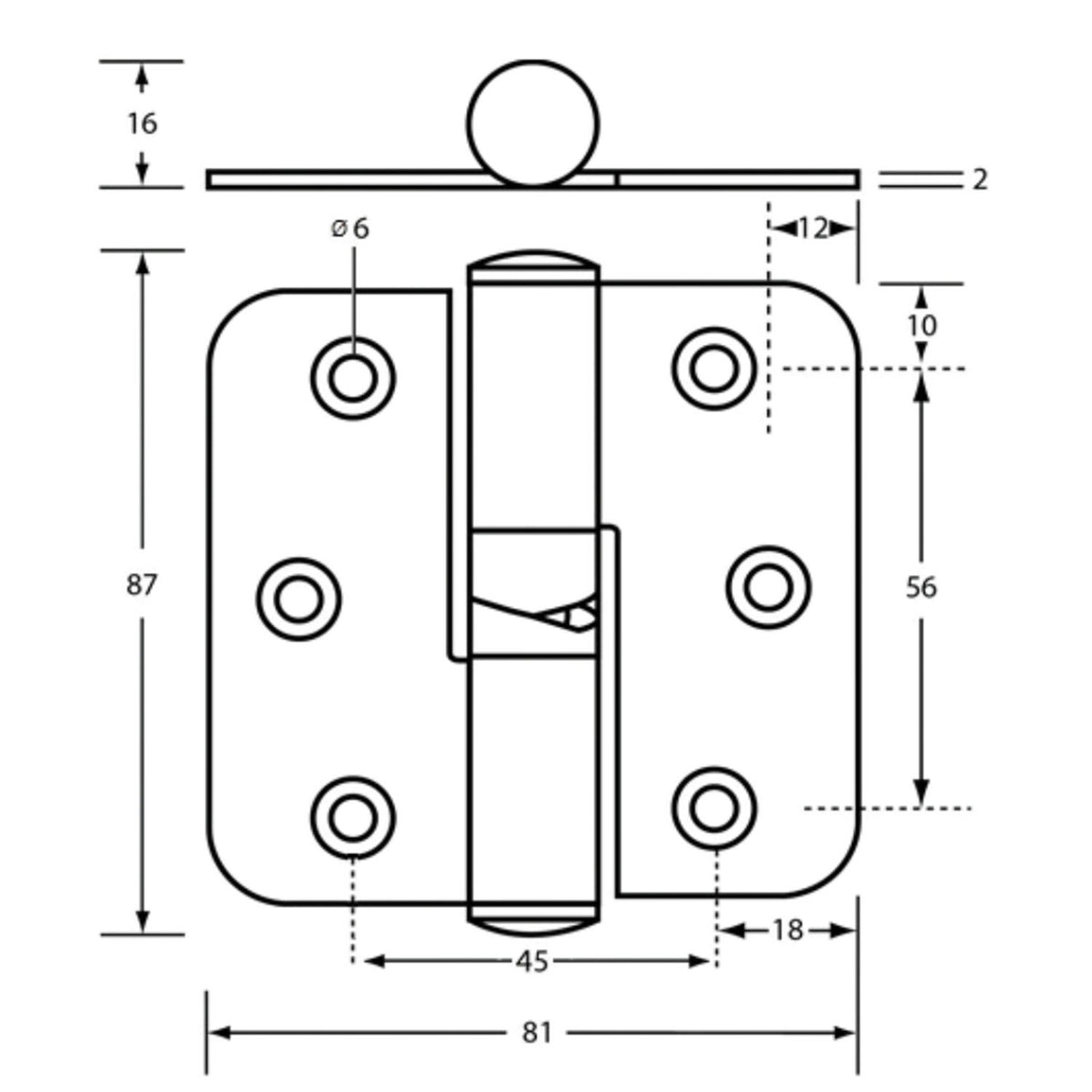

• Height: 87mm
• Width: 81mm
• Mounting:
  • Concealed Screw Fix
  • Universal Screw Fixings Supplied
• Load Rating: 15Kg per hinge
• For optimum performance: 2 hinges per door up to 30Kgs (For doors over 30Kg allow for 15Kg per hinge)
• Minimum Hinge Clearance For Lift-Off Hinges: 35mm
• Finish: Stainless Steel
• Sold as Each

Note:

• 3 Hinges per door is recommended to prevent door bowing
