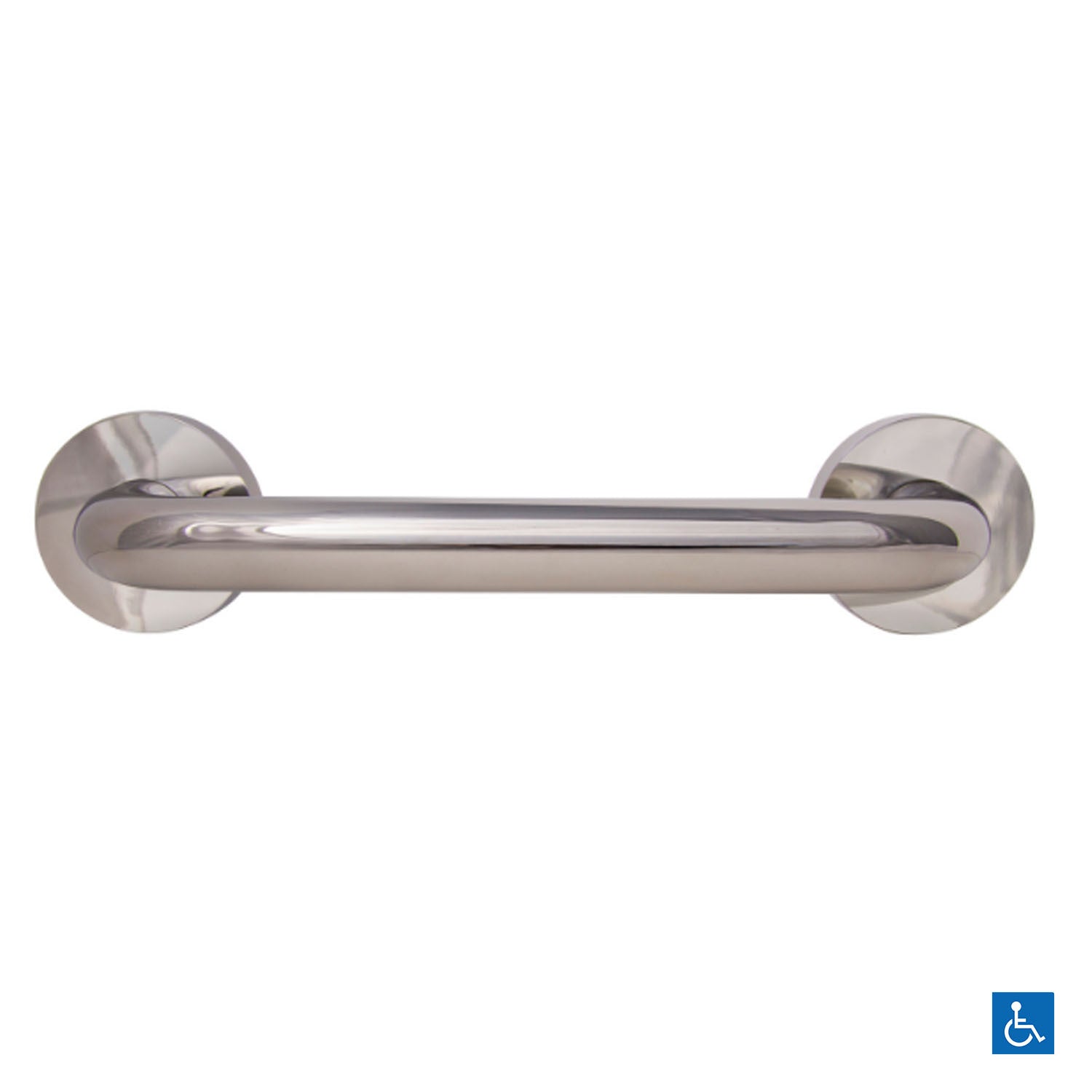

Metlam Straight Grab Rail Concealed Fix Polished Stainless Steel - Available in Various Sizes

Metlam Straight Grab Rail

Grab Rail commonly used in showers and bathtubs to assist with transfers into and out of the enclosure, to maintain balance while standing or moving, and to generally prevent slips and falls.

Grab Rail Function - often referred to as handrails, safety rails, or shower bars, are typically attached on walls, ceilings, or floors to assist weak, crippled, or elderly people enter and exit rooms and facilities safely.

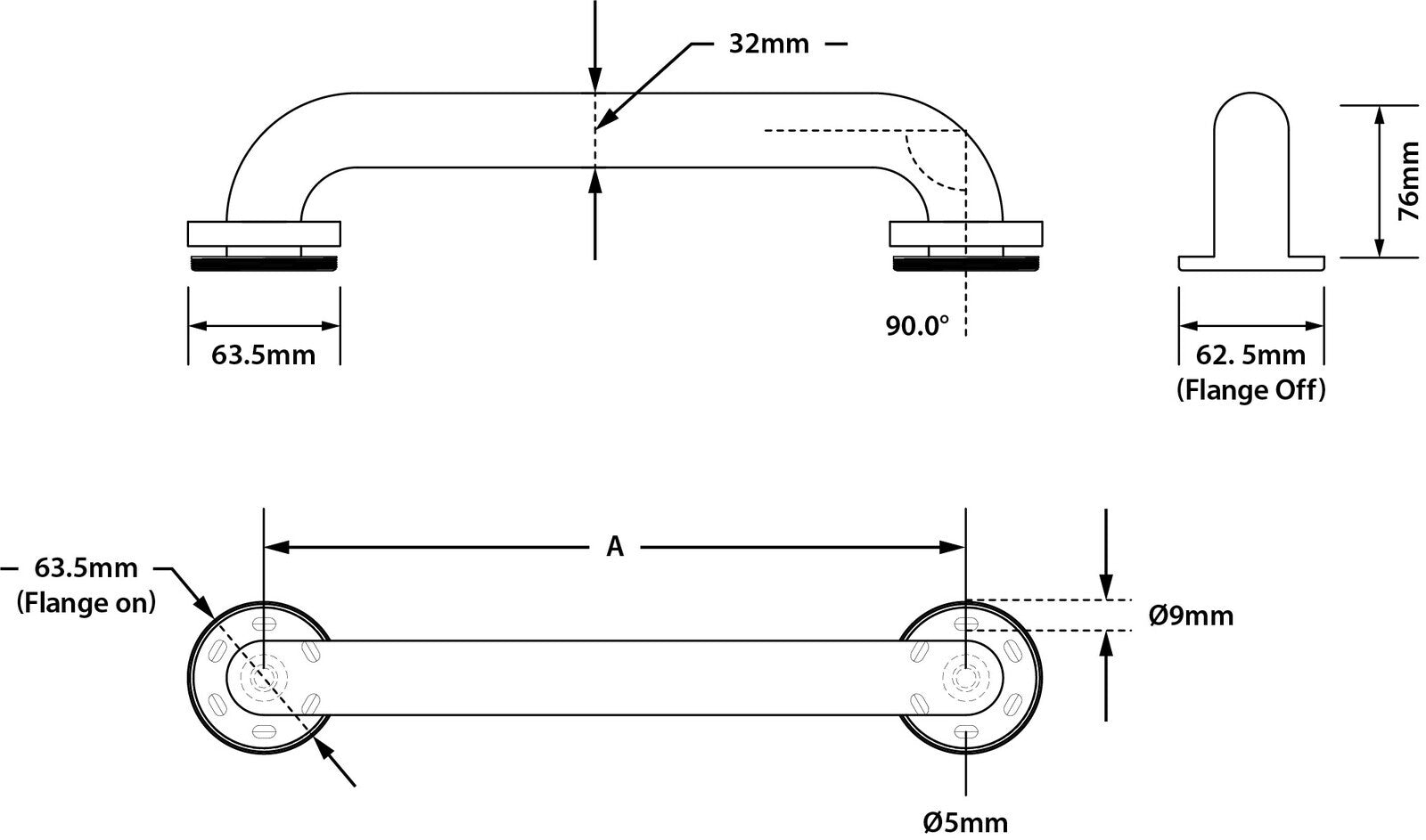

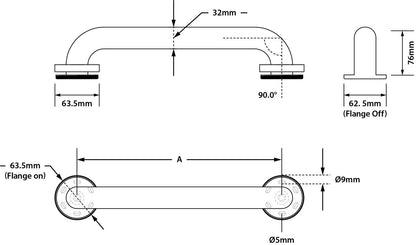

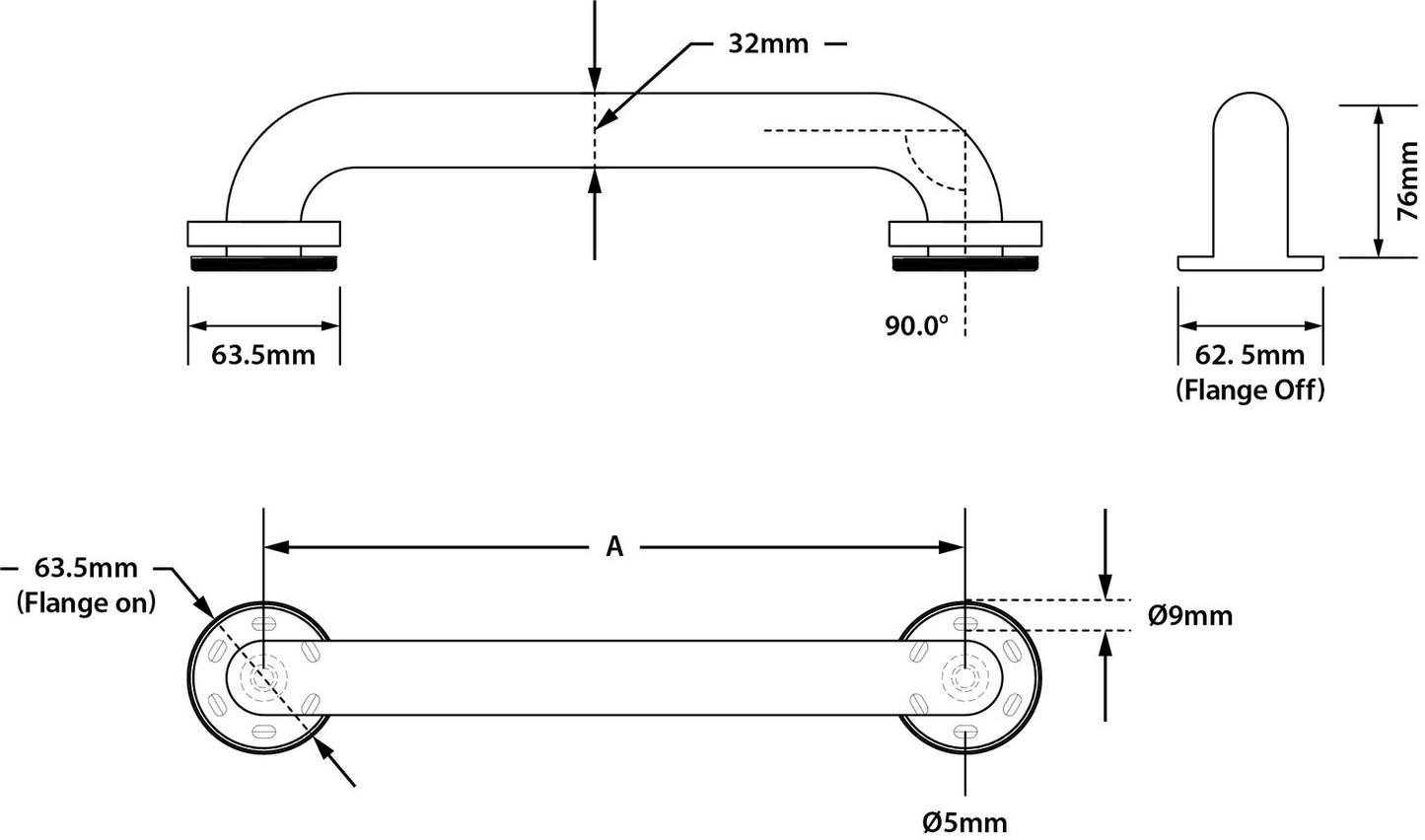

Specifications:

• Material: 304 Stainless Steel
• Tube Diameter: 32mm
• Mount Diameter: 78mm
• Flange Off: 62.5mm
• Flange On: 63.5mm
• Mounting: Concealed Fix
• Available Center to Center:
  • 300mm
  • 450mm
  • 600mm
  • 750mm
  • 900mm
  • 1200mm
• Finish: Polished Stainless Steel

Ratings/Compliant:

• This unit is accessible compliant when installed in accordance with NZS 4121:2001-Section 10.
• It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations.
• Compliant with the Force Requirements within AS1428.1: 2021, Section 14.
