Metlam Xcel Slide Lock and Indicator Set Concealed Fix - Available in Various Finishes

Metlam Xcel Slide Lock and Indicator

Lock and Indicator Set is typically refers to a type of door lock system commonly used in public or commercial settings, such as restrooms, dressing rooms, or meeting rooms. This type of lock provides both security and privacy by indicating whether the room is occupied or vacant.

Lock and Indicator Set Function - allowing the door to be securely closed and locked from the inside. It usually has a latch or bolt mechanism that extends into the door frame to prevent the door from being opened without a key or other unlocking mechanism.

Includes:

• 1 x Indicator Easy-Glide
• 1 x Slide Lock
• 1 x Staple

Features:

• Indicator has Anti pull through fixing plate
• Slide Lock has Unique Easy-Glide Slide Lock forrestricted hand mobility, limb loss and hygiene protection Raised directional arrows for vision impaired
• The universal system provides design uniformity Consistent installation saves time
• Staple has Functional modern design
• Supplied with universal fixing pack to suit board thickness variation between 12mm to 36mm

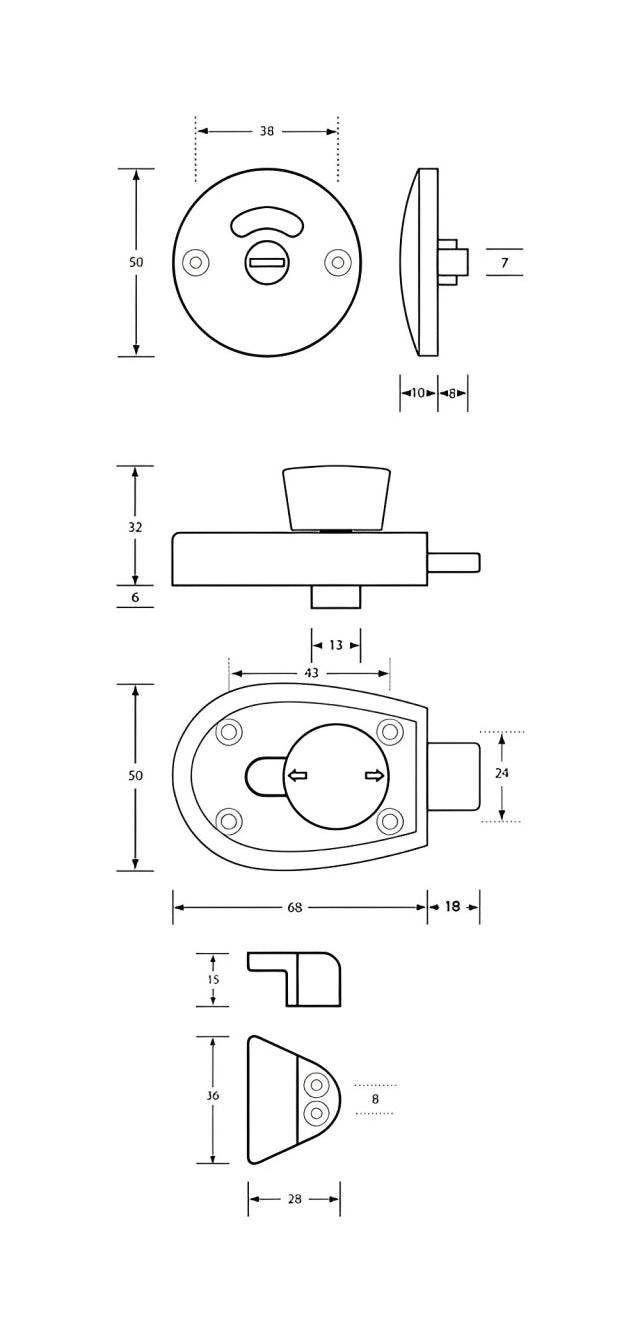

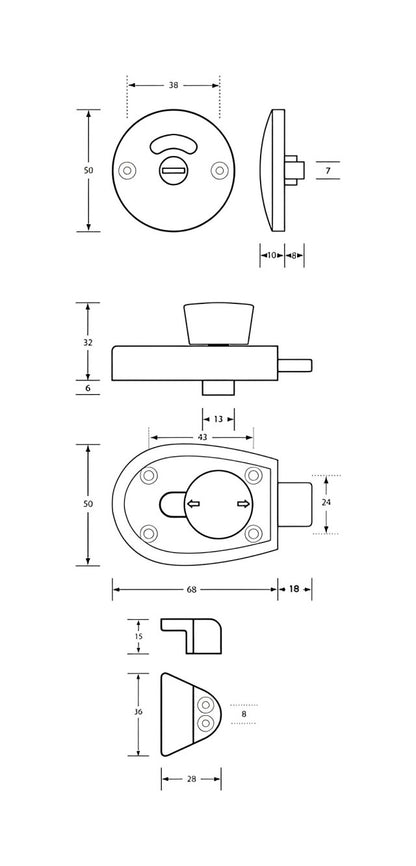

Specifications:

• Material: Diecast Zinc, Alloy ZP3 ABS Snap-On Cover
• Indicator Diameter: 50mm
• Indicator Projection: 10mm
• Indicator Depth: 8mm
• Indicator Centre to Centre: 38mm
• Slide Lock Height: 50mm
• Slide Lock Center to Center: 43mm
• Bolt Throw: 24mm
• Staple Center to Center: 8mm
• Staple Width: 28mm
• Staple Height: 36mm
• Staple Projection: 15mm
• Mounting: Concealed Screw Fix
• Available Finish:
  • Matt Black
  • Satin Chrome Plate
  • Satin Pearl Plate

Rating/Compliant:

• Notes Deemed to satisfy AS1428.1 Australian Disability Standards.
