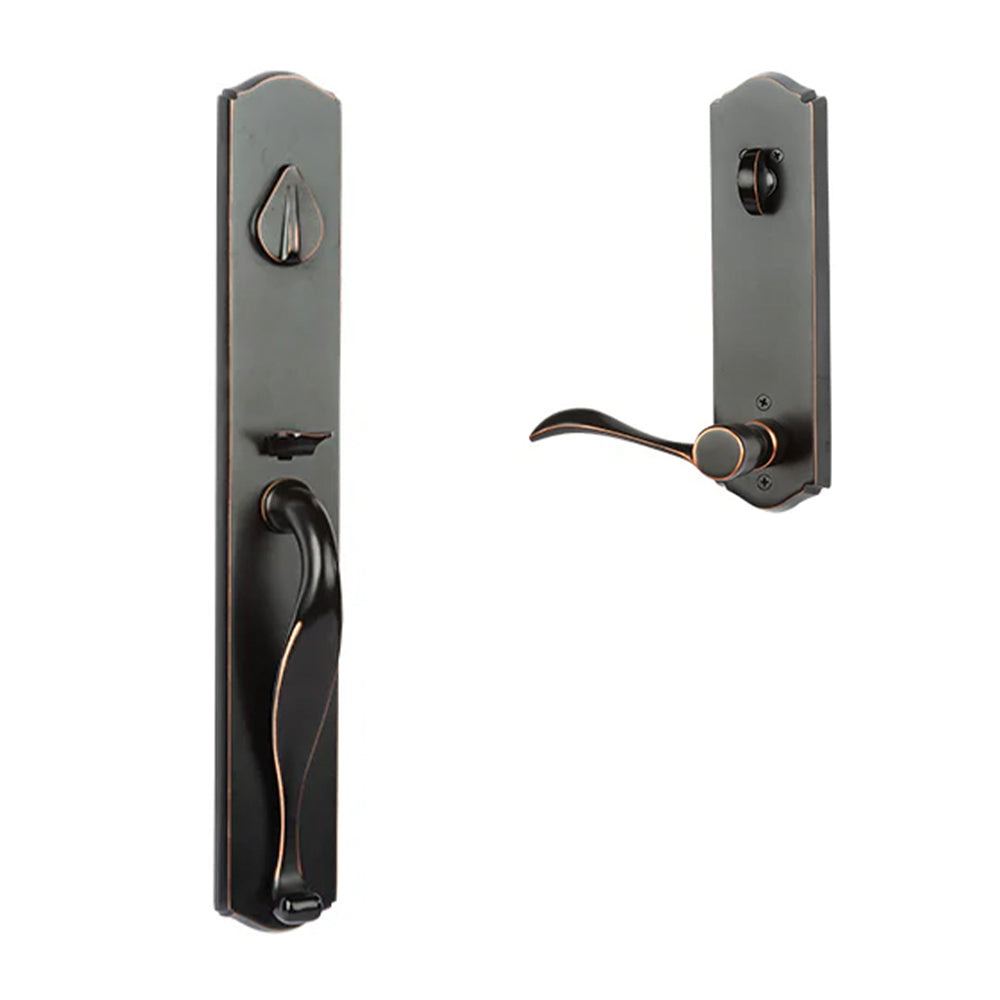

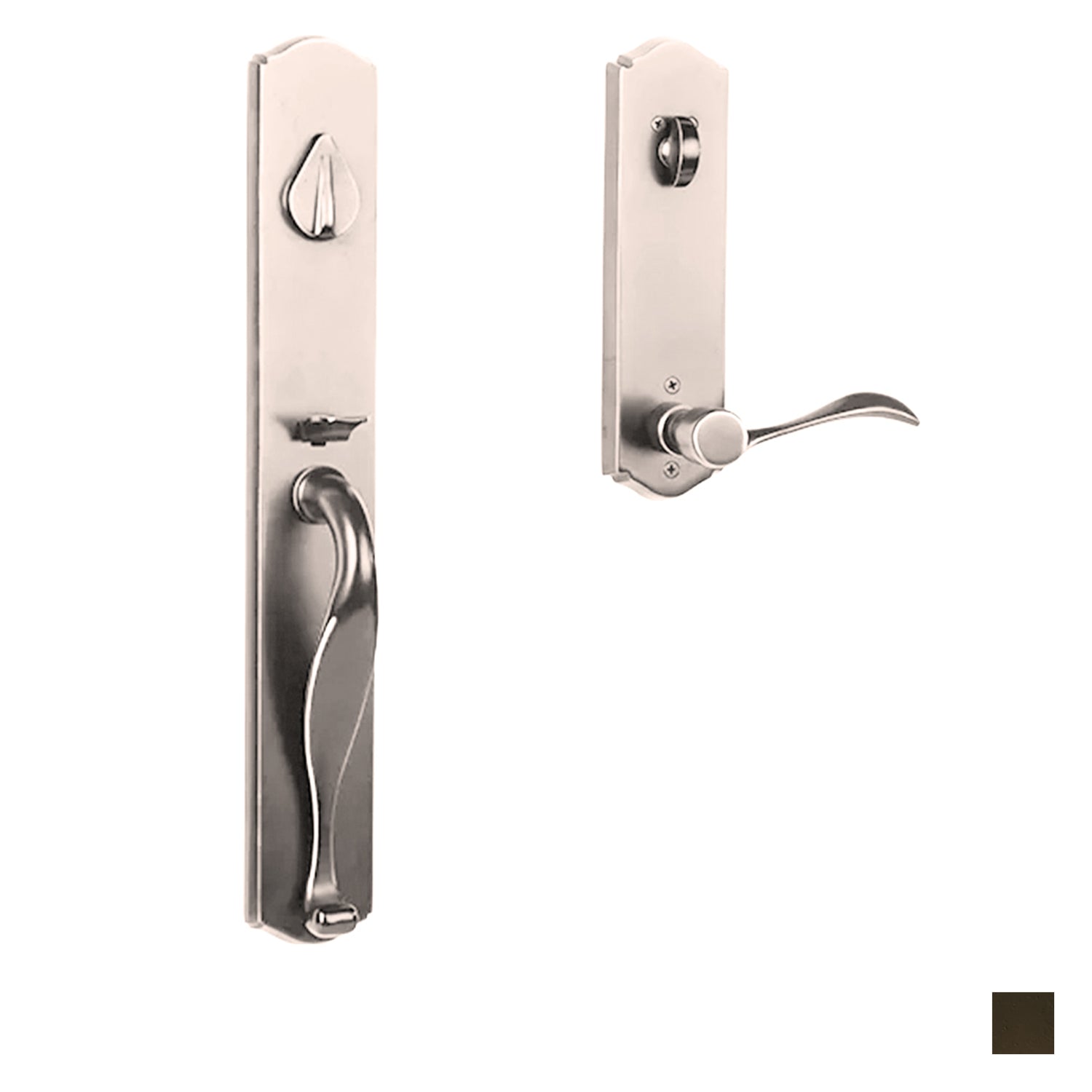

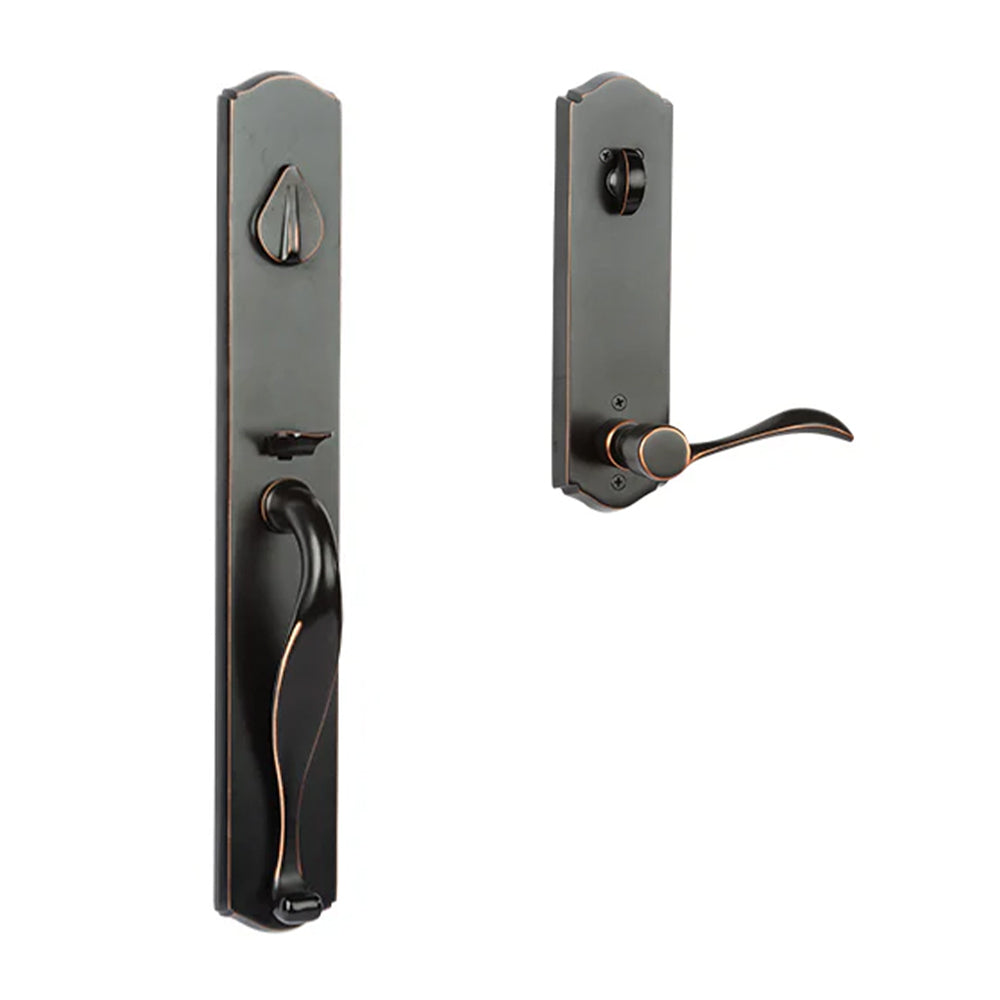

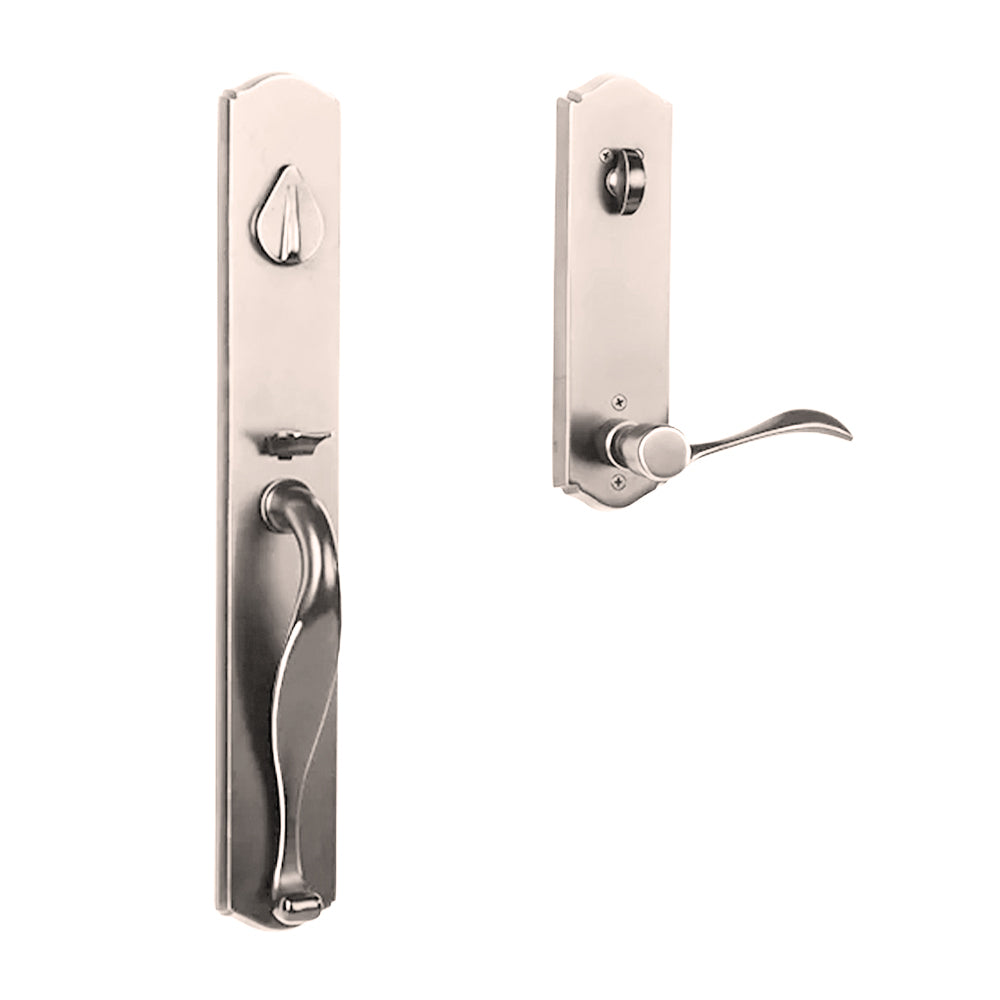

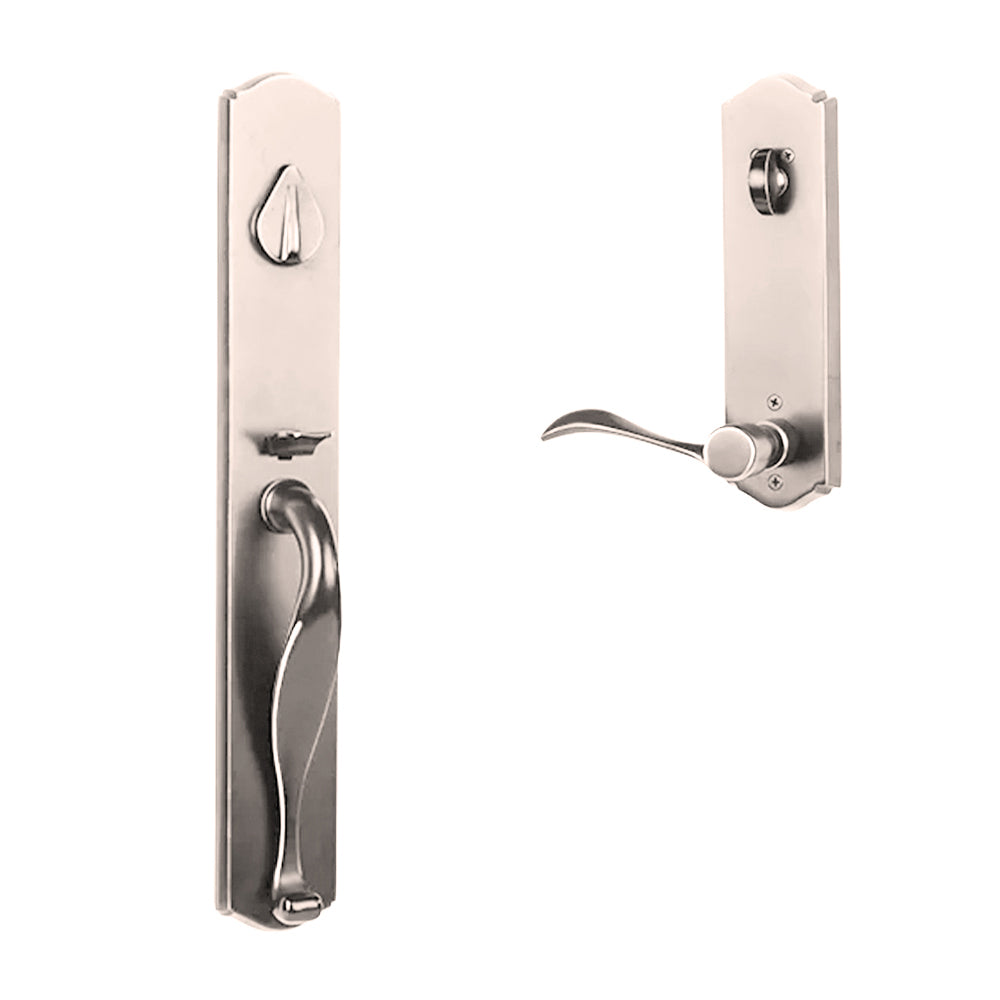

N2lok Etna Door Handle Single Cylinder Wave Lever Entrance Set

N2lok Etna Door Handle Single Cylinder Wave Lever Entrance Set

Entrance Door Handle is defined as a lock that can be unlocked by a key from the outside when a turn button locks the outer lever on the inside lever. The inside lever is always unlocked.

Entrance Door Handle Function - The outside key unlocks the outside, the inside lever is free at all times, push button locks the outside.

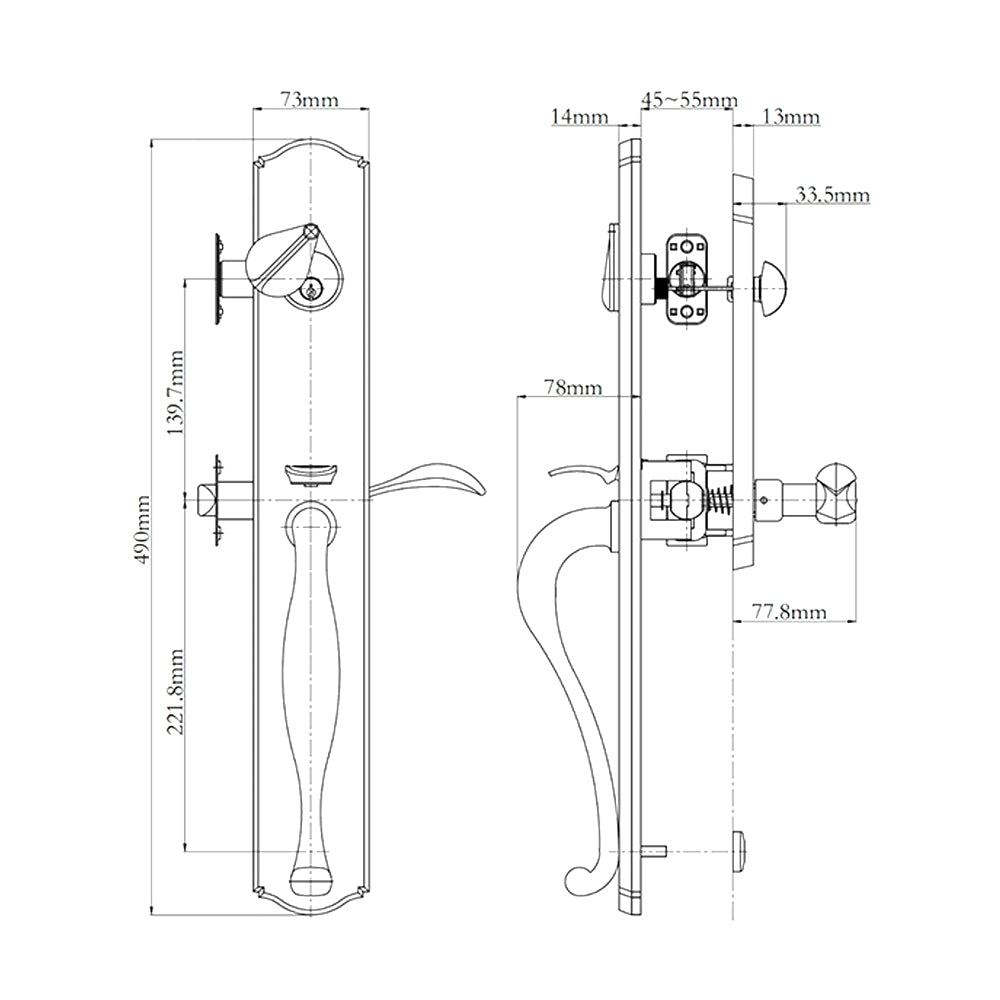

Specifications:

• Cylinder Projection: 14mm
• Thumb Turn Projection: 33.5mm
• Lever Projection: 77.8mm
• Handle Projection: 78mm
• Overall Height: 490mm
• Overall Width: 73mm
• Door Thickness: 45 to 55mm
• Backset: 60mm - 70mm Adjustable
• Handing:
  • Left Hand
  • Right Hand
• Available Finish:
  • Satin Nickel
  • Venetian Bronze
