SKU: RAVA10SIPLDS
Raven RP10SI Acoustic and Smoke Door Frame Perimeter Seal - Available in Various Sizes
RRP: $622.98
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Raven RP10SI Acoustic and Smoke Door Stop Frame Seal
Door Stop Frame Seal are used to seal gaps at door perimeters. By sealing the gaps along the door frame you can significanly cut down on the infiltration of sound, light, drafts, moisture, fire and smoke.
Door Stop Frame Seal Function - to ensure a fire escape route free from smoke and the intumescent seals the gap between the door and frame to inhibit the spread of fire.

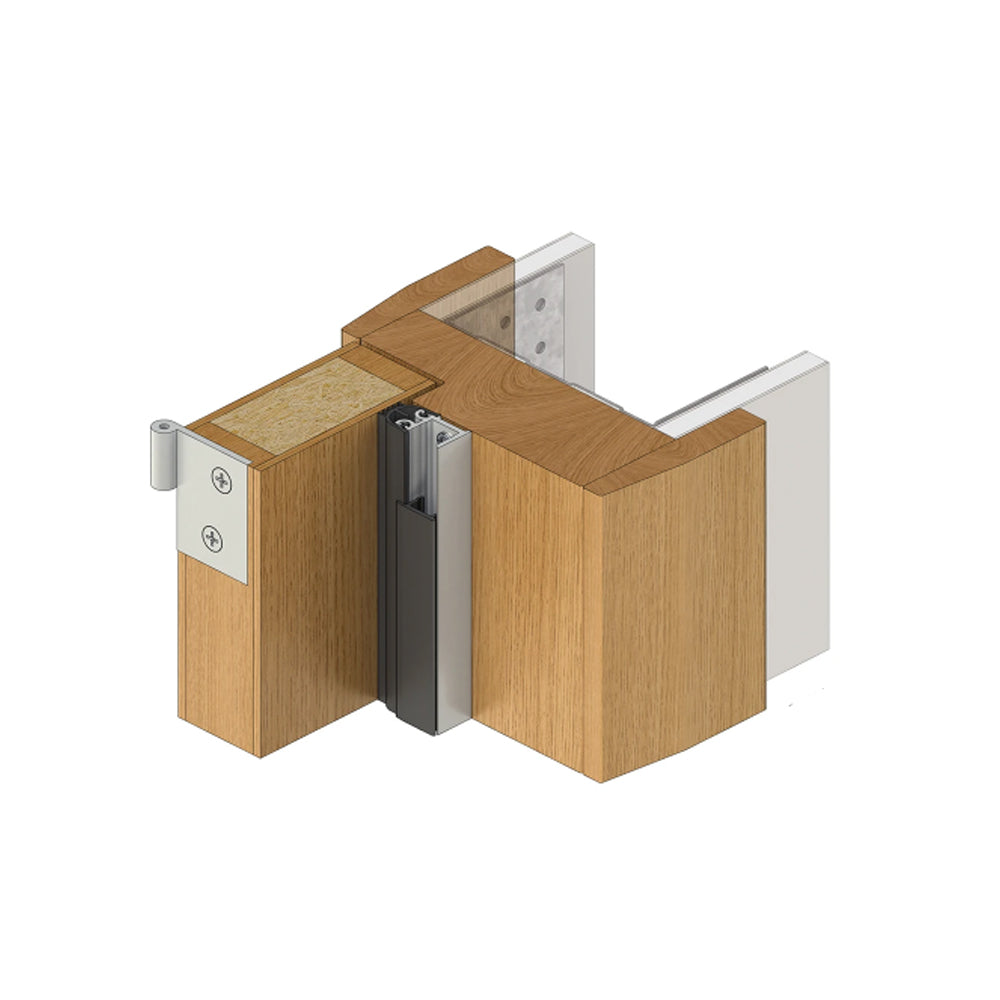

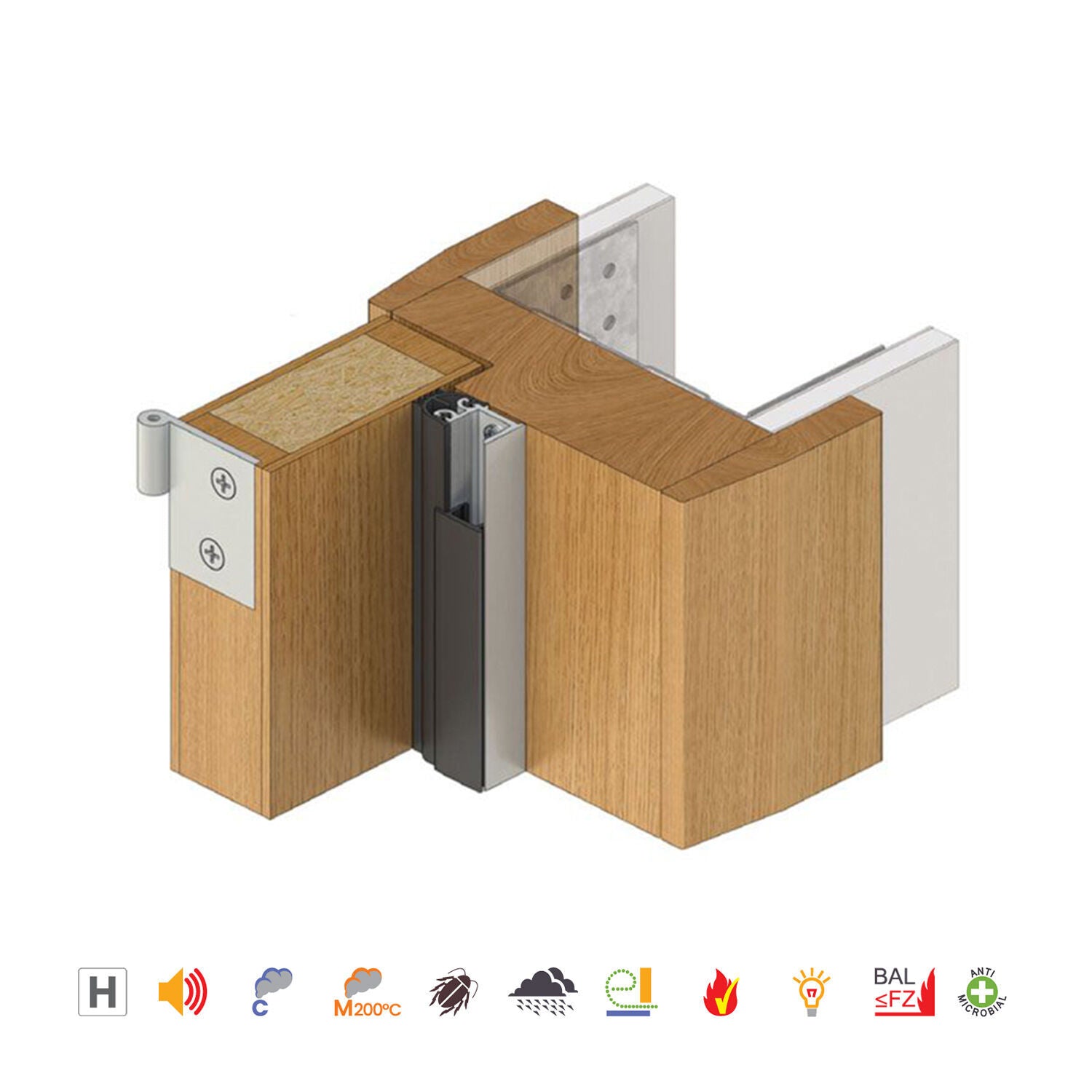

- An effective acoustic and smoke door stop frame seal which is quick and easy to install on plain or rebated door frames.
- Multi-fin design for improved noise and energy sealing.
- Minimum deflection design creates maximum sealing efficiency.
Features:
- RP10Si can be mitred or butt jointed for a neat finish
- Adjustable by large concealed fixing slots for a precision fit
- RP10Si has a tamper resistant, rigid PVC cover strip (SE)
- Can be used on all four sides of the door to form a bulk head seal
- Head and jambs of single and double butt hinged doors

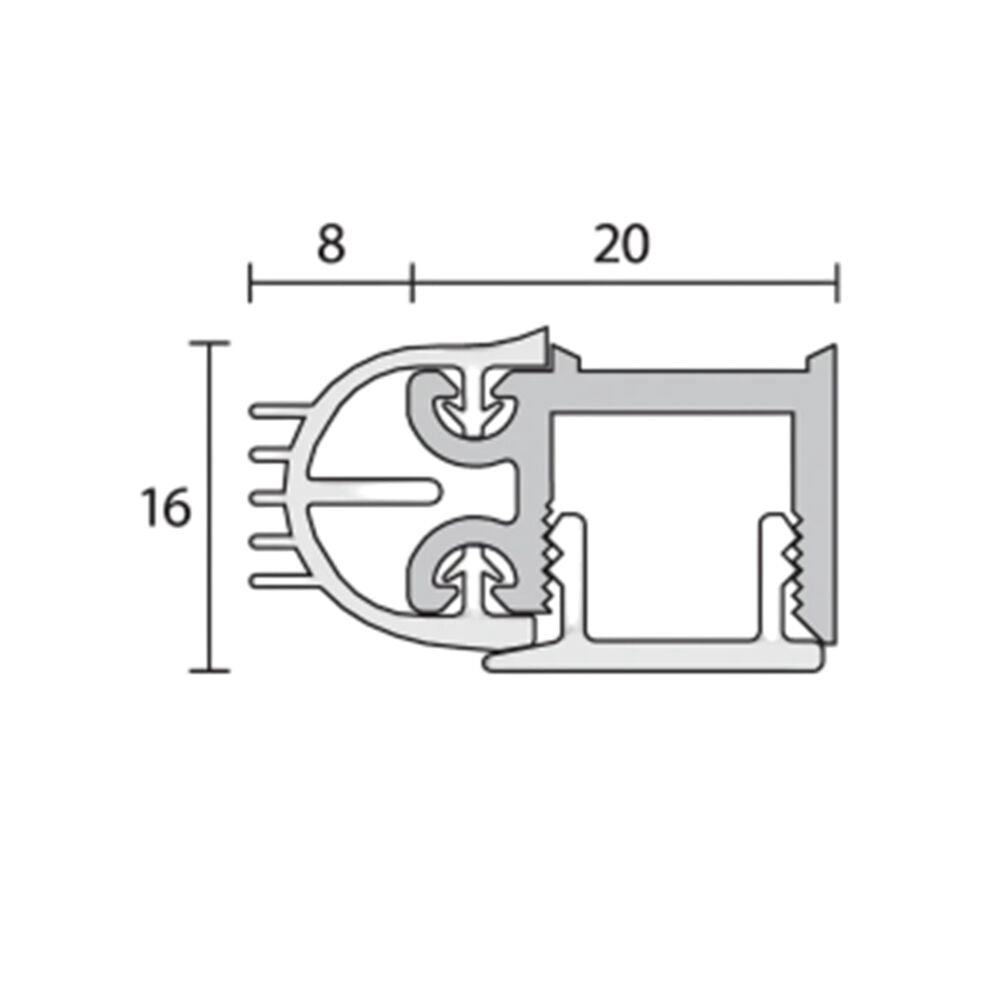

Specification:
- Min/Max Gap: 0mm to 10mm
- Fixing: Screw Fix
- Seal: Silicon Rubber
- Screws: Zinc plated, cross recess head S.T. screws supplied
-
Available Sizes:
- Long Double Door Set (1 x 2000mm & 2 x 2750mm)
- Long Single Door Set (1 x 1000mm & 2 x 2750mm)
-
Available Finishes:
- Painted
Approval/s:
- GVYI.R37913.
- Certifire CF5710
- ANSI/BHMA A156.22.
- Acoustic AUS/NZ: NCC Spec. F5.5.
- UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
- Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
- UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
- FRL & FRR-/240/60 and FD240.Fire Approved
- Gasket flammability index 1 when tested to AS1530.2.
- Smoke NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”.
- Energy NCC Pt. 3.12.3.3 & J3.4.
Raven RP10SI Acoustic and Smoke Door Stop Frame Seal Long Double Door Set 7500mm
A10SIPLDS
Door Stop Frame Seal are used to seal gaps at door perimeters. By sealing the gaps along the door frame you can significanly cut down on the infiltration of sound, light, drafts, moisture, fire and smoke.
Door Stop Frame Seal Function - to ensure a fire escape route free from smoke and the intumescent seals the gap between the door and frame to inhibit the spread of fire.
- An effective acoustic and smoke door stop frame seal which is quick and easy to install on plain or rebated door frames.
- Multi-fin design for improved noise and energy sealing.
- Minimum deflection design creates maximum sealing efficiency.
Features:
- RP10Si can be mitred or butt jointed for a neat finish
- Adjustable by large concealed fixing slots for a precision fit
- RP10Si has a tamper resistant, rigid PVC cover strip (SE)
- Can be used on all four sides of the door to form a bulk head seal
- Head and jambs of single and double butt hinged doors
Specification:
- Min/Max Gap: 0mm to 10mm
- Fixing: Screw Fix
- Seal: Silicon Rubber
- Screws: Zinc plated, cross recess head S.T. screws supplied
- Size: Long Double Door Set (1 x 2000mm & 2 x 2750mm)
- Finish: Painted
Approval/s:
- GVYI.R37913.
- Certifire CF5710
- ANSI/BHMA A156.22.
- Acoustic AUS/NZ: NCC Spec. F5.5.
- UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
- Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
- UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
- FRL & FRR-/240/60 and FD240.Fire Approved
- Gasket flammability index 1 when tested to AS1530.2.
- Smoke NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Saâ€, “Smâ€.
- Energy NCC Pt. 3.12.3.3 & J3.4.
