Raven RP112 Threshold Plates - Available in Various Finishes and Sizes

Raven RP112 Threshold Plates

Threshold Plate enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

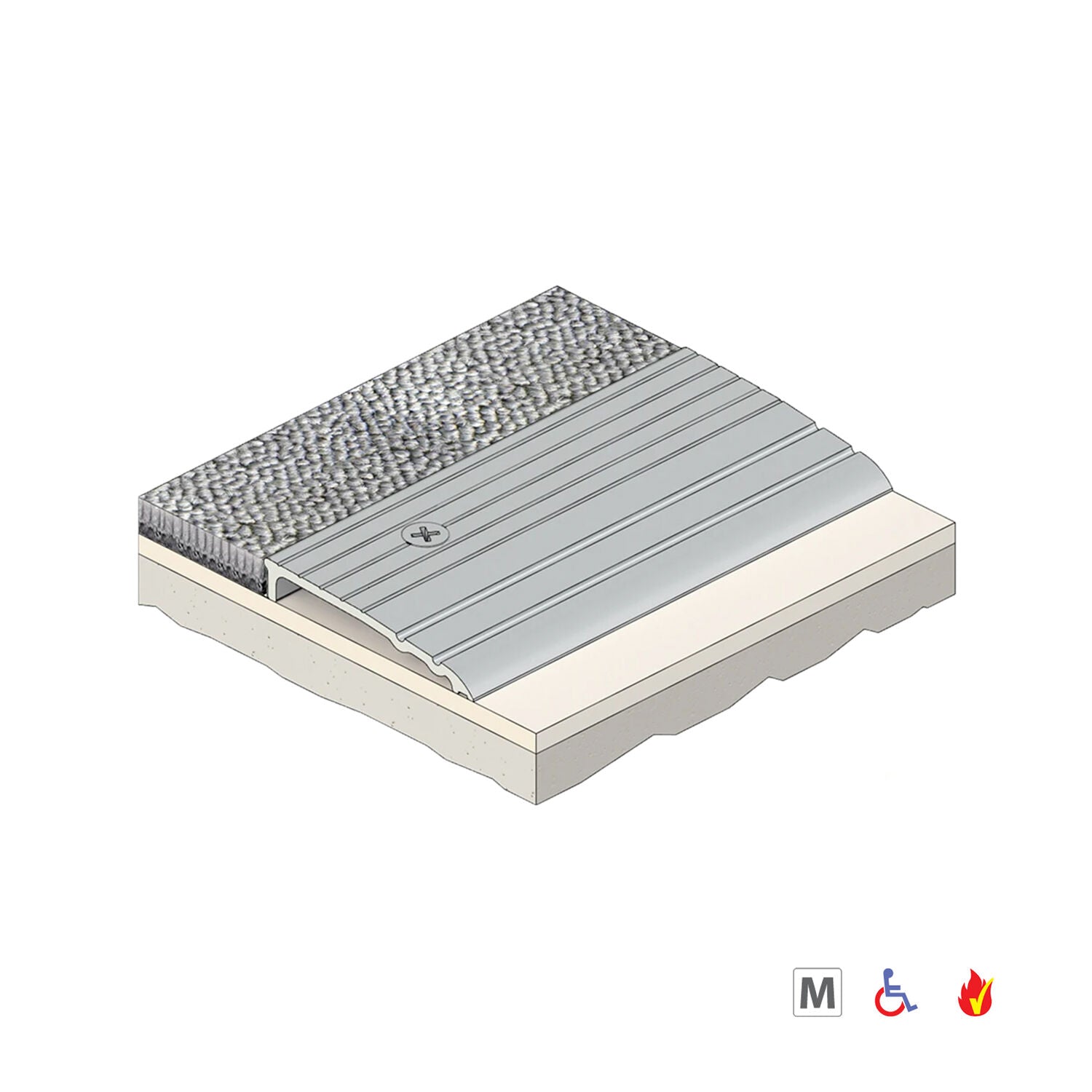

Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

• A medium duty threshold plate which can be positioned back-to-back to form a two-way threshold ramp
• Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration
• Can also be used to provide a ramped frame for internal door mats and tiles

Specifications:

• Location: Door Sil
• Fixing: Screw Fix

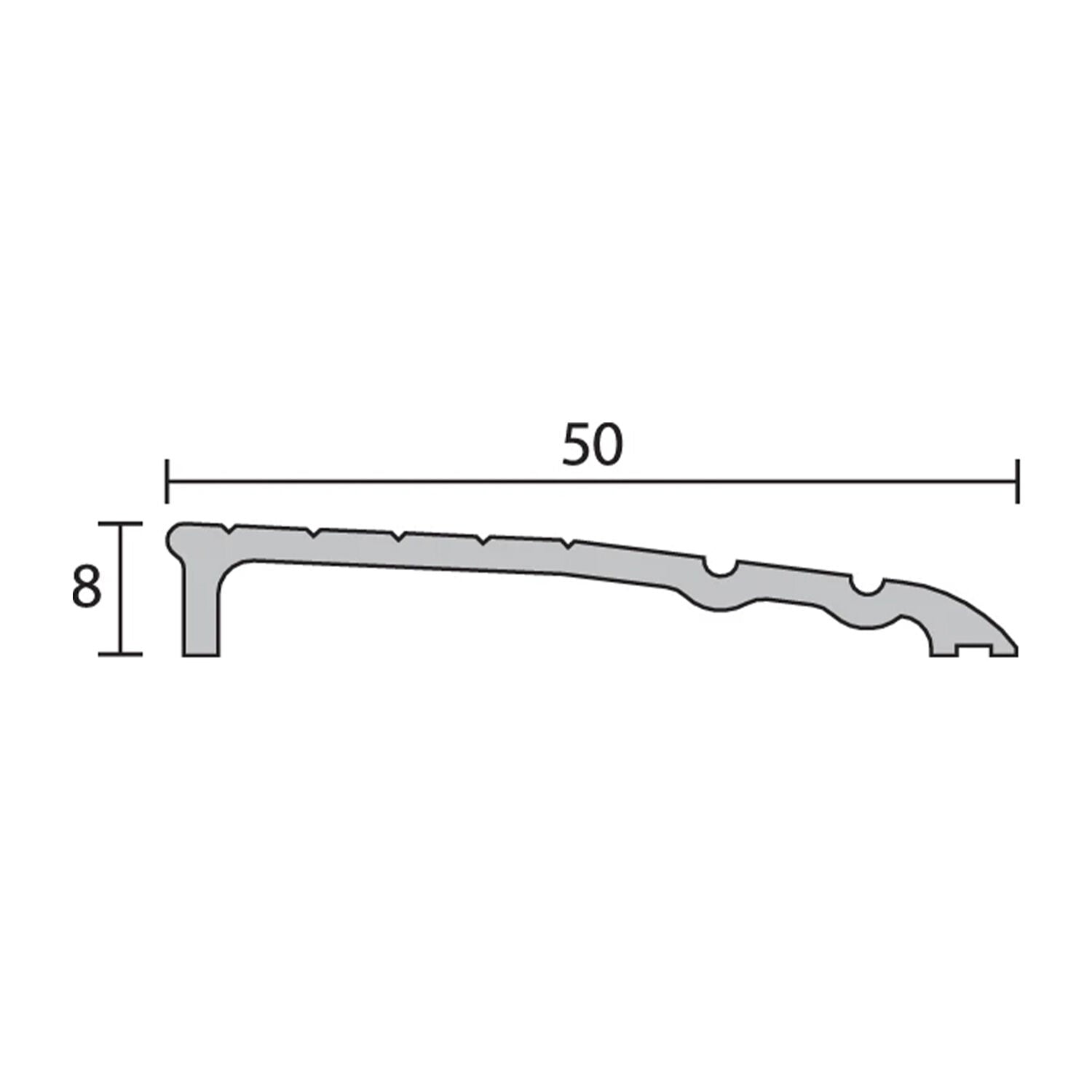

• Width: 50mm
• Projection: 8mm
• Length:
  • 1000mm
  • 2000mm
• Available Finish:
  • Bronze Anodised
  • Silver Anodised

Approvals:

• NCC D3D16, AS1428.1:2009 Part 10.5. AS1428.1:2021 Part 7.5, NCC D4D4, NZBC D1/AS1 1.3.2
• Approved Access & Mobility UK/EU
• UL: R37913, ANSI/BHMA: A156.21
• AS 1905.1, NCC S12C2, NZBC C/AS2 4.16.2(a) & App C6.1.1, AS 1530.4
• Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
• Up to FD240, Up to FRL & FRR-/240/30
• BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959
