Raven RP114 Intumescent 1220mm Clear Anodised OEM114C1220

Raven RP114 Intumescent
OEM114C1220

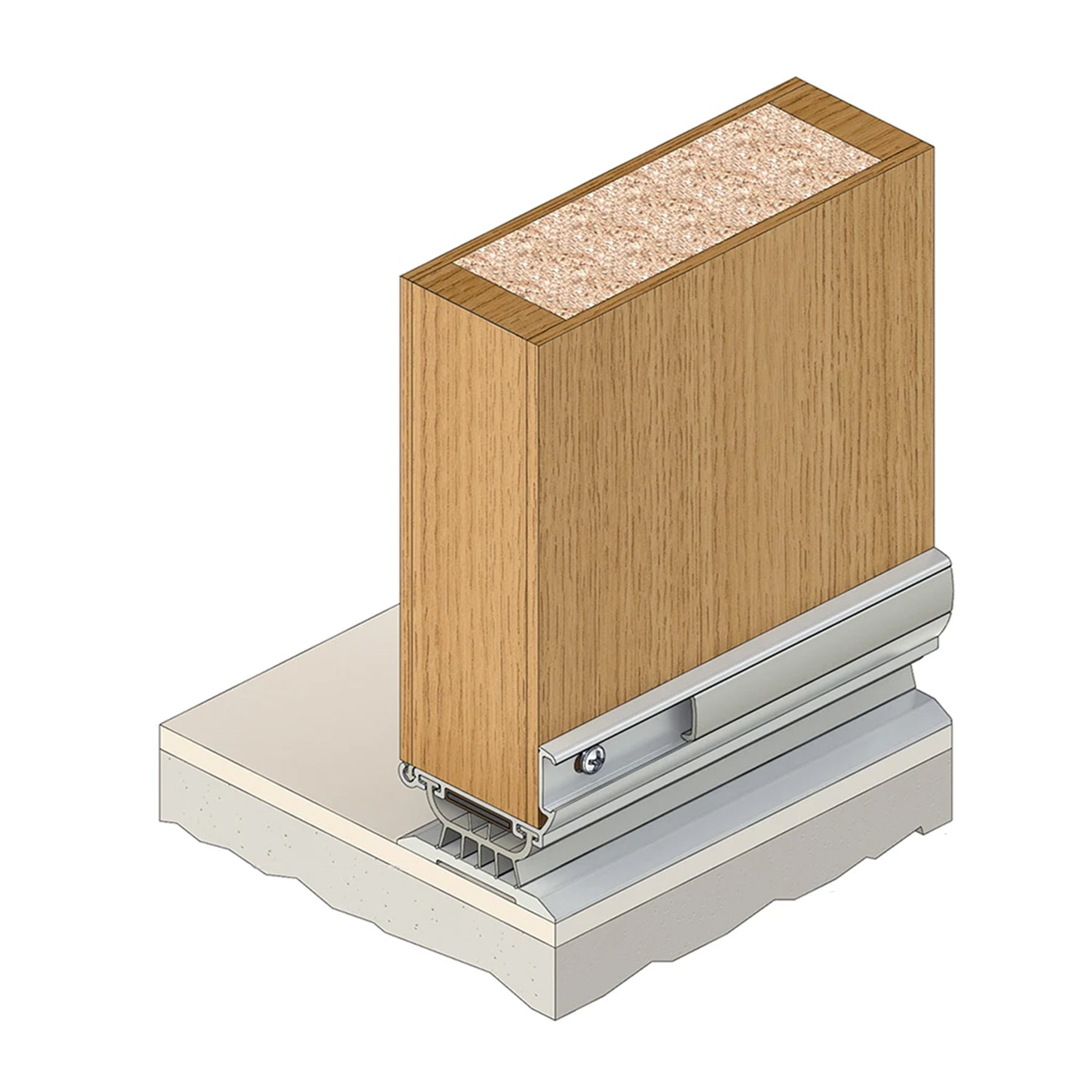

Door Bottom Seal - used to close gaps between the bottom edge of a door and the floor. Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

• Designed to upgrade fire doors with excessive under-door clearances.
• Simple retrofit installation without removing the door.
• Intumescent material expands under heat to block flames and hot smoke.
• Silicone finned gasket improves sealing against smoke, draughts, dust, insects, and noise.
• Best performance when used with an approved Raven threshold plate.
• Can be cut to suit narrower door widths.

Specifications:

• Overall Length: 1220mm
• Overall Height: 35mm
• Projection from Door Face: 21mm
• Aluminium Body Thickness: 14mm
• Finish: Clear Anodised
