Raven RP116 Threshold Plate 1000mm Black A116BK1000

Raven RP116 Threshold Plate
A116BK1000

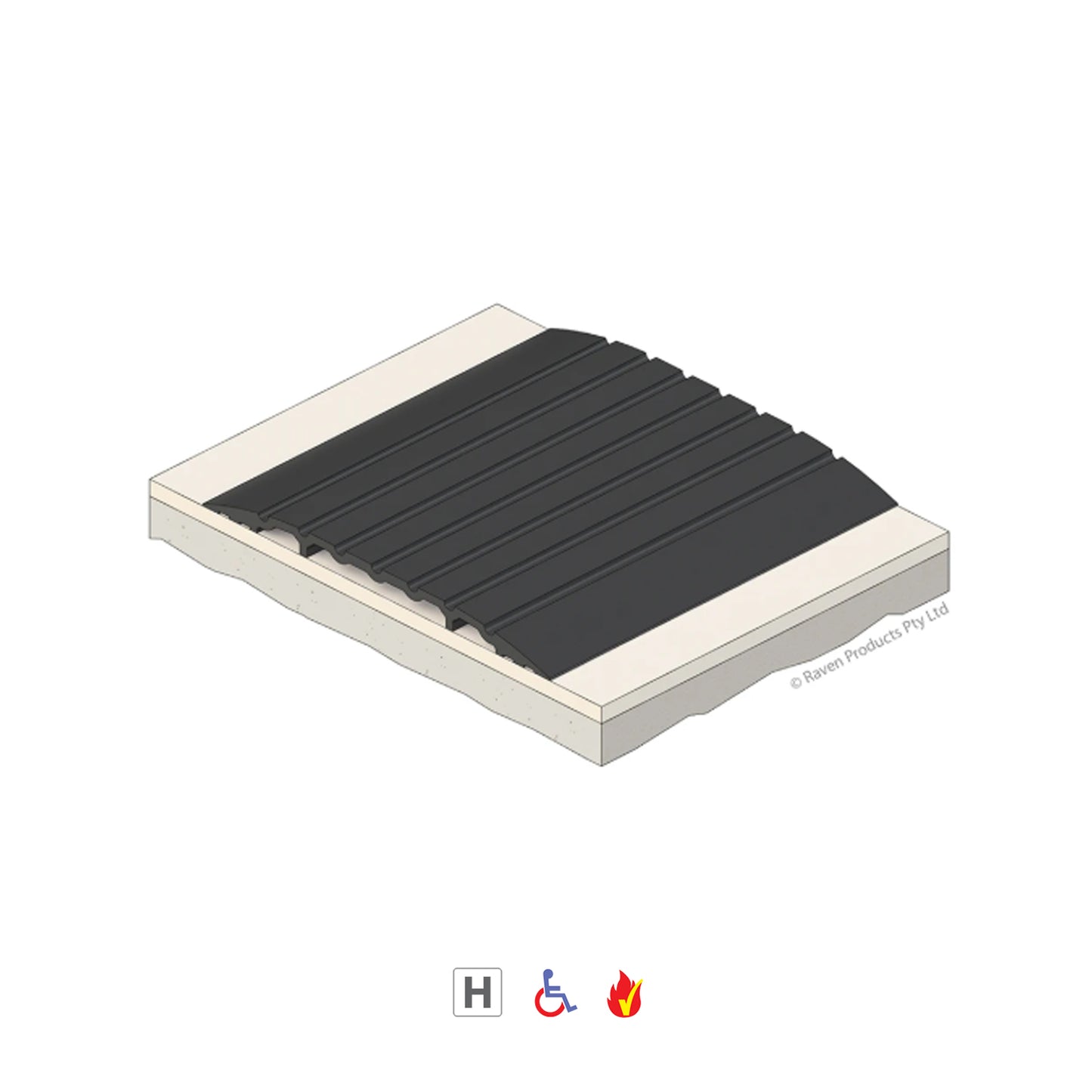

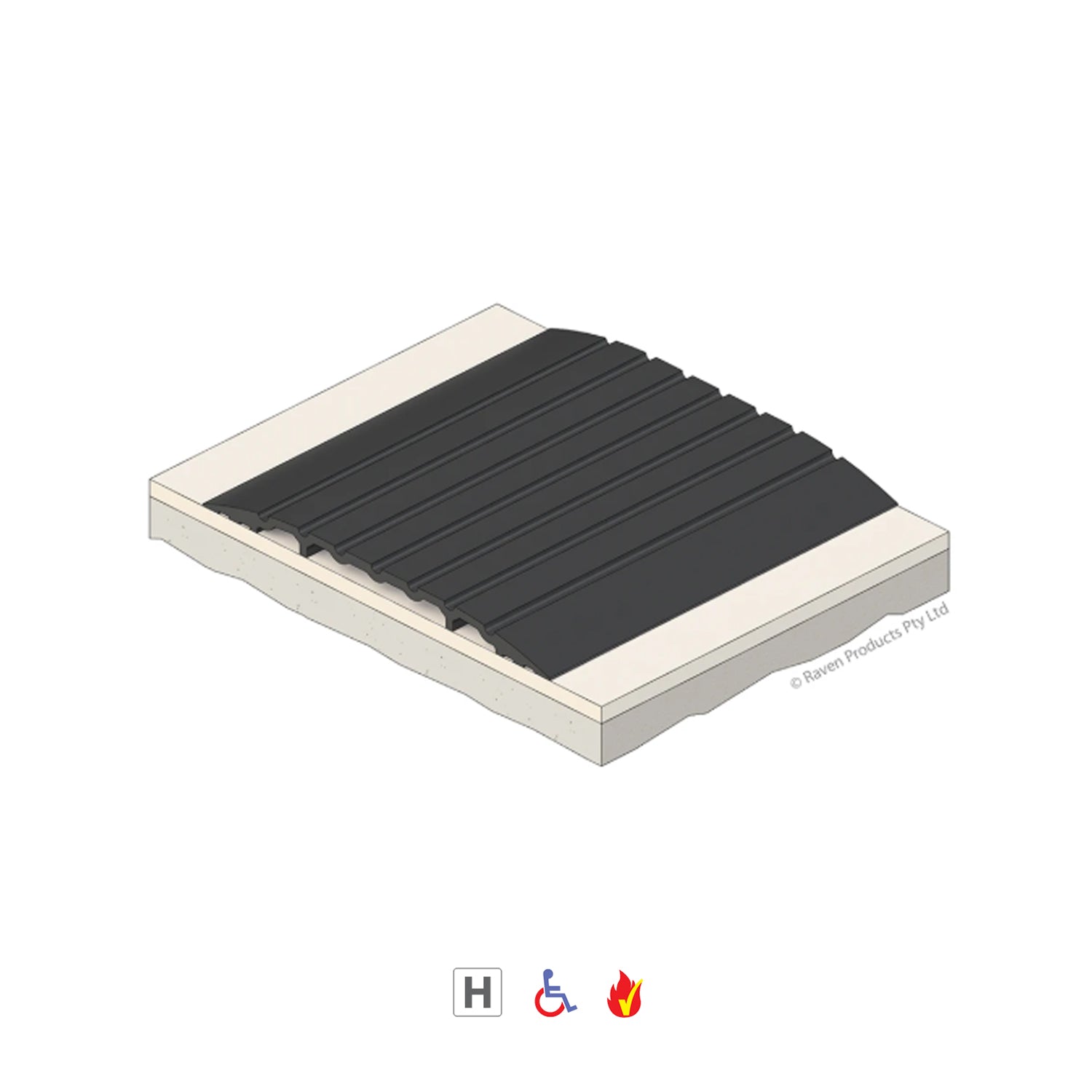

Threshold Plate enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

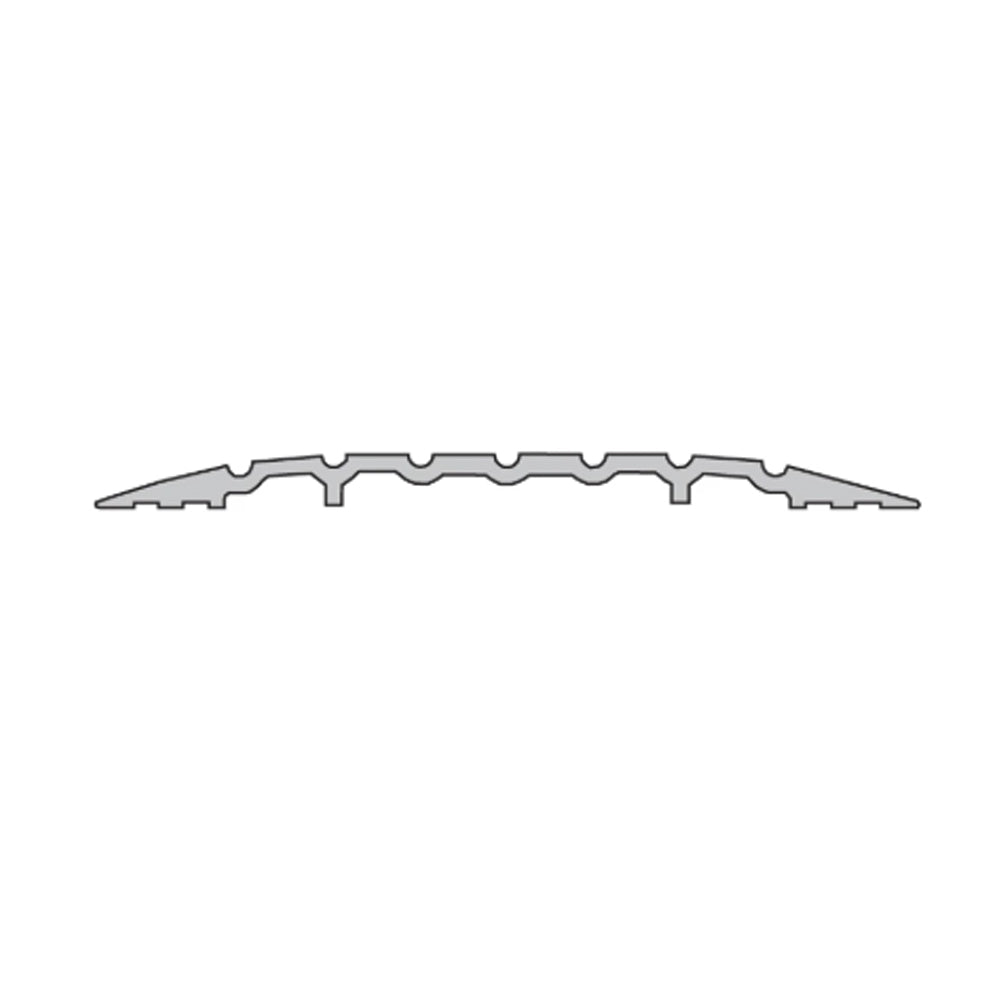

Threshold Plate Function - are hard aluminum or stainless steel extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

• Low-profile threshold plate (no trip hazard)
• Helps block rain, draughts, noise & smoke
• Works with door bottom seals for full sealing
• Smooth transition for foot traffic & wheelchairs
• Durable anodised aluminium construction
• Suitable for most floor pivots & door types

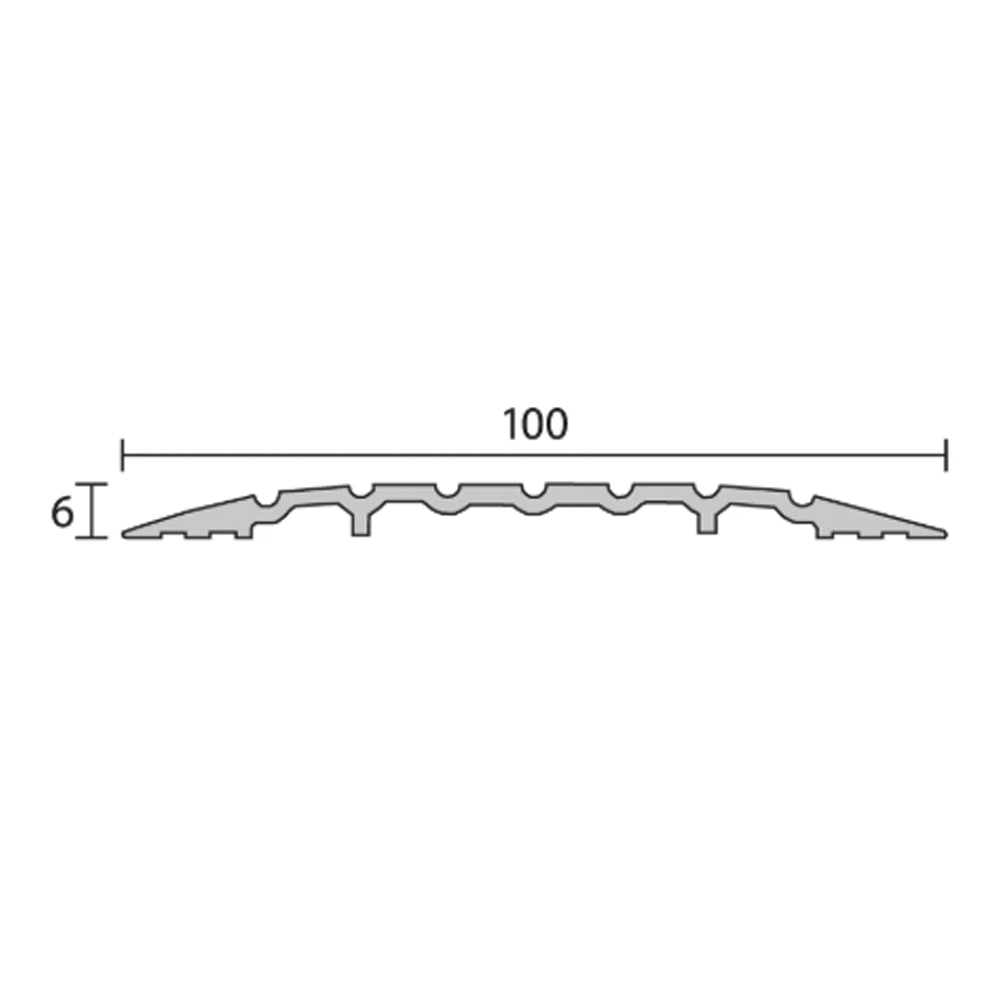

Specifications:

• Location: Door sill
• Size/Length: 1000mm
• Fixing:
  • Screw Fixed, Adhesive Fixed
  • Screw fix or builders adhesive for concealed fixing (user determined). Colour matched zinc plated, cross recess head CSK S.T. screws supplied.
• Material: Aluminum
• Finish: Black Anodised

Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.

Approvals:

• Access & Mobility AUS/NZ: NCC D3D16, NCC D4D4, AS1428.1:2009 Part 7.2. AS1428.1:2021 Part 4.2, NZBC D1/AS1 1.3.2
• Access & Mobility UK/EU: Approved Document M
• Accreditations: ANSI/BHMA: A156.21
• Fire AUS/NZ: AS 1905.1, NCC S12C2, NZBC C/AS2 4.16.2(a) & App C6.1.1, AS 1530.4
• Fire UK/EU: Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
• Fire Rating: Up to FD180, Up to FRL & FRR-/240/30
• BAL Statement: BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959
