Raven RP12 Door Perimeter Seal

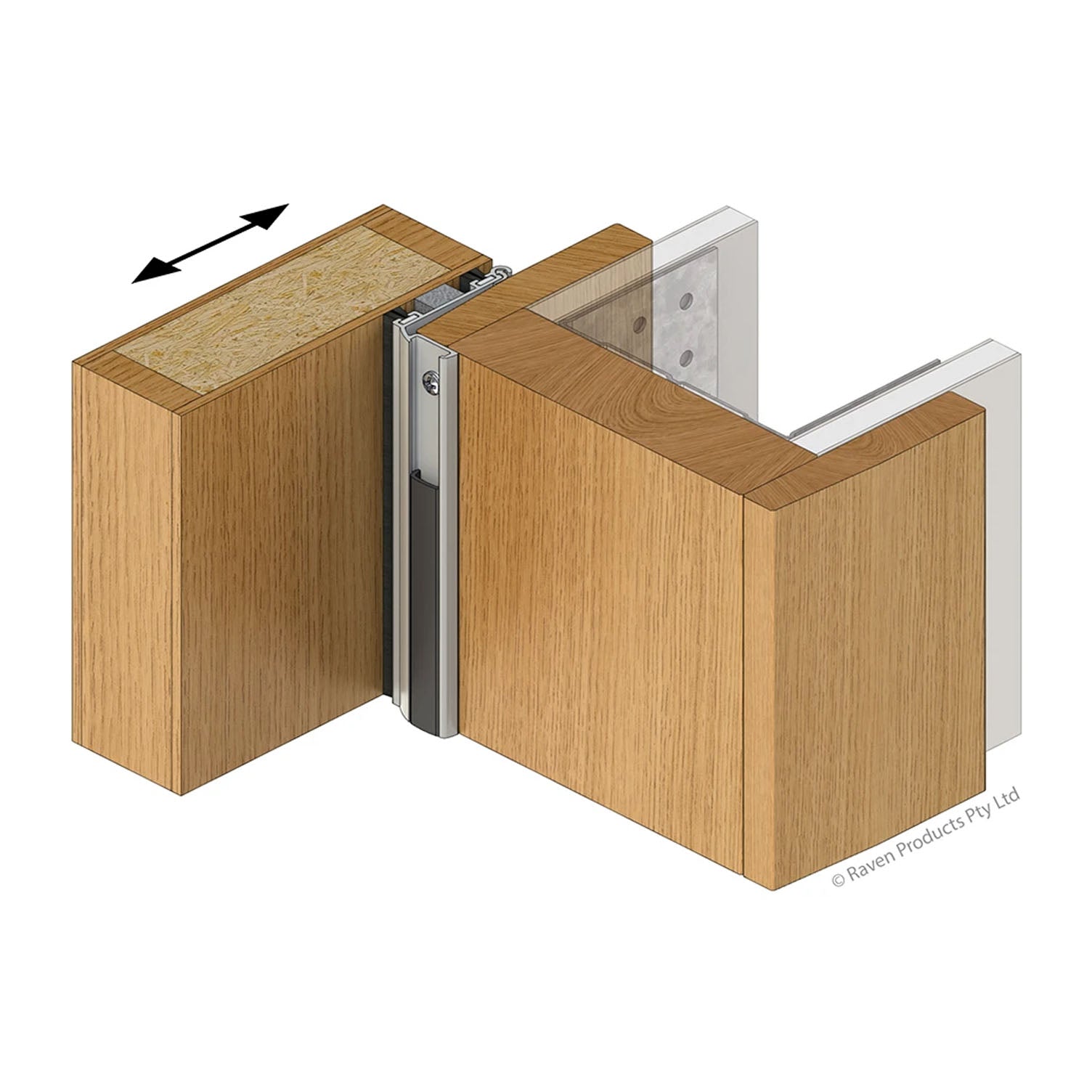

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.
Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.
Features:
- Global GreenTag - Platinum
- A heavy duty medium temperature smoke and weather door bottom seal
- The RP129Si can be checked out or drilled to accommodate pivot hardware whilst still providing a continuous seal
- Use in conjunction with RP130Si and a Raven threshold plate (essential)

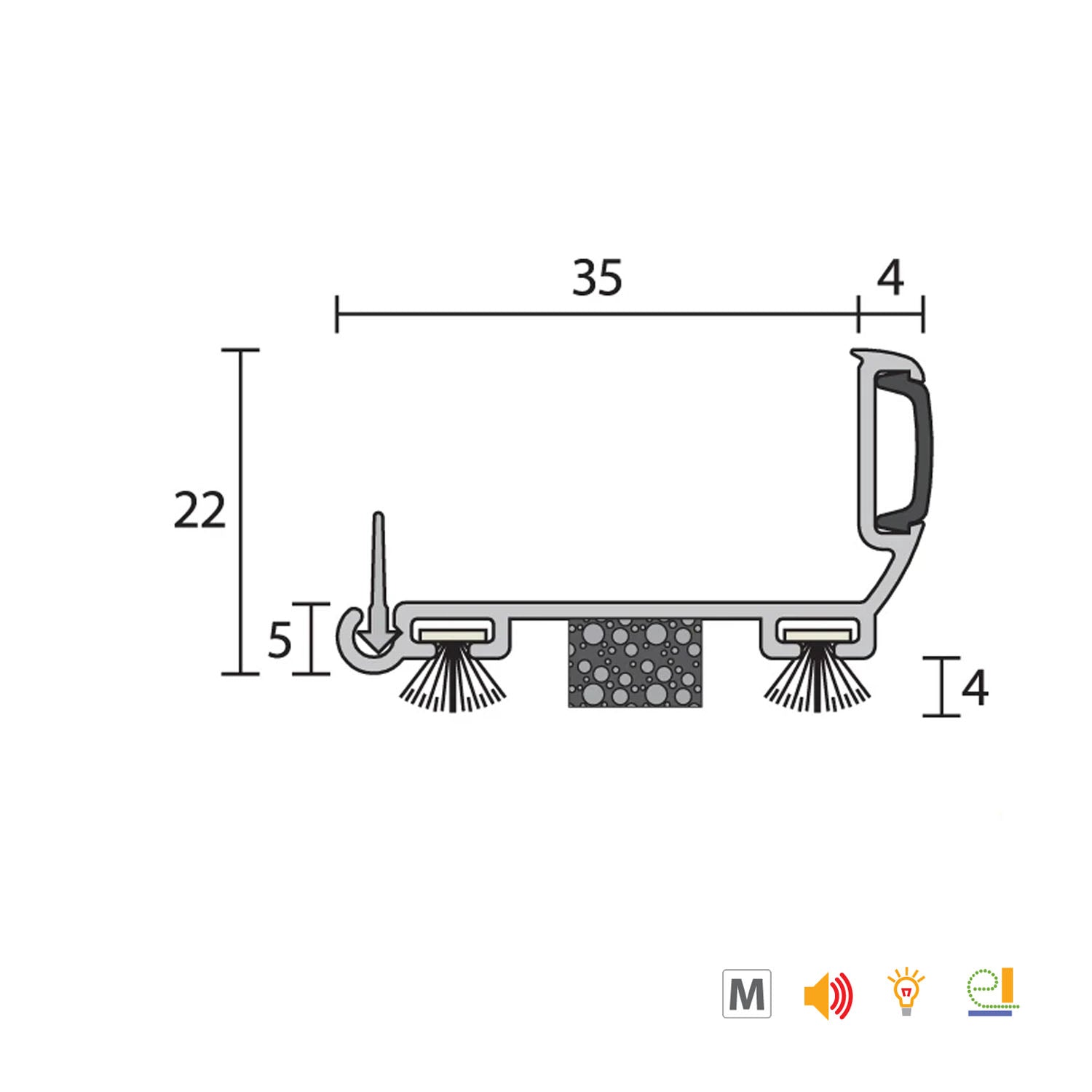

Specifications:
- Location:Head and jambs of door frames.
- Fixing: Screw Fixed (Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-slotted to allow the seals to be fitted accurately and adjustment to be made for building movement)
- Minimum and Maximum Gap: 6mm to 8mm (Gap is determined prior to installation)
- Material: Aluminium (Anodised aluminium with black polypropylene pile with felt weather fins)
- Door/Frame Construction: Timber, Aluminium
- Door Type: Sliding
- Finish: Clear Anodised
-
Available Sizes:
- 1000mm
- 3000mm
Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.
Approvals:
- Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
Raven RP12 Door Perimeter Seal
A12C1000
Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.
Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.
Features:
- Global GreenTag - Platinum
- A heavy duty medium temperature smoke and weather door bottom seal
- The RP129Si can be checked out or drilled to accommodate pivot hardware whilst still providing a continuous seal
- Use in conjunction with RP130Si and a Raven threshold plate (essential)
Specifications:
- Location:Head and jambs of door frames.
- Size: 1000mm
- Fixing: Screw Fixed (Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-slotted to allow the seals to be fitted accurately and adjustment to be made for building movement)
- Minimum and Maximum Gap: 6mm to 8mm (Gap is determined prior to installation)
- Material: Aluminium (Anodised aluminium with black polypropylene pile with felt weather fins)
- Door/Frame Construction: Timber, Aluminium
- Door Type: Sliding
- Finish: Clear Anodised
Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.
Approvals:
- Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
