SKU: RAVA122C3000
Raven RP122 Astragal Twin Section Meeting Stile Seal 3000mm A122C3000
RRP: $315.84
Payments accepted:
Couldn't load pickup availability
Raven RP122 Astragal Twin Section Meeting Stile Seal
A122C3000
Meeting Stile are seals for frameless glass sliding doors.
Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.
Features:
- An effective fire, smoke and acoustic seal designed for double action fire doors

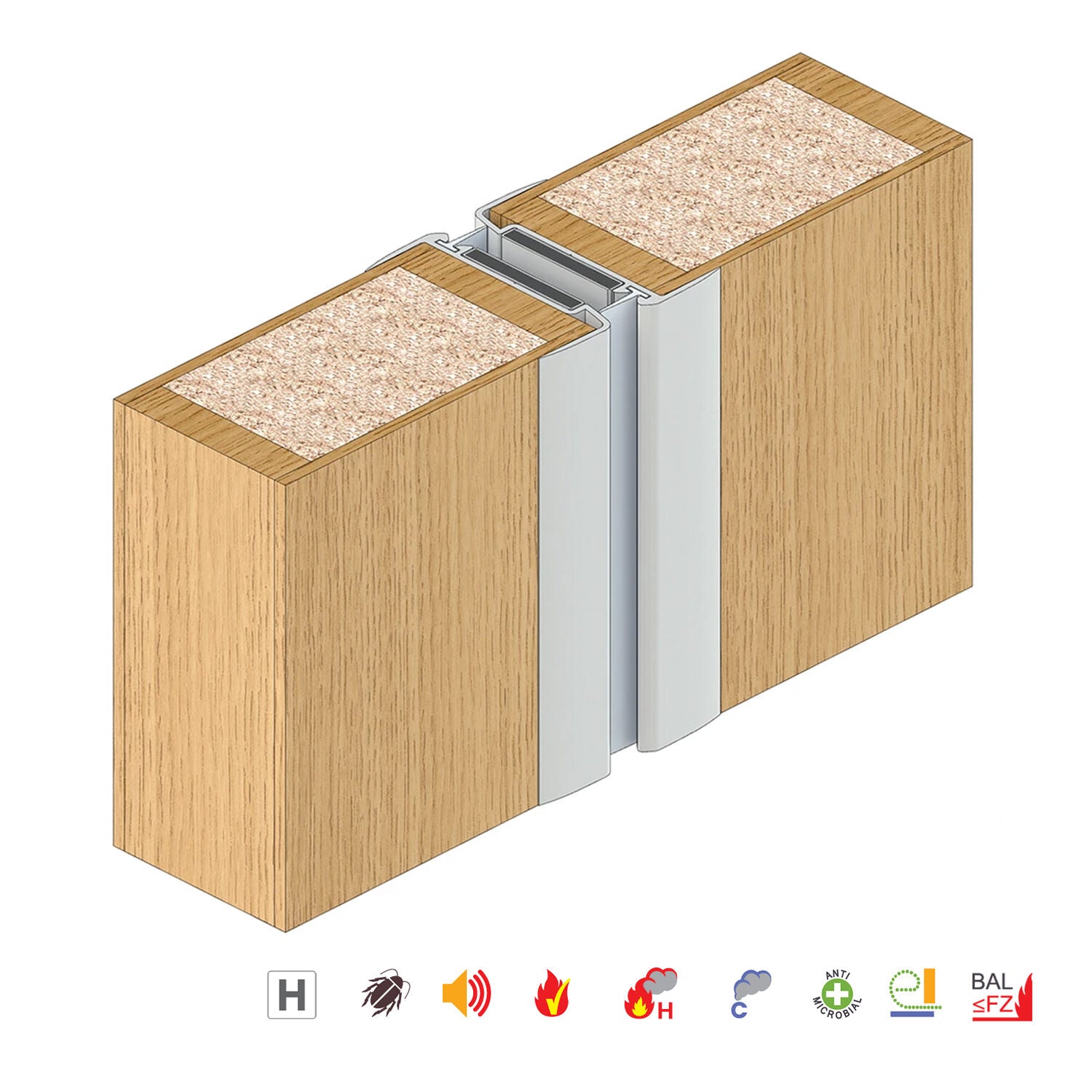

- With concealed fixings, the RP122 is a twin section aluminium bullnose meeting stile seal (astragal) seal with an intumescent infill and PVC fin smoke seal
Specifications

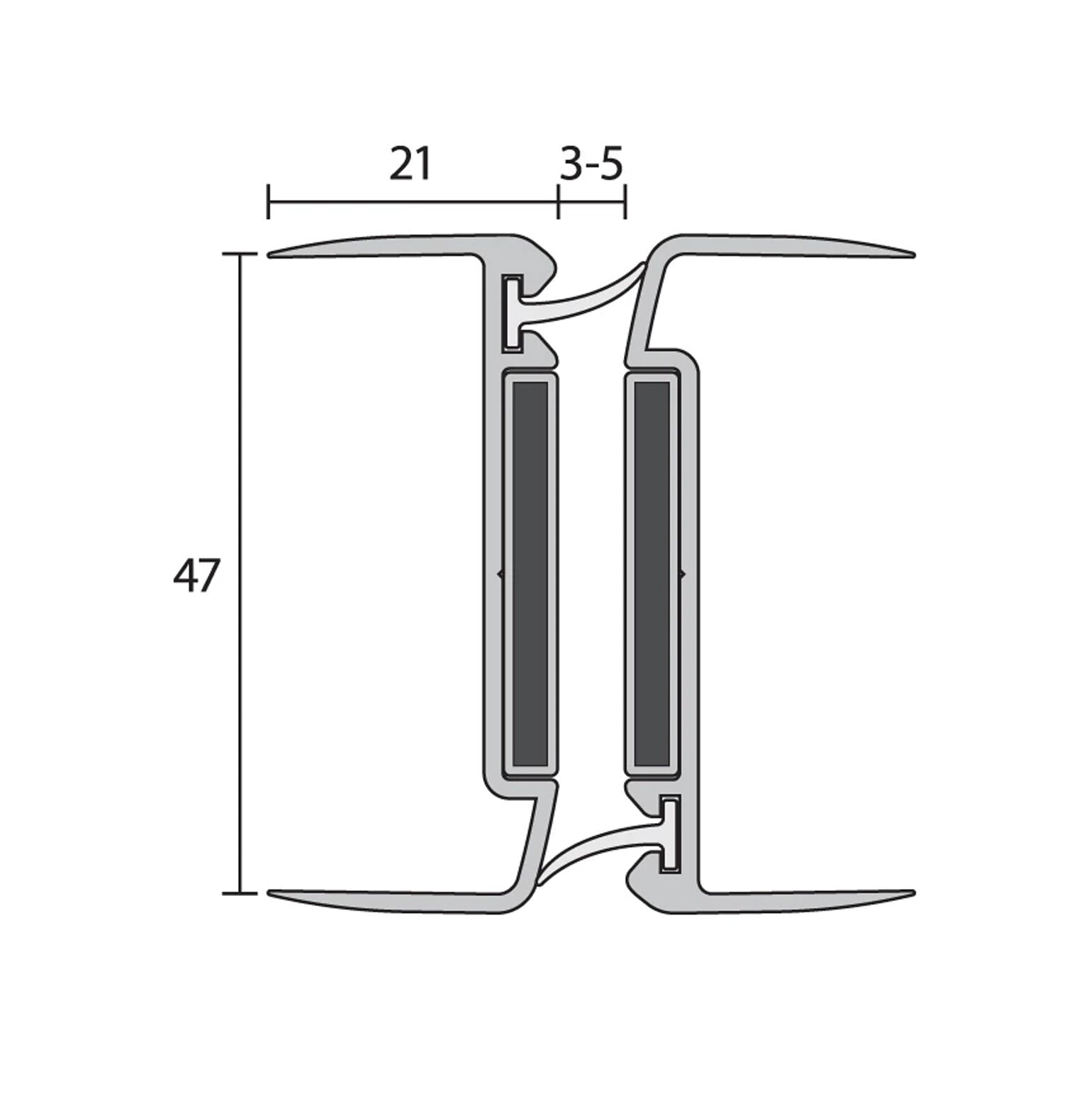

- Location: Meeting stiles of pairs of 47mm nominal thickness double action fire doors.
- Size: 3000mm
- Fixing: Screw Fixed (Concealed screw fix. Zinc plated, cross recess head CSK S.T. screws supplied. Self-adhesive intumescent infill)
- Minimum and Maximum Gap: 14mm to 16mm (Gap is determined prior to installation)
- Replacement Seals: RP3122Si
- Material: Aluminium (Anodised aluminium with rigid PVC holder and intumescent infill, and silicon rubber (SE) medium temperature smoke seal fins)
- Door/Frame Construction: Timber
- Door Type: Double Inward Opening, Double Outward Opening, Pivot
- Finish: Clear Anodised
Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.
Approvals:
- Fire AUS/NZ: NZBC C/AS2 4.16.2, NCC Spec C3.4, AS 1530.4:2005 & earlier
- Fire UK/EU: Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
- Fire Rating: Up to FD120, Up to FRL & FRR-/120/30
- Smoke AUS/NZ: BS EN 1634-3, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, NCC S12C4, AS 1530.7
