SKU: RAVA123C0826
Raven RP123 Door Bottom Sweep Seal 826mm Clear Anodised A123C0826
RRP: $40.00
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Raven RP123 Door Bottom Seal
A123C0826
Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:

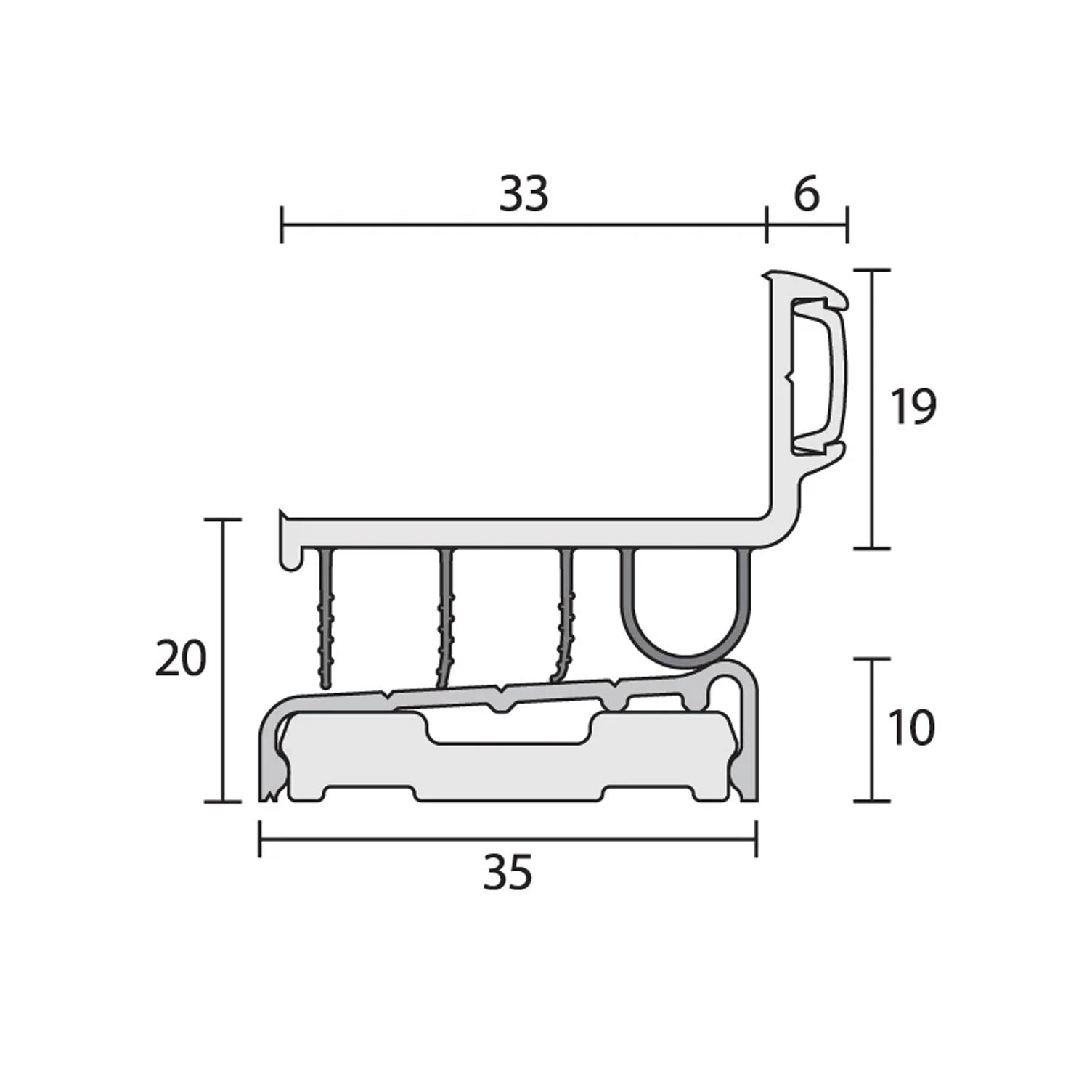

- RP123 is a co-polymer, door bottom weather seal with a concealed fix aluminium threshold plate.
- RP123 easily fits to the bottom of a door where maximum weather protection is required.

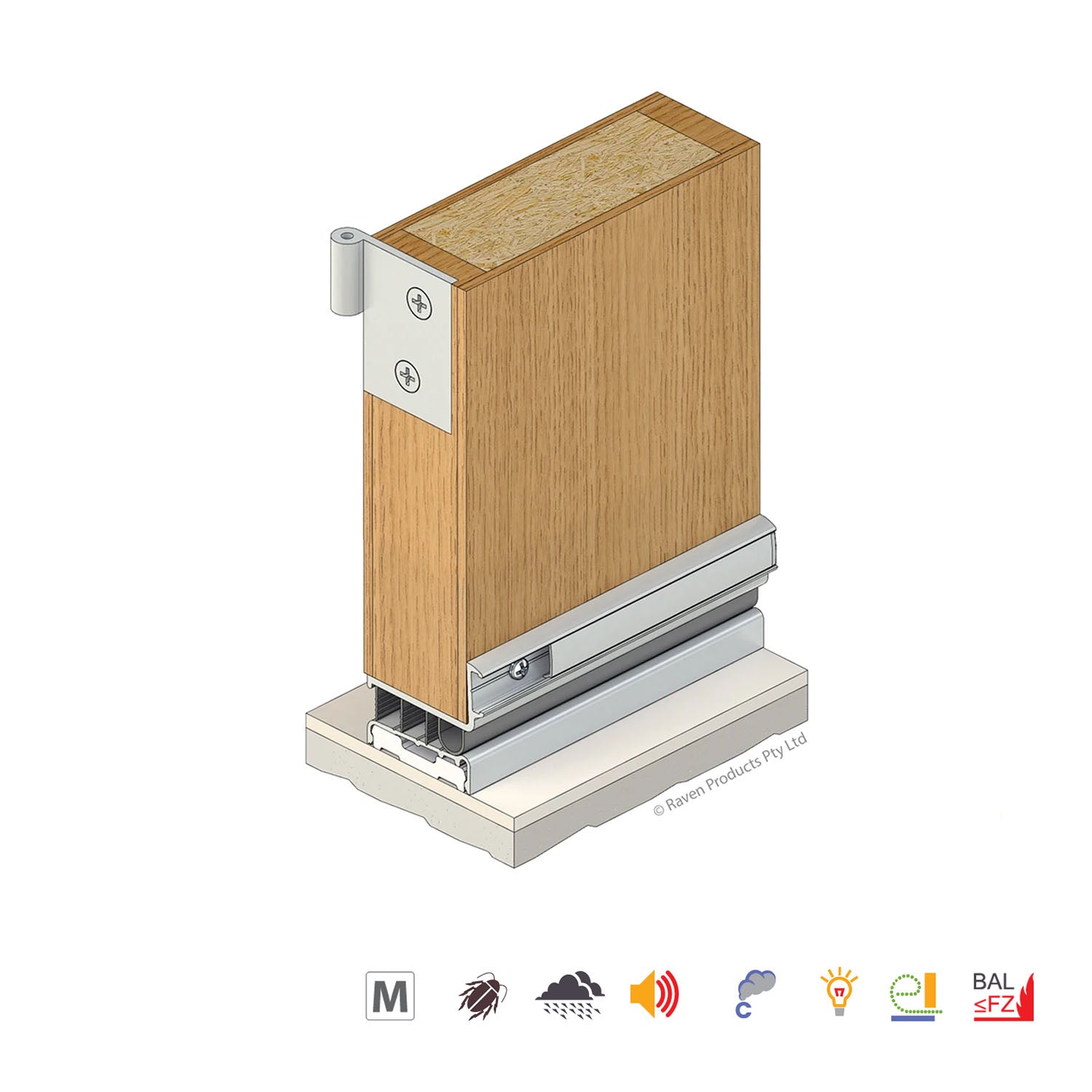

- Quick and easy to install to both door and sill. RP123 is fitted to the square cut bottom of a door provided there is a gap of 19 - 20mm for a flat sill or 12 - 13mm for a rebated sill prior to installation.
Specifications:
- Location: Bottom of single and double butt hinged doors with rebated or flat sills. Minimum door thickness of 35mm.
- Size: 826mm
- Fixing: Screw Fixed, Adhesive Fixed
- Min & Max Gap: 19mm to 20mm
- Rebated sill: 12mm to 13mm
- Material: Anodised aluminium threshold plate with rigid and flexible PVC co-extrusion seal.
- Timber: Door Type
- Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening, Pivot
- Size: 826mm
- Finish: Clear Anodised
Approvals:
- Access & Mobility AUS/NZ: NZBC D1/AS1 1.3.2
- Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
- Durability: Tested to over 500,000 operating cycles without failure
- Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
