Raven RP124 Perimeter Seal Fire Rated Black - Available in Various Sizes

Raven RP124 Perimeter Seal Fire Rated

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• A Rigid and Flexible co-polymer acoustic smoke seal with multiple fins and quick and easy self-adhesive installation

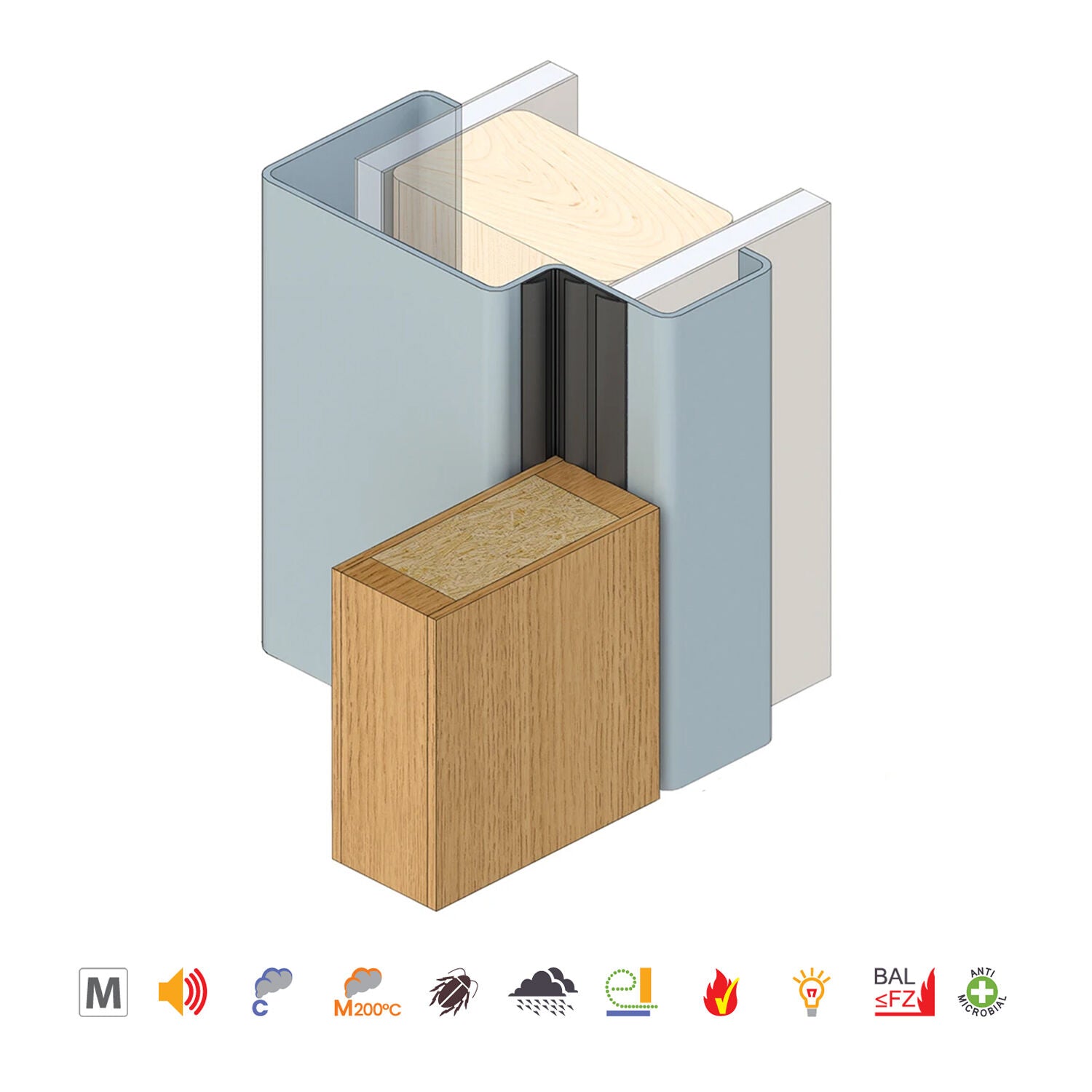

• Located in the protected corners of rebated timber or steel frame doors and is suitable for new and retrofit applications
• Can be used in conjunction with Raven door bottom seals, meeting stile seals (astragals) and threshold plates

Specifications:

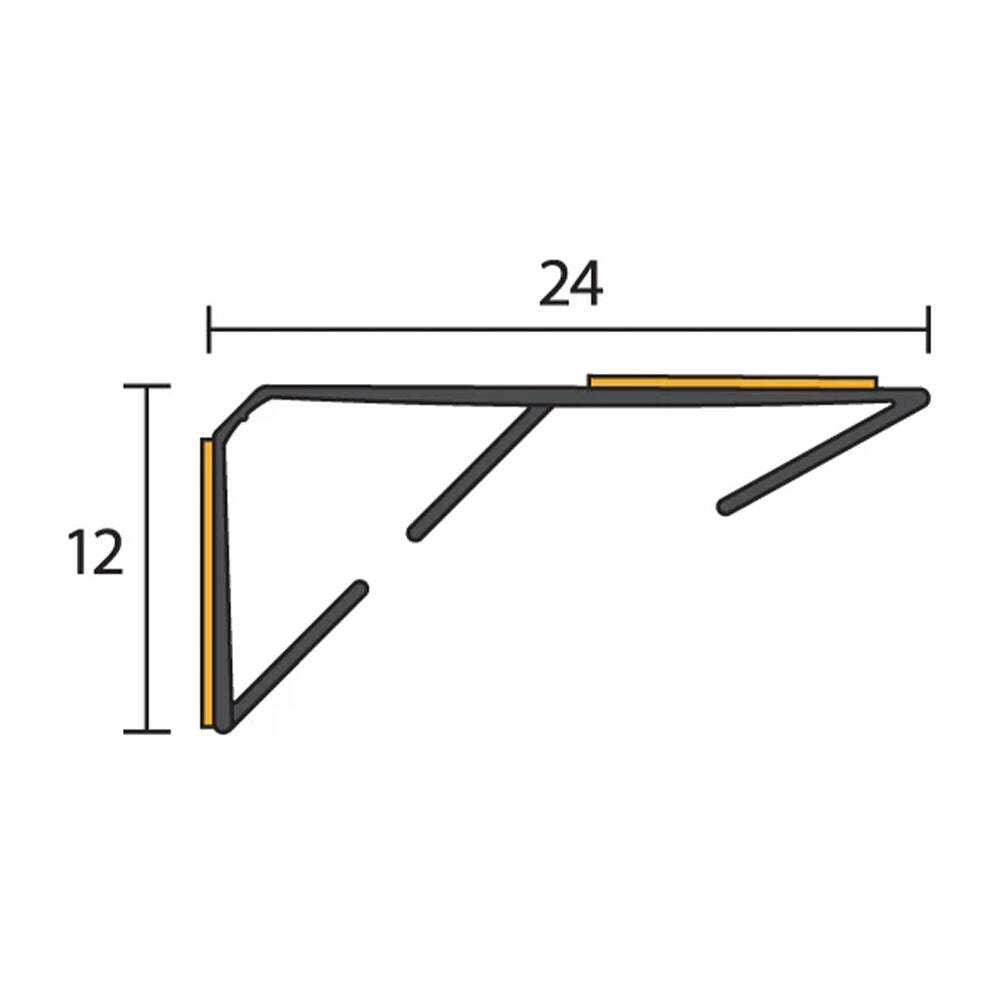

• Min/Max Gap: 3mm to 5.5mm
• Fixing: self-adhesive
• Size:
  • 3000mm
  • Double Door Set (3x 2100mm)
  • Long Double Door Set (2 x 2750mm and 1 x 2000mm)
  • Long Single Door Set (2 x 2750mm and 1 x 1000mm)
  • Single Door Set (2 x 2100mm and 1 x 1000mm)
• Finish: Black

Approvals:

• UL: R37913, Certifire: CF 5710
• NCC F7D6
• Approved Document E, Rated to BS EN ISO 717-1
• NZBC C/AS2 4.16.2, AS 1530.4, NCC S12C2, AS 1905.1
• Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
• Up to FD120, Up to FRL & FRR-/120/30
• AS 1530.7, BS EN 1634-3, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, NCC S12C4
• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
