SKU: RAVA129SIC1250
Raven RP129 Door Bottom Seal 1250mm Clear Anodised A129SIC1250
RRP: $56.75
Payments accepted:
Couldn't load pickup availability
Raven RP129 Door Bottom Seal
A129SIC1250
Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:
- Global GreenTag - Platinum
- A heavy duty medium temperature smoke and weather door bottom seal
- The RP129Si can be checked out or drilled to accommodate pivot hardware whilst still providing a continuous seal
- Use in conjunction with RP130Si and a Raven threshold plate (essential)

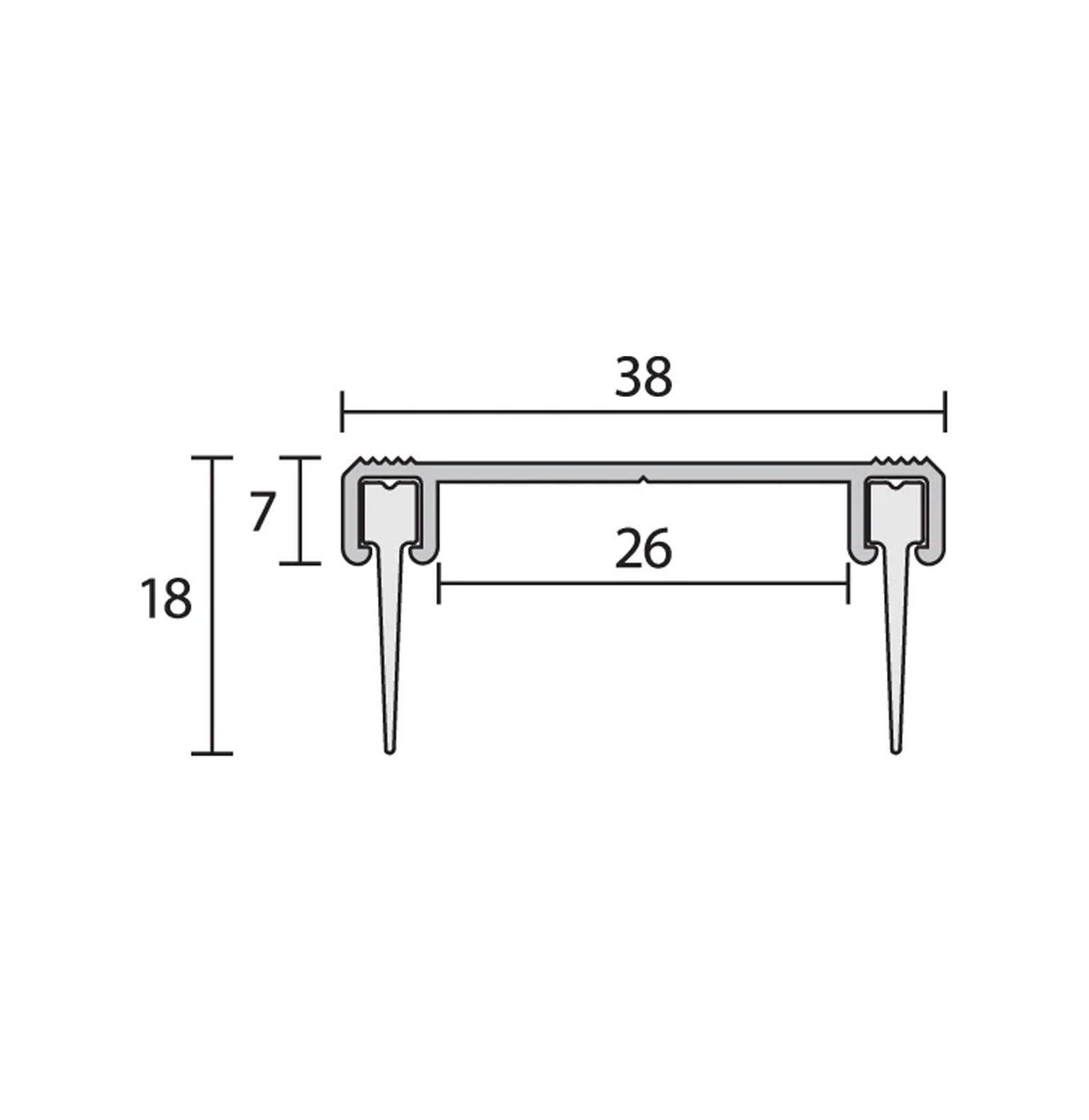

Specifications:
- Location: Bottom of double butt hinged or centre pivot double acting doors.
- Size: 1250mm
- Fixing: Screw Fixed (Screw fix. Zinc plated, cross recess head S.T. screws supplied)
- Minimum and Maximum Gap: 14mm to 18mm
- Replacement Seals: RP3129Si
- Material: Aluminium (Anodised aluminium with silicon rubber (SE) gaskets)
- Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.
- Door/Frame Construction: Timber
- Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening, Pivot
- Finish: Clear Anodised
Approvals:
- Fire Flammability Index: Gasket flammability index 1 when tested to AS1530.2
- Smoke AUS/NZ: NCC S12C4, AS 1530.7, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, NZBC C/AS2 4.16.2(b), BS EN 1634-3 (similar to BS 476 section 31.1)
- Energy AUS/NZ: NCC J5D5, ABCB Housing Provisions Standard 2022 13.4.4
- Durability: Tested to over 1,000,000 operating cycles without failure
- Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
