Raven RP129F Door Bottom Sweep Seal Silver Anodised - Available in Various Sizes

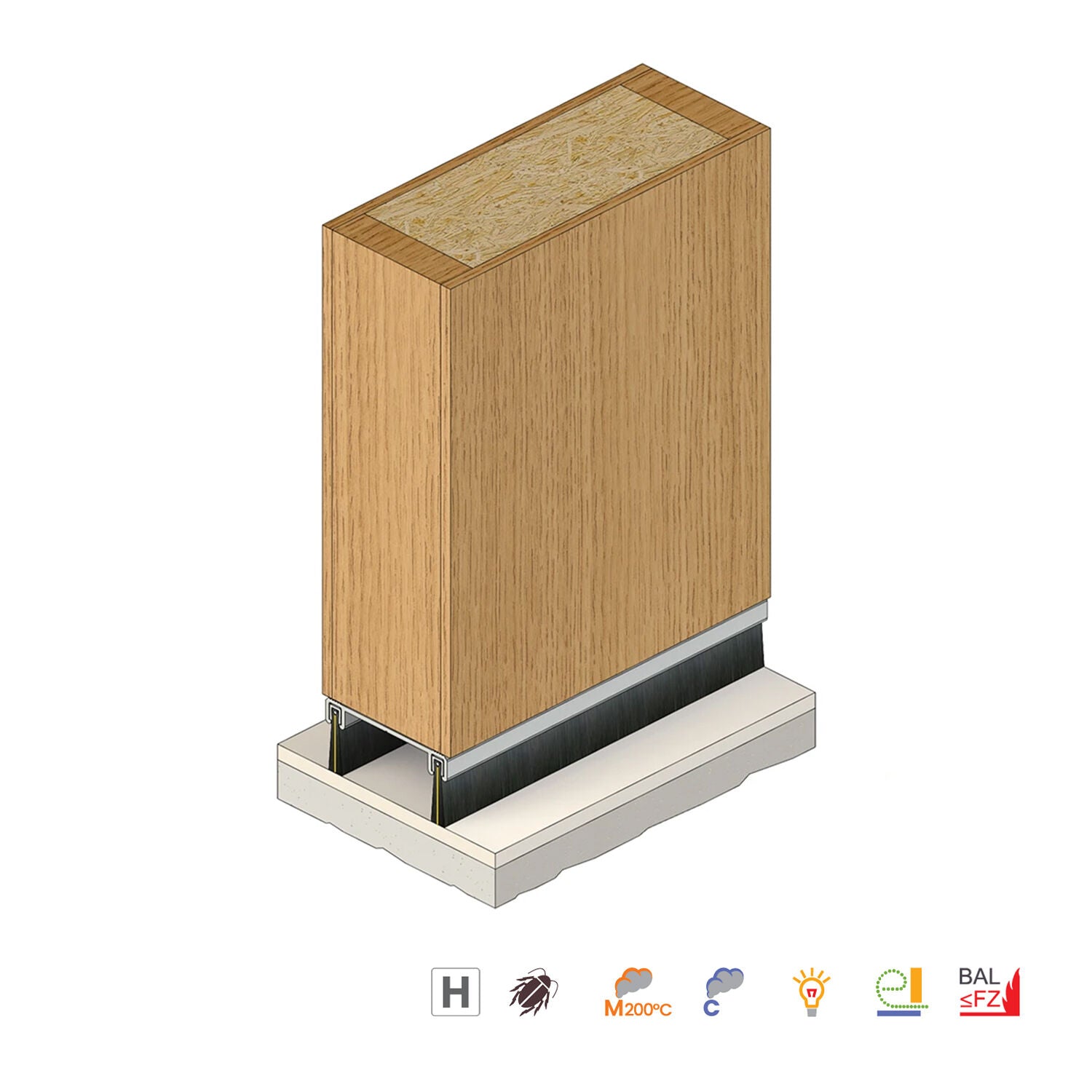

Raven RP129F Door Bottom Sweep Seal

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• Heavy duty medium temperature smoke door bottom seal
• A pair of nylon brush strips with a medium temperature smoke barrier
• Can be checked out or drilled to accommodate the pivot, thereby providing a continuous seal
• Can be used in conjunction with RP130Si, other Raven perimeter seals and threshold plates

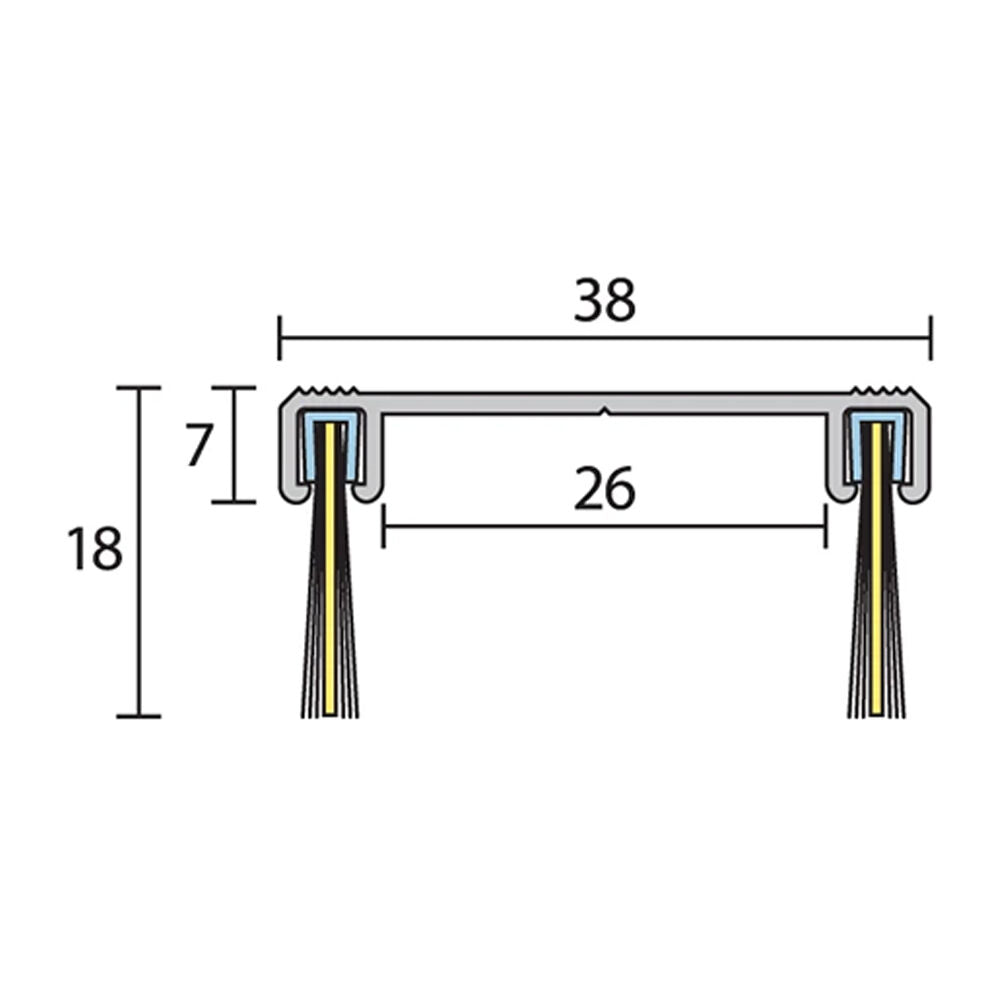

Specifications:

• Min and Max Gap: 15mm - 18mm
• Fixing: Screw Fix
• Width: 38mm
• Projection: 18mm
• Inner Width: 26mm
• Length:
  • 1250mm
  • 3000mm
• Finish: Silver Anodised

Approvals:

• Brush Strip flammability index 1 when tested to AS1530.2
• NCC S12C4, AS 1530.7, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, NZBC C/AS2 4.16.2(b), BS EN 1634-3 (similar to BS 476 section 31.1)
• NCC J5D5, ABCB Housing Provisions Standard 2022 13.4.4
• Tested to over 1,000,000 operating cycles without failure
• AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
