SKU: RAVA13C1000
Raven RP13 Threshold Plate Silver Anodised - Available in Various Sizes
RRP: $24.23
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Raven RP13 Threshold Plate
Threshold Plate enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

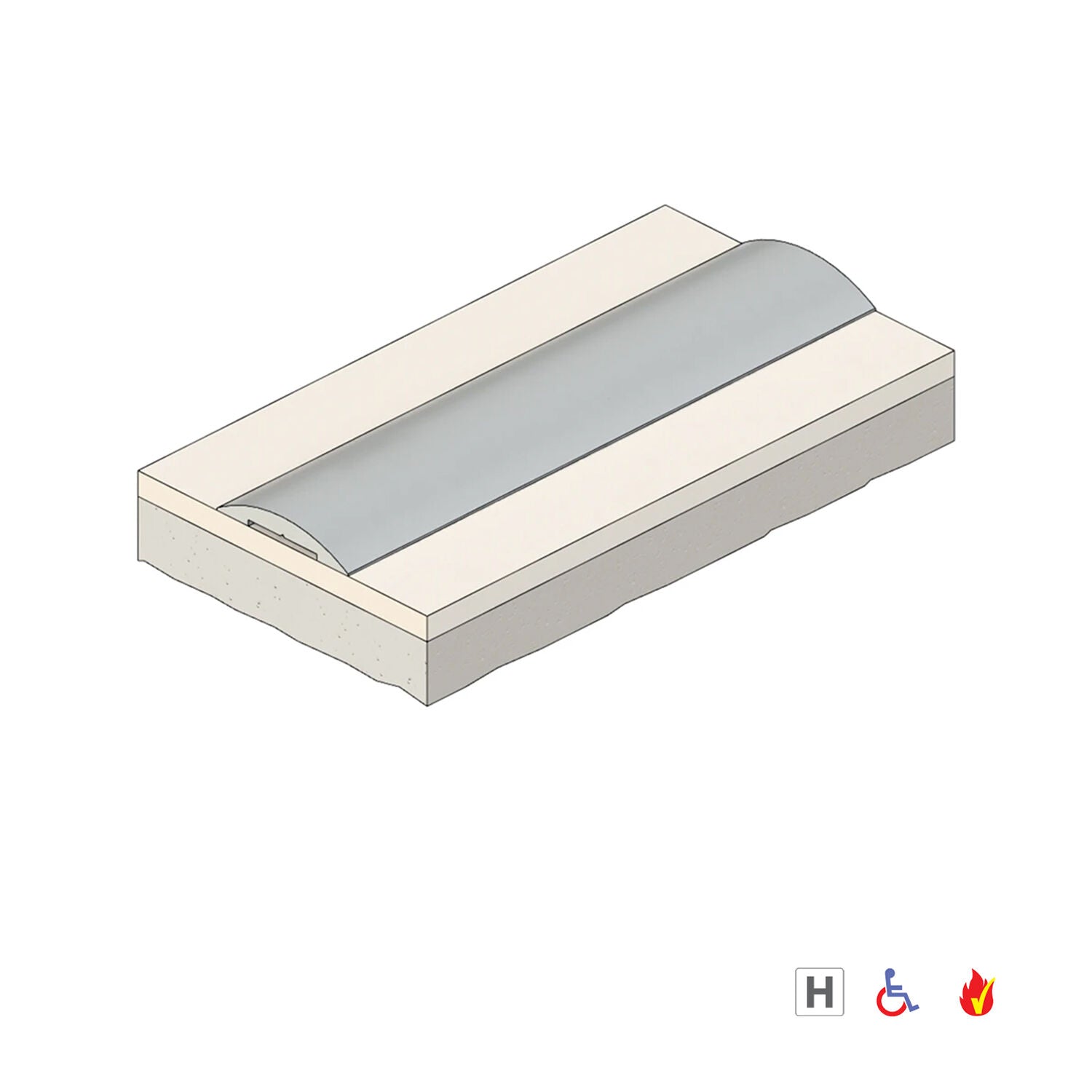

Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.
Features:
- A low profile threshold plate that is ideal for use in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration

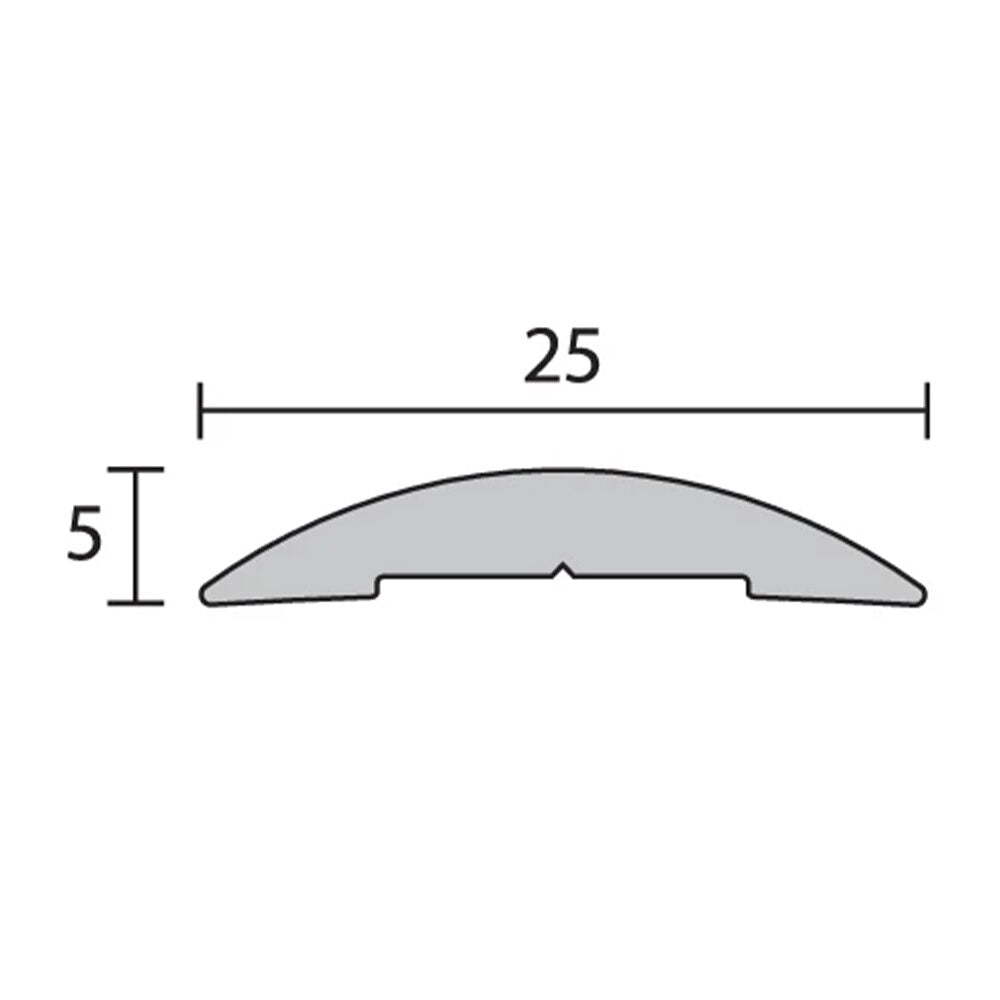

Specifications:
- Fixing: Screw Fix
- Width: 25mm
- Projection: 5mm
-
Length:
- 1000mm
- 2000mm
- Finish: Silver Anodised
Approvals:
- NCC D3D16, NCC D4D4, AS1428.1:2009 Part 7.2. AS1428.1:2021 Part 4.2, NZBC D1/AS1 1.3.2
- Approved Document M
- UL: R37913, ANSI/BHMA: A156.21
- AS 1530.4, NCC S12C2, AS 1905.1, NZBC C/AS2 4.16.2(a) & App C6.1.1
- Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
- Up to FRL & FRR-/240/30
- BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959
Raven RP13 Threshold Plate
A13C1000
Threshold Plate enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.
Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.
Features:
- A low profile threshold plate that is ideal for use in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration
Specifications:
- Fixing: Screw Fix
- Width: 25mm
- Projection: 5mm
- Length: 1000mm
- Finish: Silver Anodised
Approvals:
- NCC D3D16, NCC D4D4, AS1428.1:2009 Part 7.2. AS1428.1:2021 Part 4.2, NZBC D1/AS1 1.3.2
- Approved Document M
- UL: R37913, ANSI/BHMA: A156.21
- AS 1530.4, NCC S12C2, AS 1905.1, NZBC C/AS2 4.16.2(a) & App C6.1.1
- Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
- Up to FRL & FRR-/240/30
- BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959
