Raven RP130Si Perimeter Seal Silver Anodised - Available in Various Sizes

Raven RP130Si Perimeter Seal

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

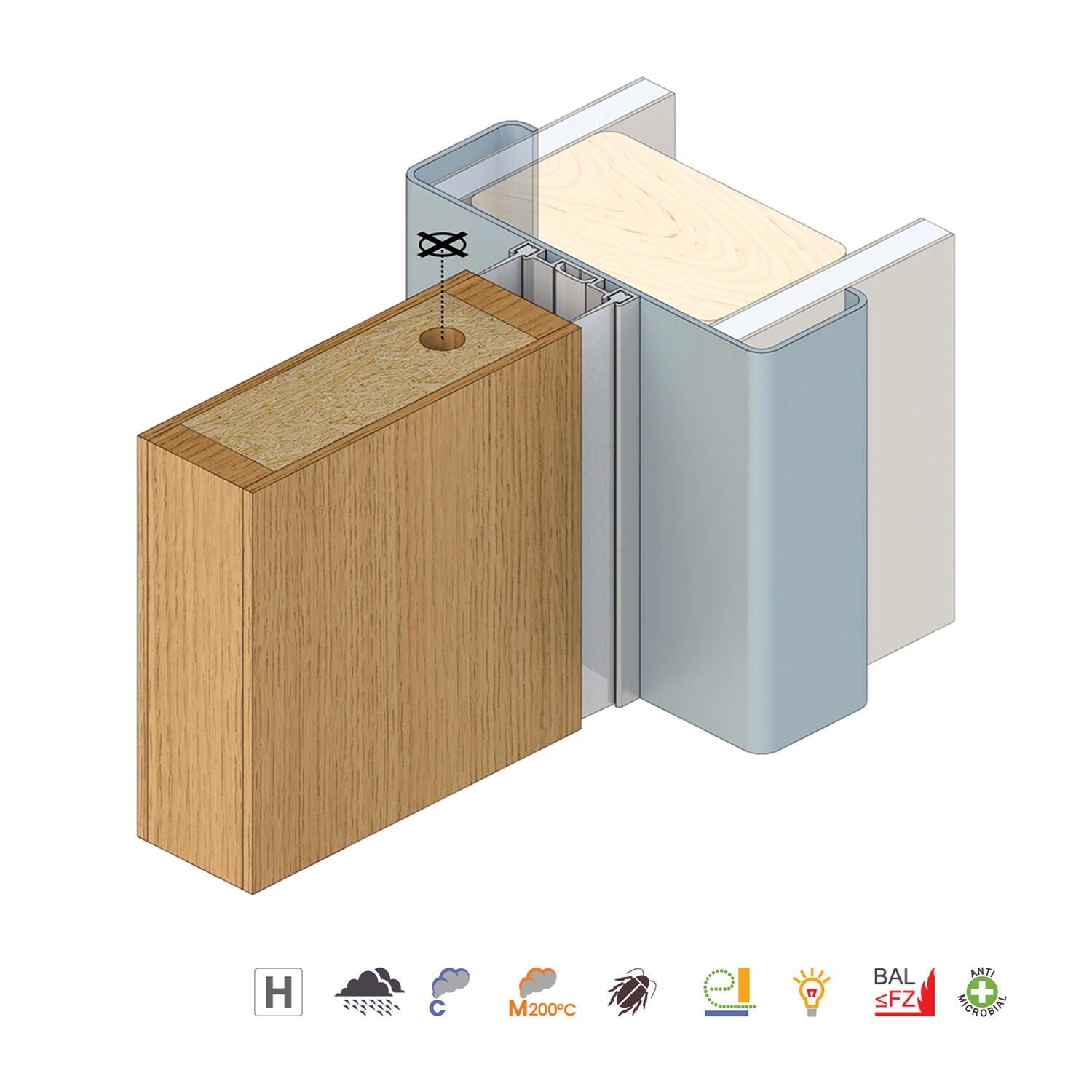

• A heavy duty medium temperature smoke seal designed to be fitted to the door head & jamb reveal of pivot door frames
• May also be installed to the door stile edges and to one leaf of plain meeting stiles of timber double pivot doors
• The aluminium body of the seal can be checked out or drilled to accommodate pivot hardware and latch ware at the meeting stile

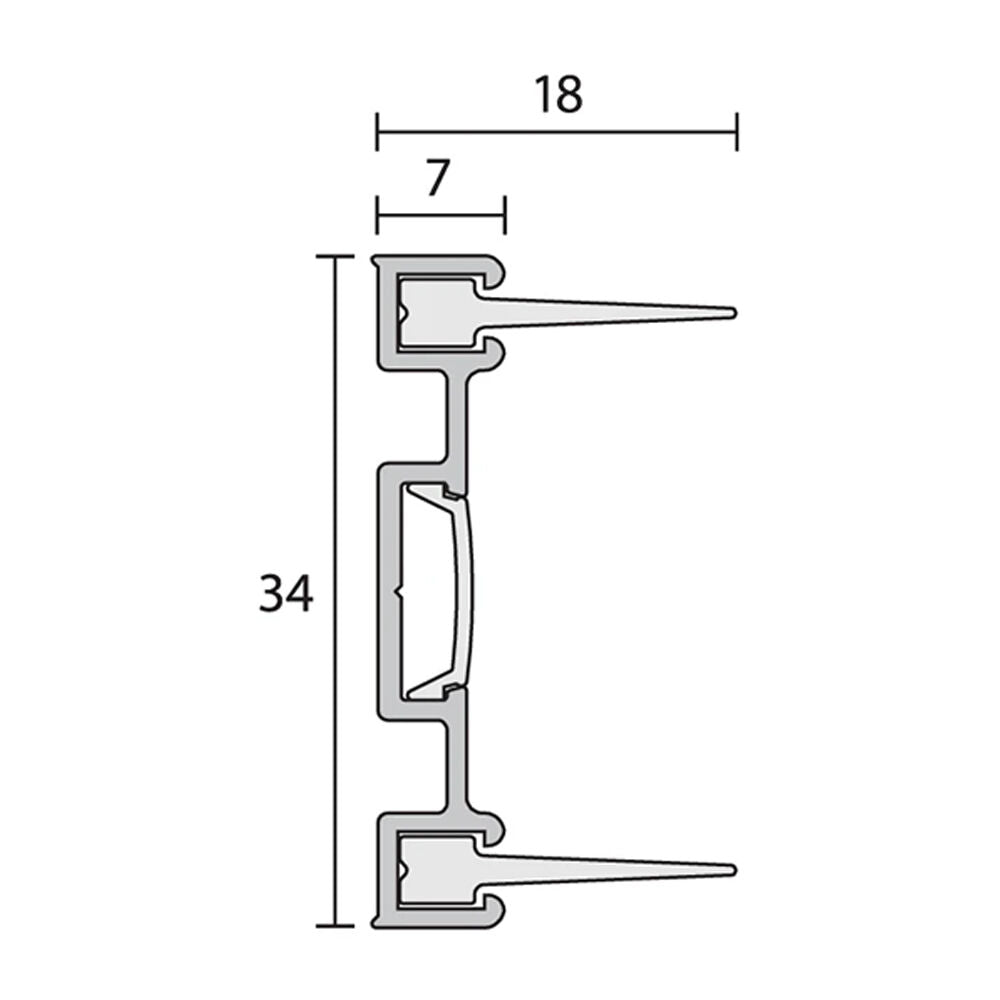

Specifications:

• Min and Max Gap: 14mm - 18mm
• Fixing: Screw Fix
• Width: 34mm
• Projection: 18mm
• Thickness: 7mm
• Length:
  • 2100mm
  • Double Door Set (3 x 2100mm)
  • Single Door Set (1 x 1000mm and 2 x 2100mm)
• Finish: Silver Anodised

Approvals:

• Gasket flammability index 1 when tested to AS1530.2
• NCC S12C4, AS 1530.7, BS EN 1634-3, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”
• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
