SKU: RAVA134LS
Raven RP134 Meeting Stile Seal Long Single Door Set Black A134LS
RRP: $105.17
Payments accepted:
Couldn't load pickup availability
Raven RP134 Meeting Stile Seal
A134LS
Meeting Stile are seals for frameless glass sliding doors.
Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.
Features:
- Co-extruded PVC acoustic and smoke seal

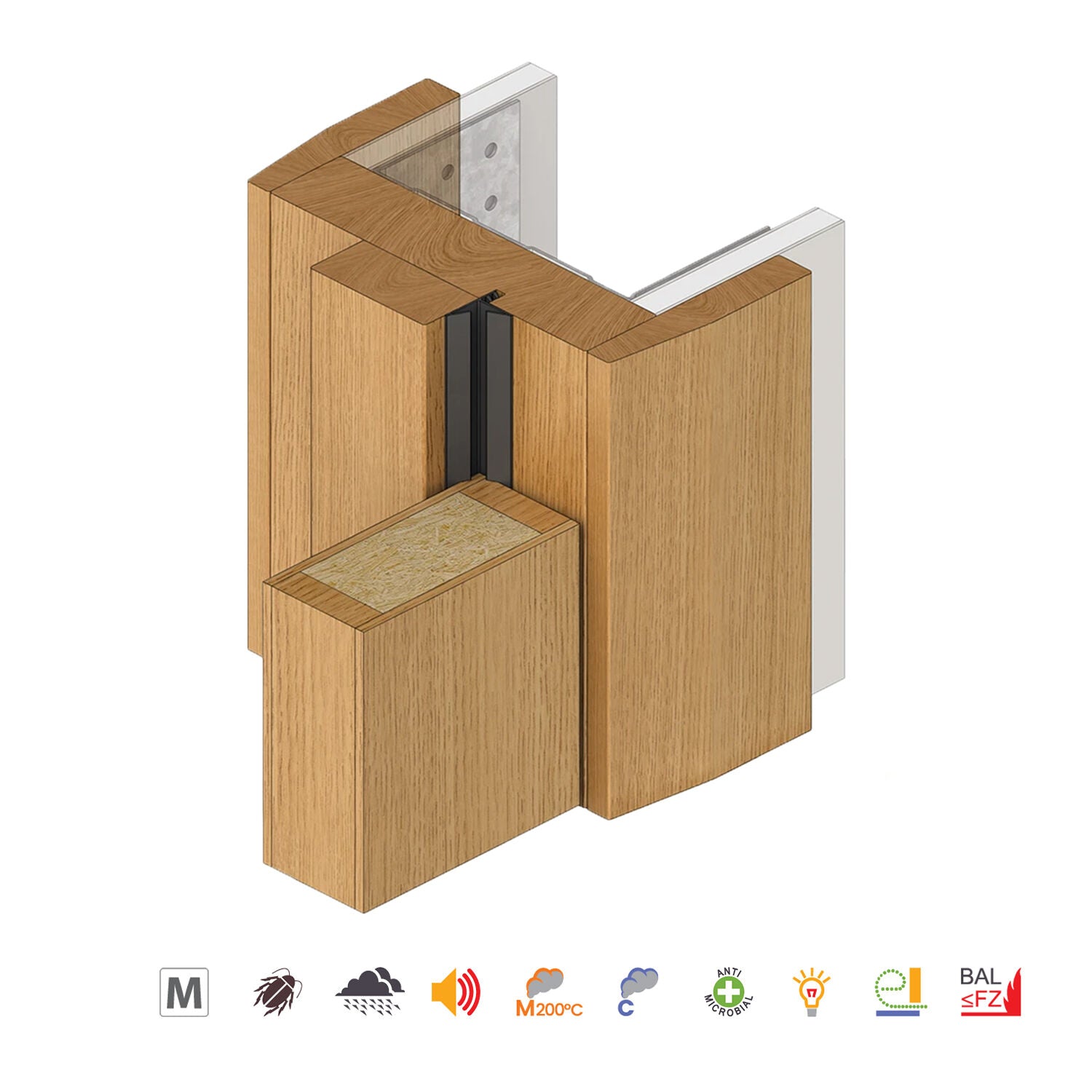

- Discreetly located in the protected corners of rebated timber doors and window frames
- Suitable for new and retrofit applications

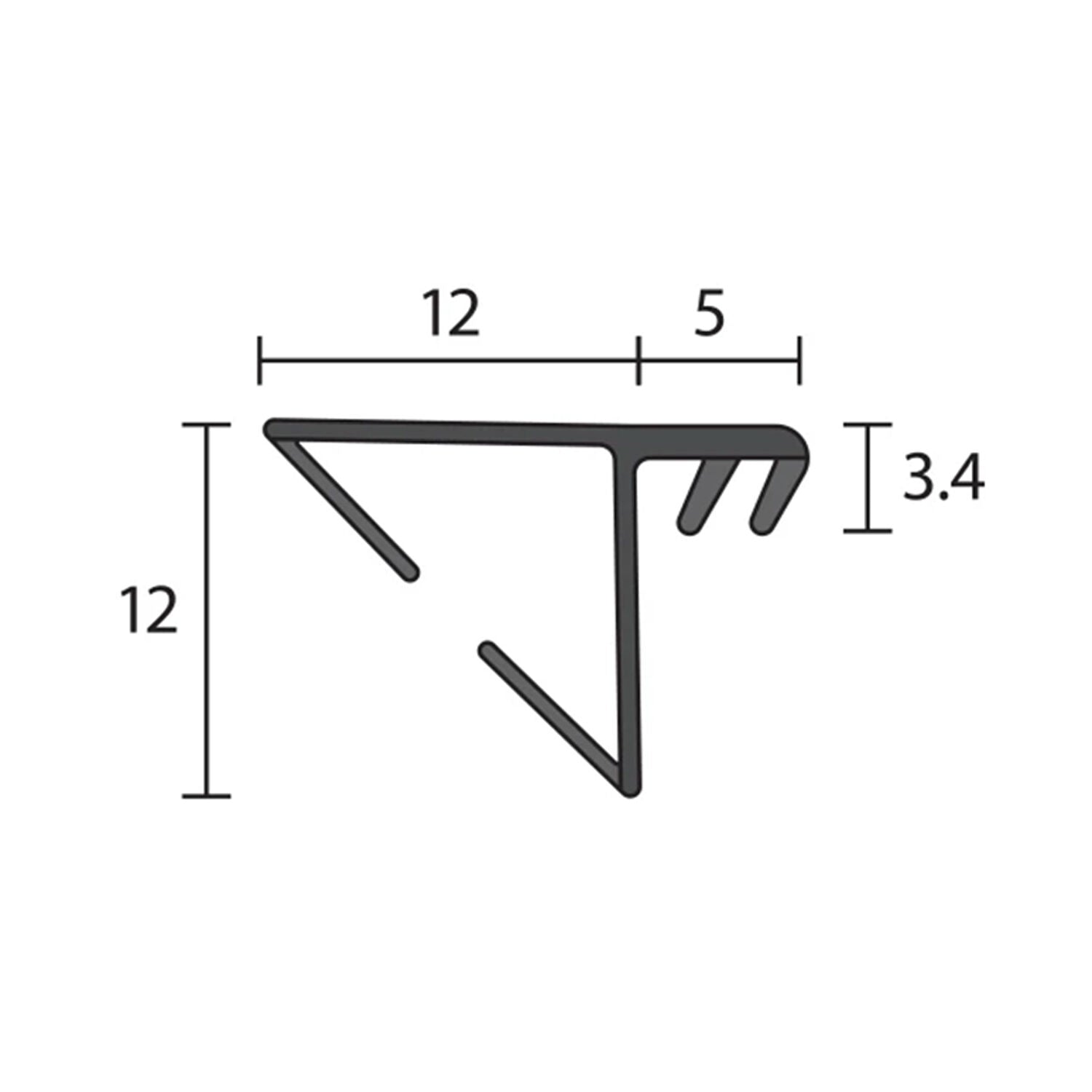

Specifications:
- Min and Max Gap: 3mm - 5.5mm
- Fixing: Push-in Friction Fit
- Width: 12mm
- Projection: 12mm
- Kerf Groove Depth: 5mm
- Kerf Groove Width: 3.4mm
- Length: Long Single Door Set (1 x 1000mm and 2 x 2750mm)
- Finish: Black
Approvals:
- Certifire: CF 5710
- ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
