Raven RP138 Threshold Plate Silver Anodised - Available in Various Sizes

Raven RP138 Threshold Plate

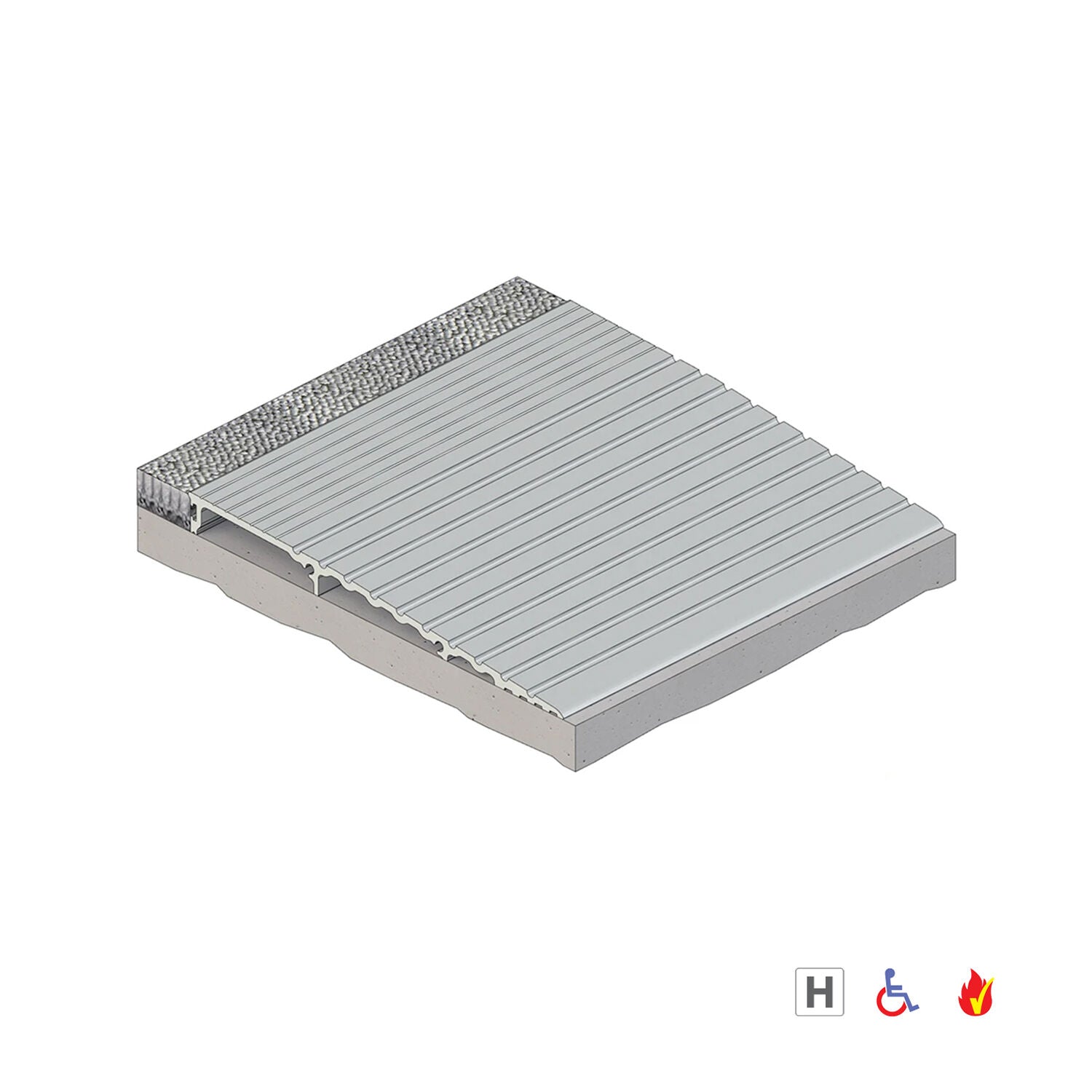

Threshold Plate enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

• A heavy duty threshold ramp that can be used as a border for internal floor matting or be positioned back-to-back to form a two-way threshold ramp conforming to NCC D3D16 (b)
• Ideal for larger style commercial door frames
• RP138 has been designed to accommodate a concealed screw fix through the door jambs

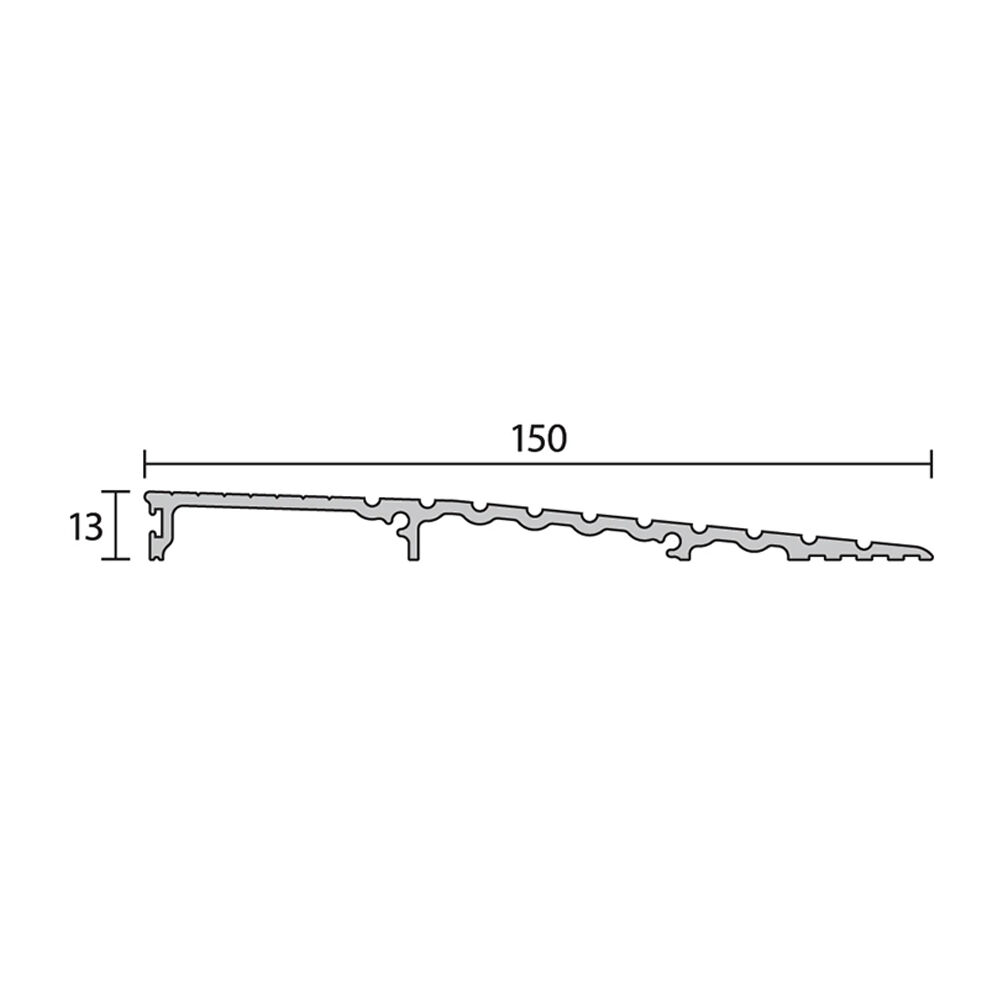

Specifications:

• Fixing: Screw Fix
• Width: 150mm
• Projection: 13mm
• Length:
  • 2500mm
  • 3000mm
• Finish: Silver Anodised

Approvals:

• NCC D3D16, AS1428.1:2009 Part 10.5. AS1428.1:2021 Part 7.5, NCC D4D4, NZBC D1/AS1 1.3.2
• Approved Document M
• UL: R37913, ANSI/BHMA: A156.21
• AS 1905.1, NCC S12C2, NZBC C/AS2 4.16.2(a) & App C6.1.1, AS 1530.4
• Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
• Up to FD180, Up to FRL & FRR-/240/30
• BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959

Note:

• When ordering, specify longer length than doorway to allow for neat installation around door frame
