SKU: RAVA144SIC0920
Raven RP144Si Automatic Door Bottom Seal Silver Anodized - Available in Various Sizes
RRP: $138.47
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Raven RP144Si Automatic Door Bottom Seal
Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, and smoke can all be significantly reduced by closing the gaps along the door frame.
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:
- Global GreenTag - Platinum
- A concealed, automatic door bottom seal to suit medium temperature smoke and energy door seal applications.
- RP144Si features twin silicon bulb gaskets and is spring loaded to lift clear of the floor as soon as the door leaf is opened by a few millimetres.

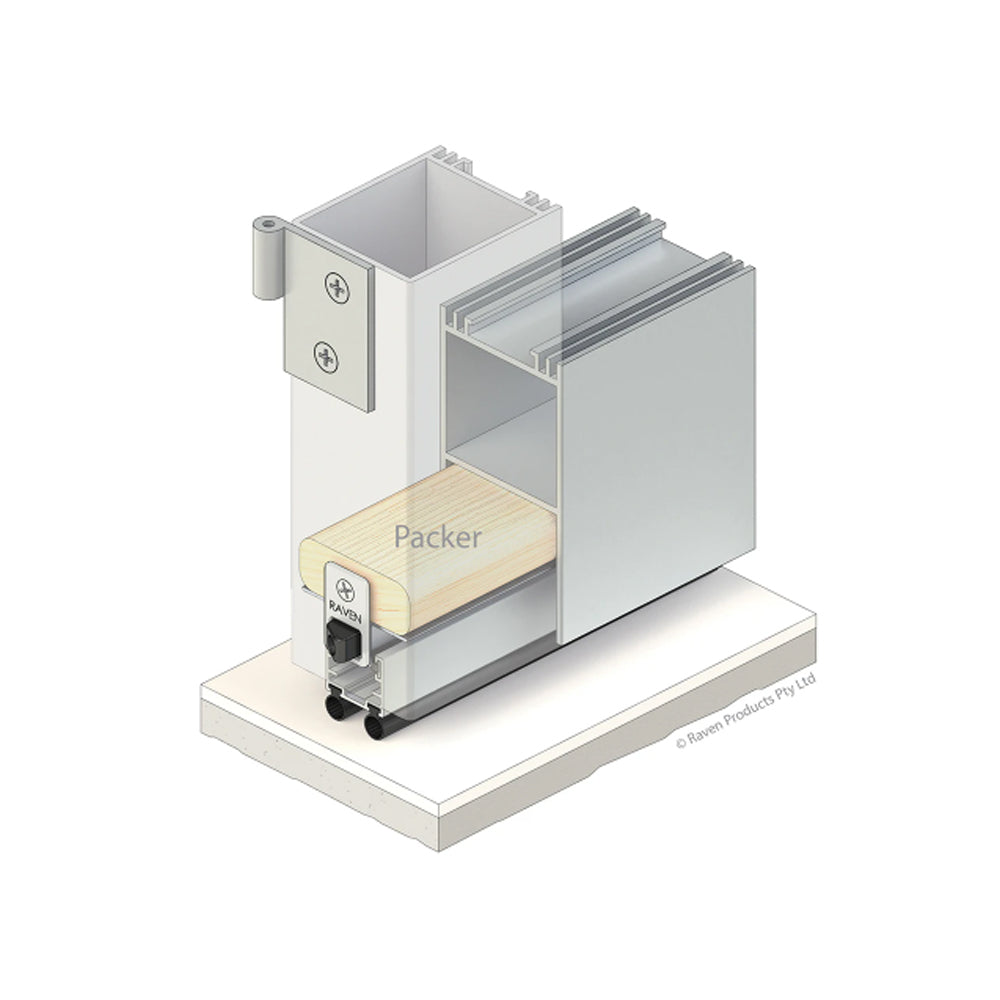

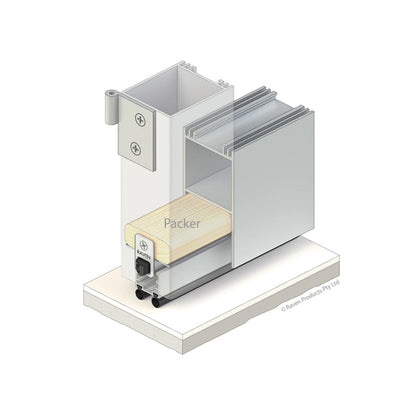

- Mounted into the bottom hollow rail of metal doors, the seal is operated automatically by pressure against the door jamb on its adjustable strike block.
Specification:
- Door/Frame Construction: Steel, Aluminium
- Material: Aluminium
- Replacement Seals: RP3126Si

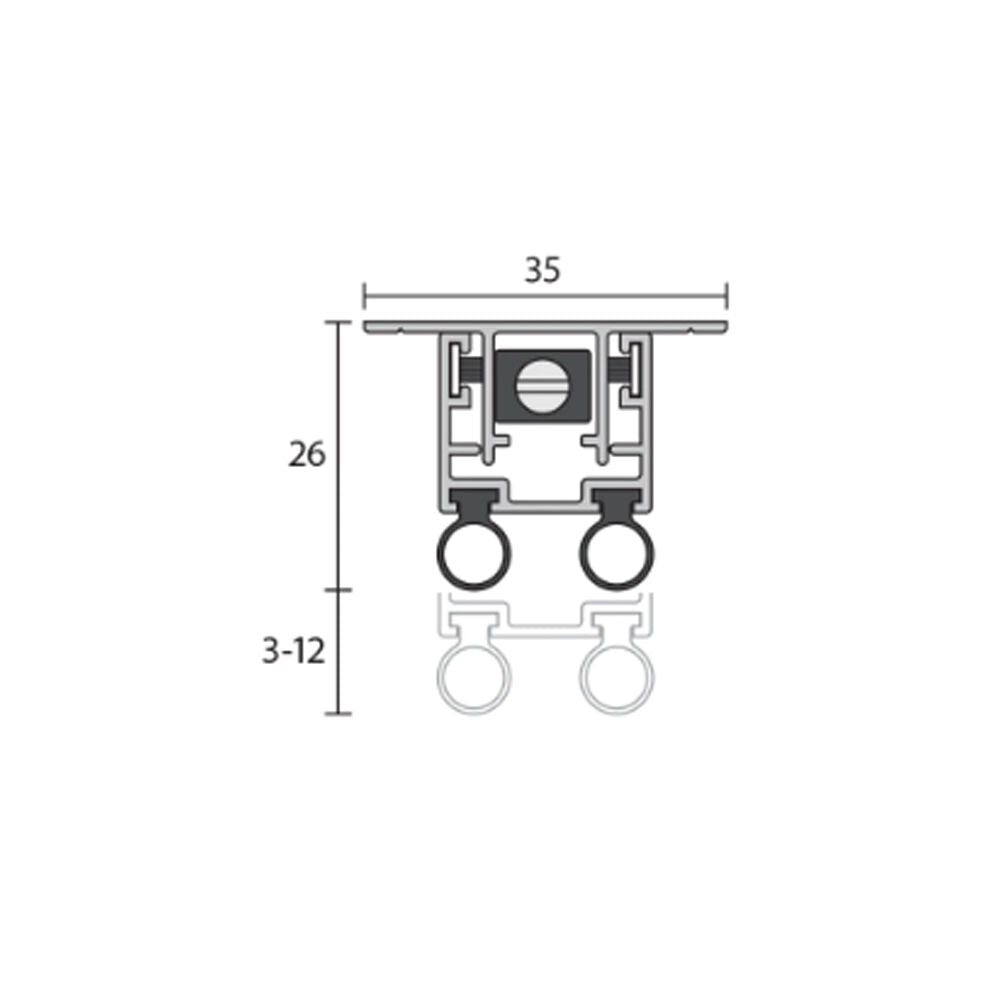

- Min & Max Gap: 3mm to 12mm
- Fixing: Fully Morticed, Screw Fixed

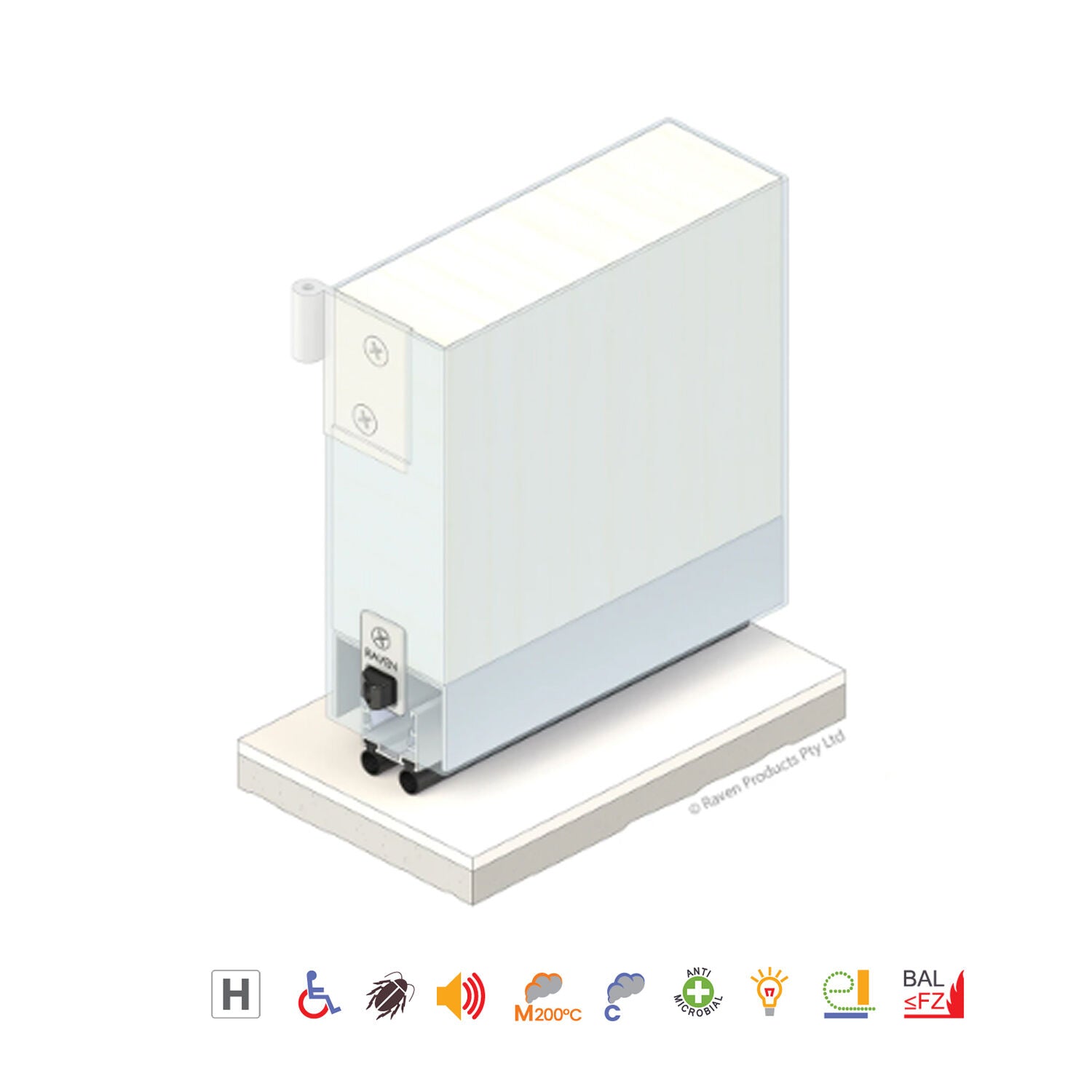

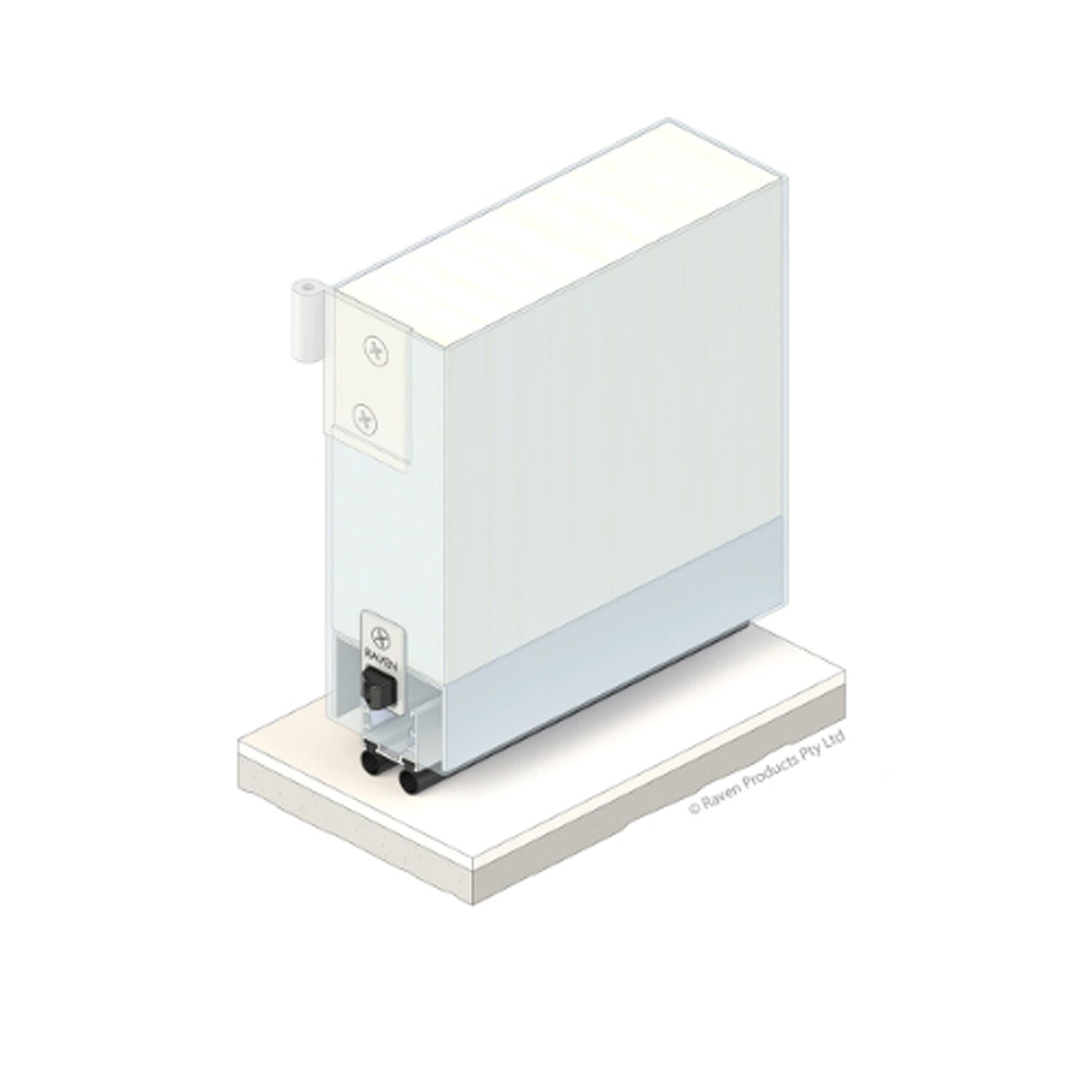

- Location: Concealed in the bottom of single and double metal clad butt hinged doors.
- Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening
- Finish: Silver Anodized
-
Available Size:
- 920mm
- 1220mm
Approval/s:
- UL: R37913
- Fire Flammability Index: Gasket flammability index 1 when tested to AS1530.2
- Smoke AUS/NZ: NCC S12C4
- Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
- Durability: Tested to over 1,000,000 operating cycles without failure
- Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
Note:
- 920mm and 1220mm lengths available in 35mm wide profile. 1350mm length available in 38mm wide profile until run out, then 35mm. Please check ahead when ordering.
