Raven RP15 Door Bottom Sweep Seal Silver Anodised - Available in Various Sizes

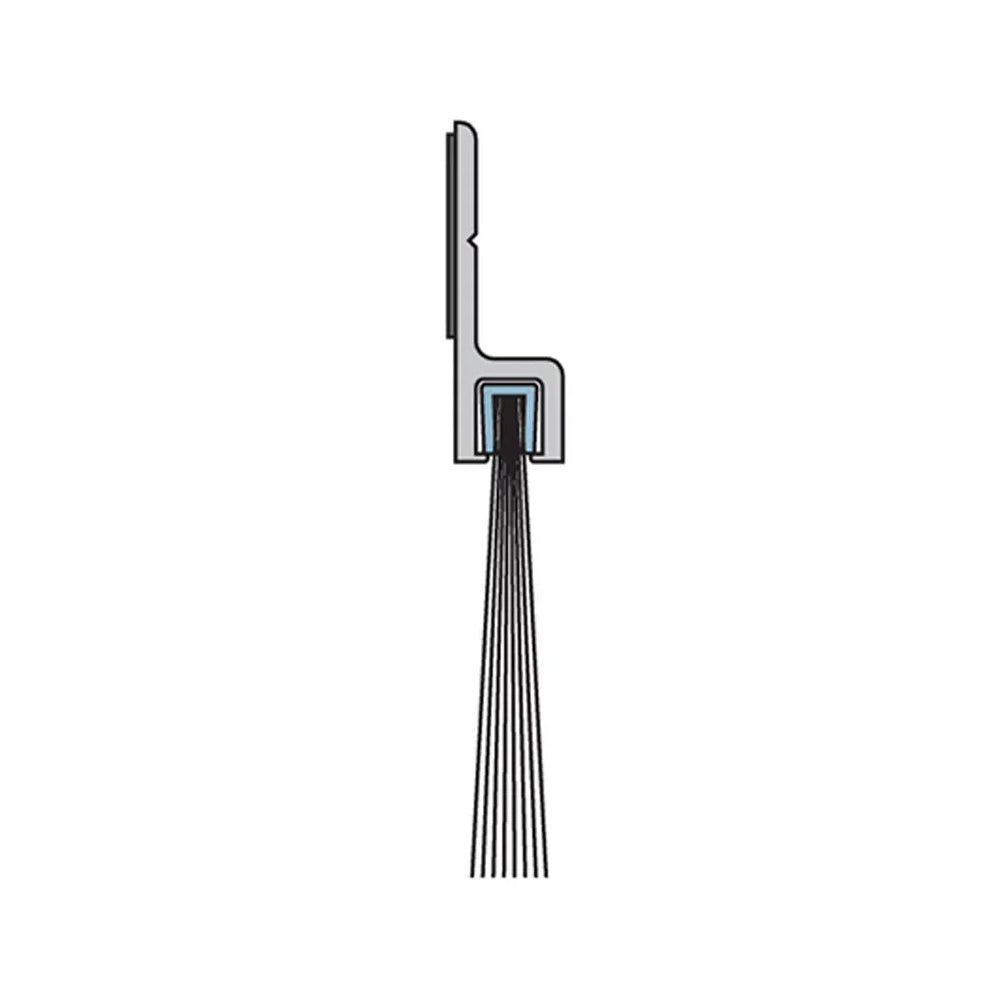

Raven RP15 Door Bottom Sweep Seal

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• A nylon brush strip seal with aluminium carrier that is ideal where larger gaps are encountered
• Used in conjunction with Raven threshold plates

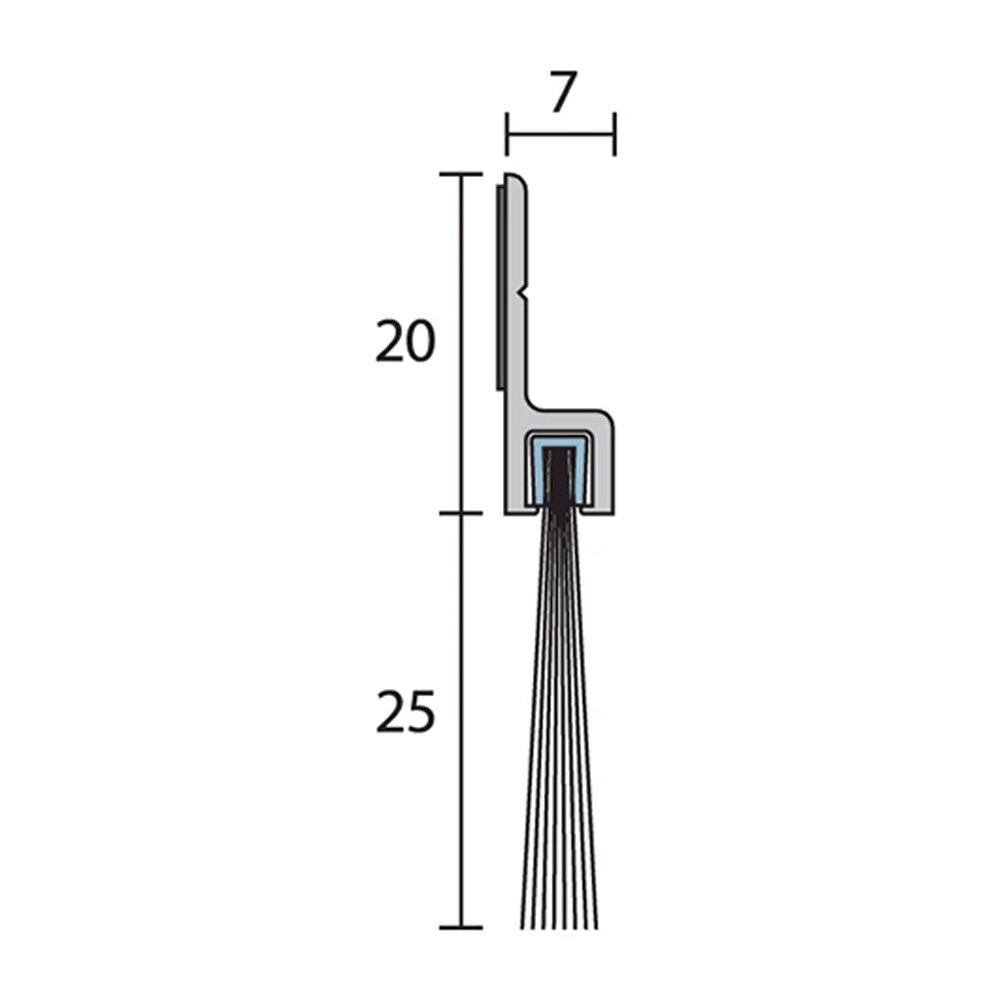

Specifications:

• Min and Max Gap: 0mm - 25mm
• Fixing: Screw Fix
• Base Height: 20mm
• Brush Height: 25mm
• Projection: 7mm
• Length:
  • 1000mm
  • 2000mm
  • 2250mm
• Finish: Silver Anodised

Approvals:

• Brush Strip flammability index 1 when tested to AS1530.2
• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• BAL FZ when used on a garage in accordance with AS 3959
