Raven RP151 Threshold Plate 3000mm Black Anodised A151BK3000

Raven RP151 Threshold Plate
A151BK3000

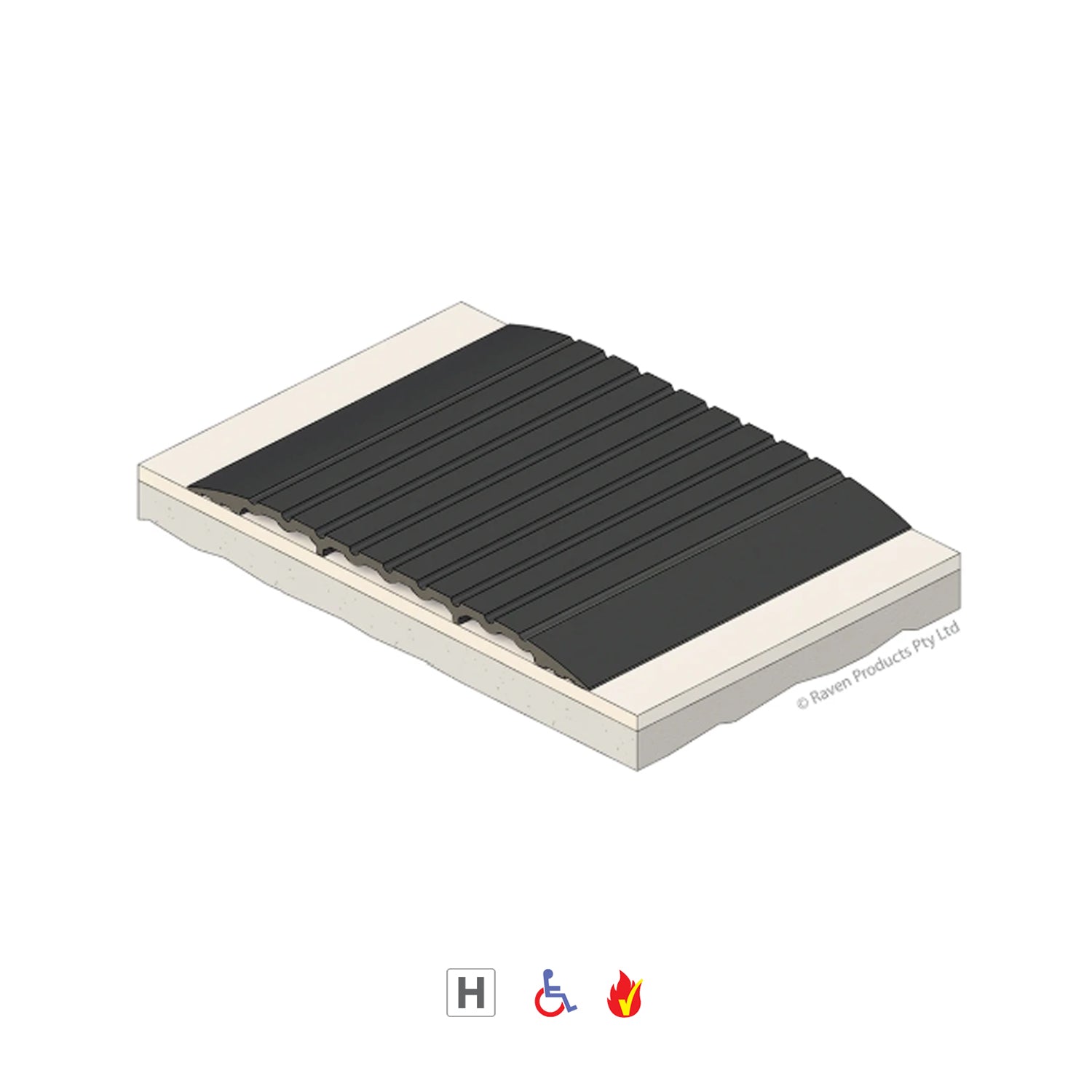

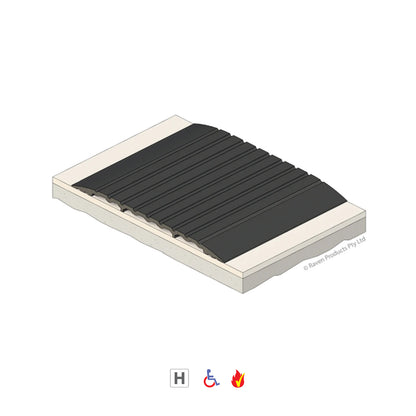

Threshold Plate enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

Threshold Plate Function - are hard aluminum or stainless steel extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

• A low profile threshold plate that can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration
• Suitable for use with most floor pivots

Specifications:

• Location: Door sill

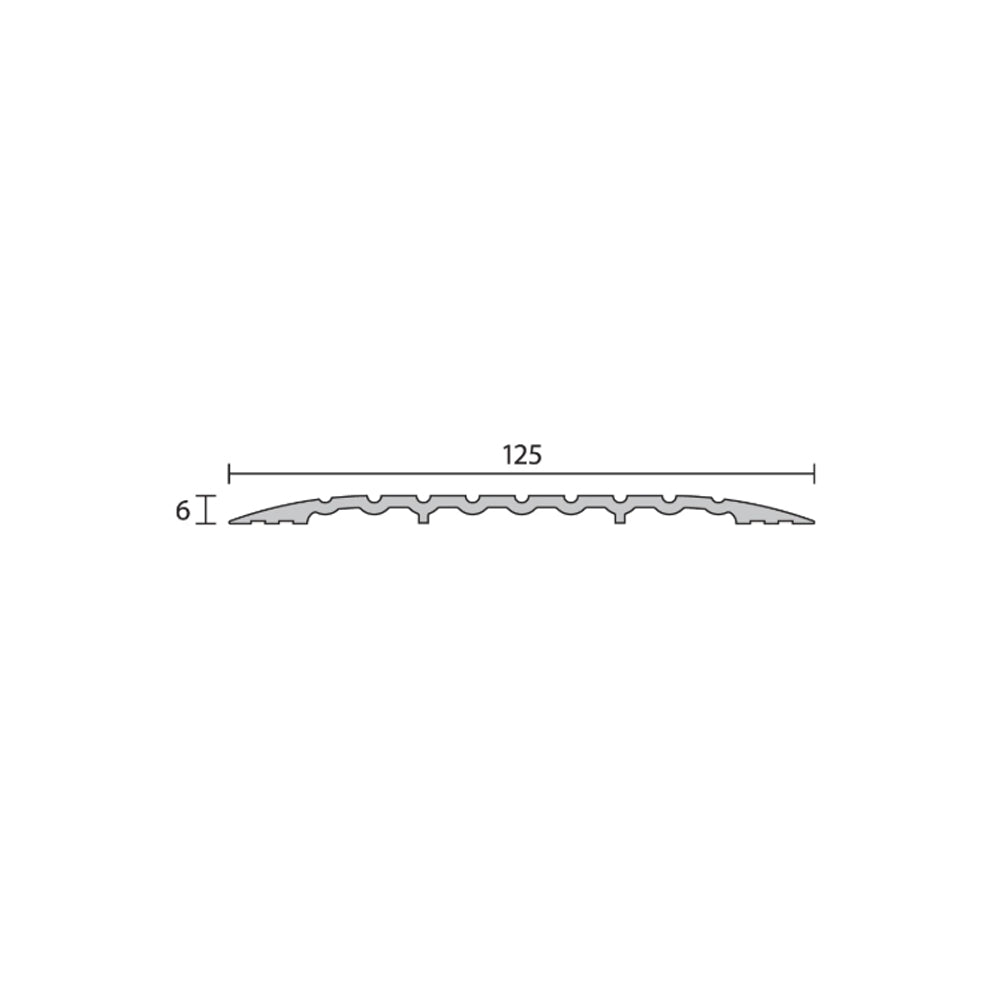

• Size/Length: 3000mm
• Fixing:
  • Screw Fixed, Adhesive Fixed
  • Screw fix or builders adhesive for concealed fixing (user determined)
  • Colour matched zinc plated, cross recess head CSK S.T. screws supplied.
• Material: Aluminium
• Finish: Black Anodised

Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm..

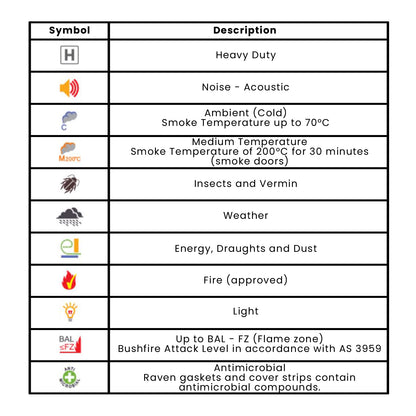

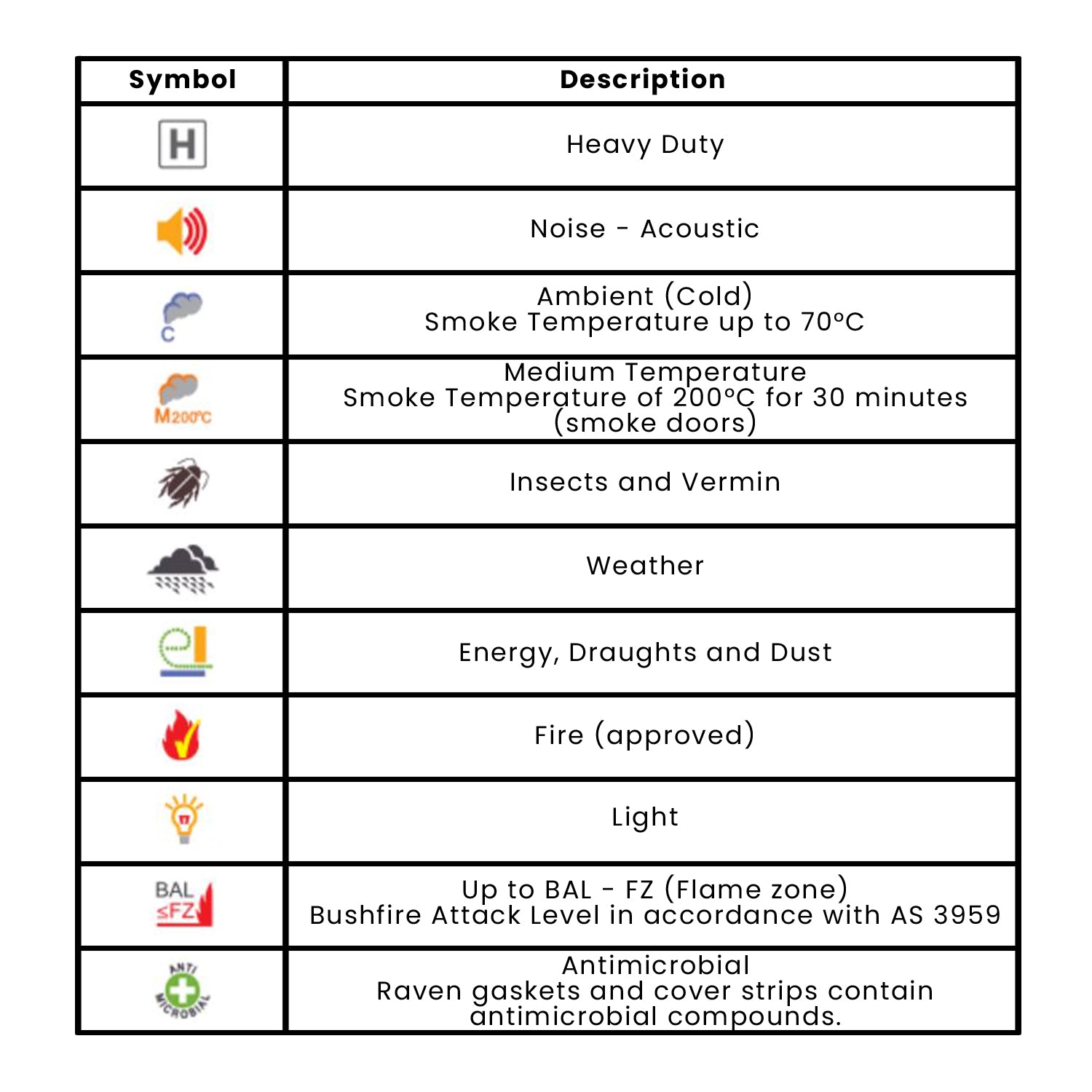

Approvals:

• Access & Mobility AUS/NZ: NCC D3D16, NCC D4D4, AS1428.1:2009 Part 7.2. AS1428.1:2021 Part 4.2, NZBC D1/AS1 1.3.2
• Access & Mobility UK/EU: Approved Document M
• Fire AUS/NZ: NCC S12C2, NZBC C/AS2 4.16.2(a) & App C6.1.1, AS 1530.4, AS 1905.1
• Fire UK/EU: Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
• Fire Rating: Up to FD180, Up to FRL & FRR-/180/30
• BAL Statement: BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959
