Raven RP151 Threshold Plate Silver Anodised - Available in Various Sizes

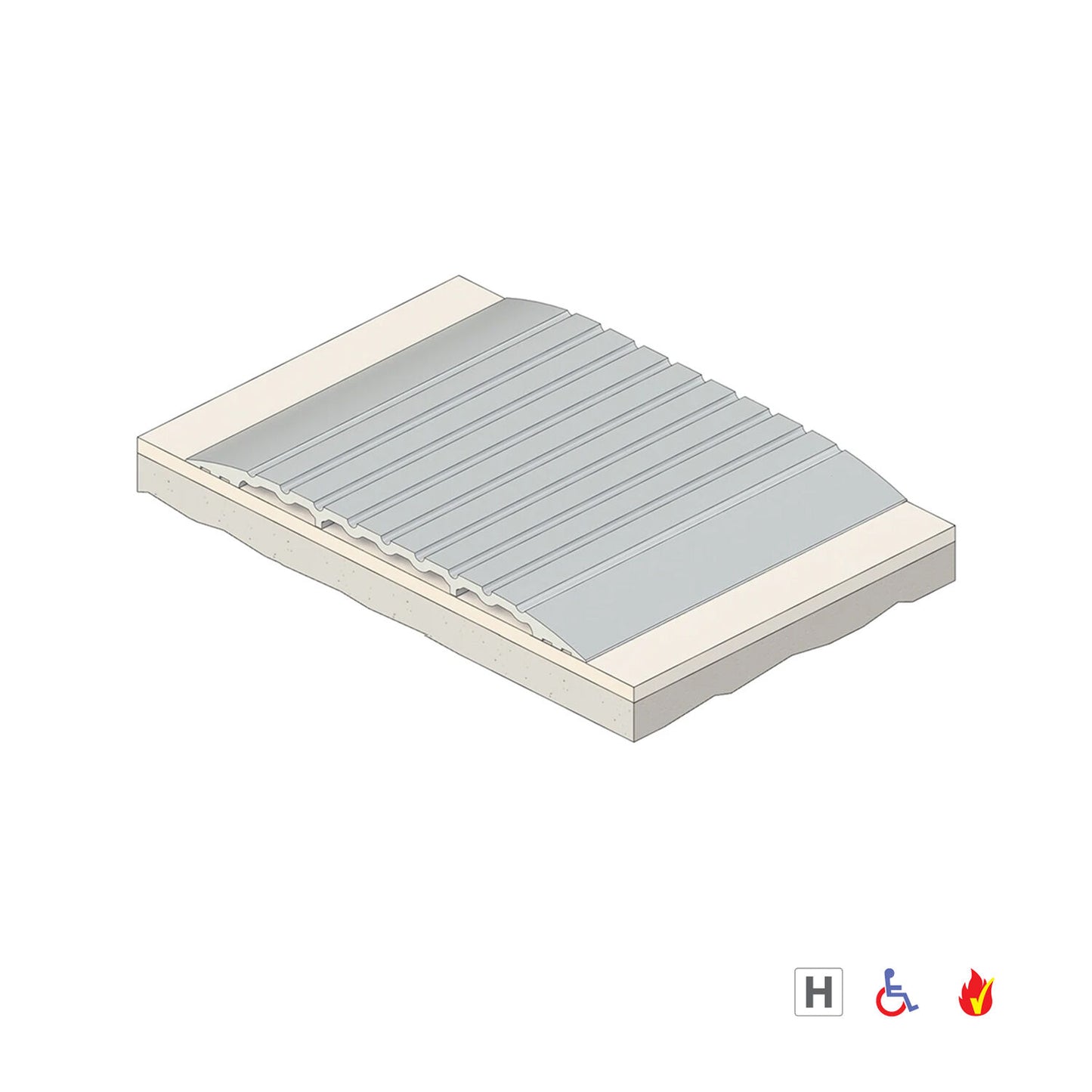

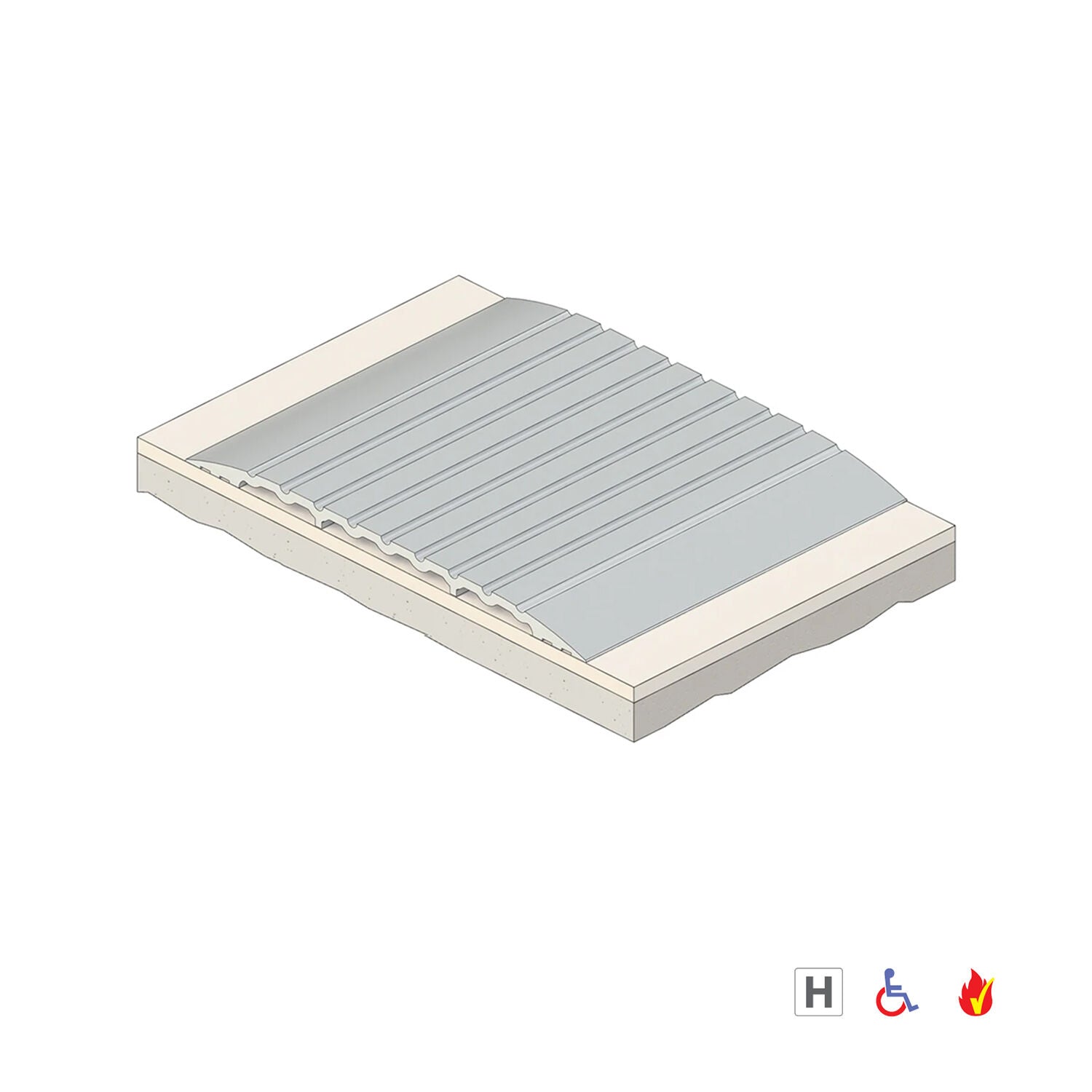

Raven RP151 Threshold Plate

Threshold Plate enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

• A low profile threshold plate that can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration
• Suitable for use with most floor pivots

Specifications:

• Fixing: Screw Fix

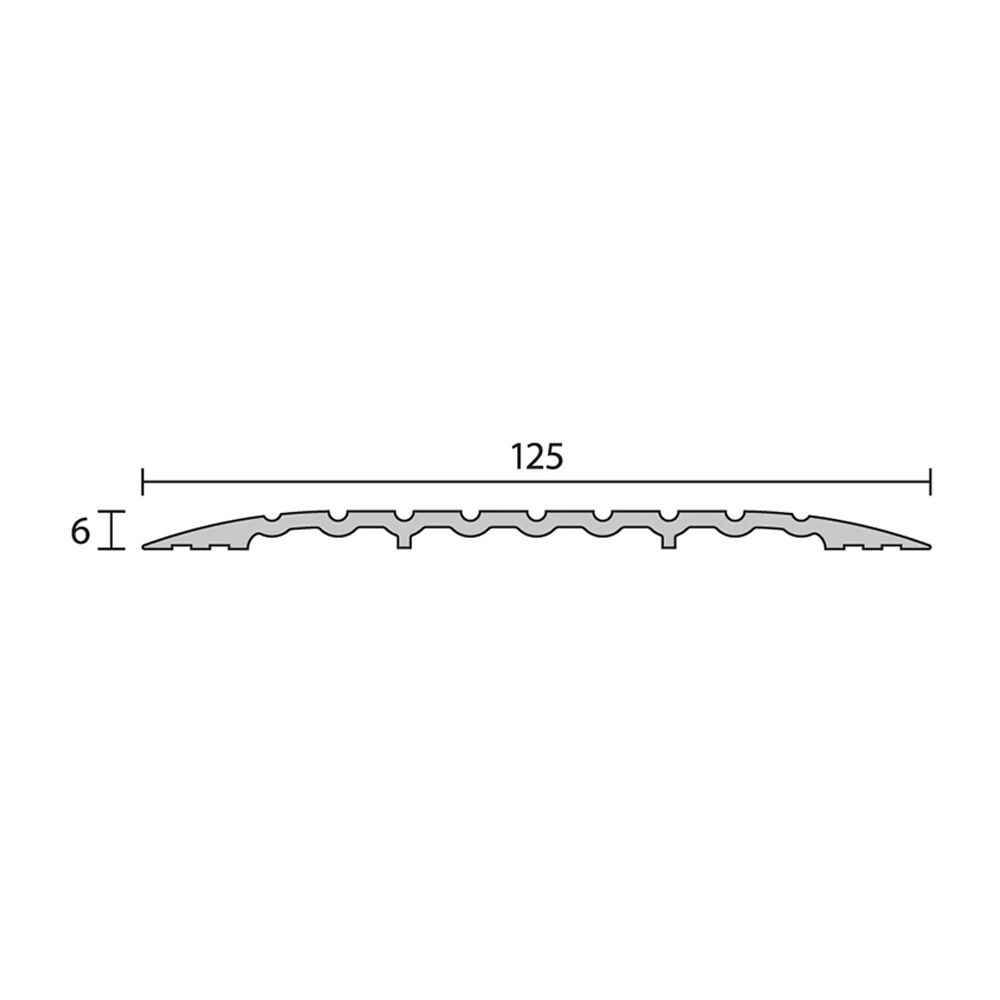

• Width: 125mm
• Projection: 6mm
• Length:
  • 2000mm
  • 3000mm
• Finish: Silver Anodised

Approvals:

• NCC D3D16, NCC D4D4, AS1428.1:2009 Part 7.2. AS1428.1:2021 Part 4.2, NZBC D1/AS1 1.3.2
• Approved Document M
• NCC S12C2, NZBC C/AS2 4.16.2(a) & App C6.1.1, AS 1530.4, AS 1905.1
• Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
• Up to FD180, Up to FRL & FRR-/180/30
• BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959
