SKU: RAVA16SIB2250
Raven RP16Si Astragal Acoustic Smoke Seal - Available in Various Finishes and Sizes
RRP: $94.32
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Raven RP16Si Astragal Acoustic Smoke Seal
Meeting Stile are seals for frameless glass sliding doors.
Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.
Features:

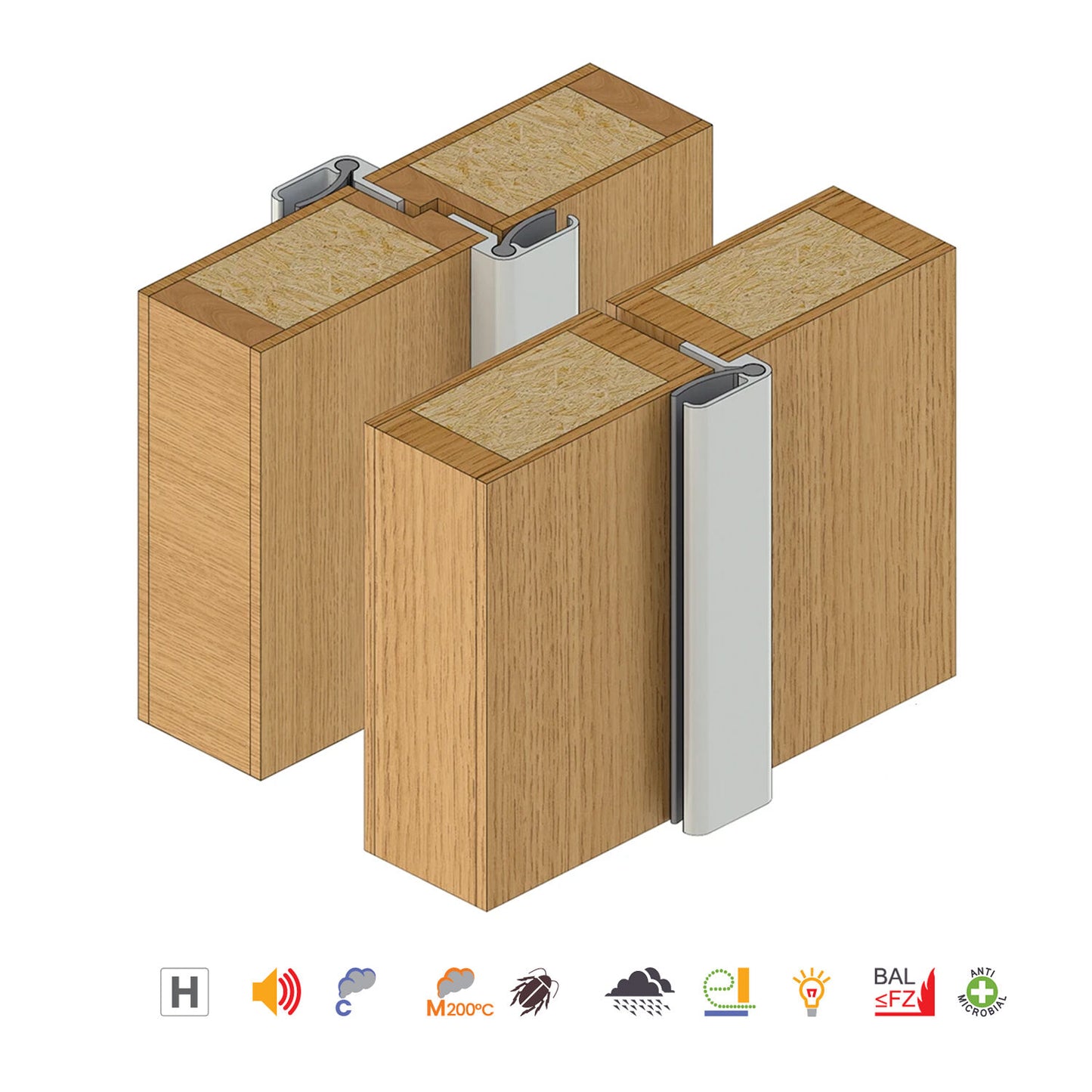

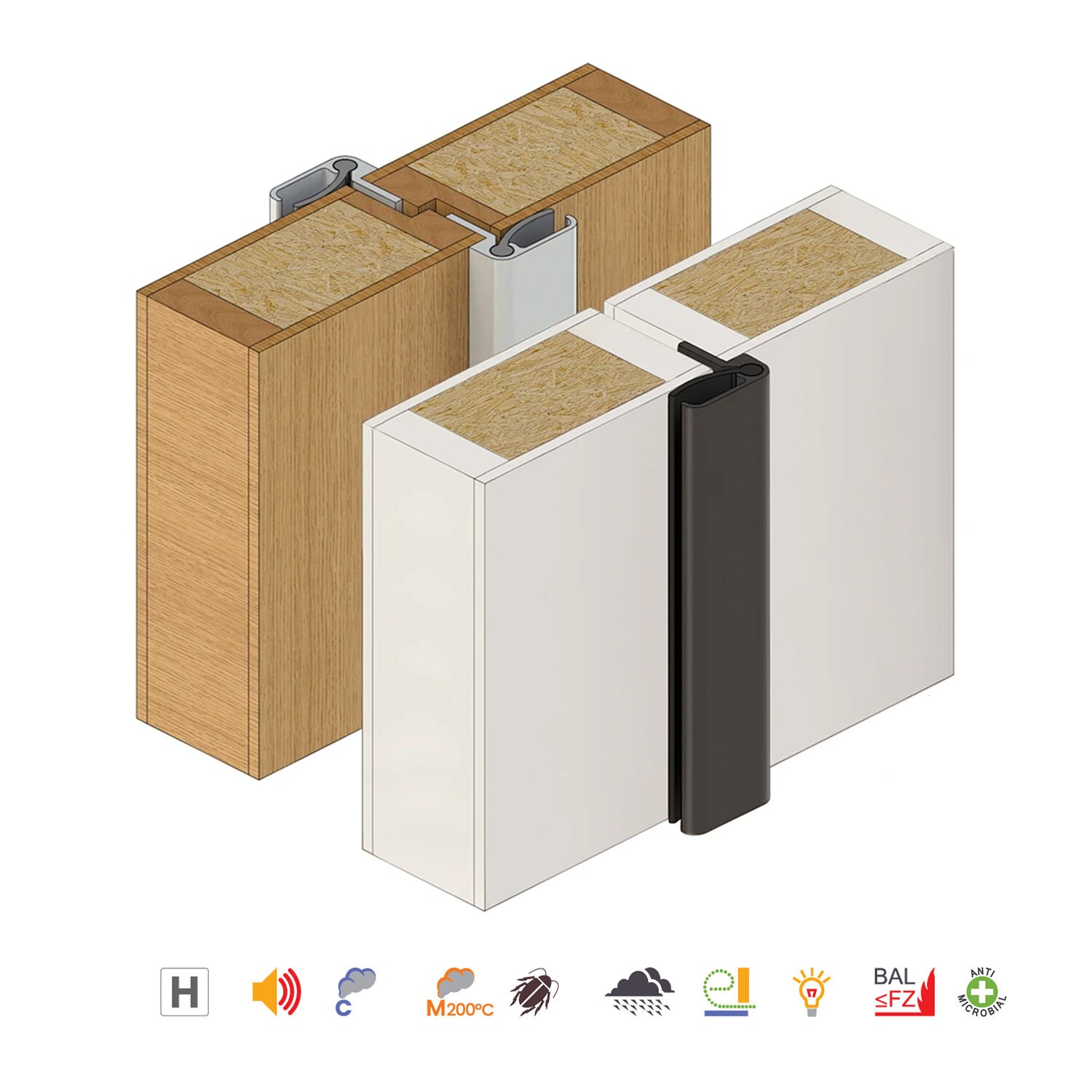

- Its proven design is effective in sealing the meeting stiles of plain or rebated double doors.
- Its aluminium trim neatly conceals the sealing portion of the seal and provides a secure weatherproof rebate stop
- If necessary, its aluminium fixing leg can be checked out to allow for locks and latches

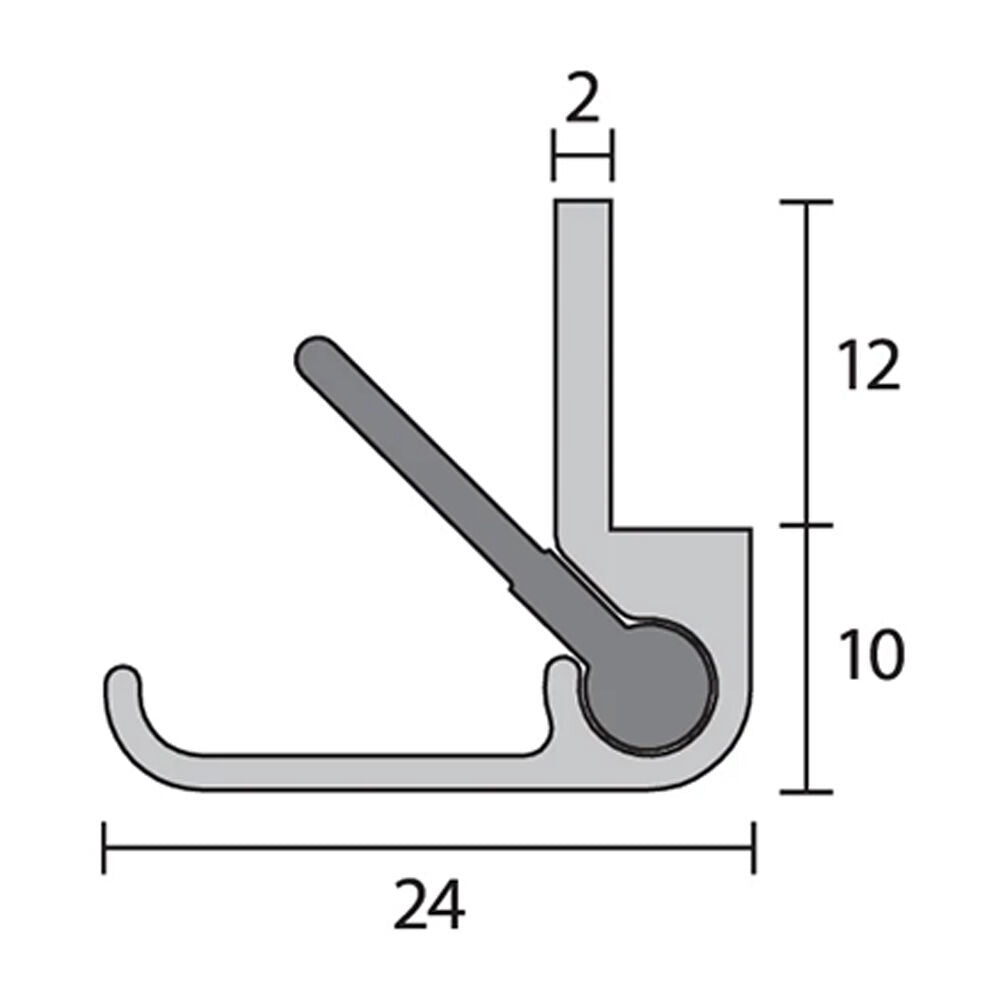

Specifications:
- Min and Max Gap: 2.5mm - 8mm
- Fixing: Screw Fix
- Width: 24mm
- Depth: 22mm
- Thickness: 2mm
-
Length:
- 2250mm
- 2500mm
- 2750mm
- 3000mm
-
Available Finish:
- Black Anodised
- Bronze Anodised
- Silver Anodised
Approvals:
- Certifire: CF 5710, ANSI/BHMA: A156.22, UL: R37913
- NCC F7D6
- Approved Document E, Rated to BS EN ISO 717-1
- Gasket flammability index 1 when tested to AS1530.2
- AS 1530.7, BS EN 1634-3, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, NCC S12C4
- ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
Raven RP16Si Astragal Acoustic Smoke Seal
A16SIB2250
Meeting Stile are seals for frameless glass sliding doors.
Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.
Features:
- Its proven design is effective in sealing the meeting stiles of plain or rebated double doors.
- It's aluminium trim neatly conceals the sealing portion of the seal and provides a secure weatherproof rebate stop
- If necessary, its aluminium fixing leg can be checked out to allow for locks and latches
Specifications:
- Min and Max Gap: 2.5mm - 8mm
- Fixing: Screw Fix
- Width: 24mm
- Depth: 22mm
- Thickness: 2mm
- Length: 2250mm

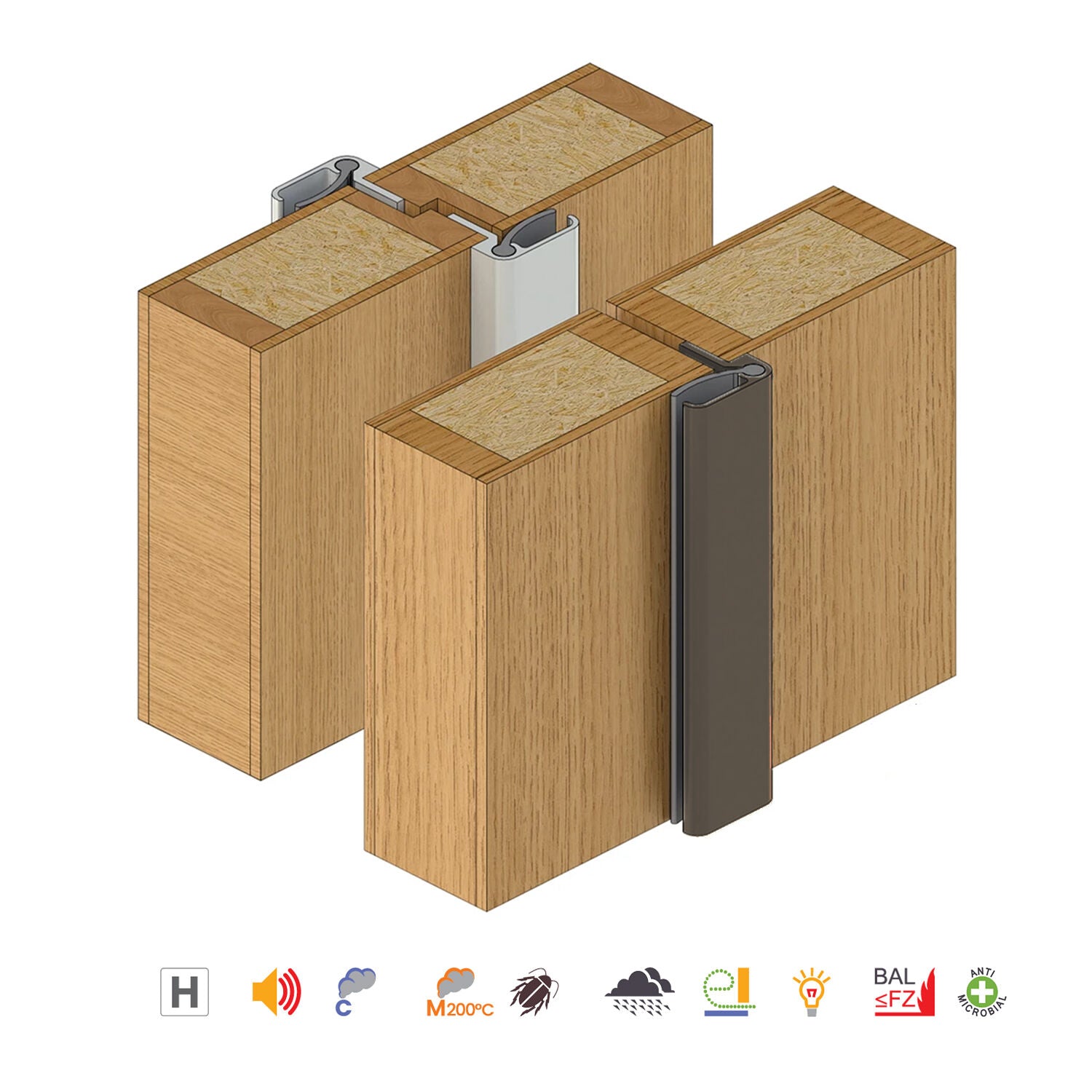

- Finish: Bronze Anodised
Approvals:
- Certifire: CF 5710, ANSI/BHMA: A156.22, UL: R37913
- NCC F7D6
- Approved Document E, Rated to BS EN ISO 717-1
- Gasket flammability index 1 when tested to AS1530.2
- AS 1530.7, BS EN 1634-3, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, NCC S12C4
- ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
