Raven RP170 Heavy Duty Threshold Ramp Silver Anodised - Available in Various Sizes

Raven RP170 Heavy Duty Threshold Ramp

Threshold Ramp enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

Threshold Ramp Function- are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

• Designed for both functionality and durability

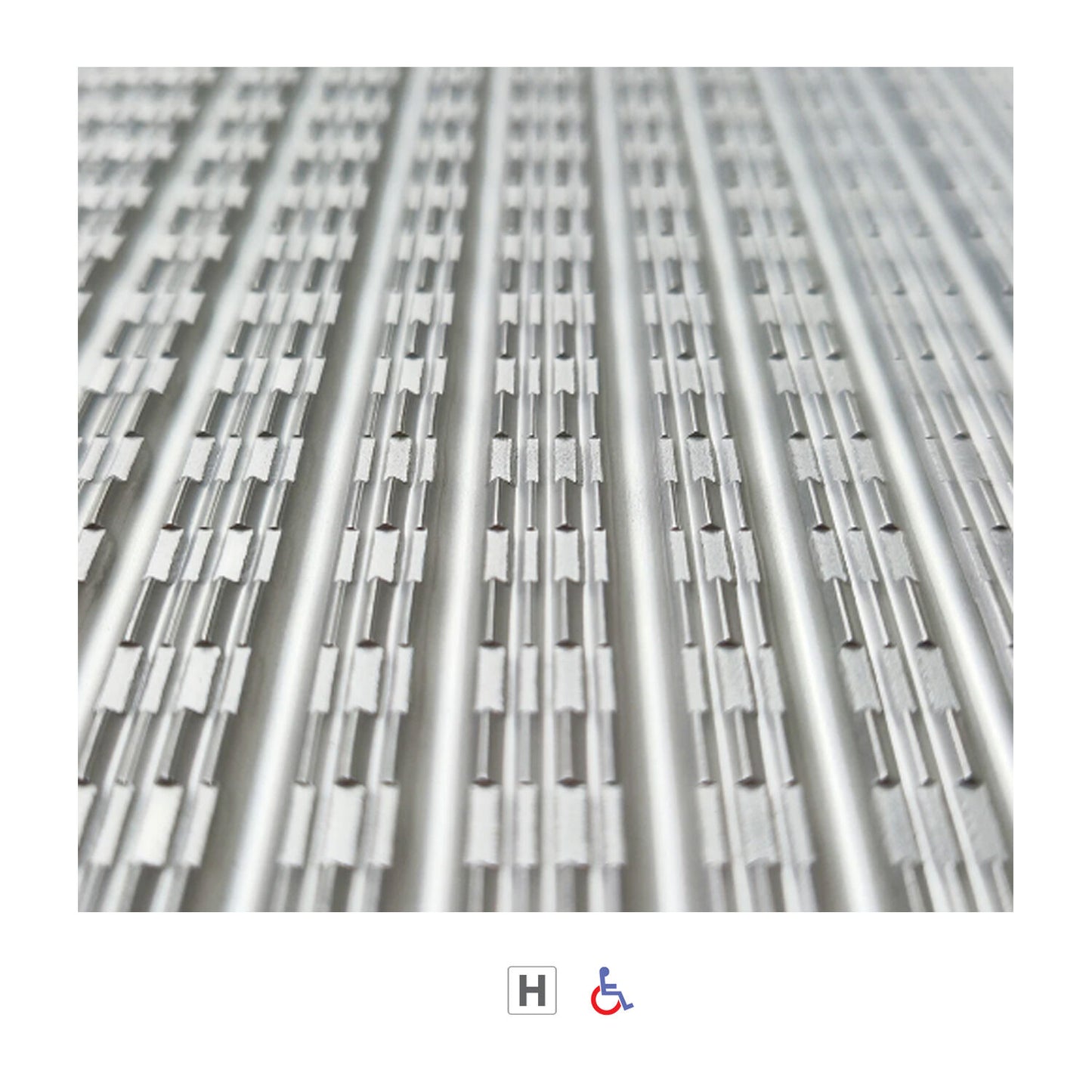

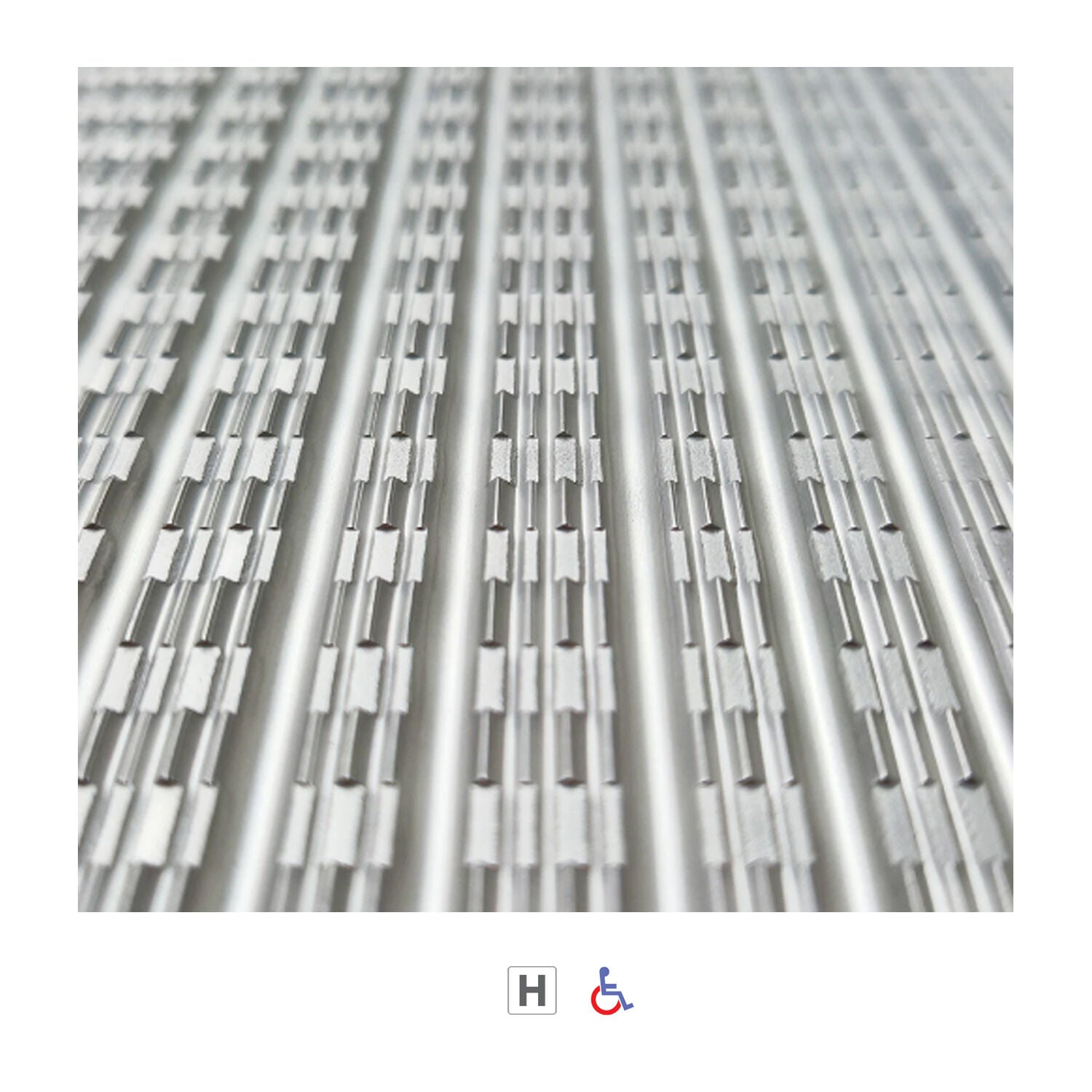

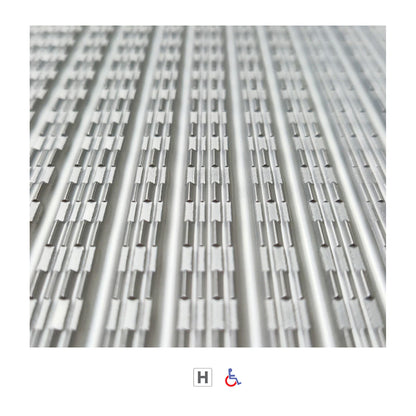

• Featuring a unique non-slip surface, it achieves a P5 slip rating, making it a reliable choice for high-traffic areas

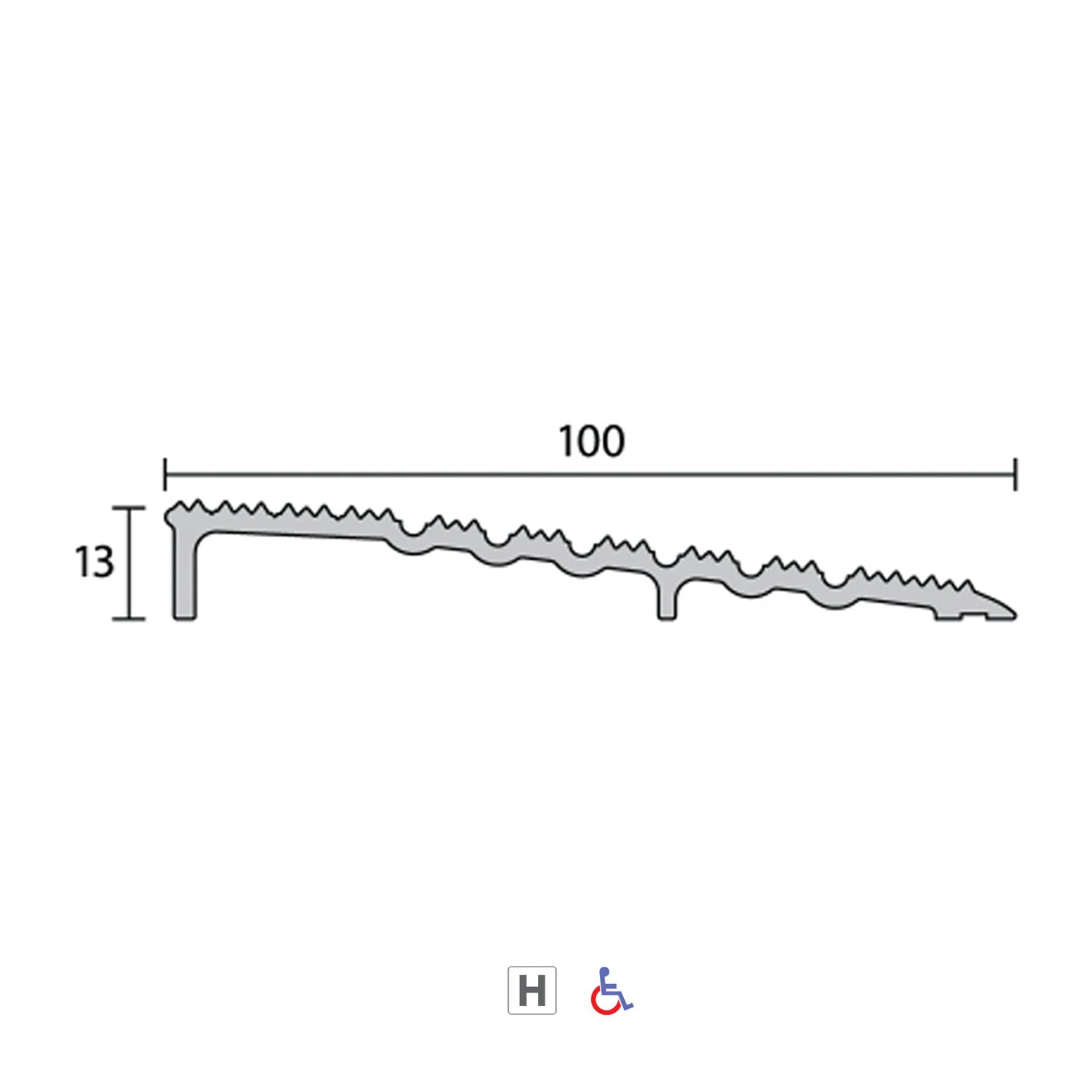

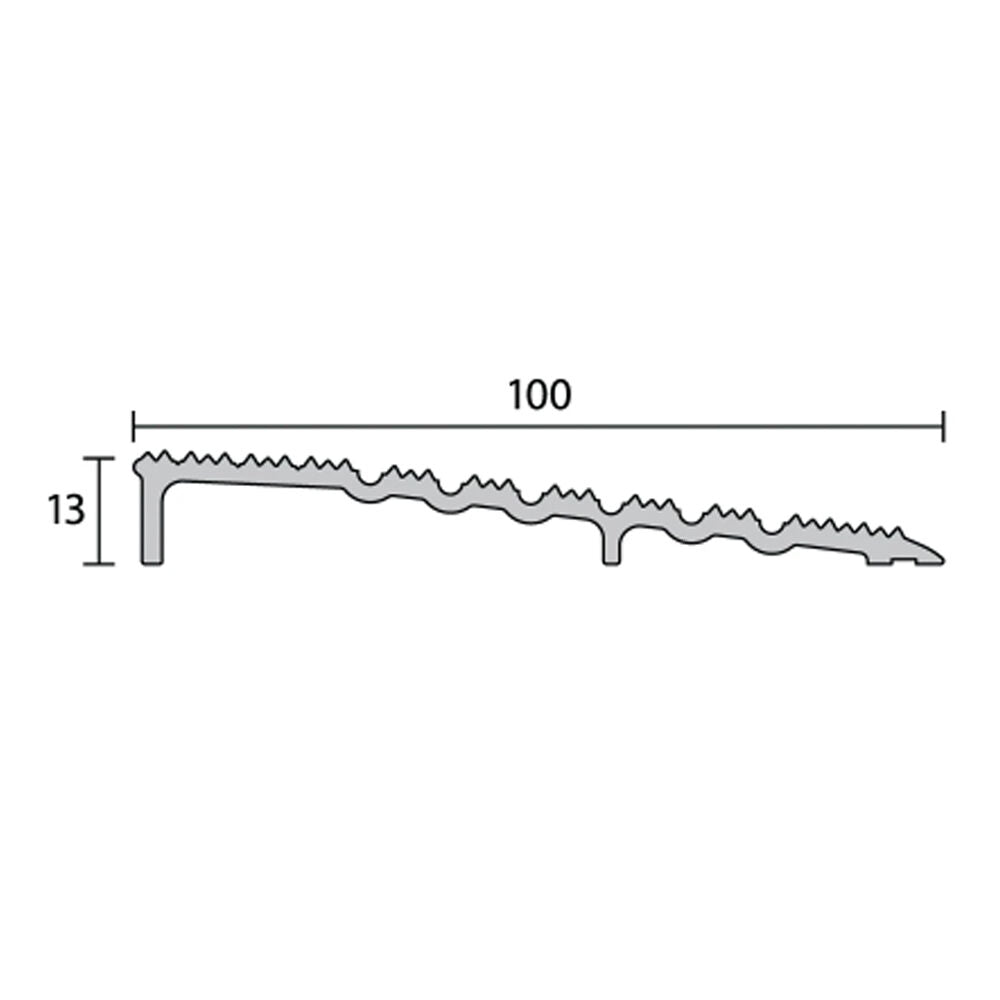

• A heavy-duty threshold ramp with a ribbed design which can be positioned back-to-back to form a two-way threshold ramp conforming to NCC D3D16 (b)
• Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration. Suitable for use with most floor pivots

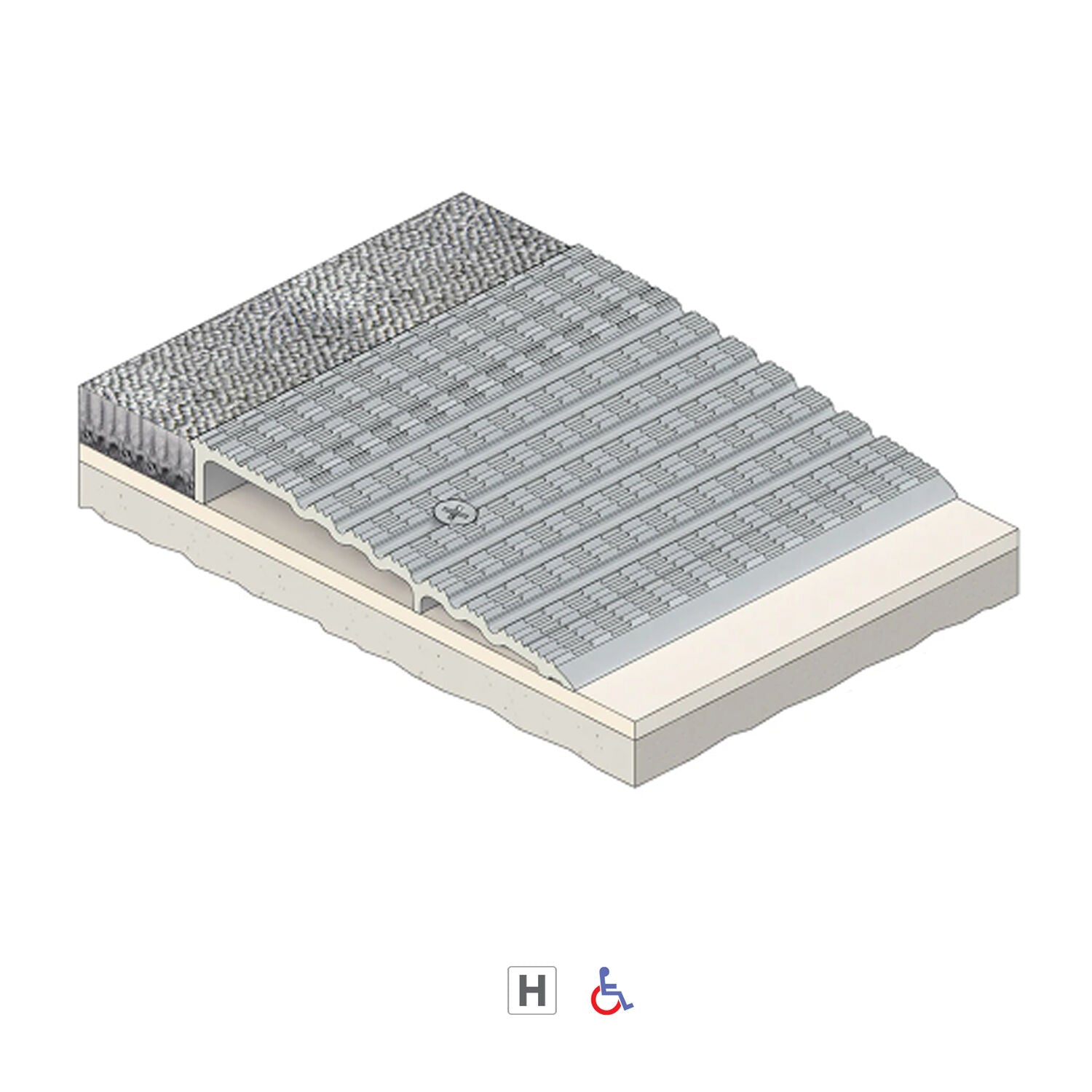

• Ideal for commercial shop fronts providing a neat ramp detail between carpets or tiles at doorways
• Can also be used to provide a ramped frame for internal door mats

Specifications:

• Location: Door sill
• Available Size:
  • 1000mm
  • 1250mm
  • 2000mm
  • 2500mm
  • 3500mm
• Fixing: Screw Fixed, Adhesive Fixed
• Material: Aluminum
  • Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.
• Patent Status: Patented
• Finish: Silver Anodised

Note: when ordering, specify longer length than doorway to allow for neat installation around door frame. Refer fitting instructions for fitting detail.

Approvals:

• Access & Mobility AUS/NZ: NCC D3D16, NCC D4D4, NZBC D1/AS1 1.3.2, AS1428.1:2009 Part 10.5. AS1428.1:2021 Part 7.5
• Access & Mobility UK/EU: Approved Document M
• Fire AUS/NZ: NCC S12C2, NZBC C/AS2 4.16.2(a) & App C6.1.1
• Fire UK/EUL: Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
• BAL Statement: BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959
