SKU: RAVA17BW3000
Raven RP17B Door Bottom Sweep Seal White 3000mm A17BW3000
RRP: $78.42
Payments accepted:
Couldn't load pickup availability
Raven RP17B Door Bottom Sweep Seal
A17BW3000

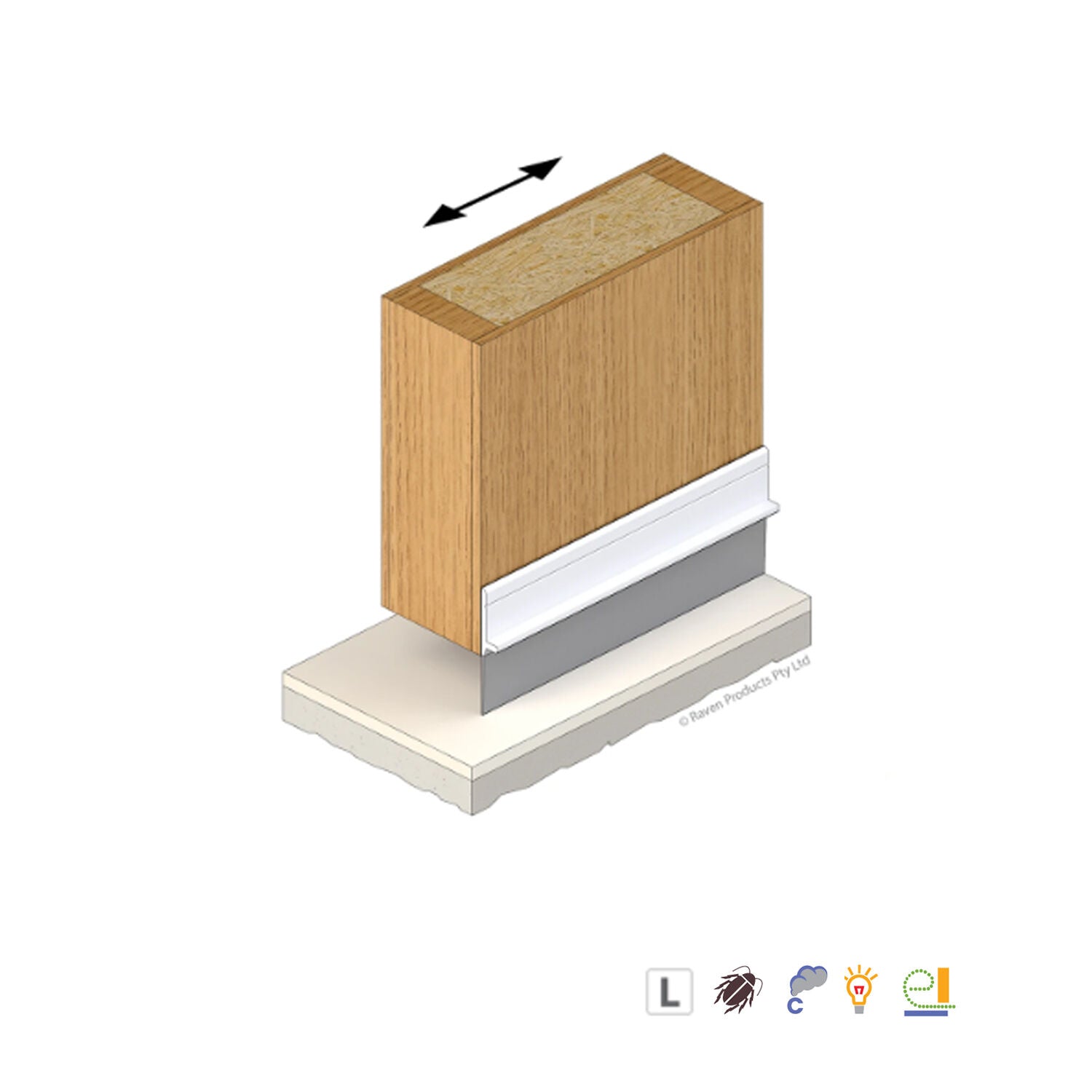

Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, and smoke can all be significantly reduced by closing the gaps along the door frame.
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:
- Global GreenTag - Platinum
- Co-extrusion (Adhesive backed).

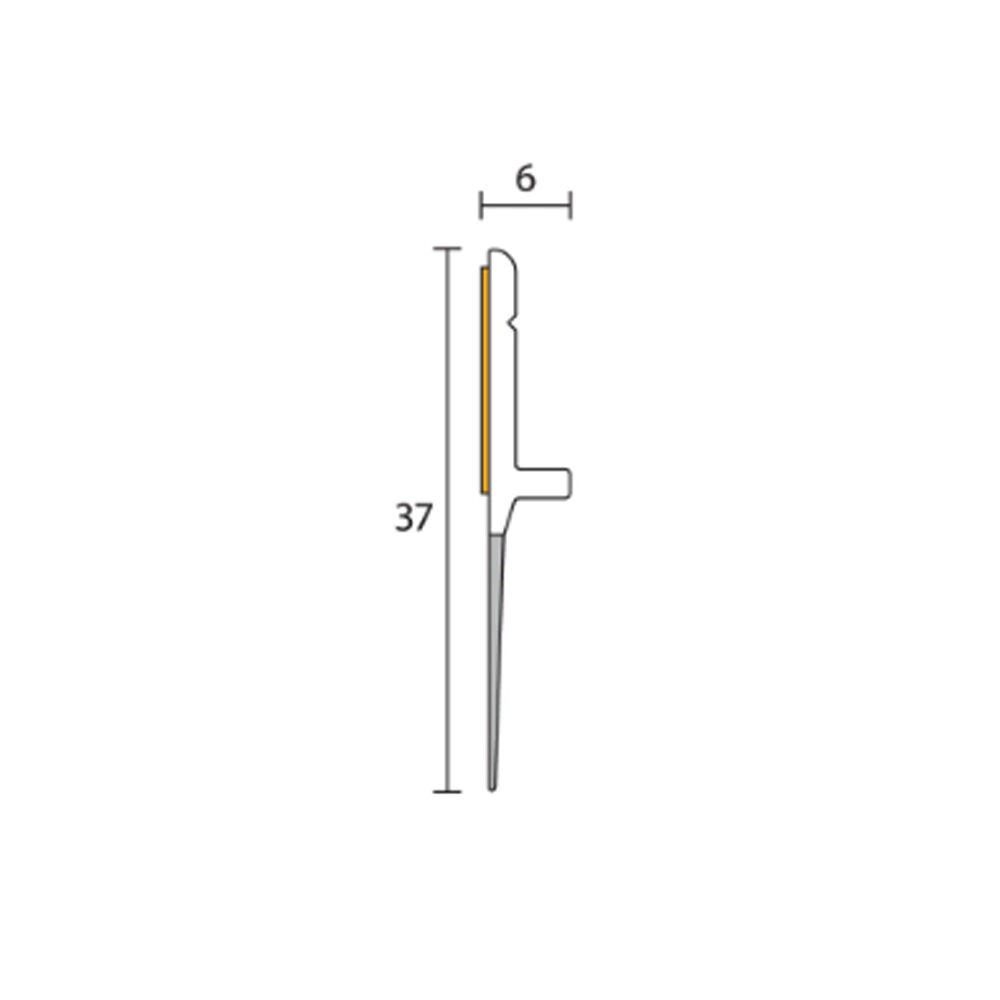

- A co-extruded PVC sweep seal that fits to the stiles or bottom of doors.
- Extremely Flexible seals can be quick and easily installed without removing the door.
- Ideal for sliding and security screen doors.
- Can be used in conjunction with Raven RP13 and RP82 threshold plates.
Specification:
- Door/Frame Construction: Timber, Aluminium
- Material: Rigid and Flexible PVC
- Min & Max Gap: 0mm to 19mm
- Fixing: Screw Fixed, Self-adhesive
- Location: Bottom of or around sliding or outward opening butt hinged doors.
- Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening, Sliding, Pivot, Security Screen, Bi-fold
- Finish: White
- Size: 3000mm
Approval/s:
- Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5Fire Flammability Index: Gasket flammability index 1 when tested to AS1530.2
- Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
