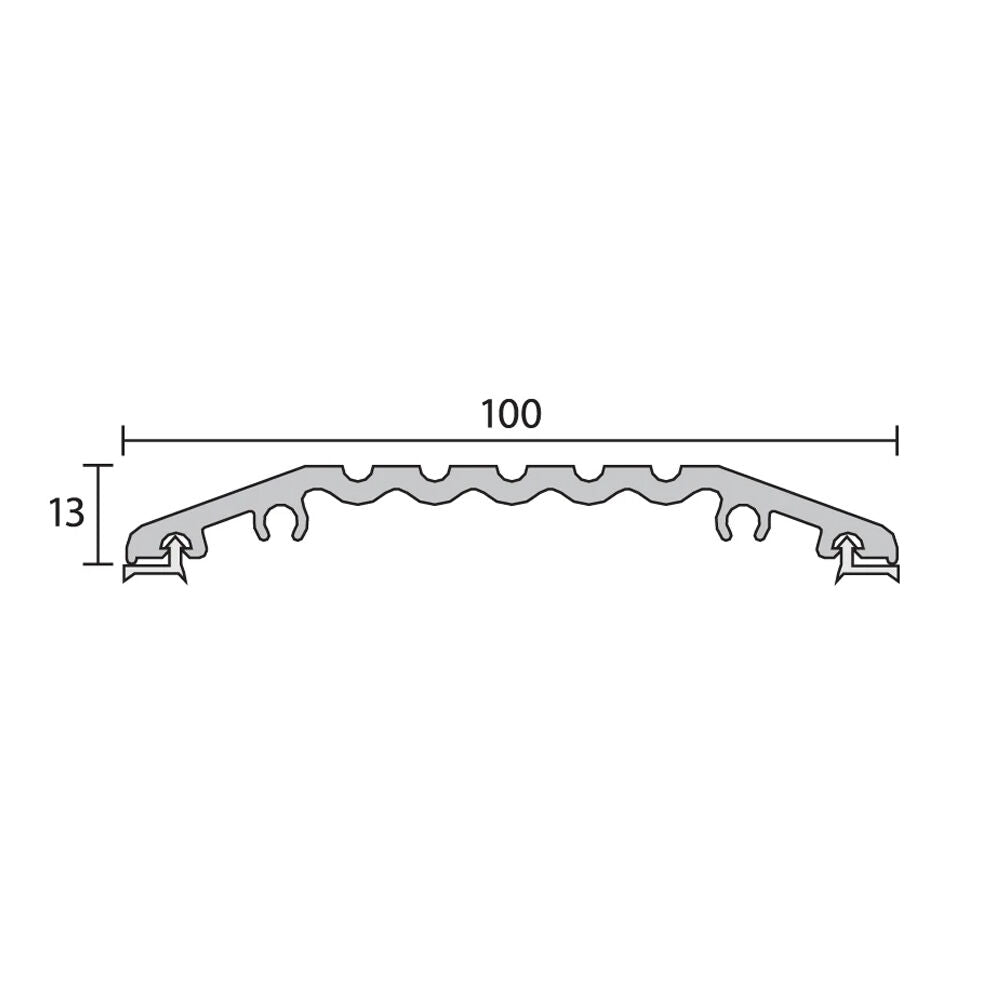

Raven RP19 Threshold Plate - Available in Various Sizes

Raven RP116 Threshold Plates

Threshold Plate - enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

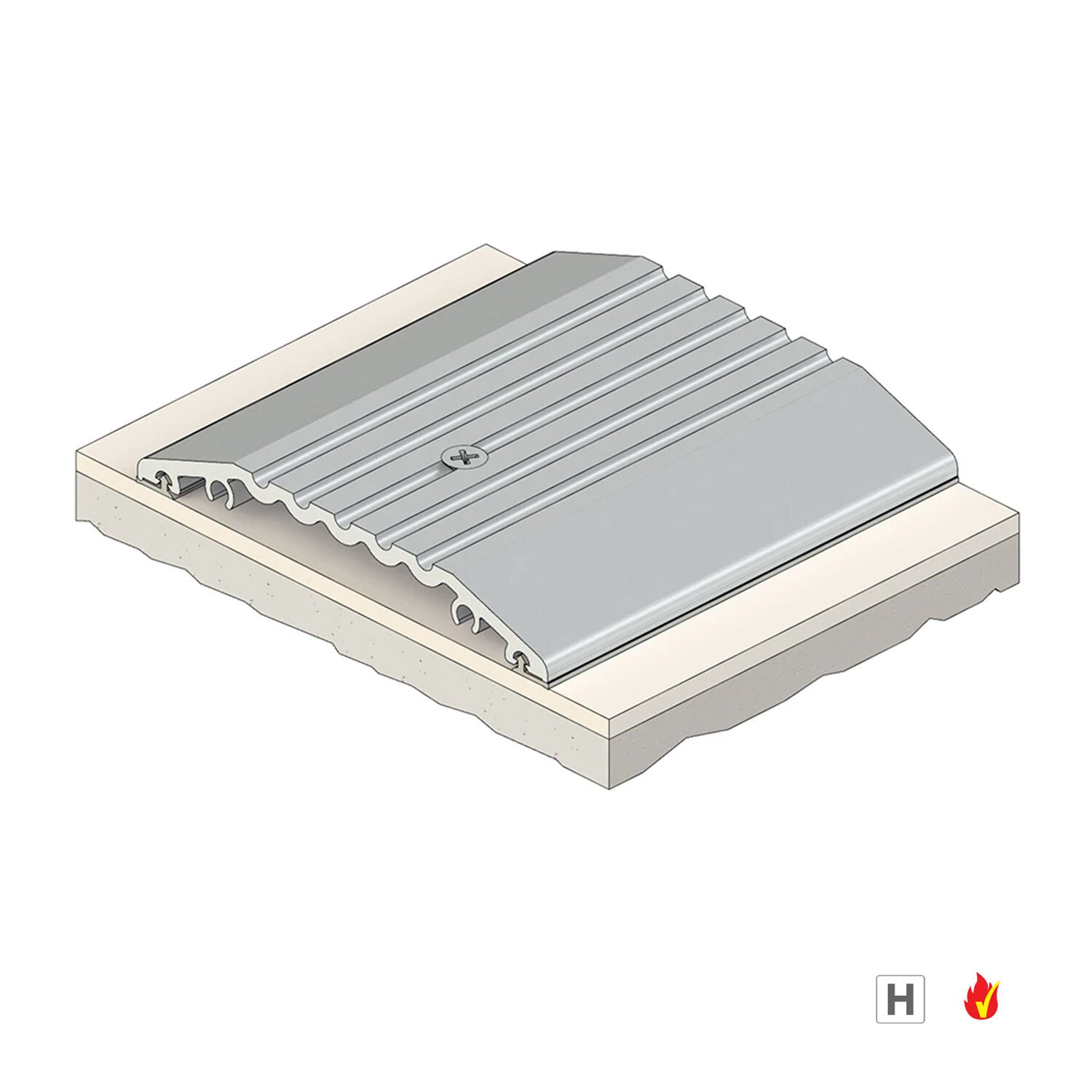

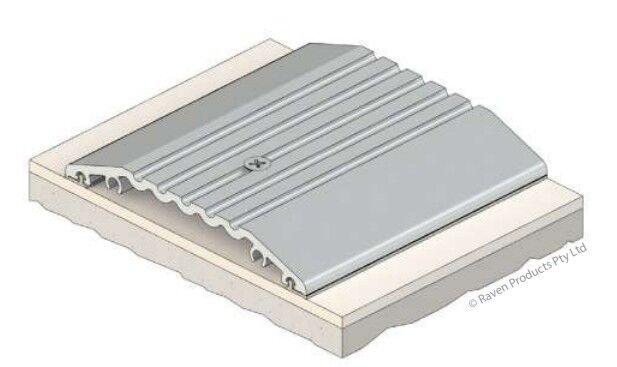

Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

• A heavy duty threshold plate with ribbed profile and integral sill gaskets
• Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration.
• RP19 has been designed to accommodate a concealed screw fix through the door jambs.
• Global GreenTag - Platinum

Specifications:

• Location: Door sill.
• Fixing: Screw Fixed (Screw fix. Colour matched zinc plated, cross recess head CSK S.T. screws supplied.)
• Replacement Seals: RP404a
• Material: Aluminium (Anodised aluminium with flexible PVC gaskets.)
• Available Sizes:
  • 1000mm
  • 1250mm
  • 200mm
  • 3000mm
• Finish: Clear Anodised

Approvals

• Access and Mobility AUS/NZ: NCC D3D16, NCC D4D4, AS1428.1:2009 Part 7.2. AS1428.1:2021 Part 4.2, NZBC D1/AS1 1.3.2
• Access and Mobility UK/EU: Approved Document M
• Accreditations: ANSI/BHMA: A156.21
• Fire AUS/NZ: AS 1905.1, NCC S12C2, NZBC C/AS2 4.16.2(a) andamp; App C6.1.1, AS 1530.4
• Fire UK/EU: Approved Document B, BS 476 Pt. 20 andamp; 22 (similar to BS EN 1634-1)
• Fire Rating: Up to FD180, Up to FRL andamp; FRR-/240/30
• BAL Statement: BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959
