Raven RP2 Brush Strip Seal - Available in Various Sizes

Raven RP2 Brush Strip Seal

Brush Door Seal can be mounted to fit many angles and spaces. Doors are generally the most common use for weather stripping.

Brush Door Seal Function - are designed to remove leakage between surfaces. To provide the most effective seal possible on a irregular surfaces.

Features:

• Global GreenTag - Bronze
• A nylon brush strip seal without holder, that is fitted in a concealed manner into a machined groove in a door

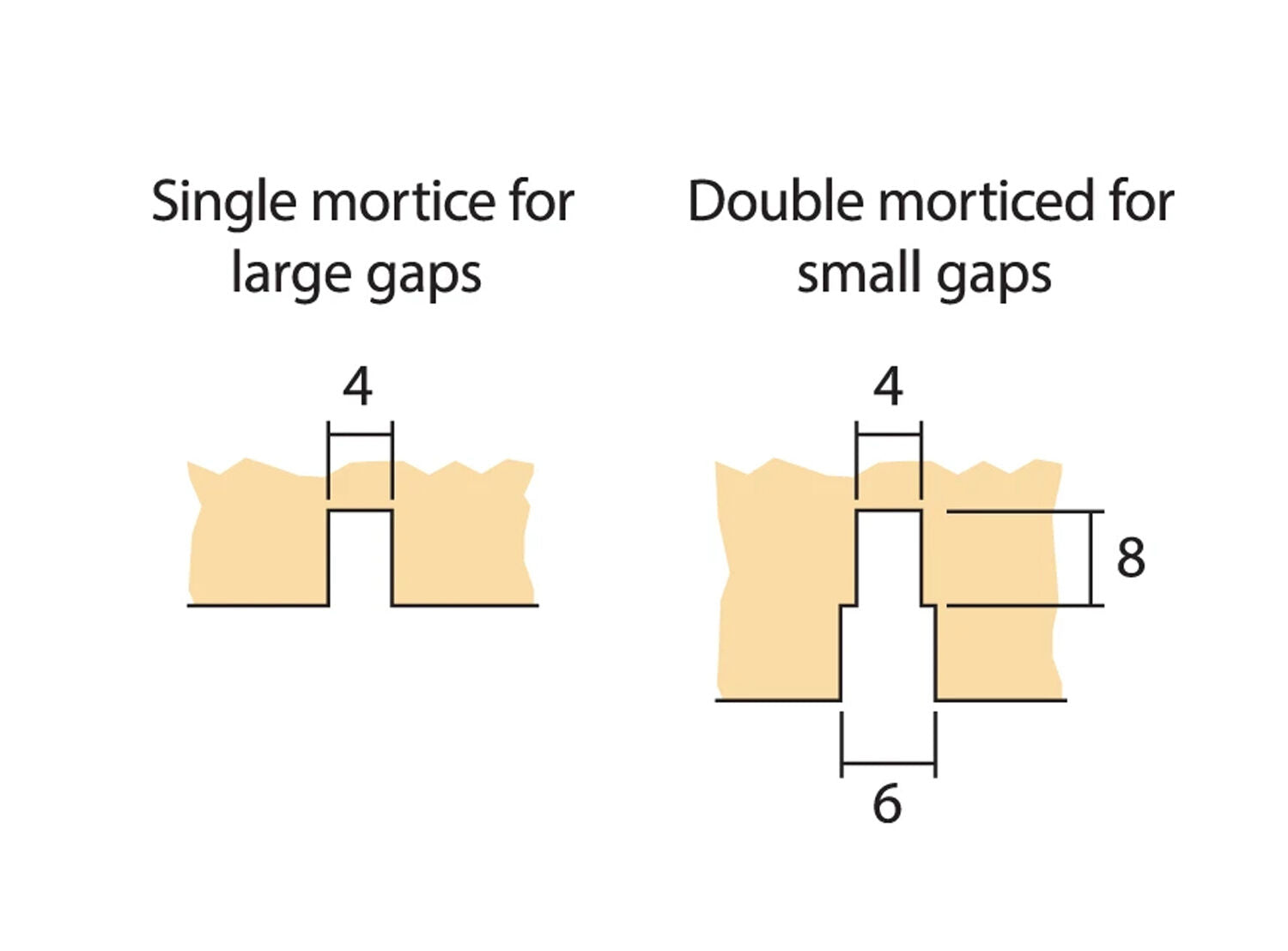

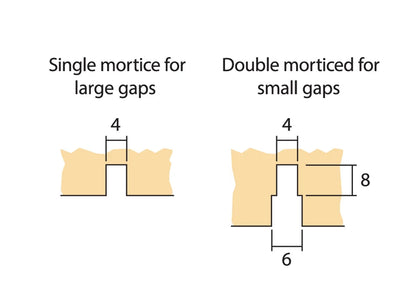

• Where a small clearance is encountered, the groove should be double morticed to allow the brush to flex

Specification:

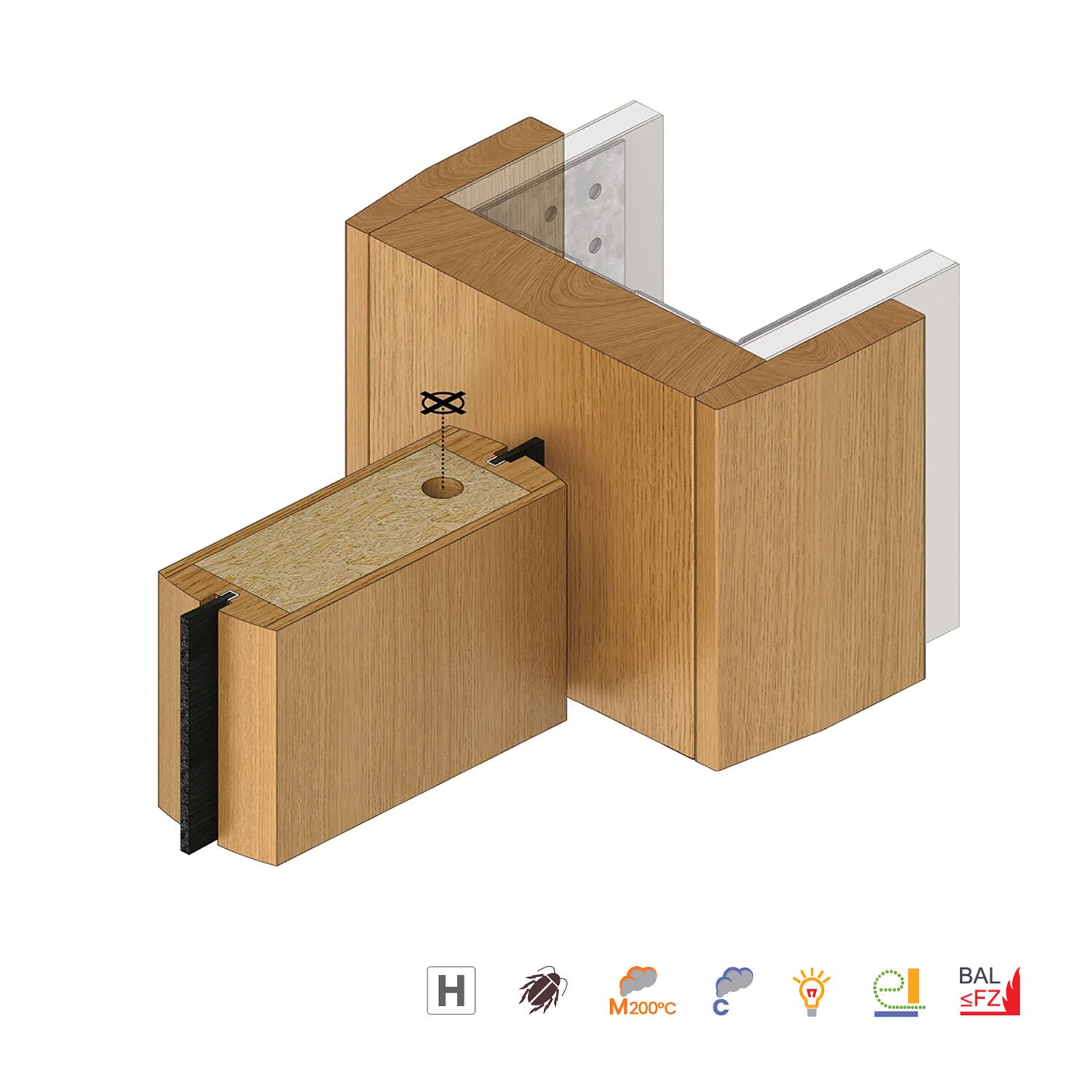

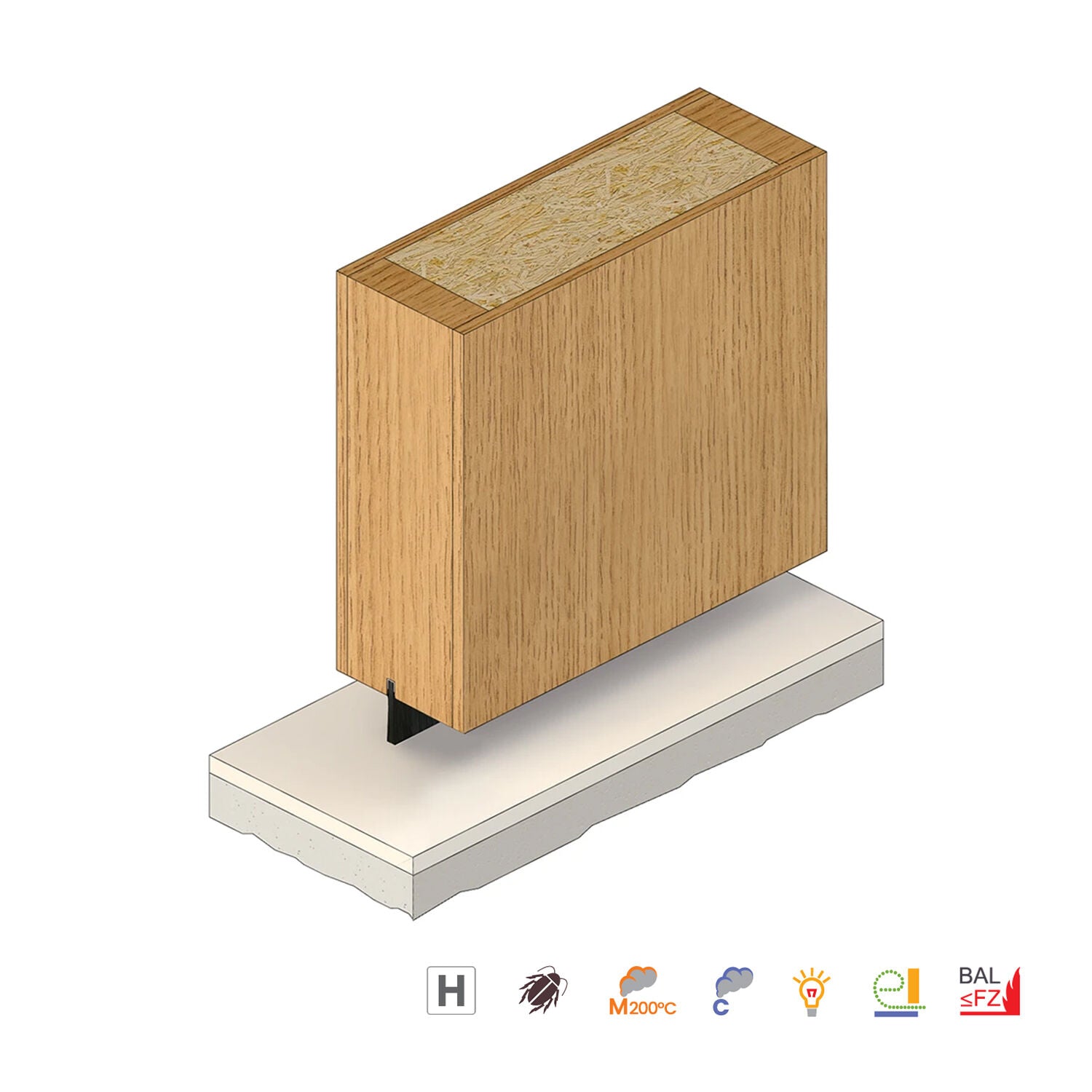

• Location: Stiles or bottom of single, double, sliding and double acting timber doors. Suitable for hard, flat surfaces
• Fixing: Adhesive Fixed, Push-in Friction Fit (Inserted into morticed groove (optional adhesive if required). Where a small clearance is encountered, the groove should be double morticed to allow the brush to flex)
• Minimum and Maximum Gap: 0mm to 19mm (Gap can be user determined)

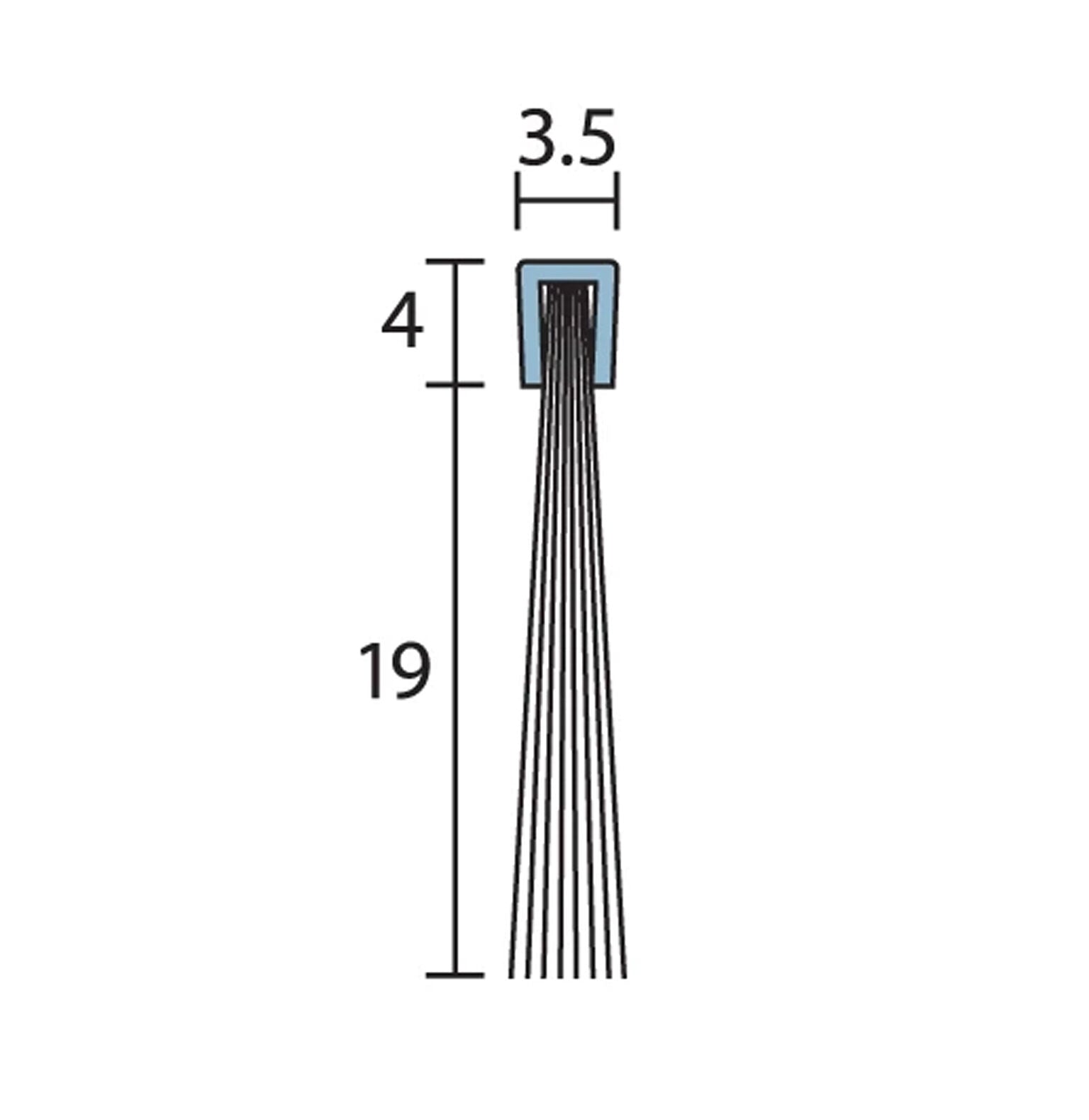

• Material: Nylon Brush (Black fine, dense, UV stabilised nylon filaments secured in a galvanised steel spine
• Door/Frame Construction: Timber
• Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening, Sliding, Pivot
• Available Sizes:
  • 1000mm
  • 3000mm
• Finish: Black

Approvals:

• Fire Flammability Index: Brush Strip flammability index 1 when tested to AS1530.2
• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• BAL Statement: BAL FZ when used on a garage in accordance with AS 3959
