Raven RP26 Door Bottom Sweep Seal
Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:

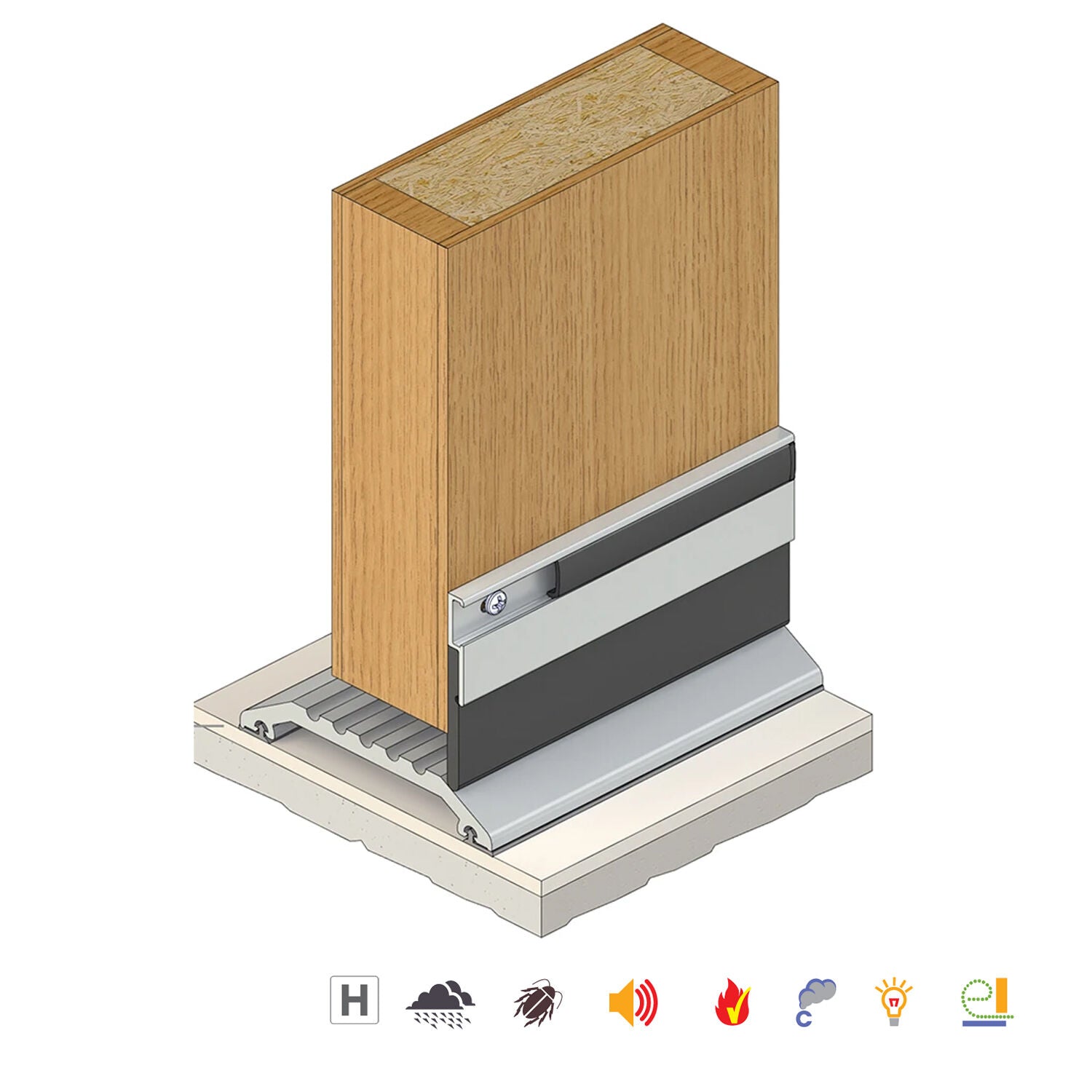

- A heavy duty sweep seal for door bottoms of outward opening doors
- Slotted fixing holes allow for adjustment all concealed behind a push in cover strip.
- The RP26 is ideal for use in conjunction with Raven threshold plates.
Specifications:
- Location: Bottom of single and double, outward opening, butt hinged doors, tilt up doors or can be used as a meeting stile seal (astragal).
- Fixing: Screw Fixed (Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-slotted)

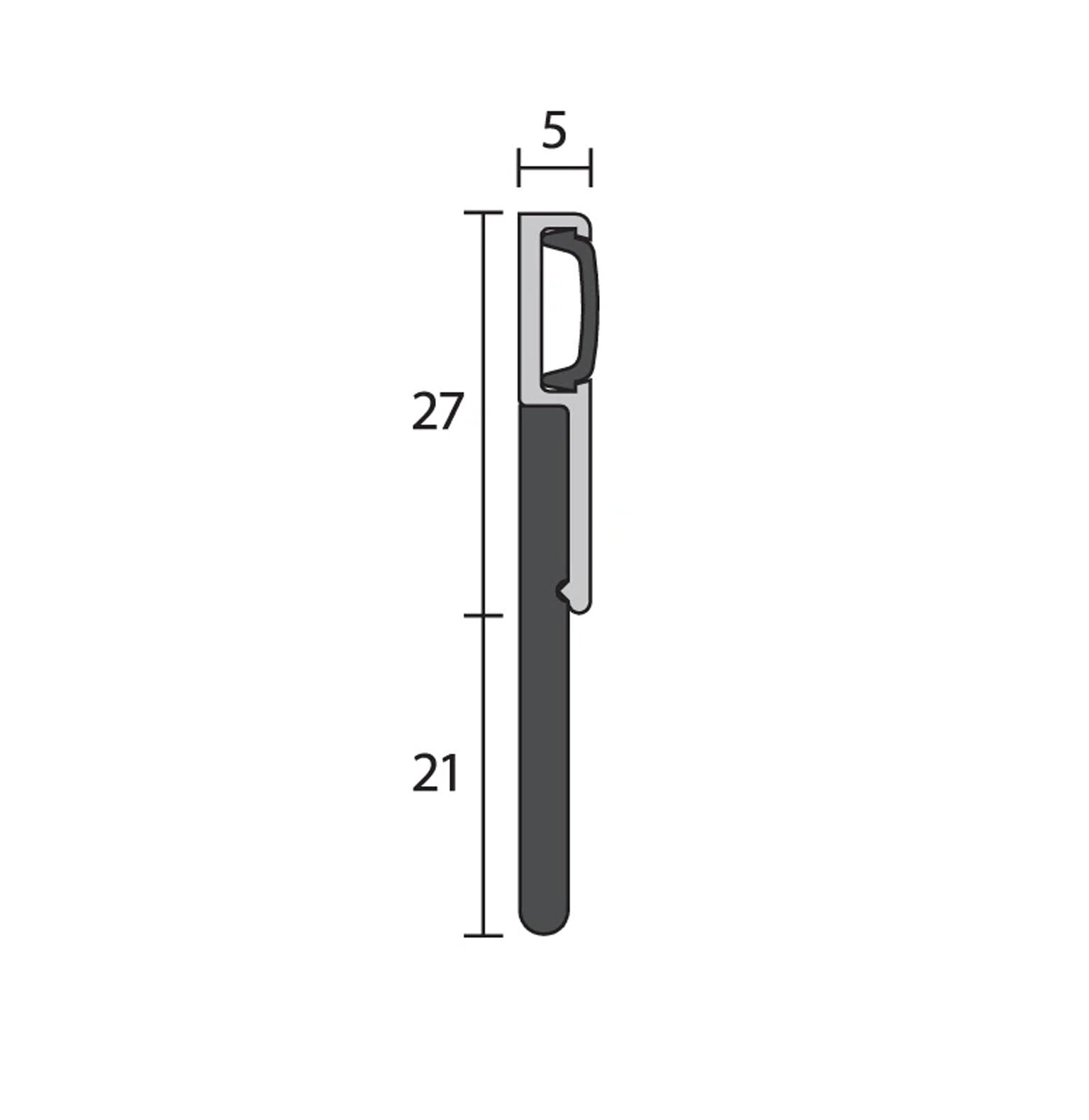

- Minimum and Maximum Gap: 5mm to 20mm (Gap can be user determined)
- Replacement Seals: RP326
- Material: Aluminium (Anodised aluminium with solid EPDM gasket)
- Door/Frame Construction: Timber, AluminiuDoor Type: Single Outward Opening, Double Outward Opening
- Garage Door Type: Tilt-up
-
Sizes:
- 1000mm
- 1500mm
- 3000mm
- Finish: Clear Anodised
Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.
Approvals:
- Fire AUS/NZ: AS 1530.4, AS 1905.1, NCC S12C2
- Fire UK/EU: Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
- Fire Rating: Up to FD120, Up to FRL & FRR-/120/30
- Energy AUS/NZ: NCC J5D5, ABCB Housing Provisions Standard 2022 13.4.4
- Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
