Raven RP29 Threshold Plates Silver Anodised - Available in Various Finishes

Raven RP29 Threshold

Threshold Plate enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

• Global GreenTag - Platinum

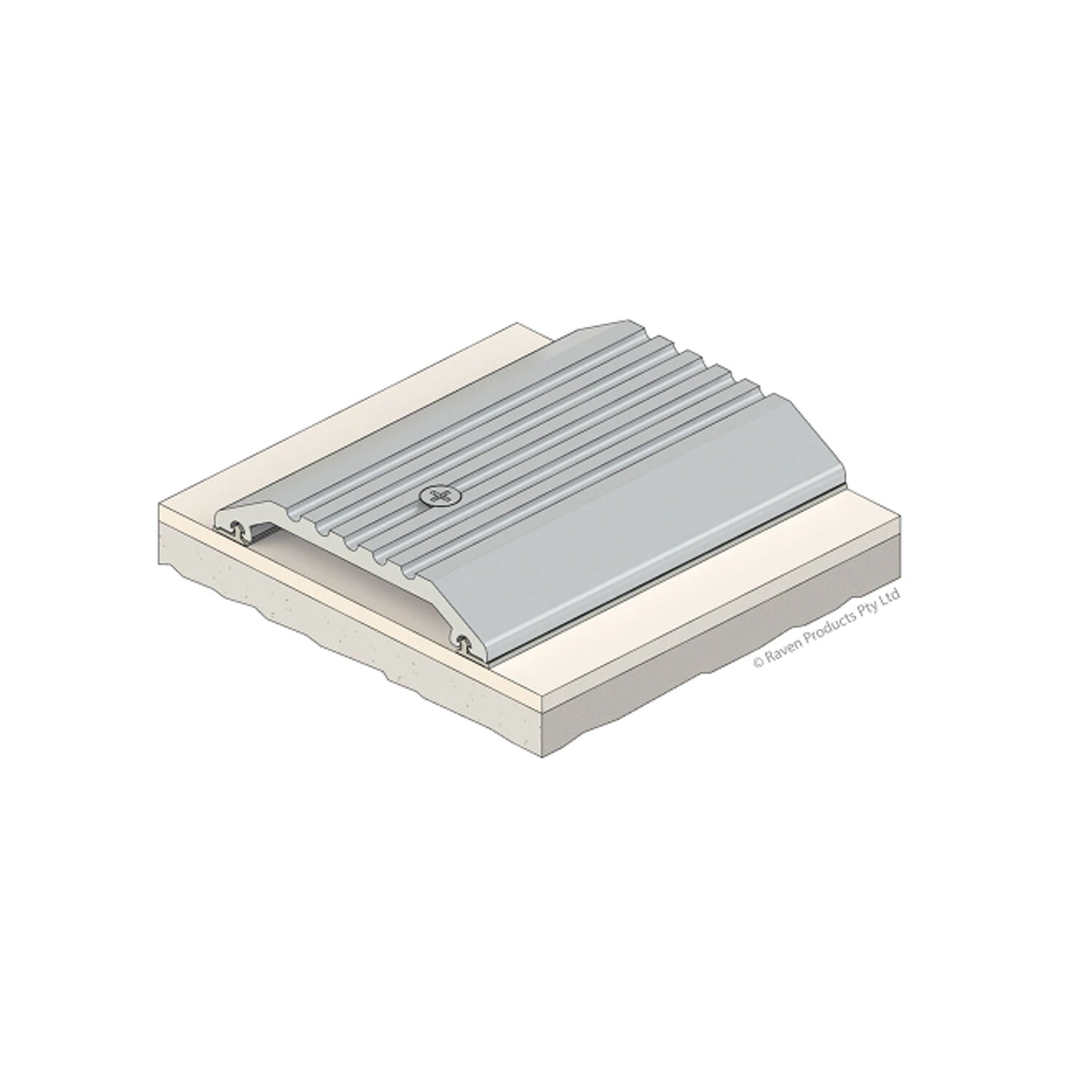

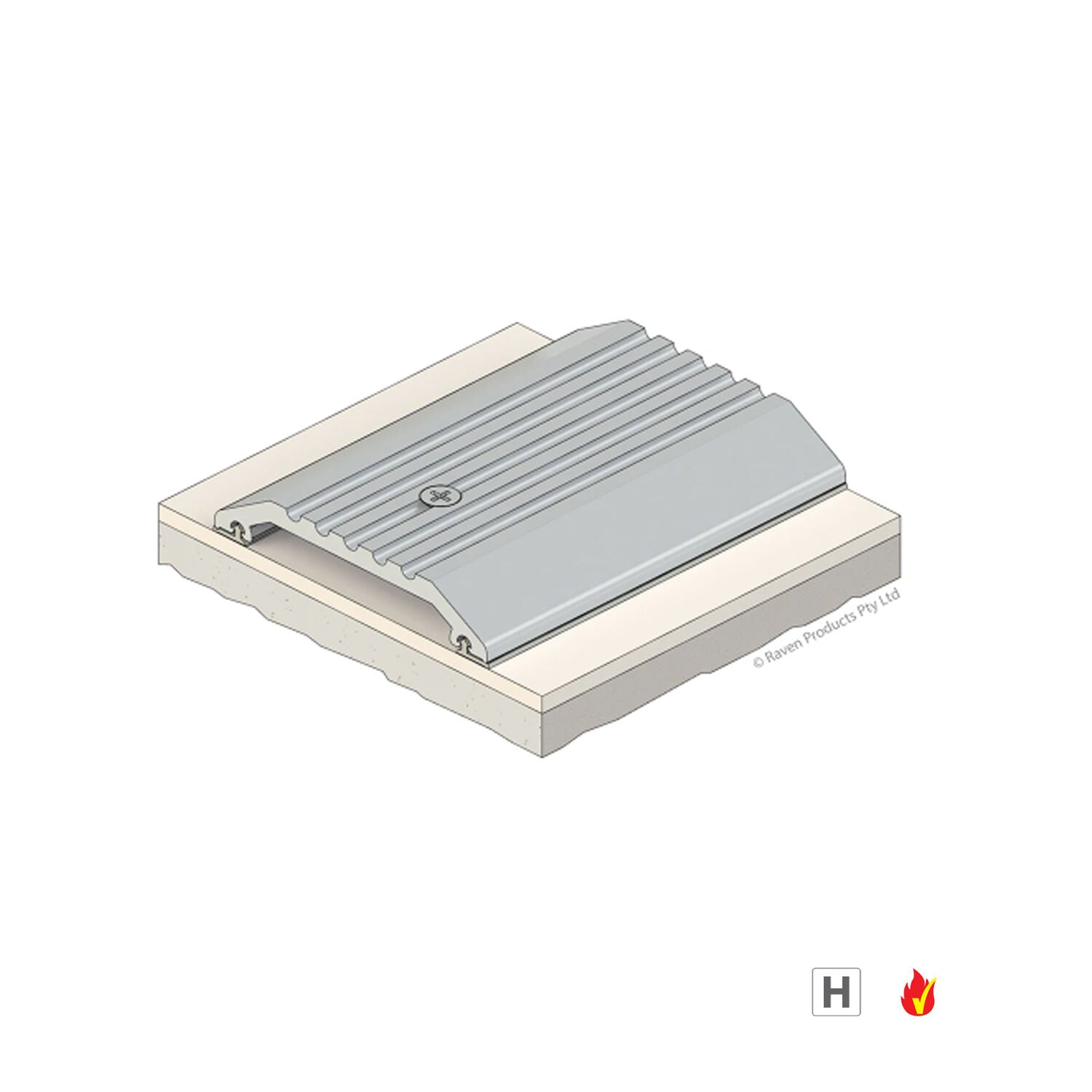

• RP29 is a wide, heavy duty threshold plate with a ribbed profile and integral sill gaskets.
• They are ideal for use with pivot hinge doors.
• Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration.

Specifications:

• Location: Door Sil
• Fixing: Screw Fix
• Width: 76mm
• Projection: 15mm
• Replacement Seals: RP404a
• Finish: Silver Anodised
• Length:
  • 1000mm
  • 2000mm
  • 3000mm

Approvals:

• Access & Mobility AUS/NZ: NZBC D1/AS1 1.3.2
• Access & Mobility UK/EU: Approved Document M
• Accreditations: UL: R37913, ANSI/BHMA: A156.21
• Fire AUS/NZ: AS 1530.4, AS 1905.1, NCC S12C2, NZBC C/AS2 4.16.2(a) & App C6.1.1
• Fire UK/EU: Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
• Fire Rating: Up to FD120, Up to FRL & FRR-/240/30
• BAL Statement: BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959
