Raven RP2B Brush Strip Seal - Available in Various Sizes

Raven RP2B Brush Strip Seal

Brush Door Seal can be mounted to fit many angles and spaces. Doors are generally the most common use for weather stripping.

Brush Door Seal Function - are designed to remove leakage between surfaces. To provide the most effective seal possible on a irregular surfaces.

Features:

• Global GreenTag - Bronze

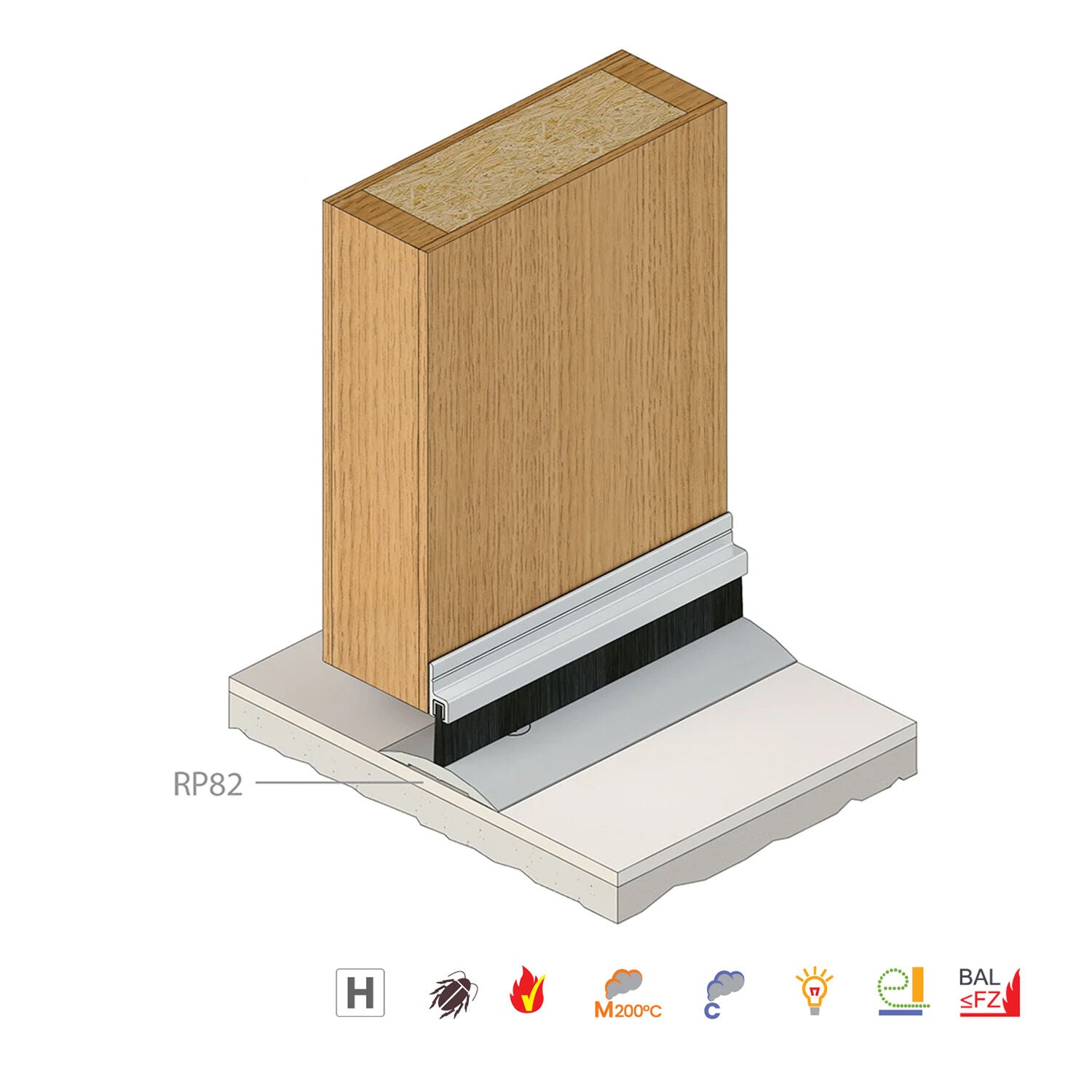

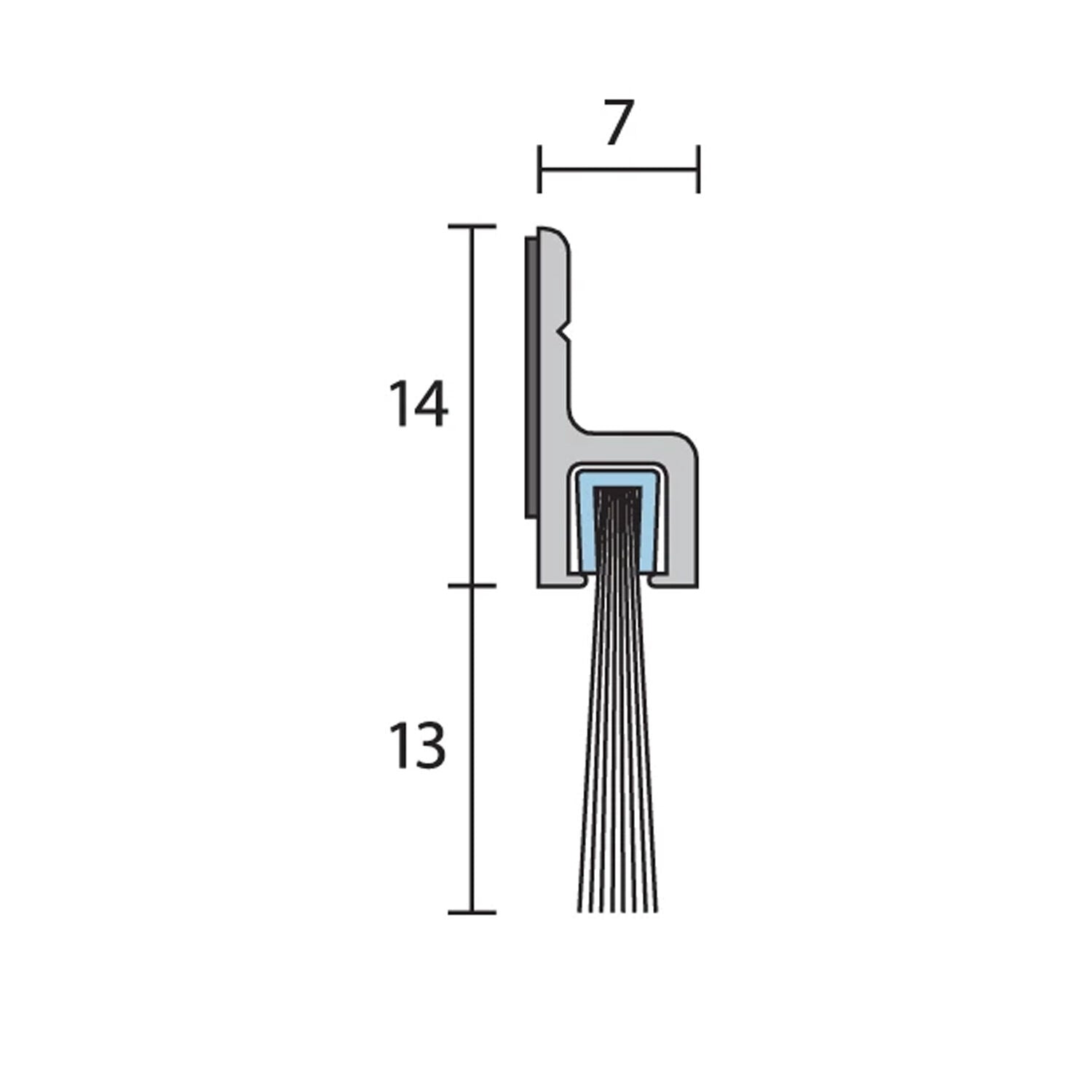

• A nylon brush strip seal with an anodised aluminium carrier that mounts to the inside or outside of a door.
• Used in conjunction with Raven threshold plates.

Specification:

• Location: Bottom of single, double or sliding doors. Suitable for hard, flat surfaces.
• Door/Frame Construction: Timber, Aluminium
• Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening, Sliding
• Fixing: Screw Fixed, Self-adhesive (Self-adhesive or can be screw fixed)
• Minimum and Maximum Gap: 0mm to 13mm (Gap can be user determined)
• Replacement Seals: RP2b (Brush Only)
• Material: Aluminium (Anodised aluminium with black fine, dense, UV stabilised nylon filaments in a galvanised steel spine)
• Available Sizes:
  • 1000mm
  • 2000mm
  • 2500mm
  • 3000mm
• Finish: Clear Anodised

Approvals:

• Fire Flammability Index: Brush Strip flammability index 1 when tested to AS1530.2
• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• BAL Statement: BAL FZ when used on a garage in accordance with AS 3959
