SKU: RAVR3B4
Raven RP3 Automatic Door Bottom Seals - Available in Various Finishes and Sizes
RRP: $51.96
Buy In Bulk & Save!
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

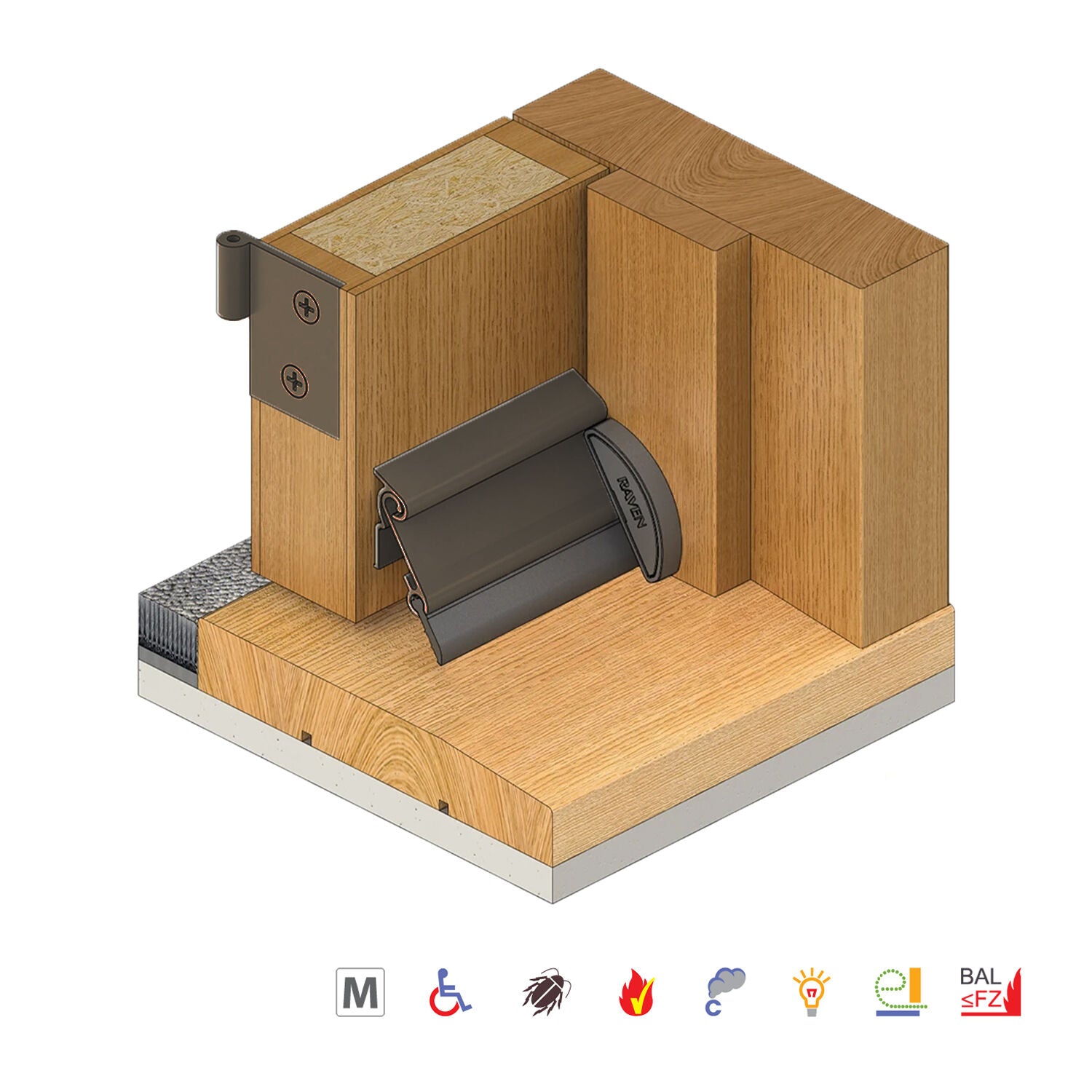

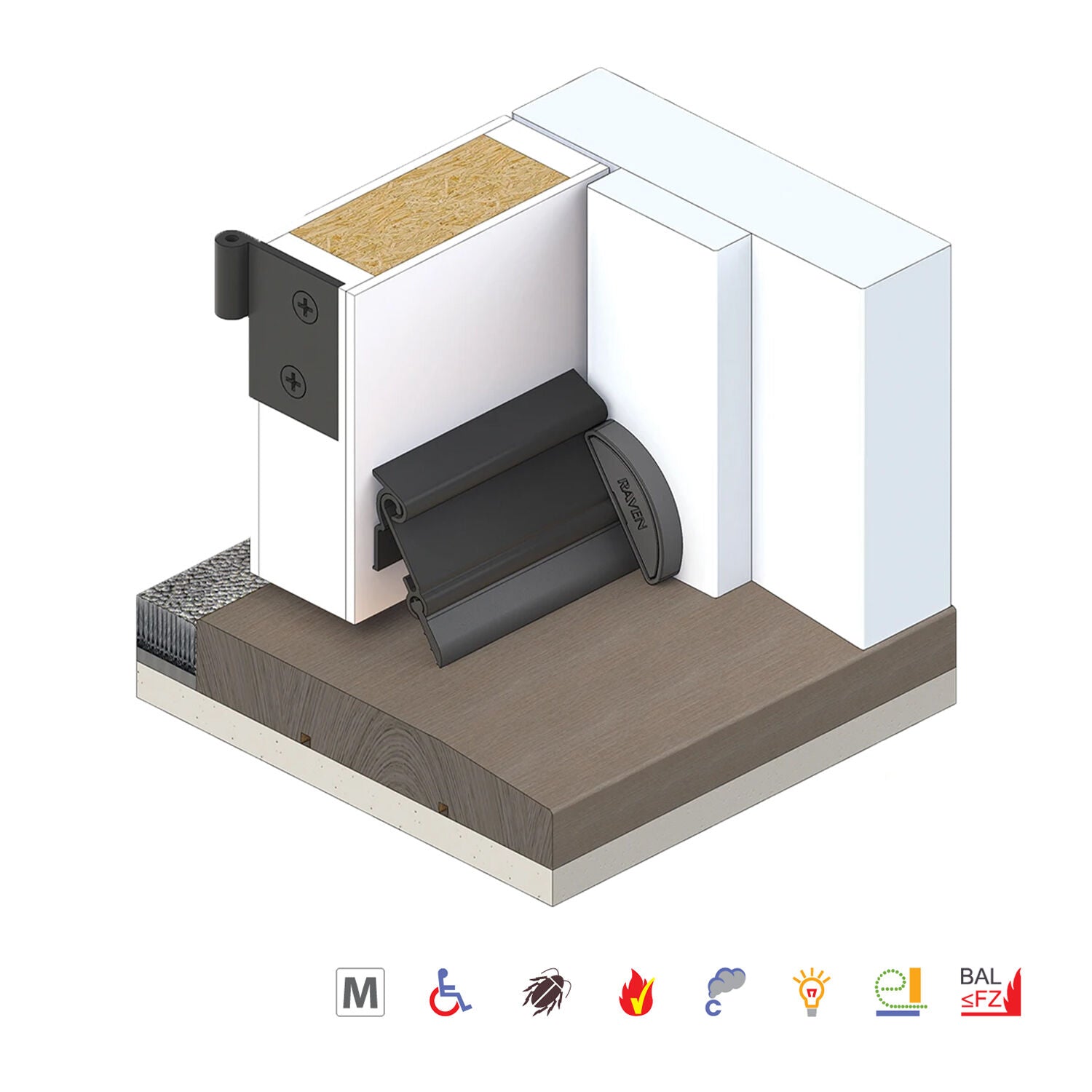

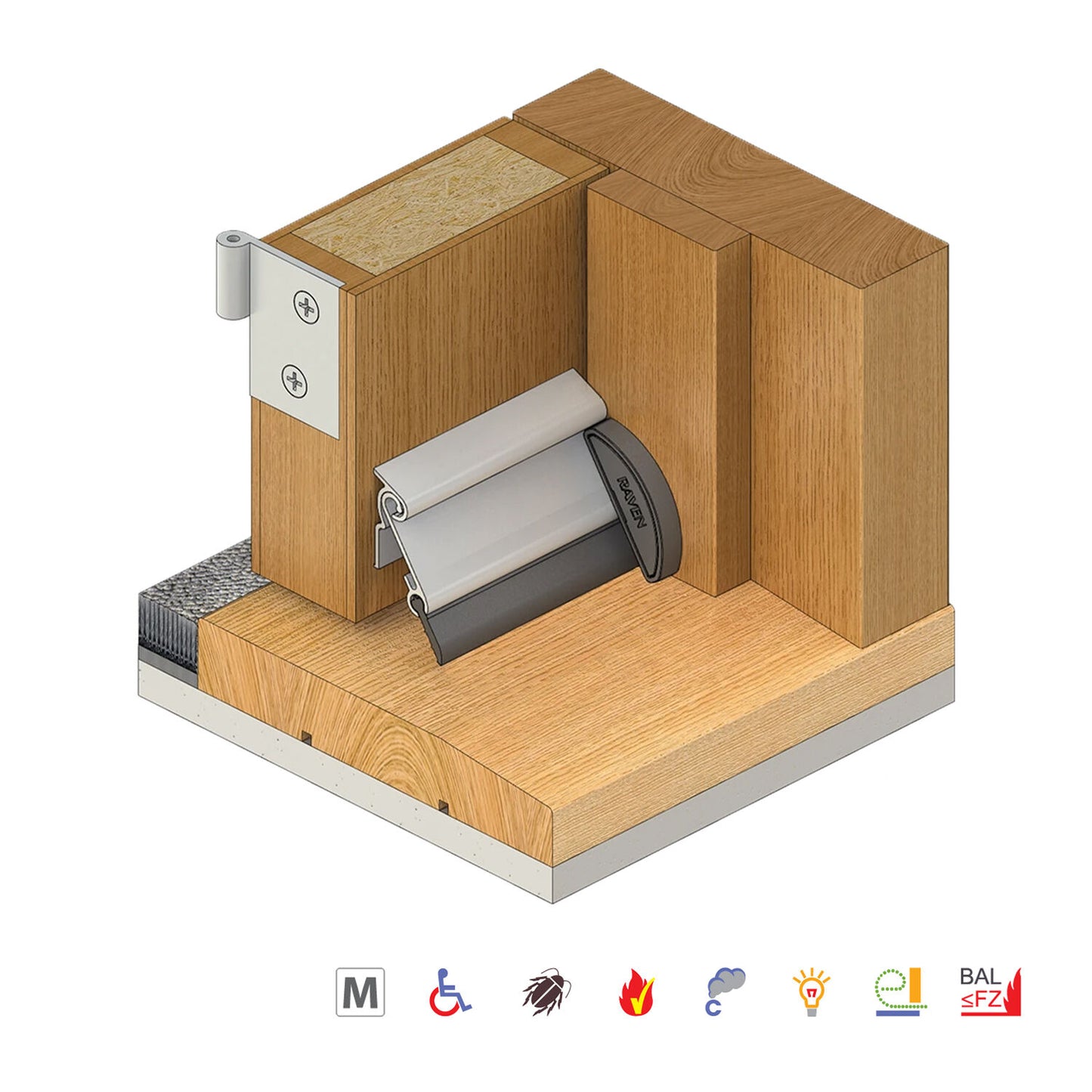

Raven RP3 Automatic Door Bottom Seals
Door Bottom Seal - used to close gaps between the bottom edge of a door and the floor. Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:
- Quick and easy to install without cutting or removing the door and uses concealed fasteners
- Granted an Australian Design Award
- Ideal for residential and light commercial applications such as motels and retirement villages
- Can be used in conjunction with Raven threshold plates
Specifications:

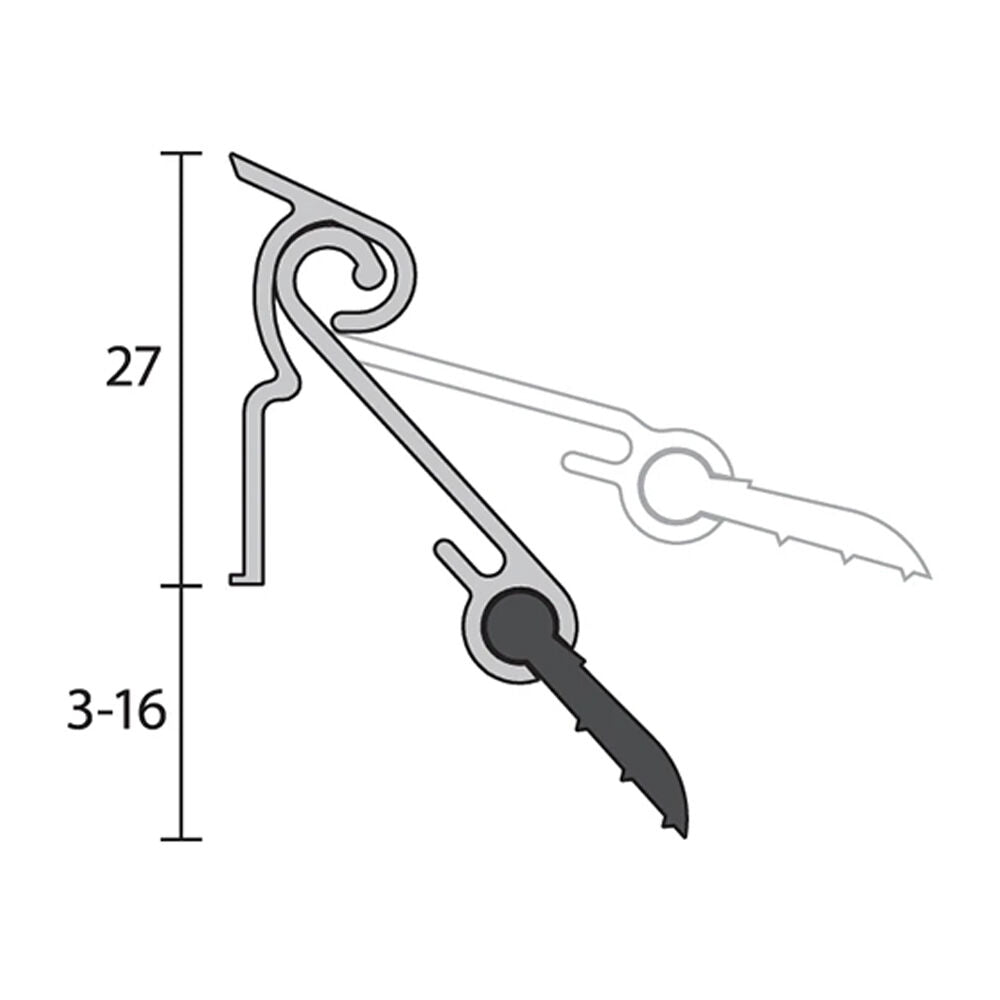

- Min and Max Gap: 3mm - 16mm
- Fixing: Screw Fix
- Height: 27mm
-
Length:
- 920mm
- 1220mm
-
Available Finish:
- Black Anodised
- Bronze Anodised
- Silver Anodised
Approvals:
- AS 1530.4:2005 & earlier, NCC Spec C3.4
- Up to FRL & FRR-/60/30
- Gasket flammability index < 5 when tested to AS1530.2
- ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
- Tested to over 1,000,000 operating cycles without failure
- AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
Raven RP3 Automatic Door Bottom Seals
R3B4
Door Bottom Seal - used to close gaps between the bottom edge of a door and the floor. Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:
- Quick and easy to install without cutting or removing the door and uses concealed fasteners
- Granted an Australian Design Award
- Ideal for residential and light commercial applications such as motels and retirement villages
- Can be used in conjunction with Raven threshold plates
Specifications:
- Min and Max Gap: 3mm - 16mm
- Fixing: Screw Fix
- Height: 27mm
- Length: 1220mm
- Finish: Bronze Anodised
Approvals:
- AS 1530.4:2005 & earlier, NCC Spec C3.4
- Up to FRL & FRR-/60/30
- Gasket flammability index < 5 when tested to AS1530.2
- ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
- Tested to over 1,000,000 operating cycles without failure
- AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
