Raven RP3 Automatic Weather Seal Trade Pack - Available in Various Finishes

Raven RP3 Automatic Weather Seal Trade Pack

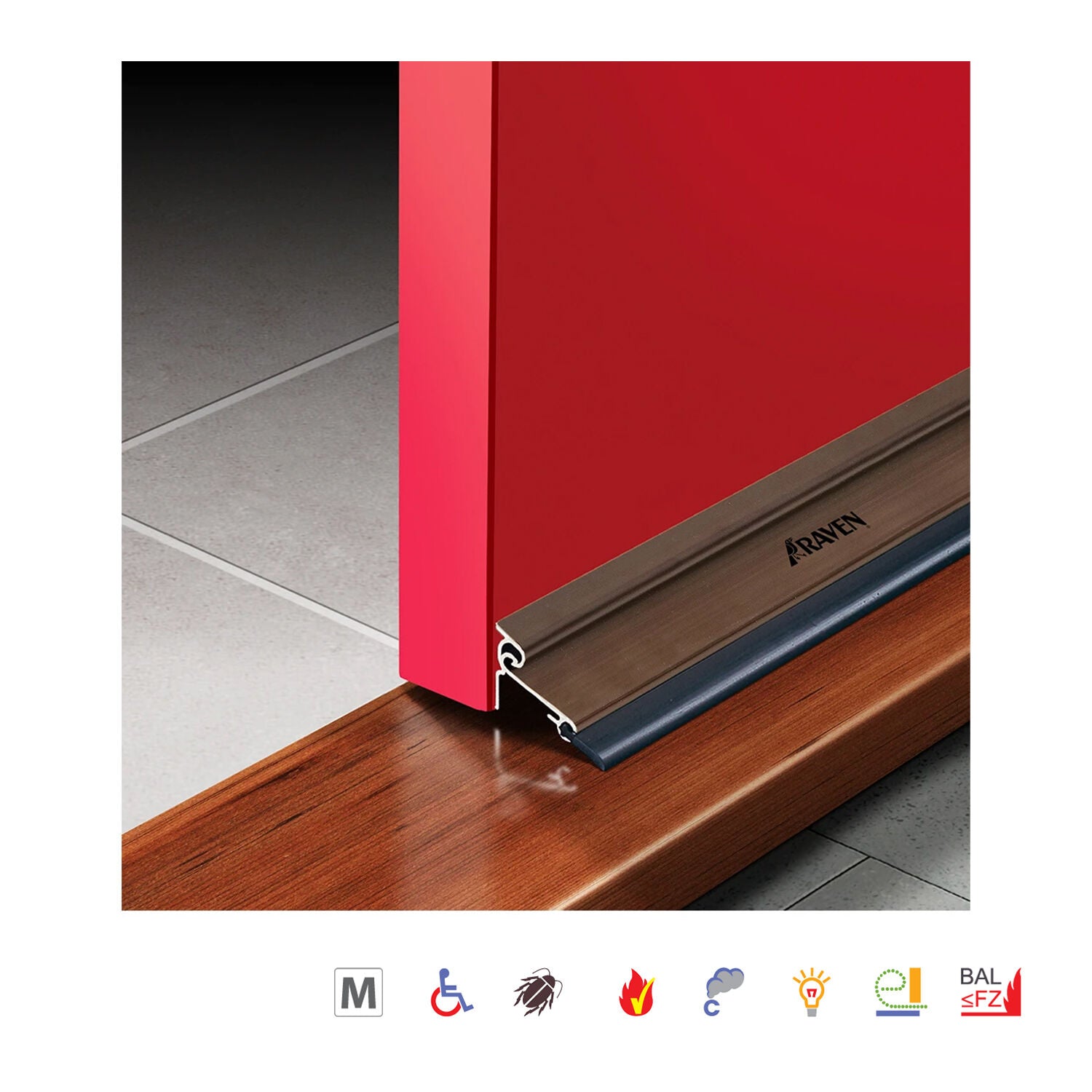

Door Bottom Seal - used to close gaps between the bottom edge of a door and the floor. Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

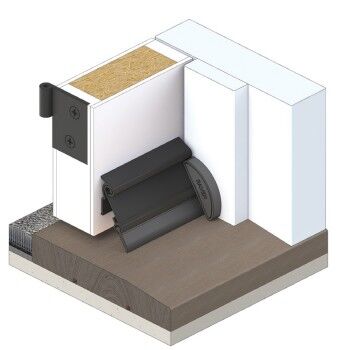

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

• Quick and easy to install without cutting or removing the door and uses concealed fasteners
• Granted an Australian Design Award
• Ideal for residential and light commercial applications such as motels and retirement villages
• Can be used in conjunction with Raven threshold plates

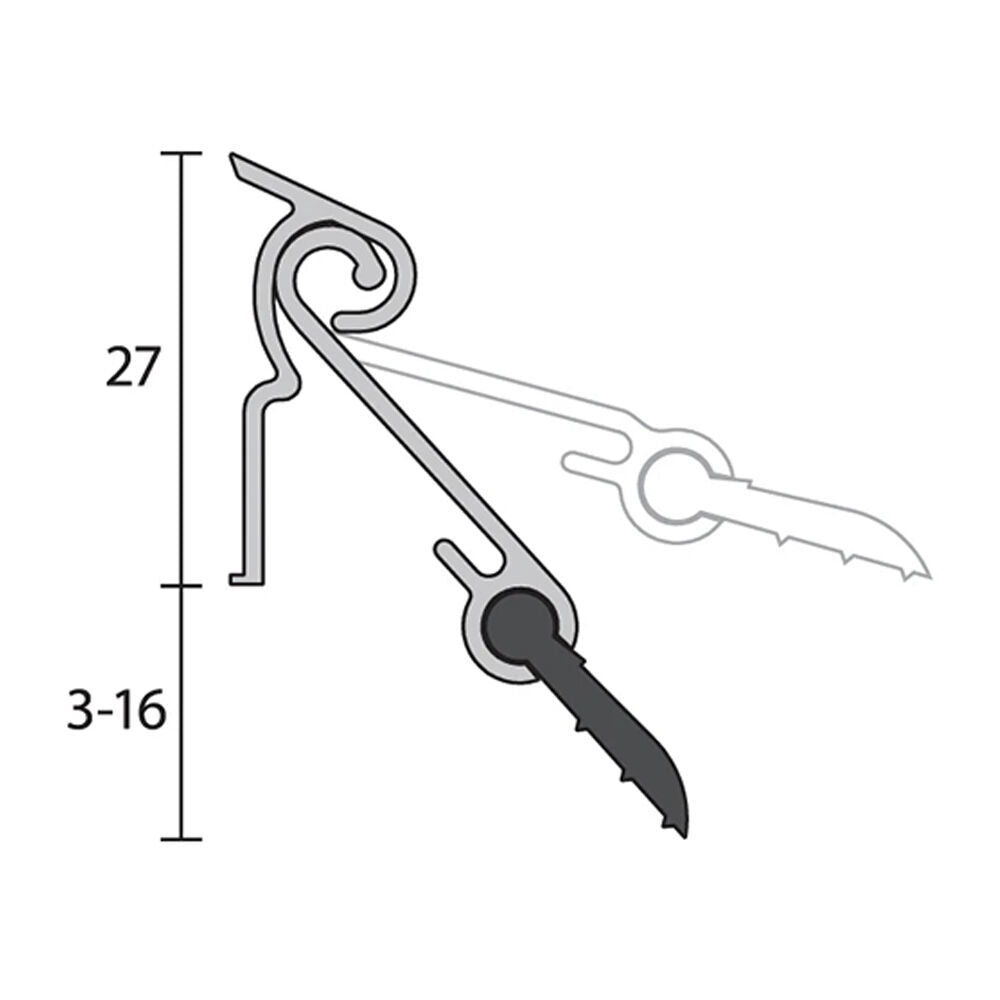

Specifications:

• Max Gap: 16mm
• Fixing: Screw Fix
• Height: 27mm
• Length: 920mm
• Available Finish:
  • Bronze Anodised
  • Silver Anodised

Approvals:

• AS 1530.4:2005 & earlier, NCC Spec C3.4
• Up to FRL & FRR-/60/30
• Gasket flammability index < 5 when tested to AS1530.2
• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• Tested to over 1,000,000 operating cycles without failure
• AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
