Raven RP30 Door Bottom Sweep Seal
A30B3000
Door Bottom Seal is used to close gaps between the bottom edge of a door and the floor. Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:

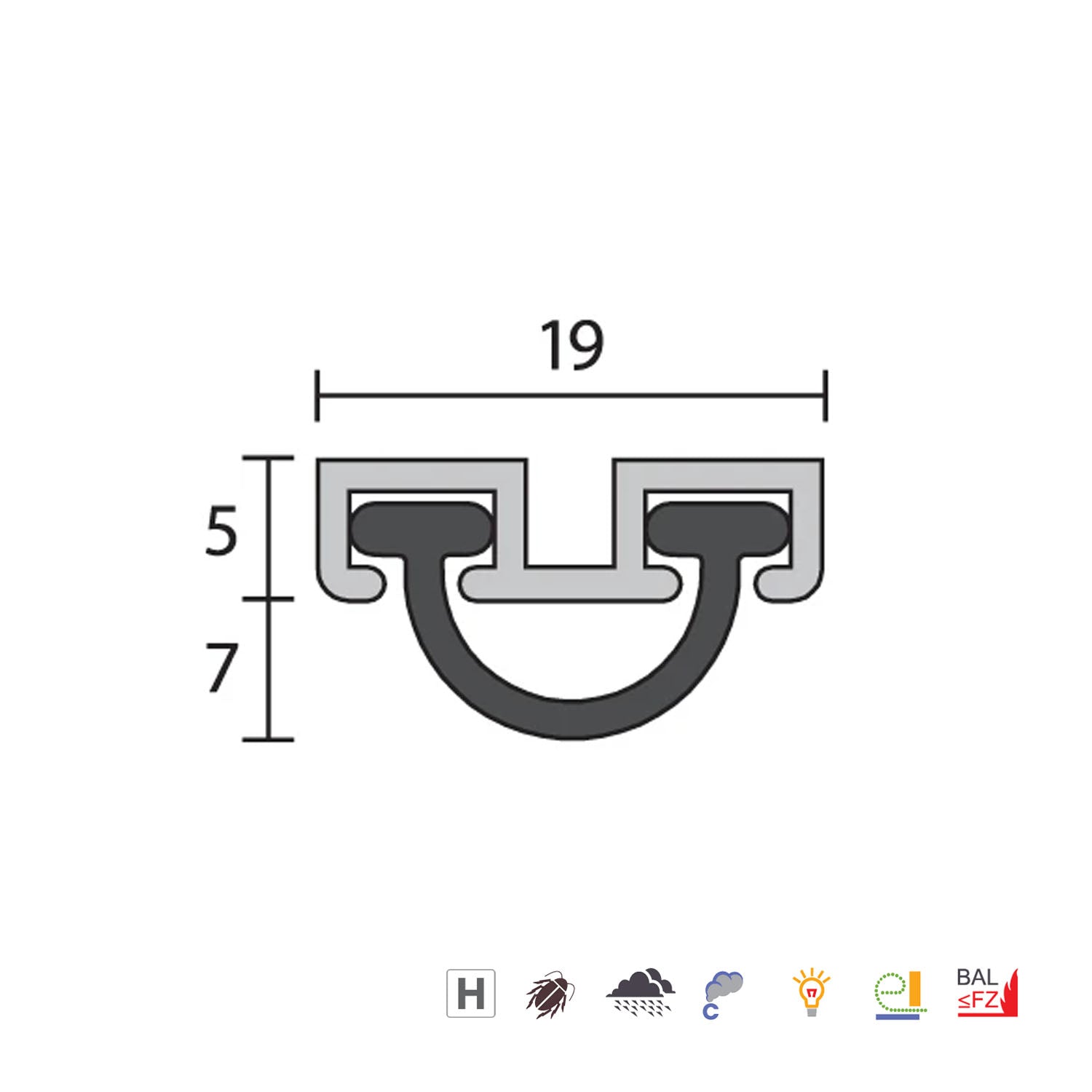

- The RP30 is a heavy duty sweep/compression seal
- Ffitted into a concealed, machined groove that should be deep enough to allow packing for adjustment

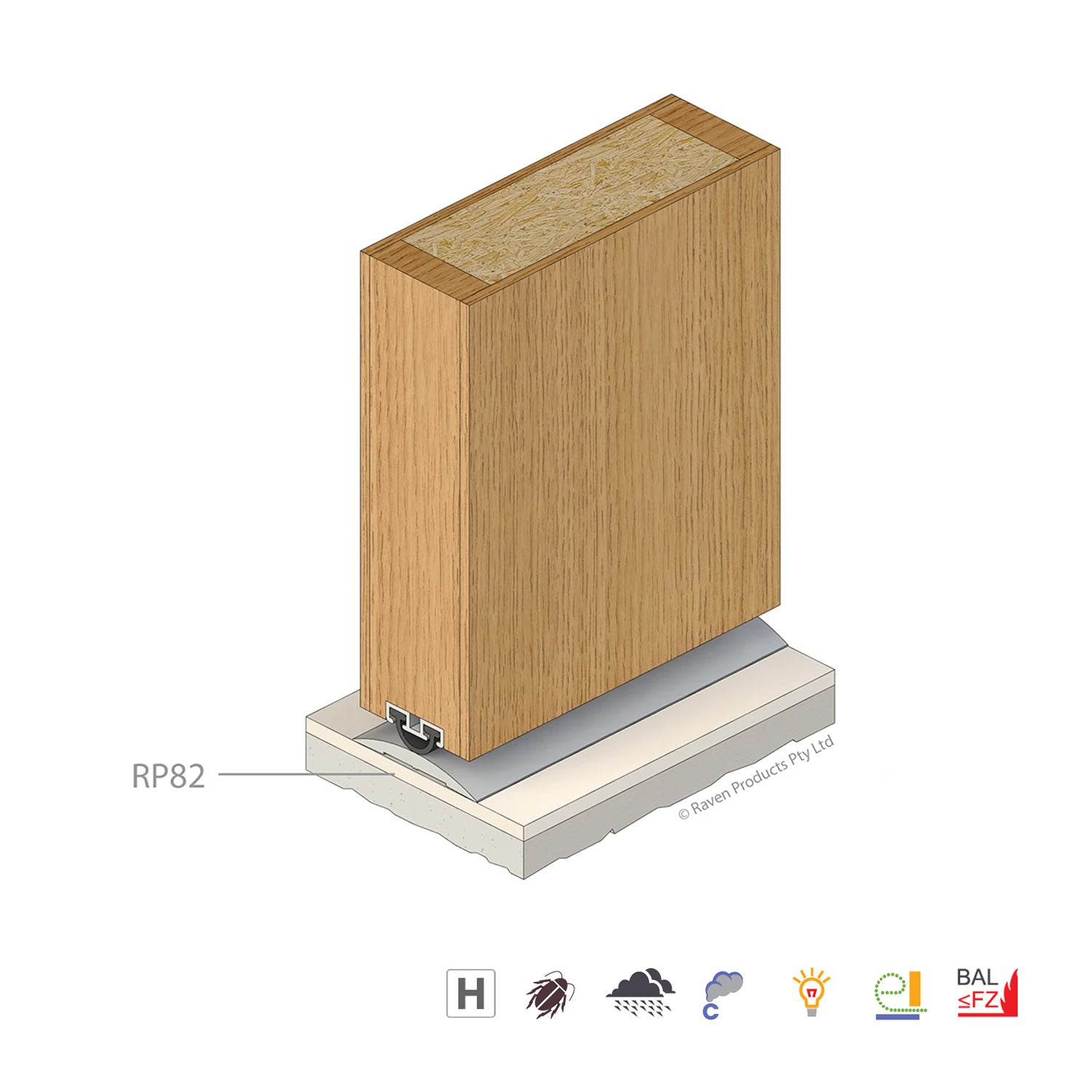

- Forms a weather seal when used with Raven RP13 or RP82 threshold plates
- Global GreenTag - Platinum
- Concealed screw fix. Zinc plated, cross recess head S.T. screws supplied
Specifications:
- Location: Bottom of doors, meeting stiles or user determined bumper strip.
- Size: 3000mm
- Fixing: Screw Fixed
- Door/Frame Construction: Timber
- Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening
- Min & Max Gap: 3mm to 8mm (Gap can be user determined)
- Material: Aluminium
- Replacement Seals: RP330
-
Fiinish: Bronze Anodised

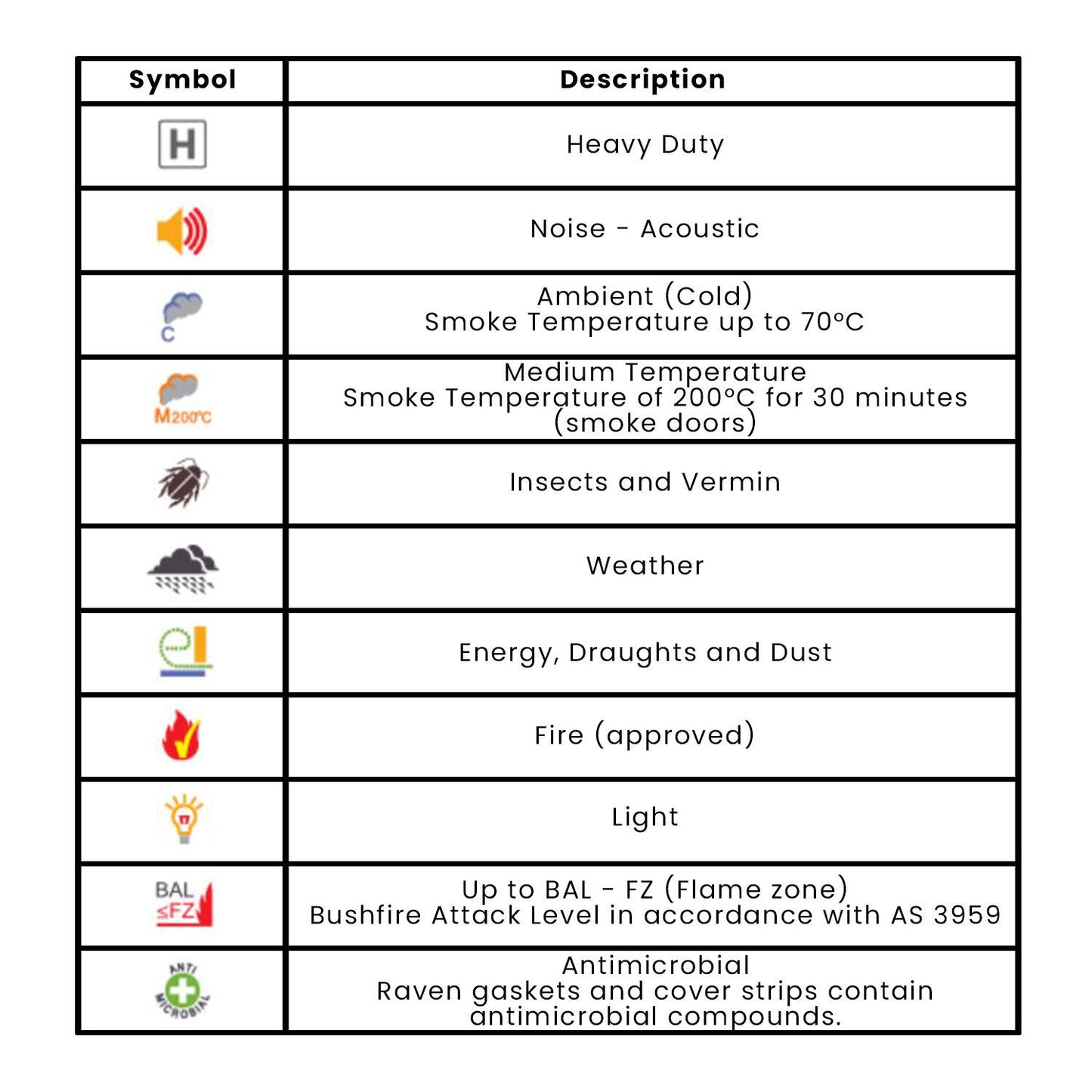

Ratings/Approvals:
- Approvals (Learn More): Energy AUS/NZ ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
- Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.
