SKU: RAVA30C1000
Raven RP30 Heavy Duty Door Bottom Sweep Seal 1000mm Silver Anodised A30C1000
RRP: $40.30
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Raven RP30 Heavy Duty Door Bottom Sweep Seal
A30C1000
Sweep Seal with a weatherstripping door seal strip installed, you'll save money on heating and cooling while also protecting against moisture, dust, and insects.
Sweep Seal Function - seals the gap between the door's bottom and the threshold. Sweeps away dirt or debris that accumulate at the base of the door when it is closed.
Features:
- Heavy duty sweep/compression seal
- The RP30 is fitted into a concealed, machined groove that should be deep enough to allow packing for adjustment

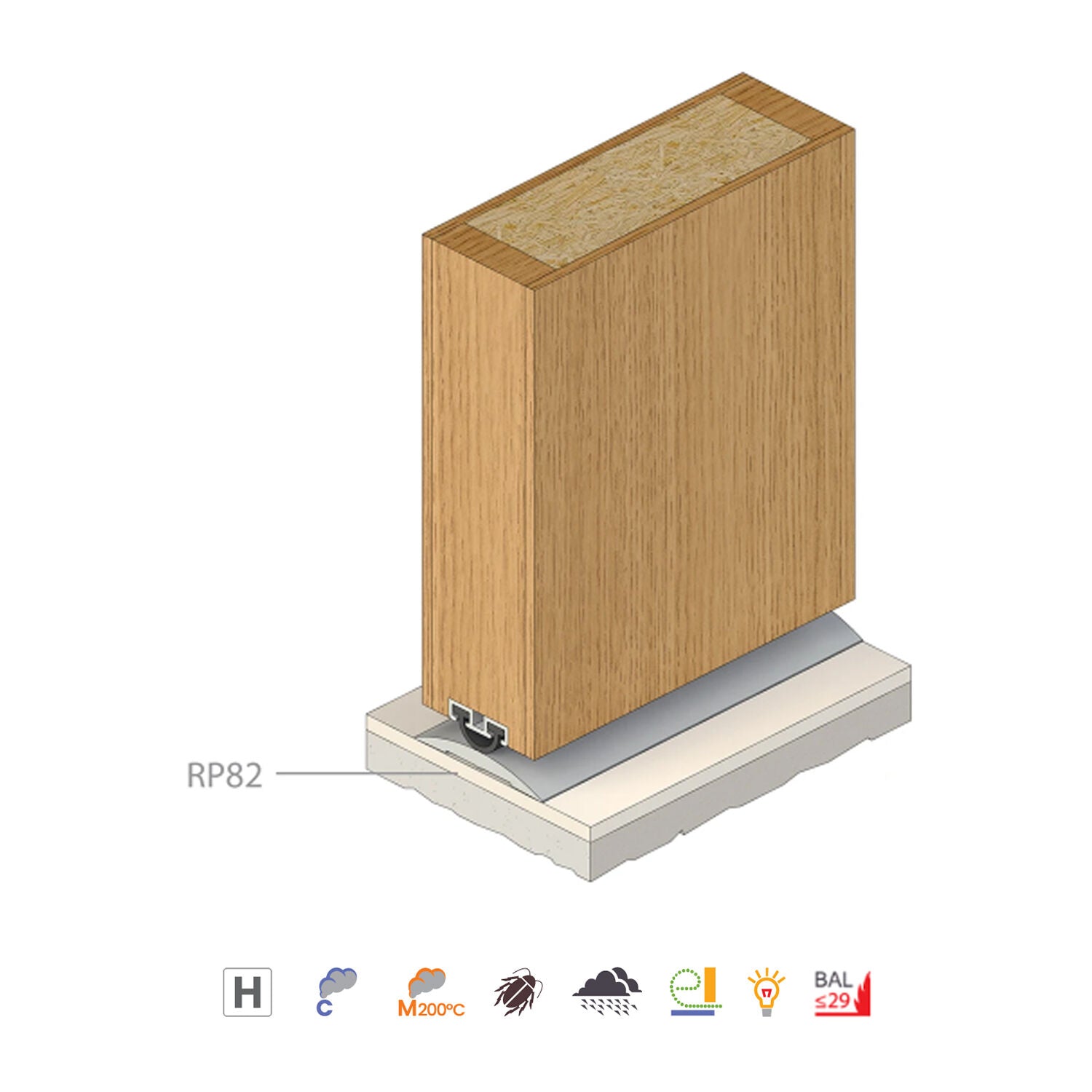

- Forms a weather seal when used with Raven RP13 or RP82 threshold plates
Specifications:
- Location: Bottom of doors, meeting stiles or user determined bumper strip
- Size: 1000mm
-
Fixing: Screw Fixed
- Concealed screw fix. Zinc plated, cross recess head S.T. screws supplied
- Min and Max Gap: 3mm to 8mm
- Replacement Seals: RP330
- Material: Anodised aluminium with solid EPDM gasket
- Door/Frame Construction: Timber
-
Door Type:
- Single Inward Opening
- Single Outward Opening
- Double Inward Opening
- Double Outward Opening
- Finish: Silver Anodised

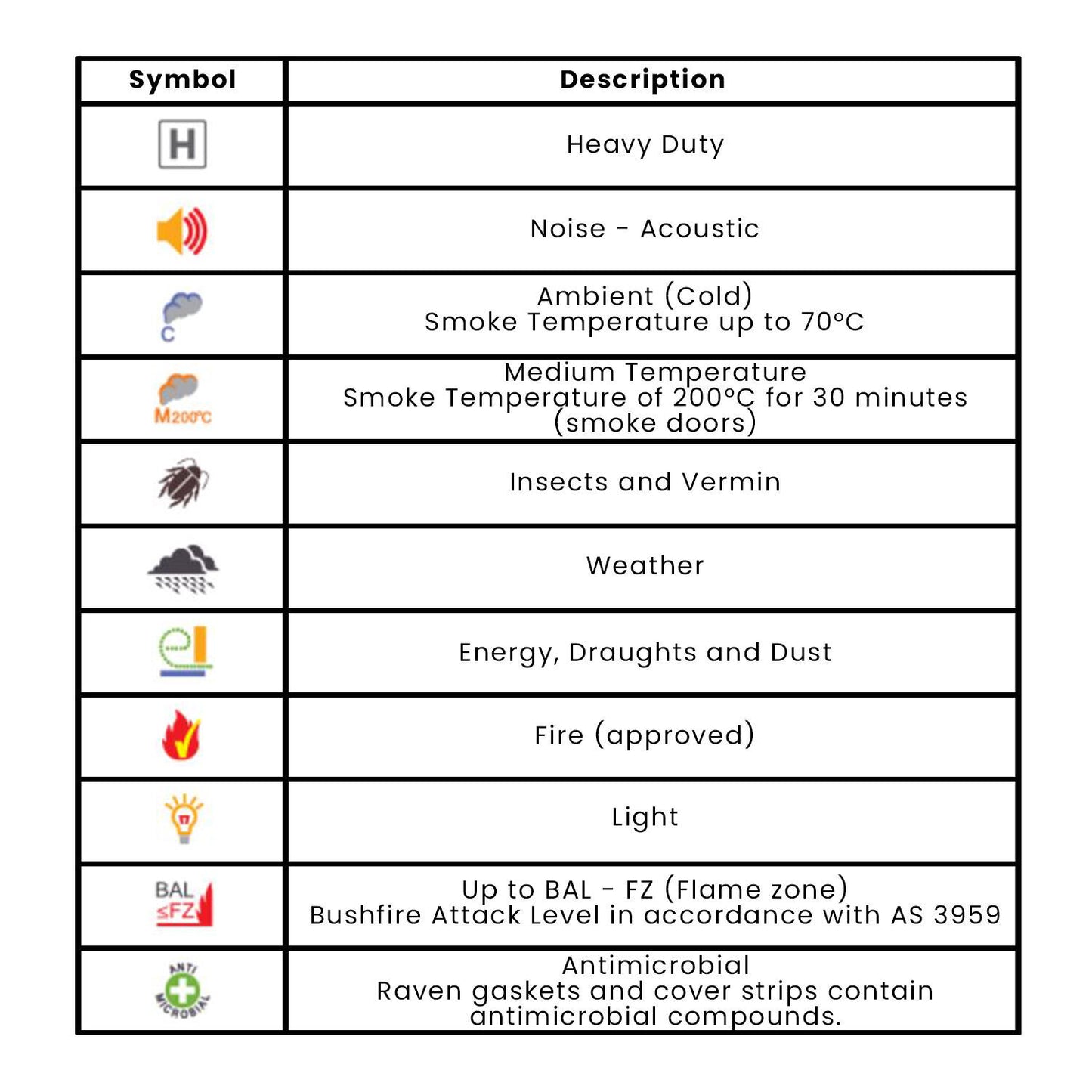

Approvals:
- Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
- Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
