SKU: RAVA38SIBK60
Raven RP38Si Automatic Door Bottom Seal 1500mm Black Anodised A38SIBK60
RRP: $297.18
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Raven RP38Si Automatic Door Bottom Seal
A38SIBK60
Door Bottom Seal used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Feattures:
- Automatic, spring-loaded drop seal
- Self-levelling for uneven floors
- Seals 3–13 mm gaps
- Silicone gasket (smoke/fire suitable)
- Blocks draughts, dust, noise, insects, odours
- Reversible (left/right doors)

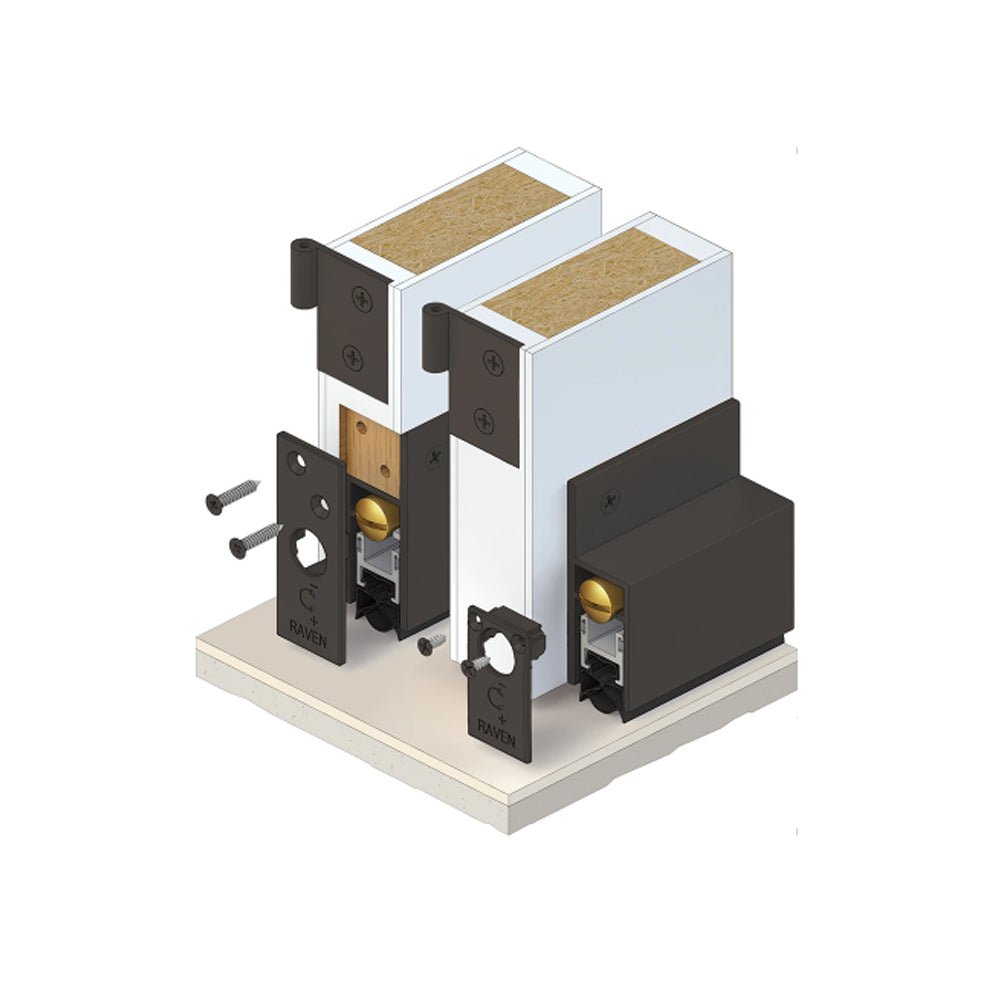

- Face-mounted or semi-morticed installation
- Durable anodised aluminium construction
Specifications:
-
Location:
- Face mounted or semi-morticed into bottom of single and double butt hinged doors
- For semi-mortice minimum door thickness of 50mm for rebated meeting stiles and 40mm for plain meeting stiles is required
- Can be face mounted to the bottom of metal doors
- Size/Length: 1500mm
-
Fixing:
- Face Mounted
- Semi-morticed
- Screw Fixed

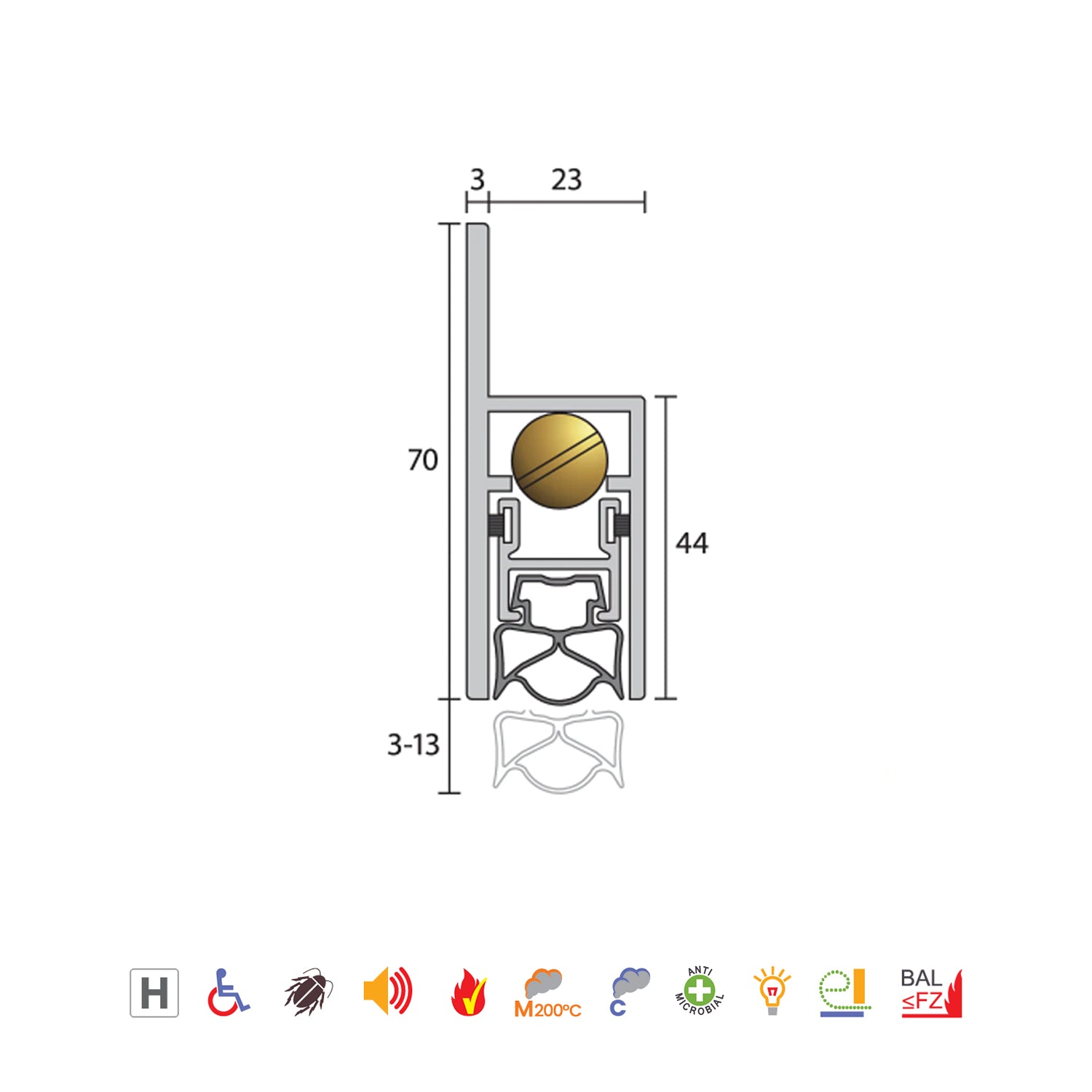

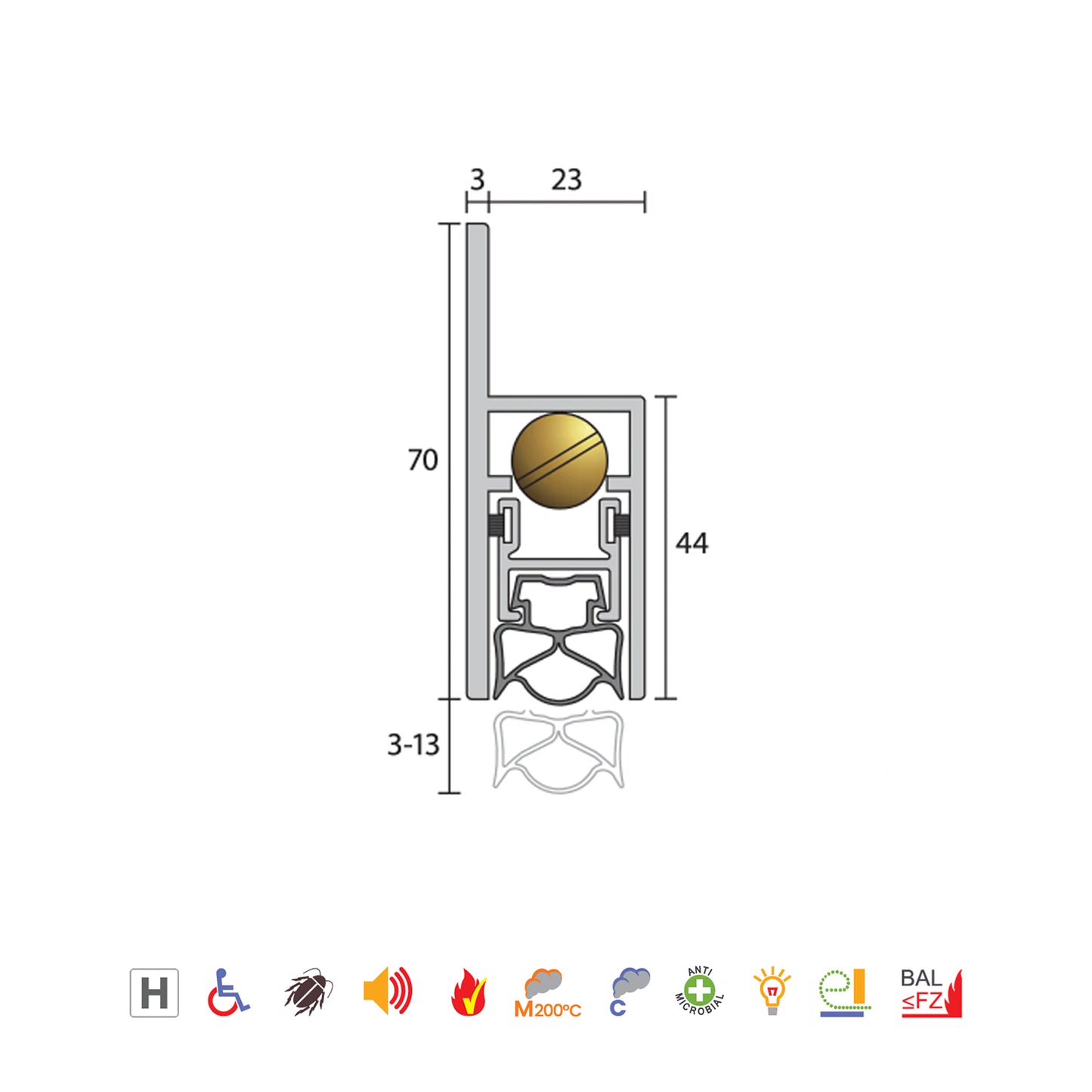

- Min & Max Gap: 3mm to 13mm
- Replacement Seals: RP338Si BK, RP338Si GR
-
Material:
- Aluminum
- Anodised aluminium with silicone rubber (SE) gasket.
- Door/Frame Construction: Timber, Aluminium
-
Door Type:
- Single Inward Opening
- Single Outward Opening
- Double Inward Opening
- Double Outward Opening
- Patent Status: Registered Design, Patented
- Finish: Black Anodised
Note:
- Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.

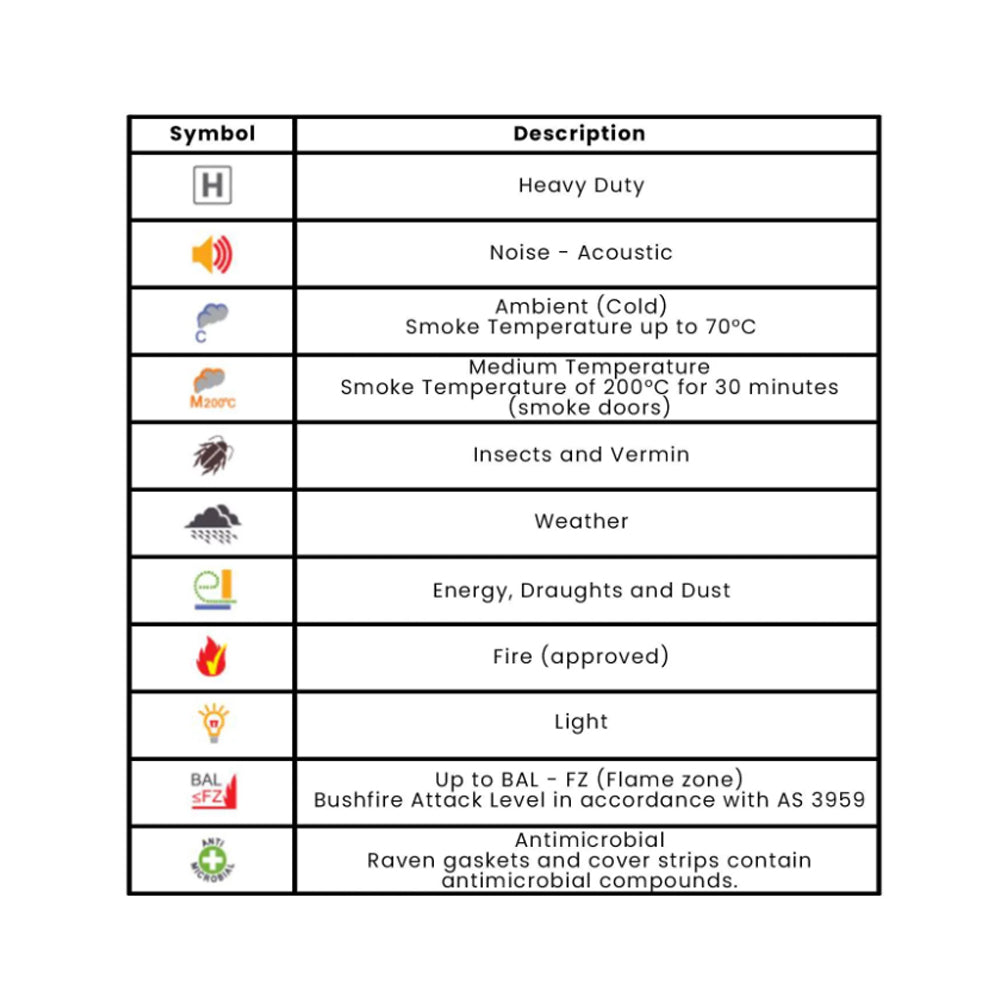

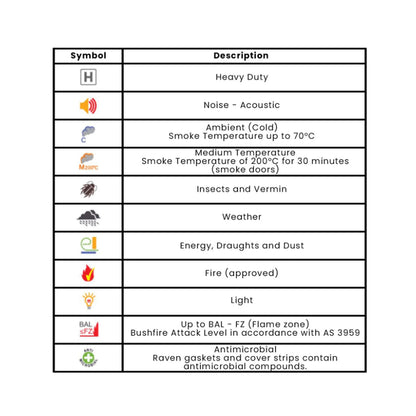

Approvals:
- Accreditations: UL: R37913, Certifire: CF 5710
- Acoustic AUS/NZ: NCC F7D6
- Acoustic UK/EU: Approved Document E, Rated to BS EN ISO 717-1
- Fire AUS/NZ: NCC S12C2, AS 1530.4, AS 1905.1, NZBC C/AS2 4.16.2
- Fire UK/EU: BS 476 Pt. 20 & 22 (similar to BS EN 1634-1), Approved Document B
- Fire Rating: Up to FD240, Up to FRL & FRR-/240/30
- Fire Flammability Index: Gasket flammability index 1 when tested to AS1530.2
- Smoke AUS/NZ: NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, NCC S12C4, AS
- 1530.7, BS EN 1634-3
- Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
- Durability: Tested to over 1,000,000 operating cycles without failure
- Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
