SKU: RAVR4G
Raven RP4 Door Bottom Seal Gold Anodised - Available in Various Sizes
RRP: $77.00
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

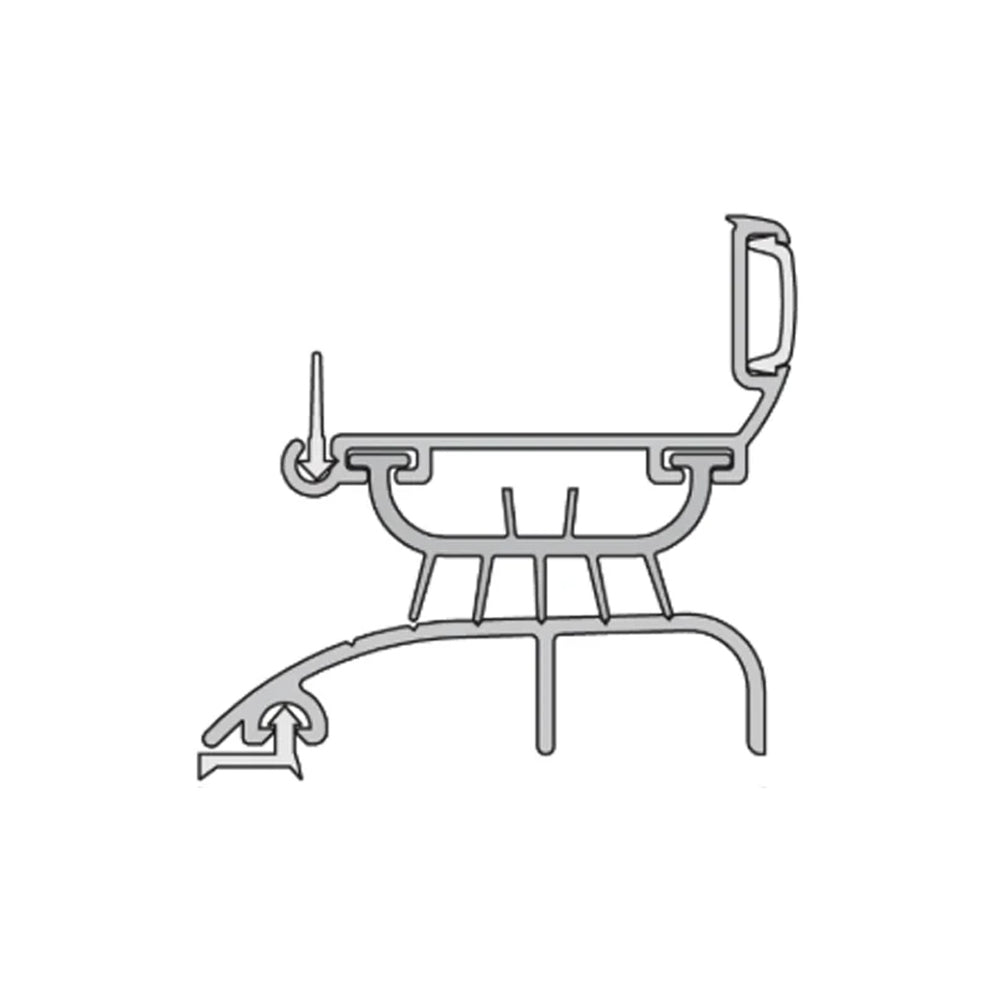

Raven RP4 Door Bottom Seal
Door Bottom Seal used to close gaps between the bottom edge of a door and the floor. Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:
- Storm-proof door bottom seal designed for maximum weather protection
- Multi-blade sealing system that helps prevent rain infiltration
- Made from anodised aluminium with flexible PVC gaskets for durability
- Adjustable sealing section to fit door gaps (approx. 23–25 mm)

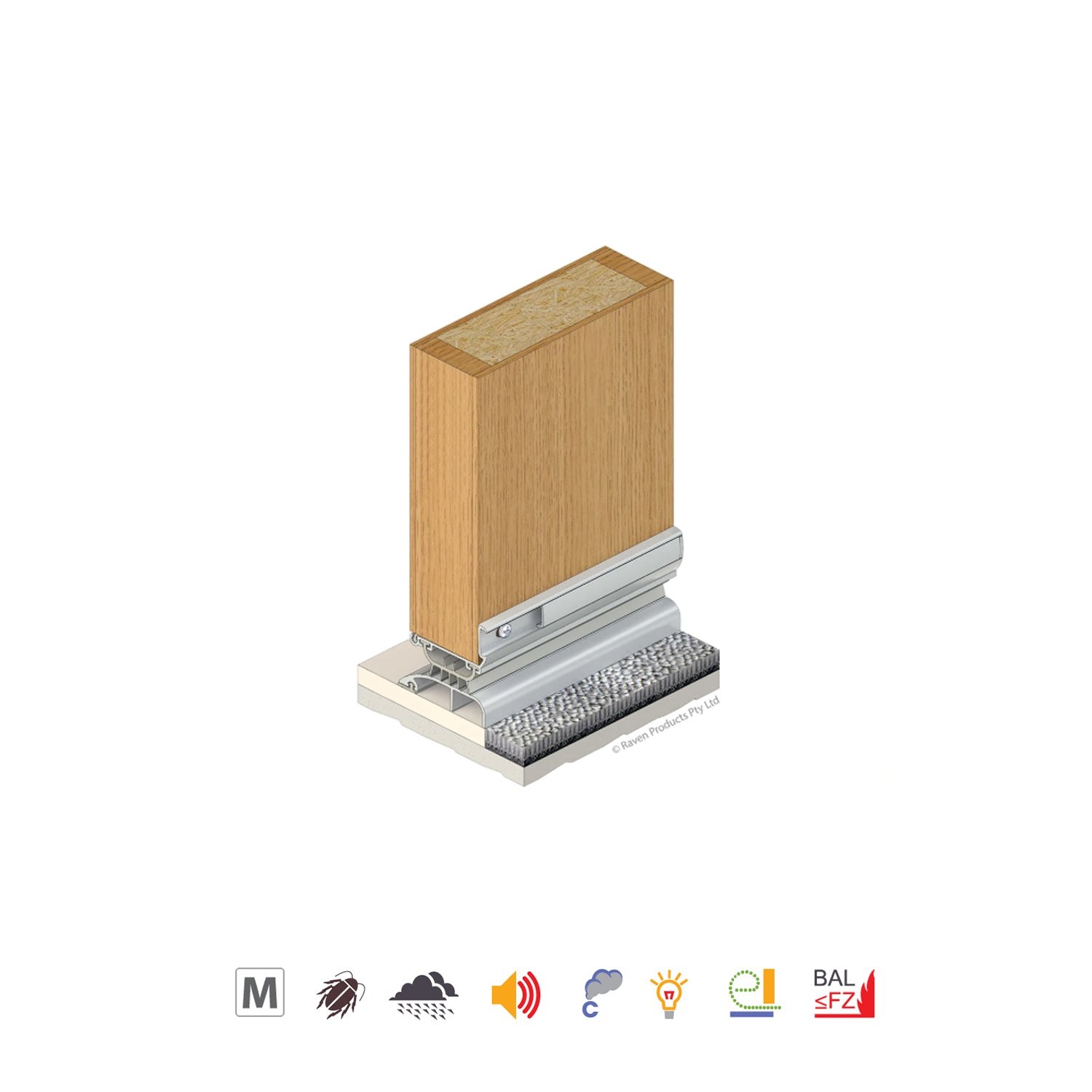

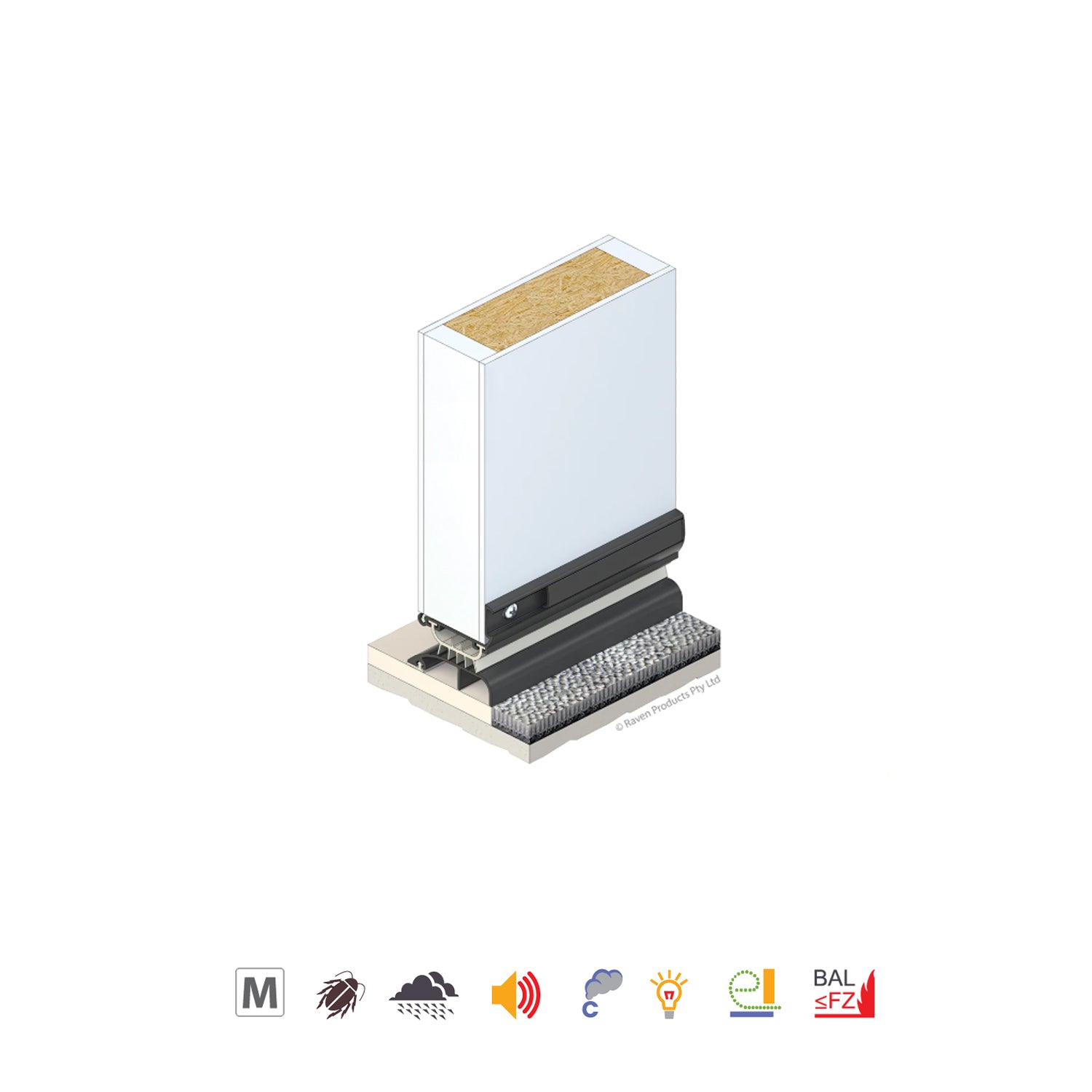

- Easy surface installation on the bottom of hinged doors without removing the door
Specifications:
- Location: Bottom of single and double butt hinged doors and sill. Minimum door thickness of 35mm
-
Available Size/Length:
- 926mm
- 1250mm
-
Fixing:
- Screw Fixed
- Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied
- Fixing holes are pre-slotted
- Threshold plate fixing holes are pre-punched and countersunk

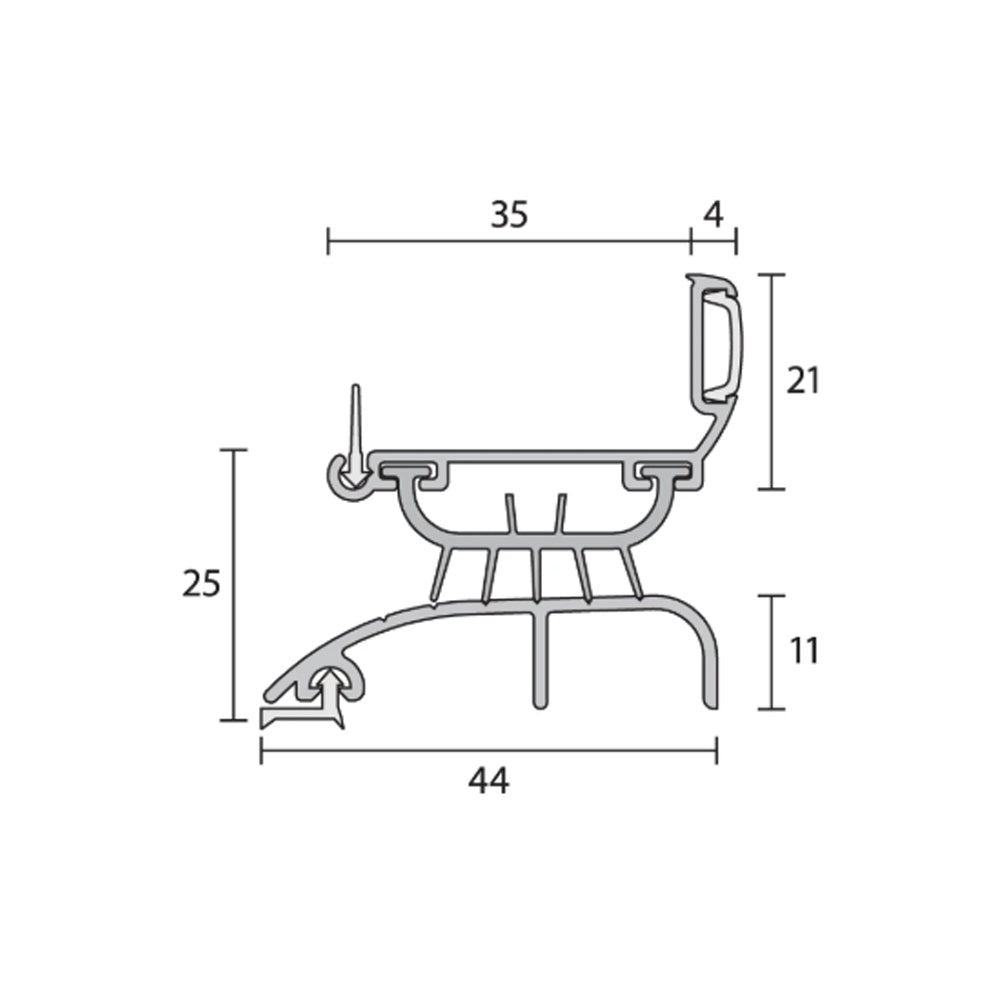

- Min & Max Gap: 23mm to 25mm
- Replacement Seals: RP404, RP404a, RP404b
-
Material:
- Aluminum
- Anodised aluminum with flexible PVC gaskets
- Door/Frame Construction: Timber
-
Door Type:
- Single Inward Opening
- Single Outward Opening
- Double Inward Opening
- Double Outward Opening
- Pivot
- Finish: Gold Anodised
Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.
Approvals:
- Access & Mobility AUS/NZ: NZBC D1/AS1 1.3.2
- Access & Mobility UK/EU: Approved Document M
- Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
- Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
