SKU: RAVA4B1250
Raven RP4 Storm Proof Door Bottom Seal - Available in Various Sizes
RRP: $105.83
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Raven RP4 Storm Proof Door Bottom Seal
Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:
- Global GreenTag - Platinum

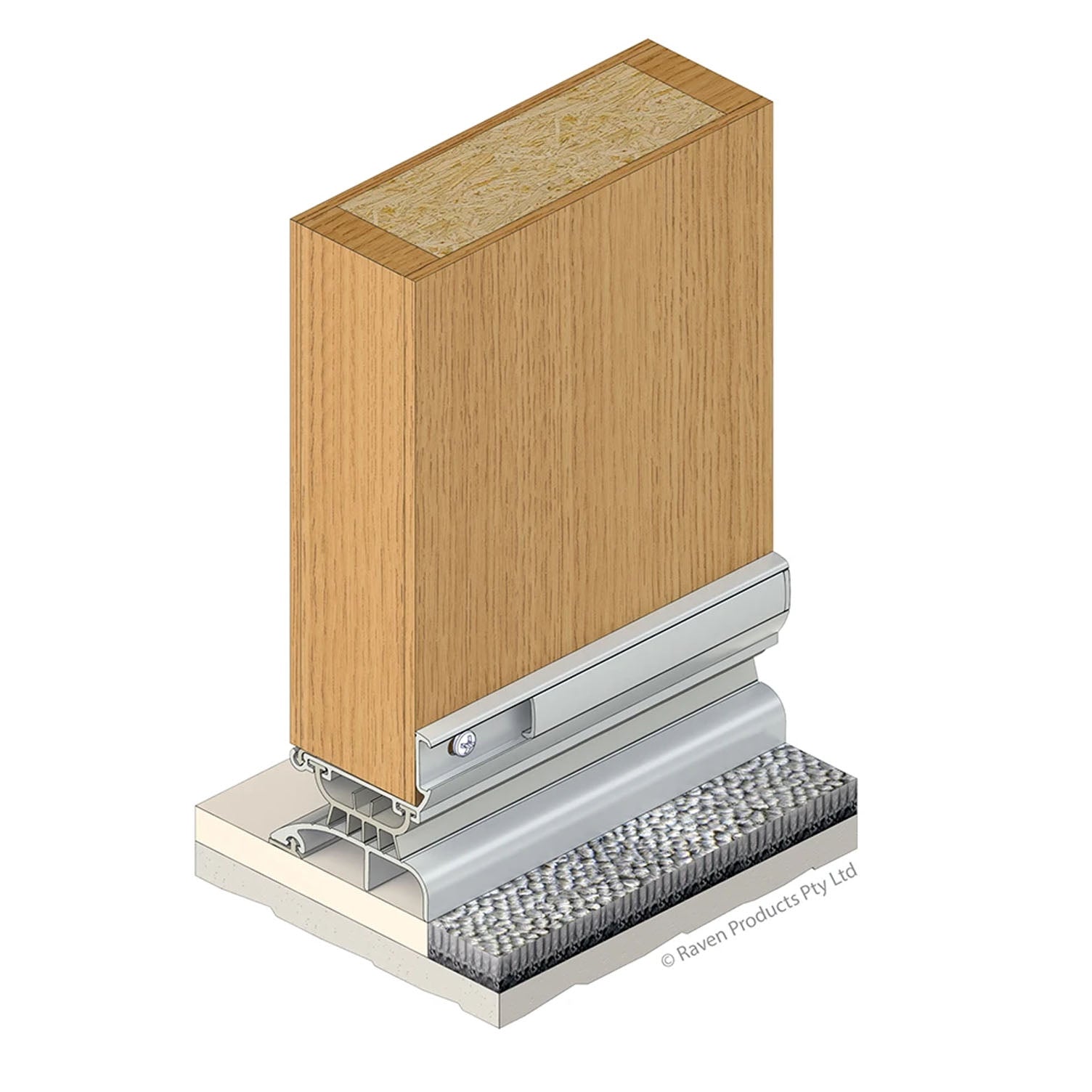

- A storm proof door bottom seal and threshold plate that is ideal where maximum weather protection is required. The RP4 multi-blade seal defies rain infiltration.
- Can be fitted to the square cut bottom of a door without removing the door, provided there is an existing gap of 25mm. It is quick and easy to fit to both door and sill.
- The sealing section is slotted for adjustment.

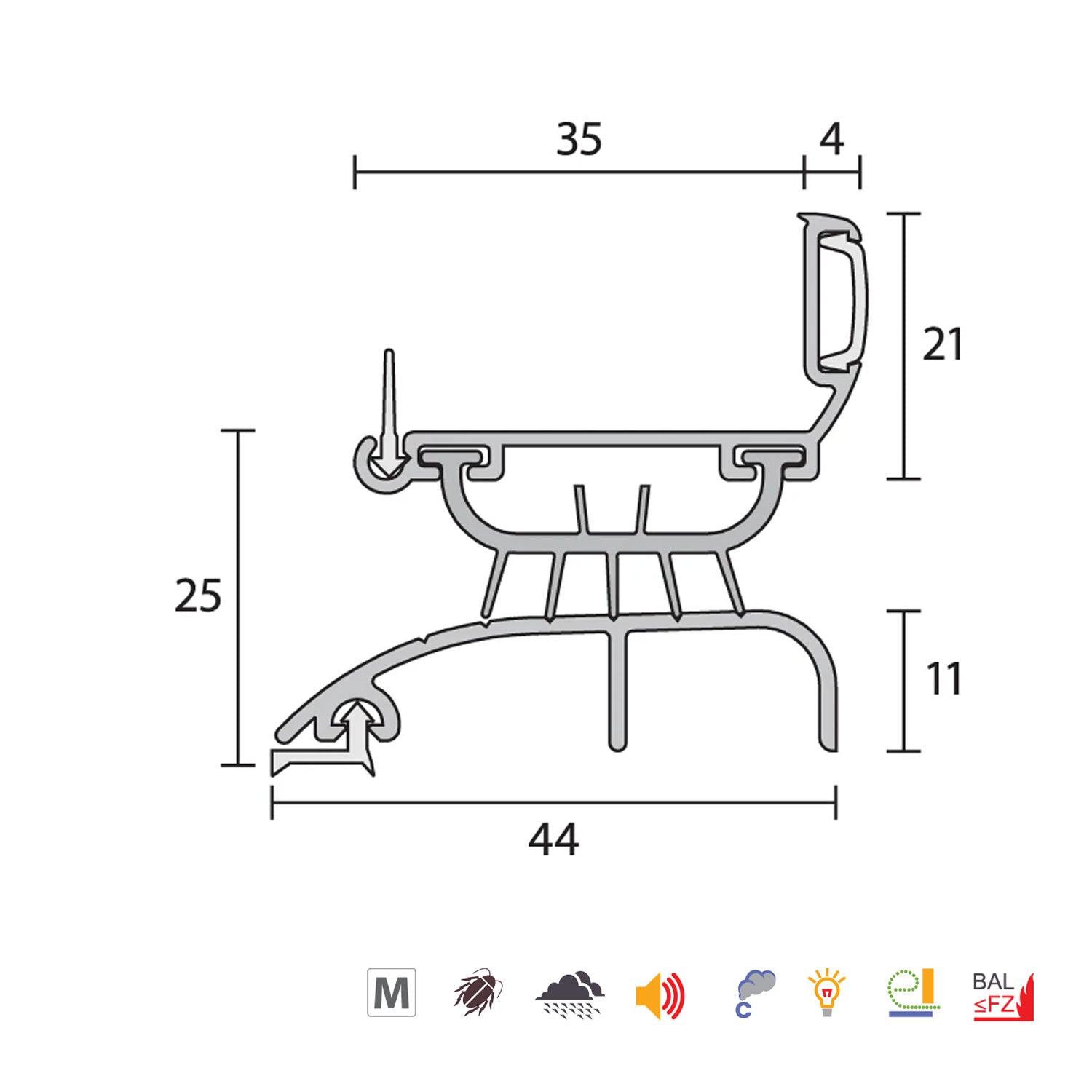

Specifications:
- Location: Bottom of single and double butt hinged doors and sill. Minimum door thickness of 35mm.
- Fixing: Screw Fixed (Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-slotted. Threshold plate fixing holes are pre-punched and countersunk)
- Minimum and Maximum Gap: 23mm to 25mm
- Replacement Seals: RP404, RP404a, RP404b
- Material: Aluminium (Anodised aluminium with flexible PVC gaskets)
-
Door/Frame Construction: Timber
Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening, Pivot - Finish: Bronze
-
Available Sizes:
- 1250mm
- 1750mm
Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.
Approvals:
- Access & Mobility AUS/NZ: NZBC D1/AS1 1.3.2
- Access & Mobility UK/EU: Approved Document M
- Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
- Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
Raven RP4 Storm Proof Door Bottom Seal
A4B1250
Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:
- Global GreenTag - Platinum
- A storm proof door bottom seal and threshold plate that is ideal where maximum weather protection is required. The RP4 multi-blade seal defies rain infiltration.
- Can be fitted to the square cut bottom of a door without removing the door, provided there is an existing gap of 25mm. It is quick and easy to fit to both door and sill.
- The sealing section is slotted for adjustment.
Specifications:
- Location: Bottom of single and double butt hinged doors and sill. Minimum door thickness of 35mm.
- Size: 1250
- Fixing: Screw Fixed (Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-slotted. Threshold plate fixing holes are pre-punched and countersunk)
- Minimum and Maximum Gap: 23mm to 25mm
- Replacement Seals: RP404, RP404a, RP404b
- Material: Aluminium (Anodised aluminium with flexible PVC gaskets)
-
Door/Frame Construction: Timber
Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening, Pivot - Finish: Bronze
Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.
Approvals:
- Access & Mobility AUS/NZ: NZBC D1/AS1 1.3.2
- Access & Mobility UK/EU: Approved Document M
- Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
- Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
