SKU: RAVA4C1000
Raven RP4 Storm Proof Door Bottom Seal Silver Anodised - Available in Various Sizes
RRP: $76.75
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Raven RP4 Storm Proof Door Bottom Seal
A4C1000
Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, and smoke can all be significantly reduced by closing the gaps along the door frame.
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:
- Global GreenTag - Platinum
- A storm proof door bottom seal and threshold plate that is ideal where maximum weather protection is required.
- RP4 multi-blade seal defies rain infiltration.
- Can be fitted to the square cut bottom of a door without removing the door, provided there is an existing gap of 25mm.
- It is quick and easy to fit to both door and sill.
- The sealing section is slotted for adjustment.
- Also available as an intumescent fire and hot smoke seal. Refer to RP4FZ.

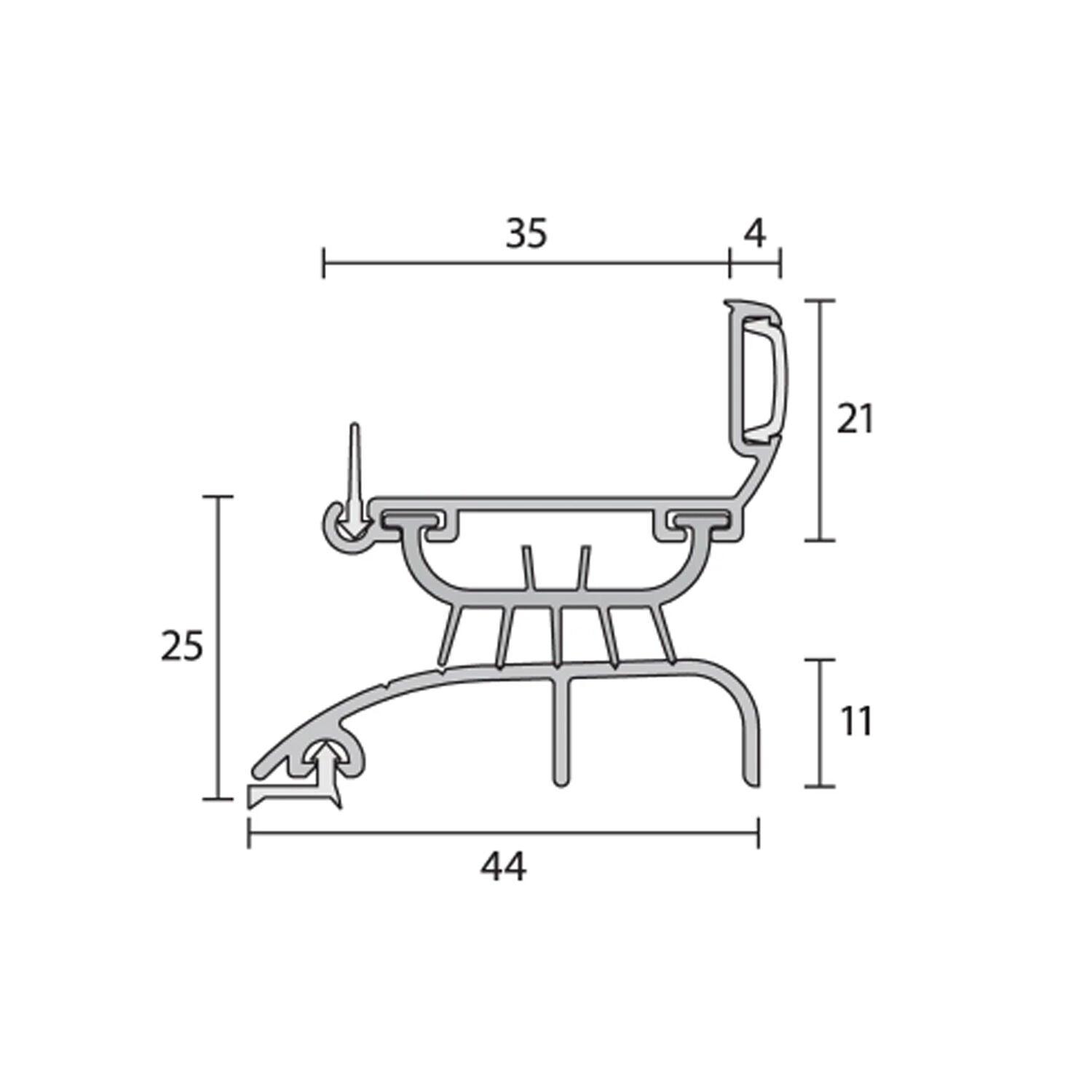

Specification:
- Location: Bottom of single and double butt hinged doors and sill
- Minimum door thickness: 35mm
- Min/Max Gap: 23mm to 25mm
- Fixing: Screw Fixed
- Material: Anodised aluminium with flexible PVC gaskets.
- Door/Frame Construction: Timber
- Finish: Silver Anodised
- Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening, Pivot
- Replacement Seals: RP404, RP404a, RP404b
-
Available Sizes:
- 1000mm
- 1250mm
- 1750mm
- 2000mm
Approval/s:
- Access & Mobility AUS/NZ: NZBC D1/AS1 1.3.2
-
Access & Mobility UK/EU: Approved Document M
- Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
- Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
Raven RP4 Storm Proof Door Bottom Seal
A4C1000
Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, and smoke can all be significantly reduced by closing the gaps along the door frame.
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:
- Global GreenTag - Platinum
- A storm proof door bottom seal and threshold plate that is ideal where maximum weather protection is required.
- RP4 multi-blade seal defies rain infiltration.
- Can be fitted to the square cut bottom of a door without removing the door, provided there is an existing gap of 25mm.
- It is quick and easy to fit to both door and sill.
- The sealing section is slotted for adjustment.
- Also available as an intumescent fire and hot smoke seal. Refer to RP4FZ.
Specification:
- Location: Bottom of single and double butt hinged doors and sill
- Minimum door thickness: 35mm
- Min/Max Gap: 23mm to 25mm
- Fixing: Screw Fixed
- Material: Anodised aluminium with flexible PVC gaskets.
- Door/Frame Construction: Timber
- Finish: Silver Anodised
- Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening, Pivot
- Replacement Seals: RP404, RP404a, RP404b
- Size: 1000mm
Approval/s:
- Access & Mobility AUS/NZ: NZBC D1/AS1 1.3.2
- Access & Mobility UK/EU: Approved Document M
- Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
- Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
