Raven RP44Si Perimeter Smoke Seal Silver Anodised - Available in Various Sizes

Raven RP44Si Perimeter Smoke Seal

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications

Features:

• Global GreenTag - Platinum
• An effective acoustic and medium temperature smoke seal
• RP44Si has two extruded silicon bulb gaskets and can be mitred or butt jointed for a neat finish.

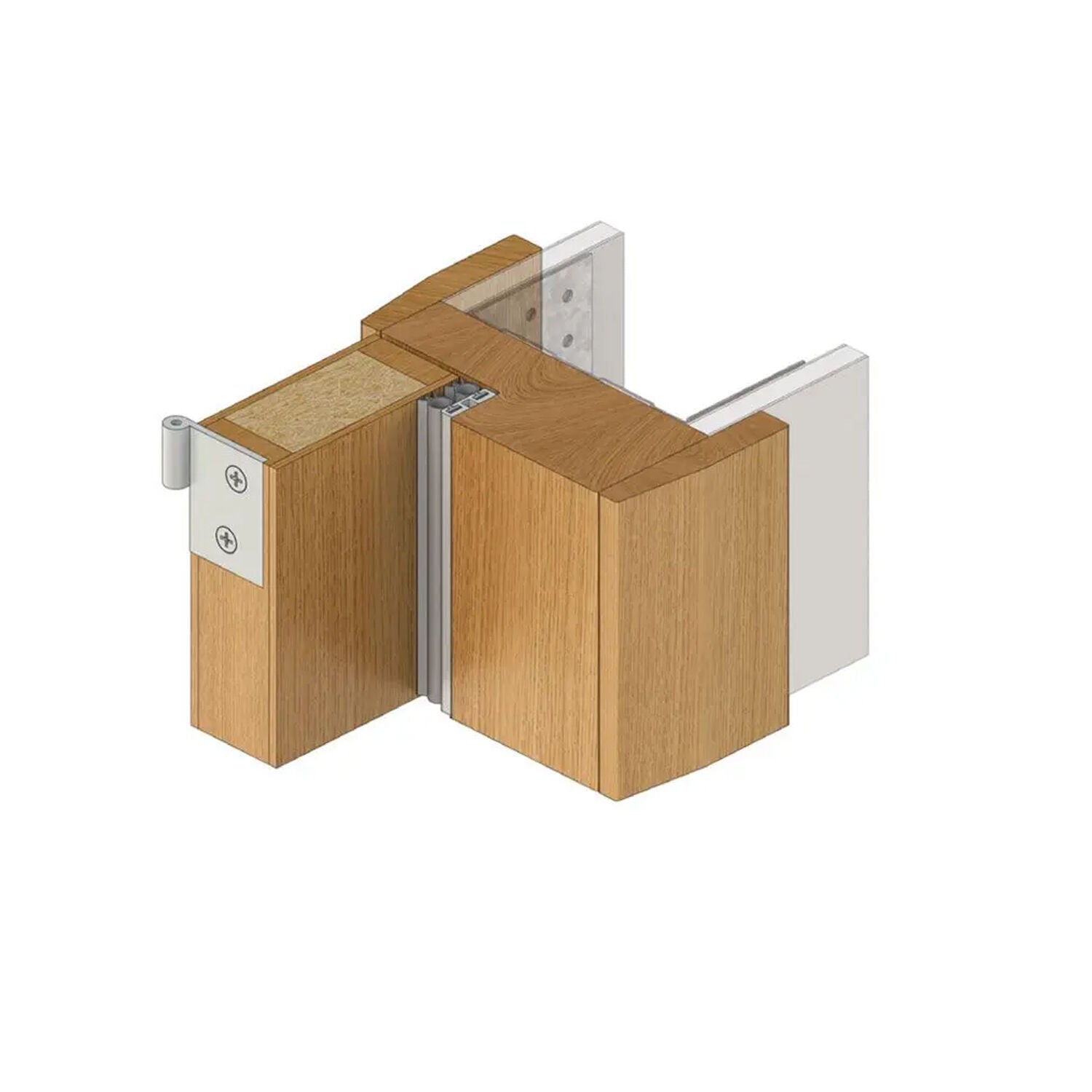

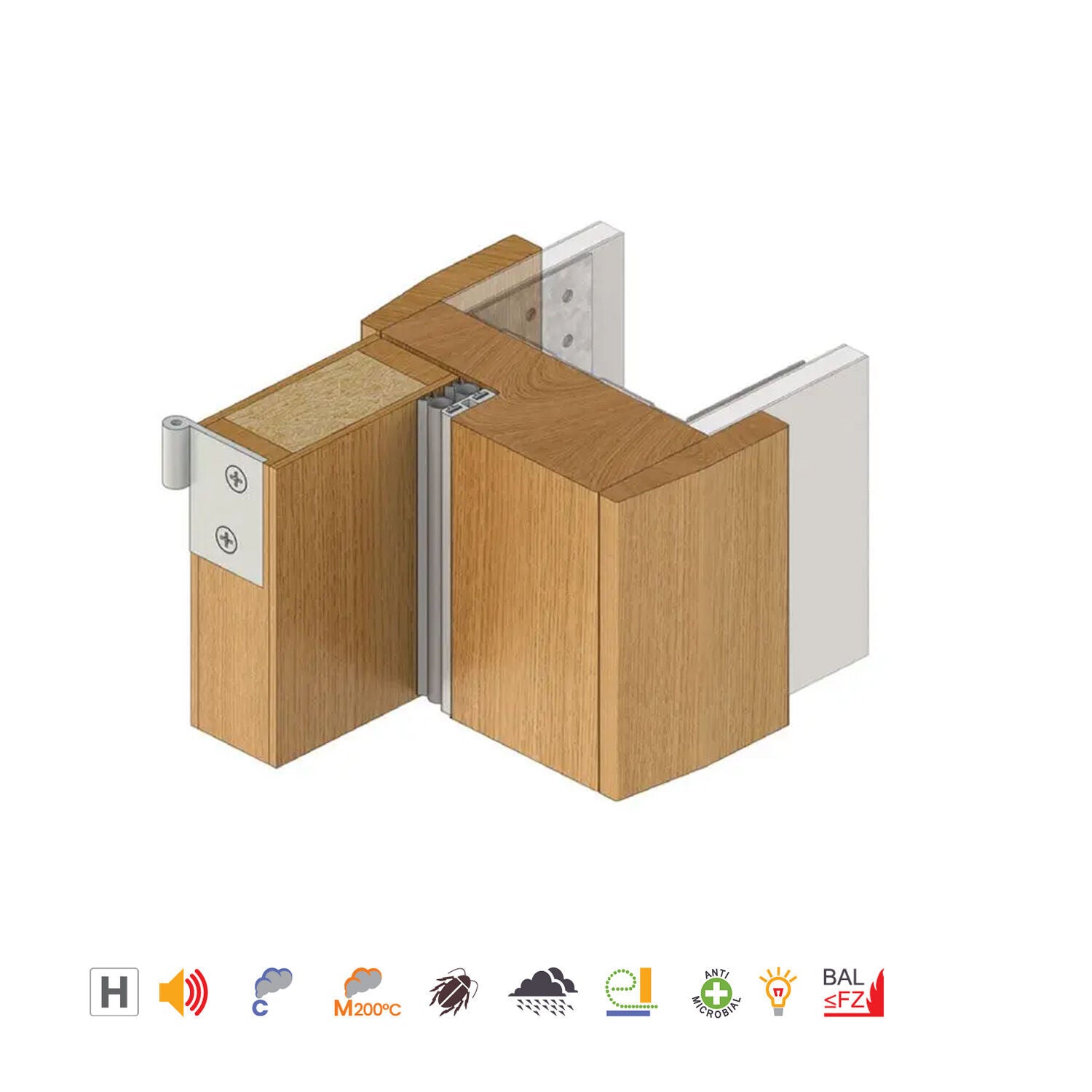

• Can be installed on door stops with sufficient depth and broad butt hinges should be specified.

Specification:

• Location: Head and jambs of single and double, broad butt hinged doors or bulkhead applications.
• Min/Max Gap: 8mm to 10mm

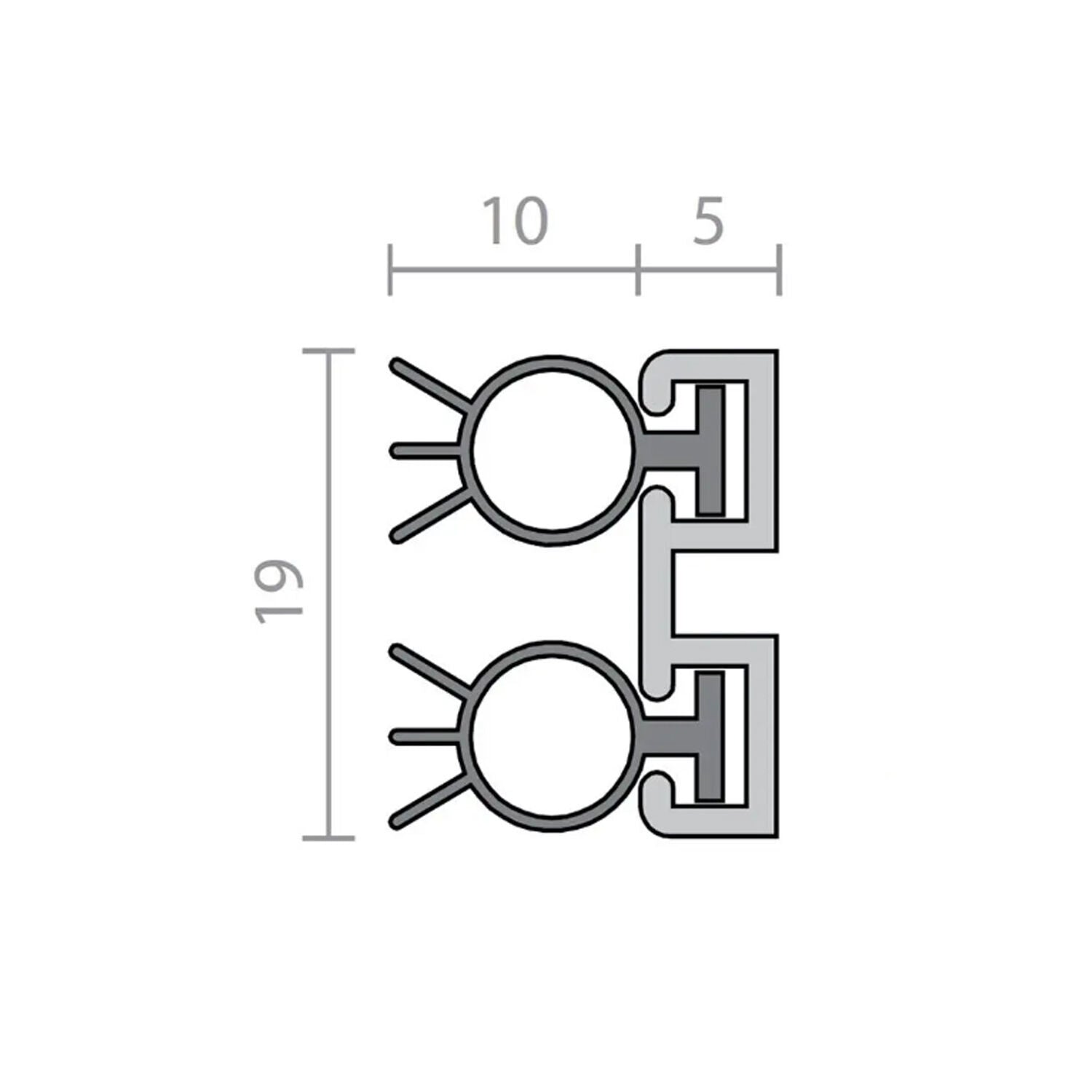

  (allow 13mm to 14mm for installation, refer to product dimensions)
• Fixing: Screw Fixed
• Material: Anodised aluminium with silicon rubber (SE) gasket.
• Door/Frame Construction: Timber
• Finish: Silver Anodised
• Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening
• Replacement Seals: RP308Si GR
• Available Sizes:
  • 1000mm
  • 2500mm
  • 3000mm

Approval/s:

• Acoustic AUS/NZ: NCC F7D6
• Acoustic UK/EU: Approved Document E, Rated to BS EN ISO 717-1
• Fire Flammability Index: Gasket flammability index 1 when tested to AS1530.2
• Smoke AUS/NZ: NCC S12C4, NZBC C/AS2 4.16.2(b)
• Smoke UK/EU: Approved Document B
• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
