Raven RP4B Threshold Plate 3000mm Bronze Anodised A4BB3000

Raven RP4B Threshold Plate
A4BB3000

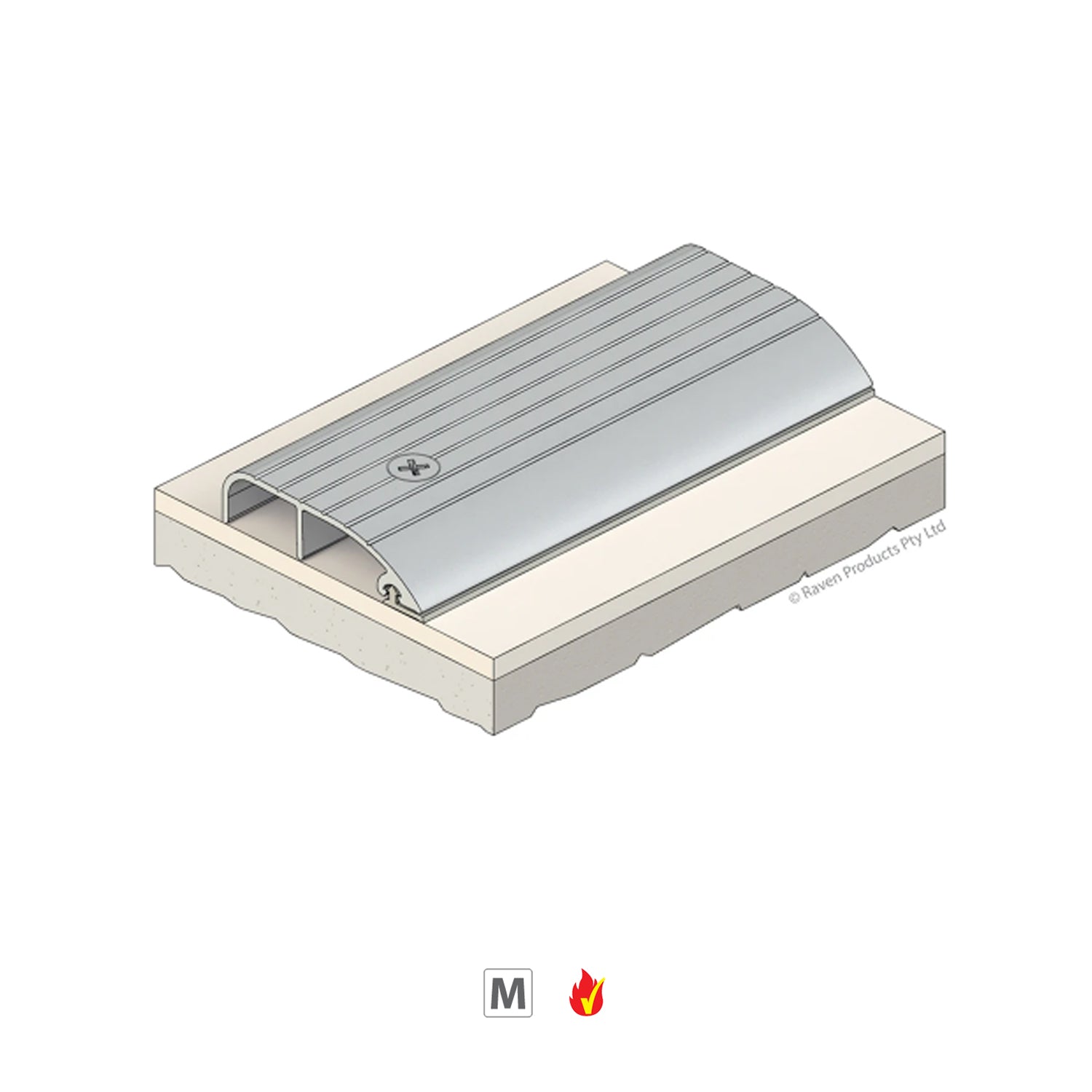

Threshold Plate - enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

• Medium-duty threshold plate for door sills
• Integral sill gasket (PVC seal) for improved sealing performance
• Designed for use with door bottom sealsHelps create an effective seal against draughts, weather, and gaps
  Made from anodised aluminium for durability and wear resistance
  Pre-drilled, countersunk fixing holes for
• easy installation
• Suitable for single and double, inward or outward opening doors
• Fire tested / compliant when used with appropriate door seals

Specifications:

• Location: Door sill

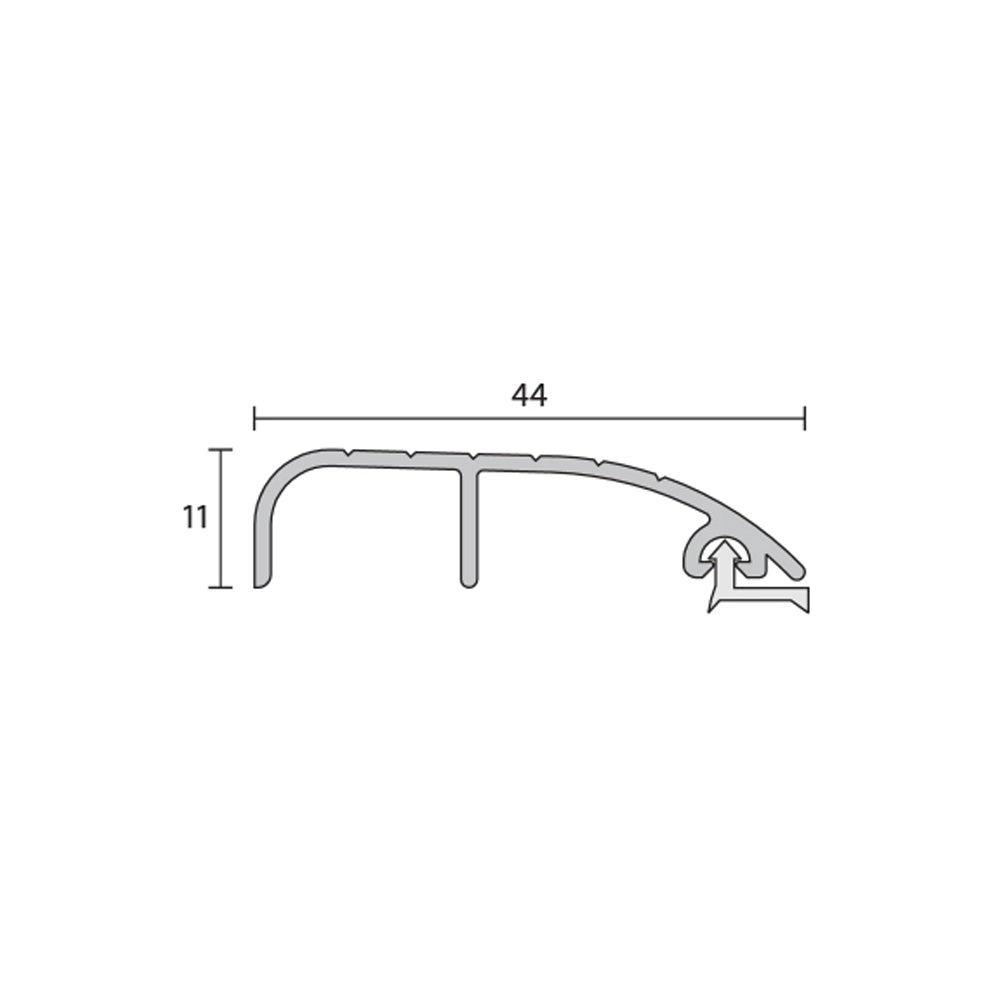

• Size/Length: 3000mm
• Fixing:
  • Screw Fixed
  • Screw fix. Zinc plated, cross recess head CSK S.T. screws supplied. Fixing holes are pre-punched and countersunk.
• Replacement Seals: RP404a
• Finish: Bronze Anodised
• Material:
  • Aluminum
  • Anodised aluminium with flexible PVC gaskets.

Note:

• Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.

Approvals:

• Access & Mobility AUS/NZ: NZBC D1/AS1 1.3.2
• Access & Mobility UK/EU: Approved Document M
• Accreditations: ANSI/BHMA: A156.21
• Fire AUS/NZ: AS 1530.4, NCC S12C2, AS 1905.1, NZBC C/AS2 4.16.2(a) & App C6.1.1
• Fire UK/EU: BS 476 Pt. 20 & 22 (similar to BS EN 1634-1), Approved Document B
• Fire Rating: Up to FRL & FRR-/240/30
• BAL Statement: BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959
