SKU: RAVB510BK24
Raven RP510 Meeting Stile Seals 2400mm Roll Black B510BK24
RRP: $109.74
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Raven RP510 Meeting Stile Seals
B510BK24
Meeting Stile are seals for frameless glass sliding doors.
Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.
Features:
- A compression seal, made from silicon
- A high resistance to permanent set (memory)
- It will not absorb water and is resistant to ozone and ultra-violet light deterioration

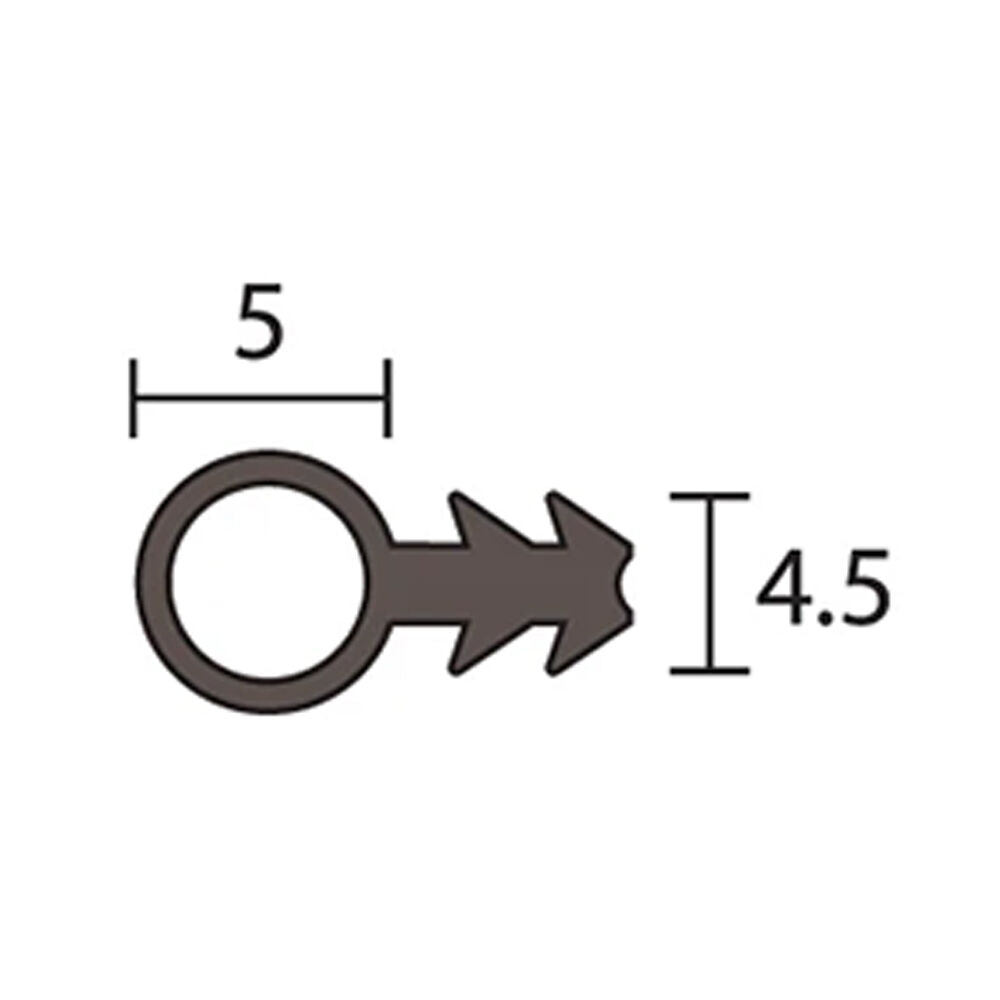

Specifications:
- Min and Max Gap: 3mm - 5mm
- Compression: 1mm - 2mm

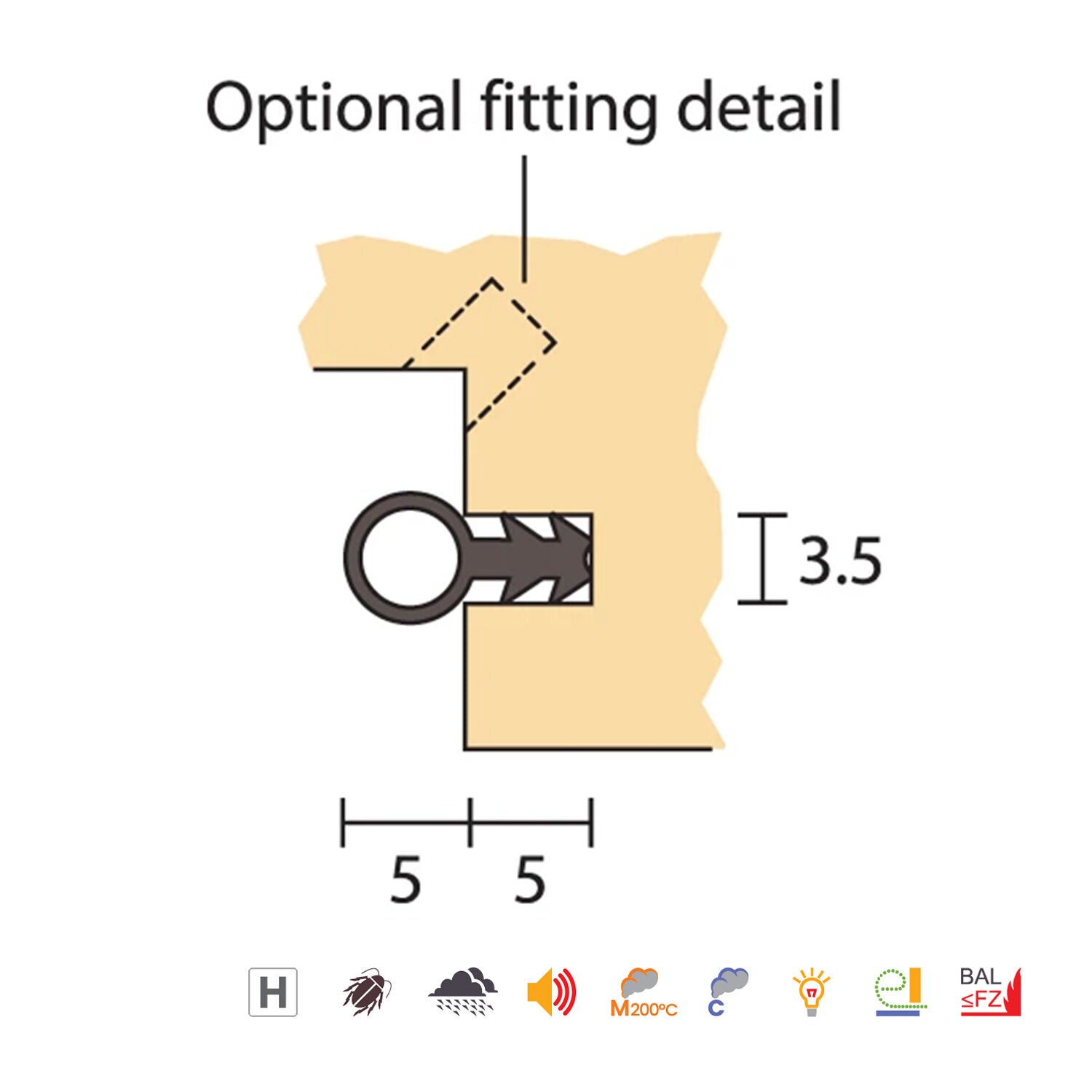

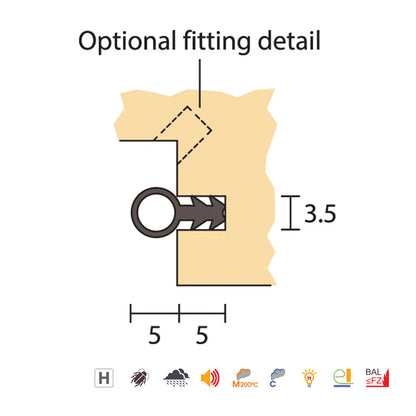

- Fixing: Push-in Friction Fit
- Depth: 5mm
- Diameter: 5mm
- Kerf Groove Width: 4.5mm
- Length: 2400mm (24m Coil)
- Finish: Black
Approvals:
- NCC F7D6
- Approved Document E, Rated to BS EN ISO 717-1
- AS/NZS 1170, NCC various sections, AS 2047, AS 4055, AS 4420 Pt. 0 to 5
- Approved Document L1 & L2, Tests above are similar to BS 5368 & BS 7386
- ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
