Raven RP51si Door Bottom Sweep Seal 1000mm Bronze Anodised A51SIB1000

Raven RP51si Door Bottom Sweep Seal
A51SIB1000

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• Heavy-duty silicone rubber sweep seal for door bottoms
• Designed for outward opening single & double doors
• Seals gaps (5–20mm) against draughts, dust, insects & noise
• Anodised aluminium carrier for durability
• Concealed fixing with cover strip for clean finish
• Adjustable slotted holes for easy installation
• Suitable for timber or aluminium doors
• Can be used as a bottom seal or meeting stile (astragal)

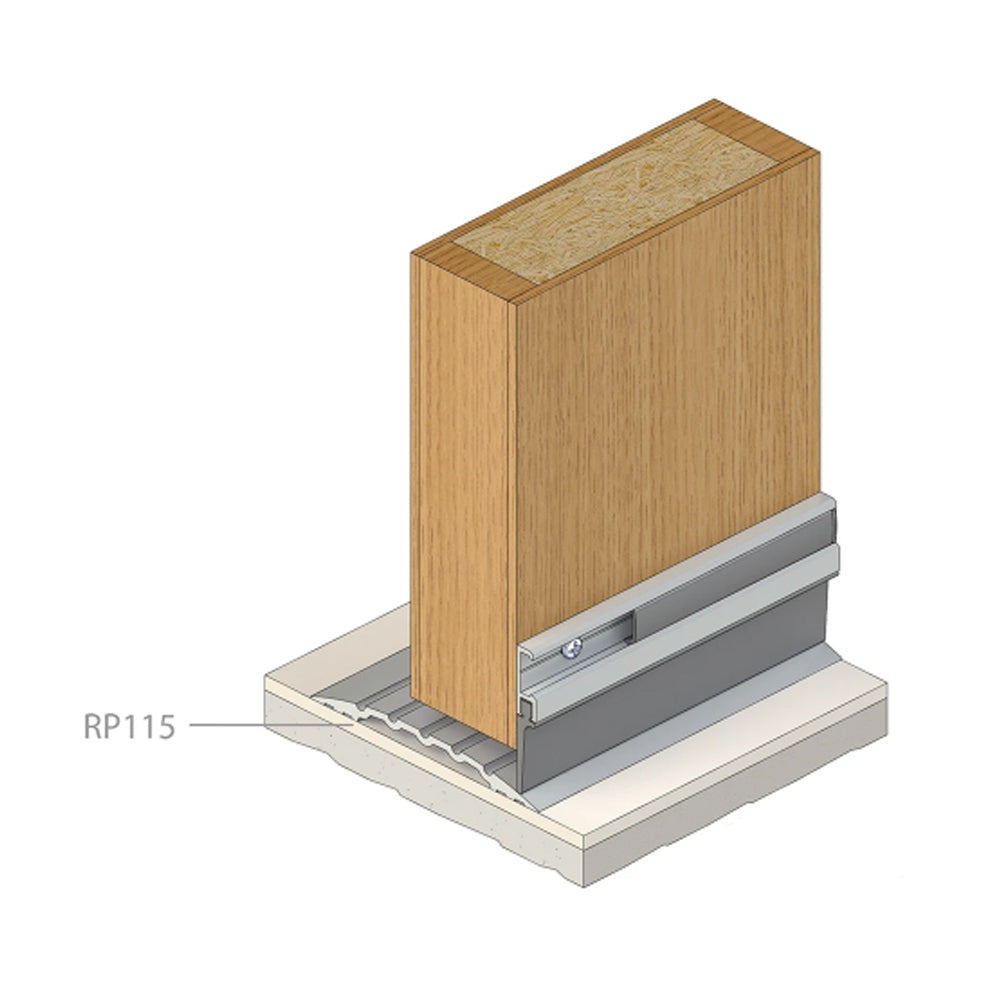

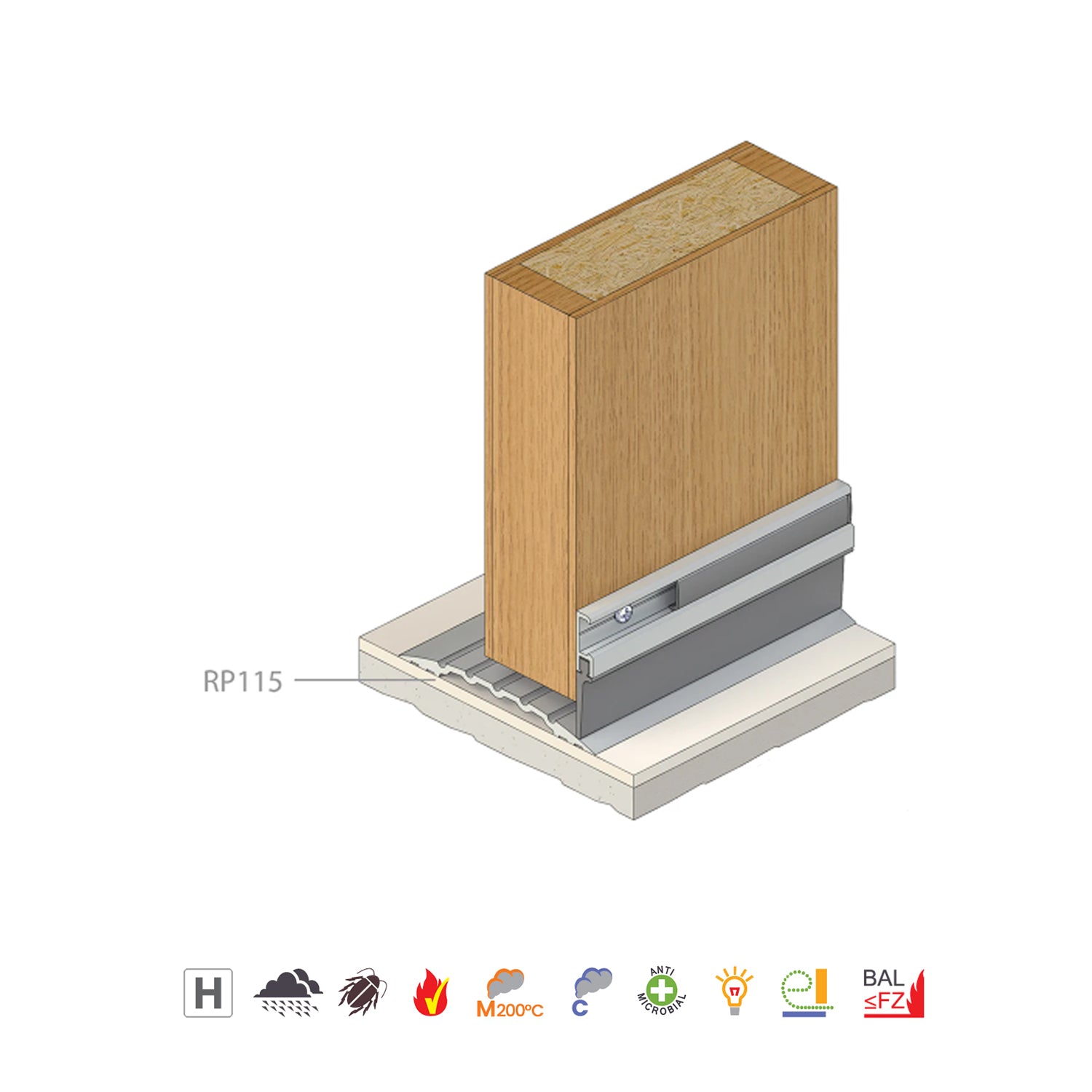

• Compatible with threshold plates for improved sealing
• Helps reduce sound, smoke, moisture, and heat loss

Specifications:

• Location: Bottom of single and double, outward opening, butt hinged doors, tilt up doors or can be used as a meeting stile seal (astragal).
• Size/Length: 1000mm
• Fixing
  • Screw Fixed
  • Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-slotted.
• Min & Max Gap: 5mm to 20mm
• Replacement Seals: RP351Si
• Finish: Bronze Anodised
• Material:
  • Aluminum
  • Anodised aluminium with silicone rubber (SE) gasket.
• Door/Frame Construction: Timber, Aluminium
• Door Type: Single Outward Opening, Double Outward Opening
  Garage Door Type: Tilt-up

Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.

Approvals:

• Accreditations: UL: R37913, Certifire: CF 5710
• Fire & Smoke AUS/NZ: NCC S12C2, AS 1530.4, AS 1905.1, NZBC C/AS2 4.16.2 & App C6.1.1 & App C6.1.2
• Fire & Smoke UK/EU: Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
• Fire Rating: Up to FD120, Up to FRL & FRR-/120/30
• Fire Flammability Index: Gasket flammability index 1 when tested to AS1530.2
• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.7, AS 4674 Sect. 2.1.5 Pt. (iv)
